2019 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
Lighting Control Module Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

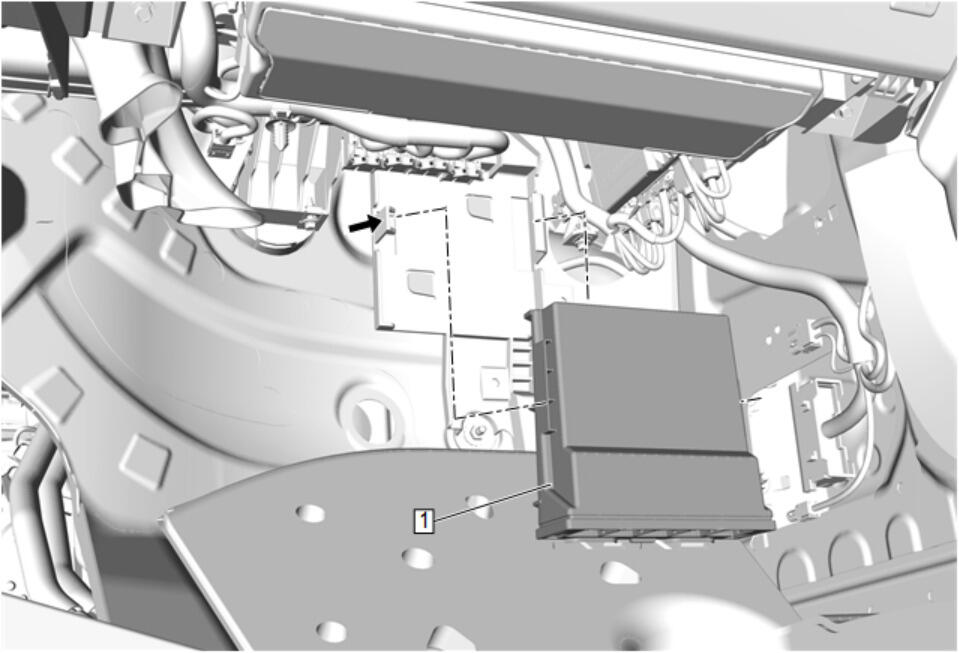

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side |
|
| 1 | Lighting Control Module Procedure
|
