2019 GMC Terrain SLFACTORY OEM SERVICE PROCEDURE
Fastener Specifications
WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

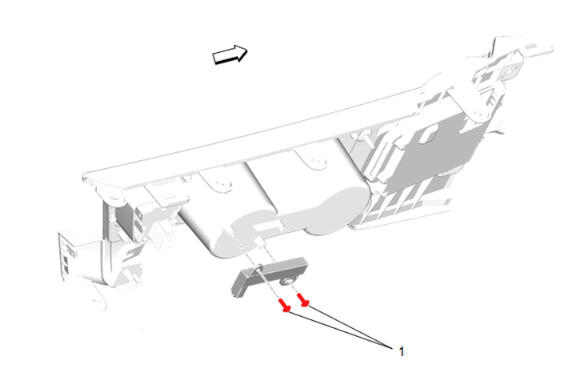

Low Frequency Instrument Panel Antenna
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Low Frequency Instrument Panel Antenna Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Low Frequency Instrument Panel Antenna Replacement (M5N) , or Low Frequency Instrument Panel Antenna Replacement (MQA) |

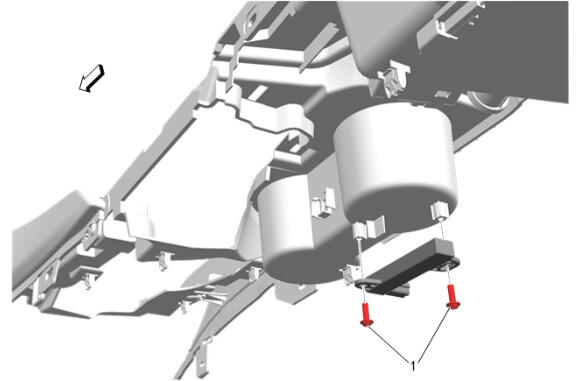

Low Frequency Instrument Panel Antenna (Blackwing)
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Theft Deterrent Module Bolt [2x] | - | - | 4.7 N.m (42 lb in) | Low Frequency Instrument Panel Antenna Replacement (M5N) , or Low Frequency Instrument Panel Antenna Replacement (MQA) |

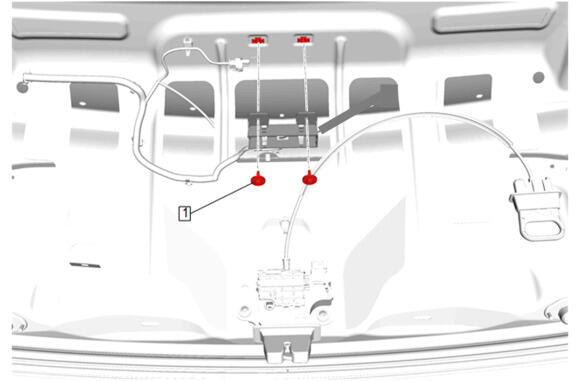

Low Frequency Rear Compartment Antenna Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Low Frequency Rear Compartment Antenna Bracket Bolt [2x] | - | - | 2.5 N.m (22 lb in) | Low Frequency Rear Compartment Antenna Bracket Replacement |
