2016 GMC Canyon SLFACTORY OEM SERVICE PROCEDURE

Fuel Pump Power Control Module Replacement

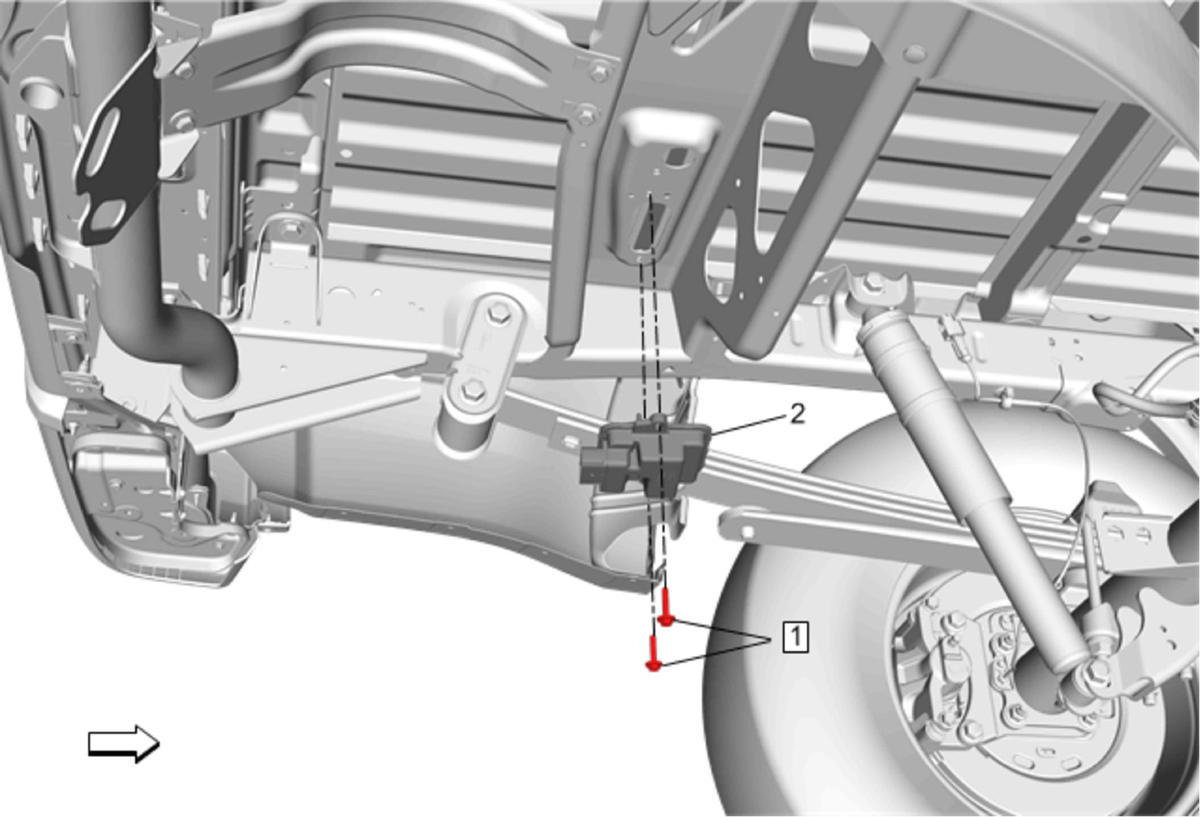

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the spare tire.

Fuel Pump Power Control Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References .
