2016 GMC Canyon SLFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove Spare Tire.
- Disconnect the electrical connector.

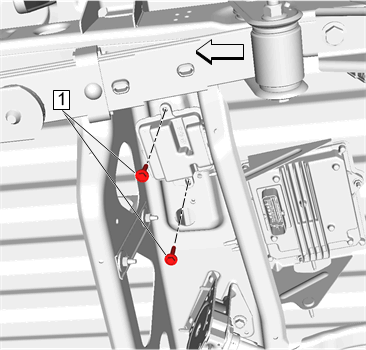

- Remove Trailer Brake Power Control Module Bolt (1).

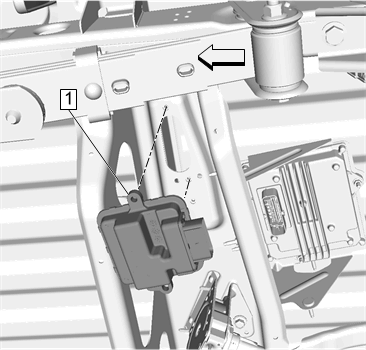

- Remove Trailer Brake Power Control Module (1).
