2011 GMC Acadia SLT, FWDFACTORY OEM SERVICE PROCEDURE
Engine Components - Front

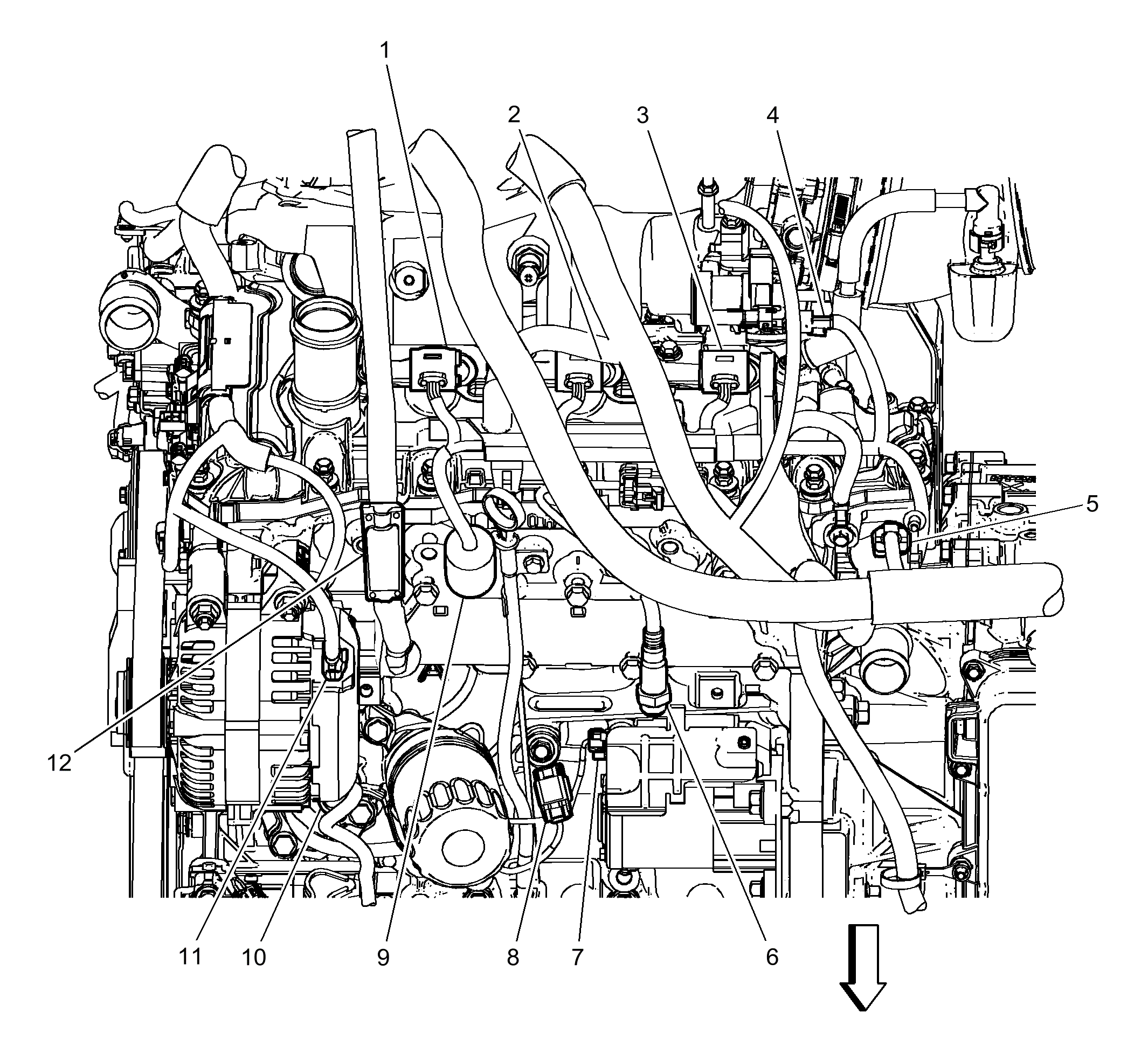

Engine Components - Front
| Component Name | Callout |
|---|---|
| Ignition Coil 2 | 1 |
| Ignition Coil 4 | 2 |
| Ignition Coil 6 | 3 |
| Evaporative Emission (EVAP) Canister Purge Solenoid Valve | 4 |
| High Pressure Fuel Pump | 5 |
| Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 | 6 |
| Starter Motor | 7 |
| Knock Sensor (KS) 2 | 8 |
| Engine Coolant Temperature (ECT) Sensor | 9 |
| Engine Oil Pressure (EOP) Sensor | 10 |
| Generator | 11 |
| Inline Fuse - Generator | 12 |
