Communication Interface Module Replacement

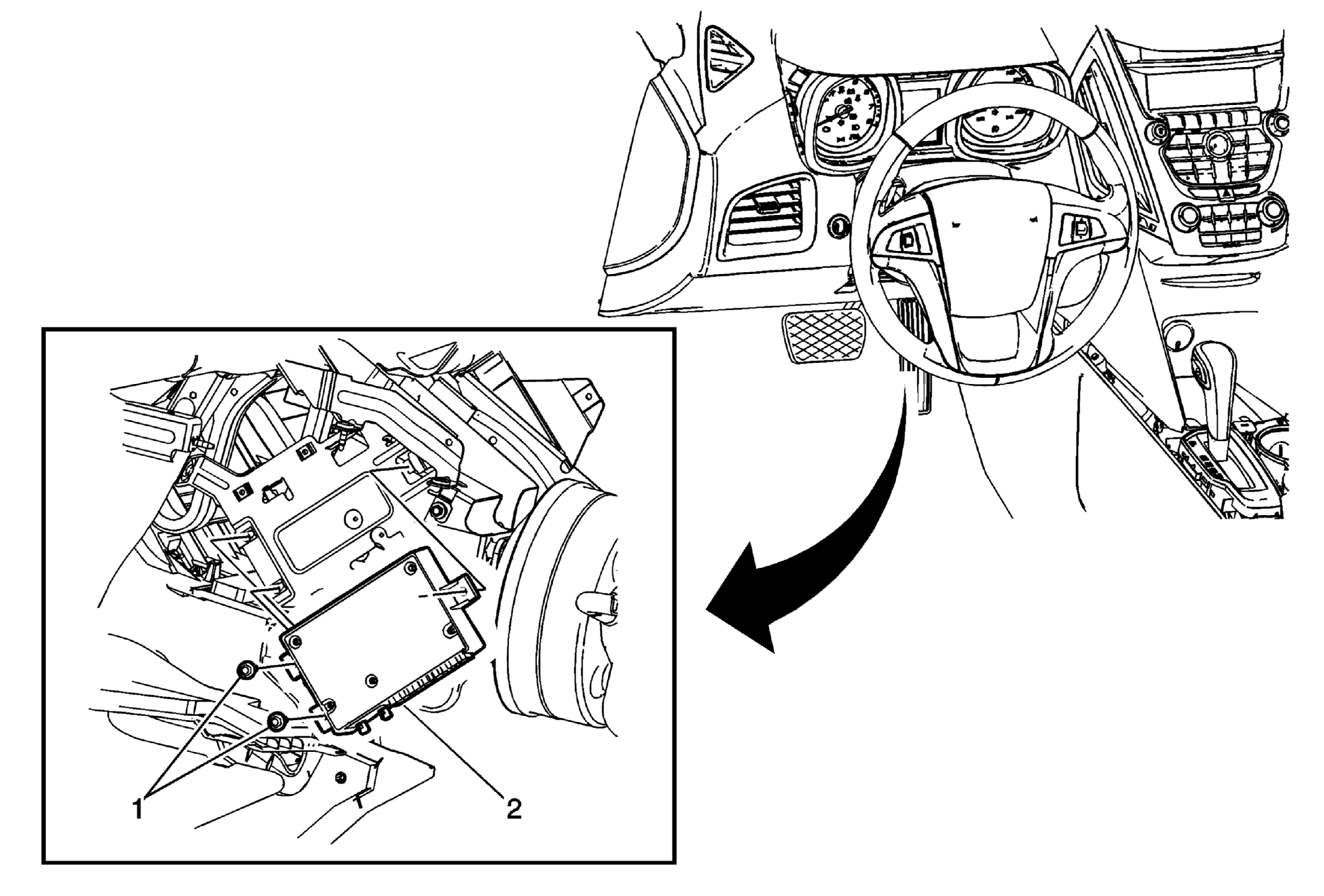

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the driver side knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox) or Driver Knee Bolster Reinforcement Replacement (Terrain) |
|
| 1 | Communication Interface Module Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Communication Interface Module Procedure
|
