2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Front Side Door Window Belt Inner Sealing Strip Replacement
Front Side Door Window Belt Inner Sealing Strip Replacement
Removal Procedure
1. Remove the side front door trim panel from the door. Refer to Front Side Door Trim Panel Replacement (Front Side Door Trim Panel Replacement).
2. Lower the window all the way down.

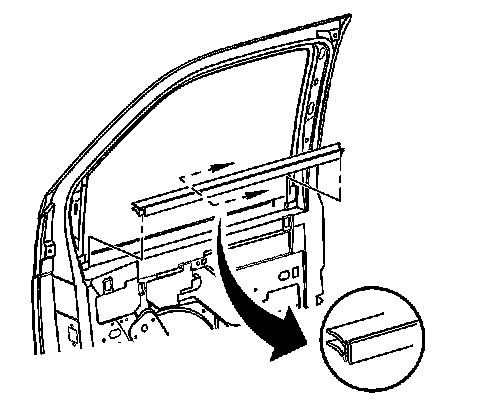

3. Remove the sealing strip from the pinch-weld flange by gently pulling up on the sealing strip.
Installation Procedure
1. Install the sealing strip to the pinch-weld flange.
2. Raise the window.
3. Install the side front door trim panel to the door. Refer to Front Side Door Trim Panel Replacement (Front Side Door Trim Panel Replacement).
