2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Power Window Switch: Locations
Door Component Views

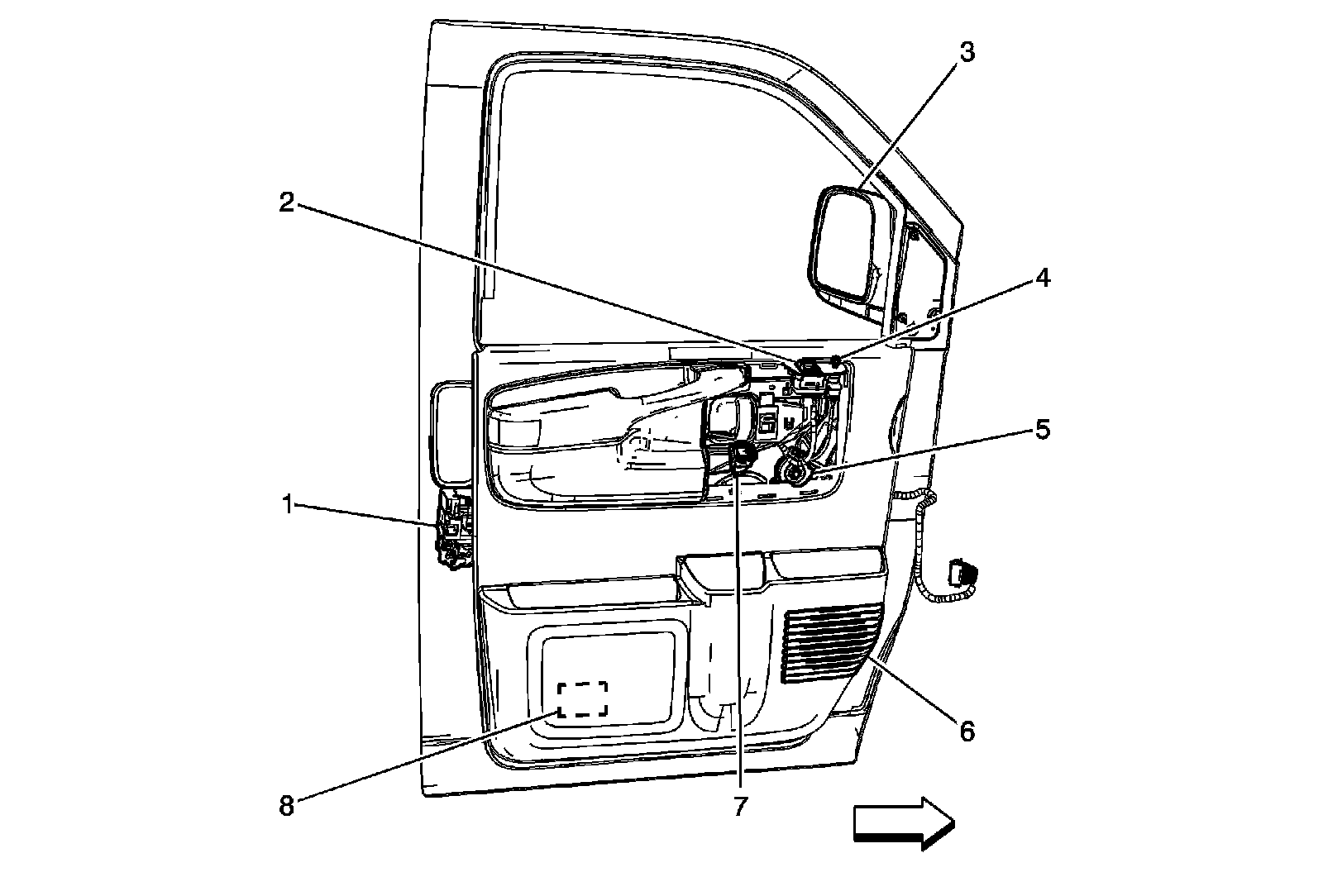

Driver Door
1 - Door Latch - Driver
2 - Window Switch - Driver (A31)
3 - Outside Rearview Mirror - Driver (DE5 or DE7)
4 - Outside Rearview Mirror Switch (DE5 or DE7)
5 - Window Motor - Driver (A31)
6 - Speaker - Left Front
7 - Door Lock Switch - Driver (AU3)
8 - Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)

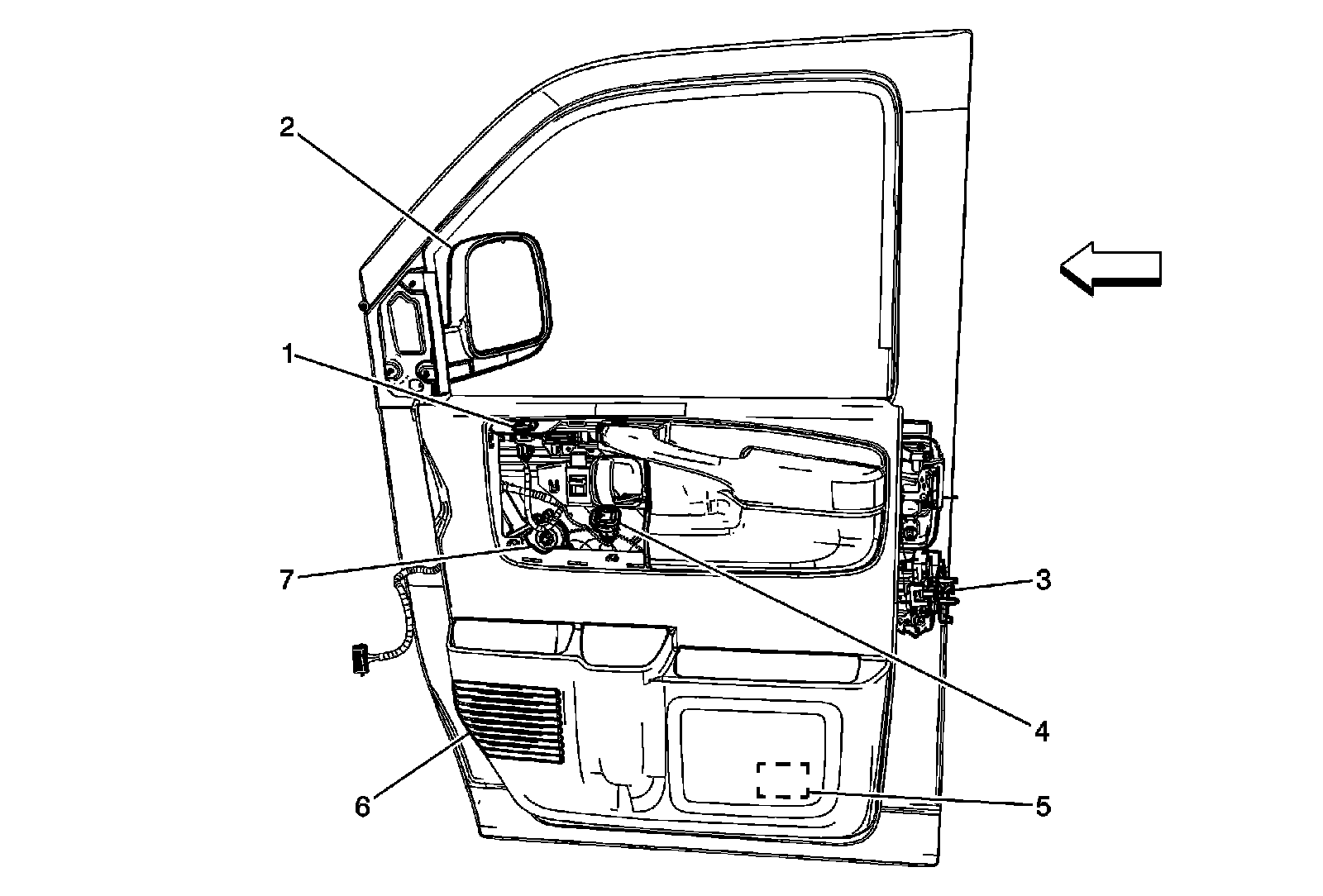

Front Passenger Door
1 - Window Switch - Passenger (A31)
2 - Outside Rearview Mirror - Passenger (DE5 or DE7)
3 - Door Latch - Passenger
4 - Door Lock Switch - Passenger (AU3)
5 - Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
6 - Speaker - Right Front
7 - Window Motor - Passenger (A31)
