2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Kostal Connectors (Glow Plug Control Module)
Kostal Connectors (Glow Plug Control Module)
Special Tools
J-38125 Terminal Repair Kit
Removal Procedure

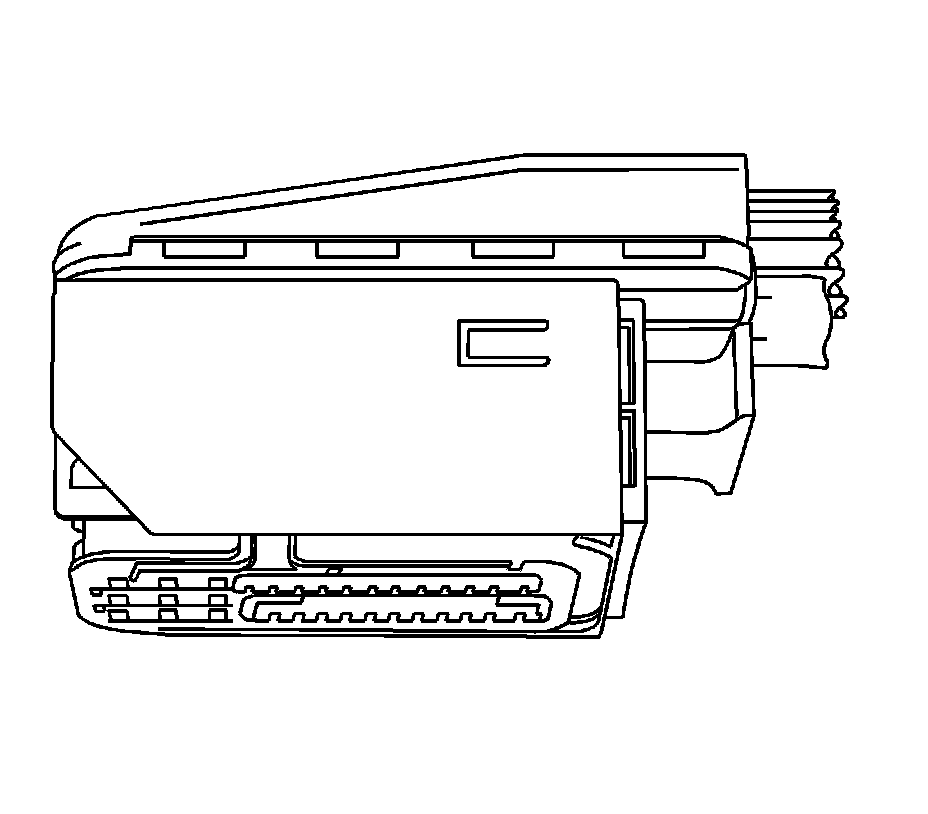

View of typical connector.

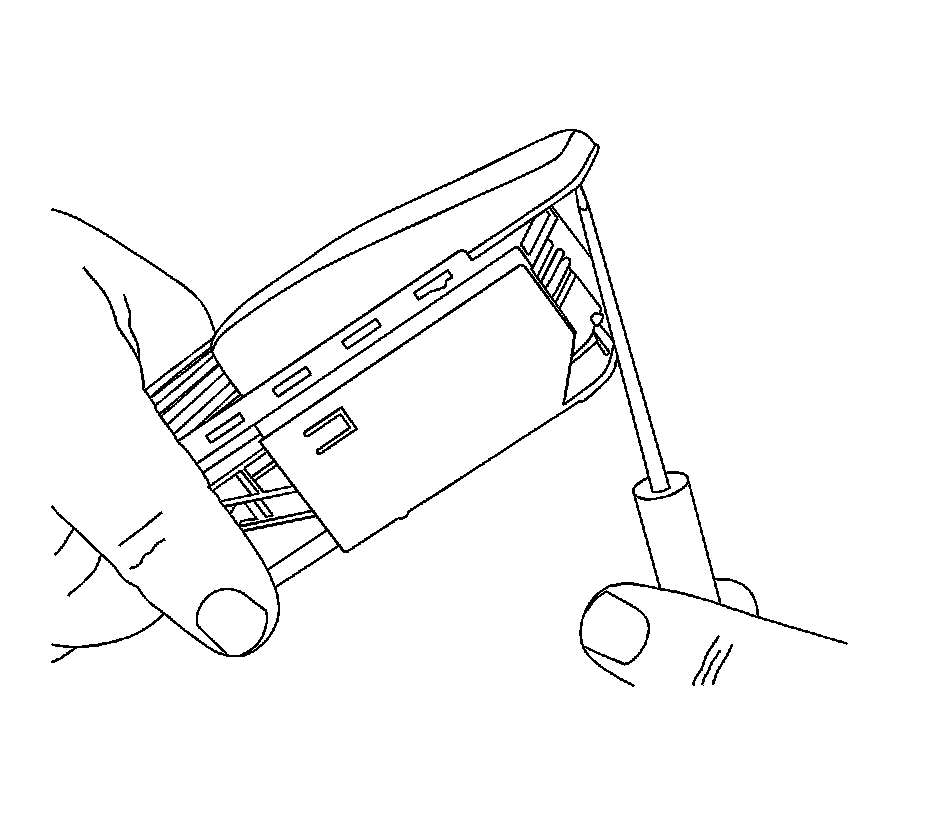

View of connector in released position.
1. Locate the assist lever at the back of the connector. Move the assist lever to the rear position.
2. Disconnect the connector from the component.

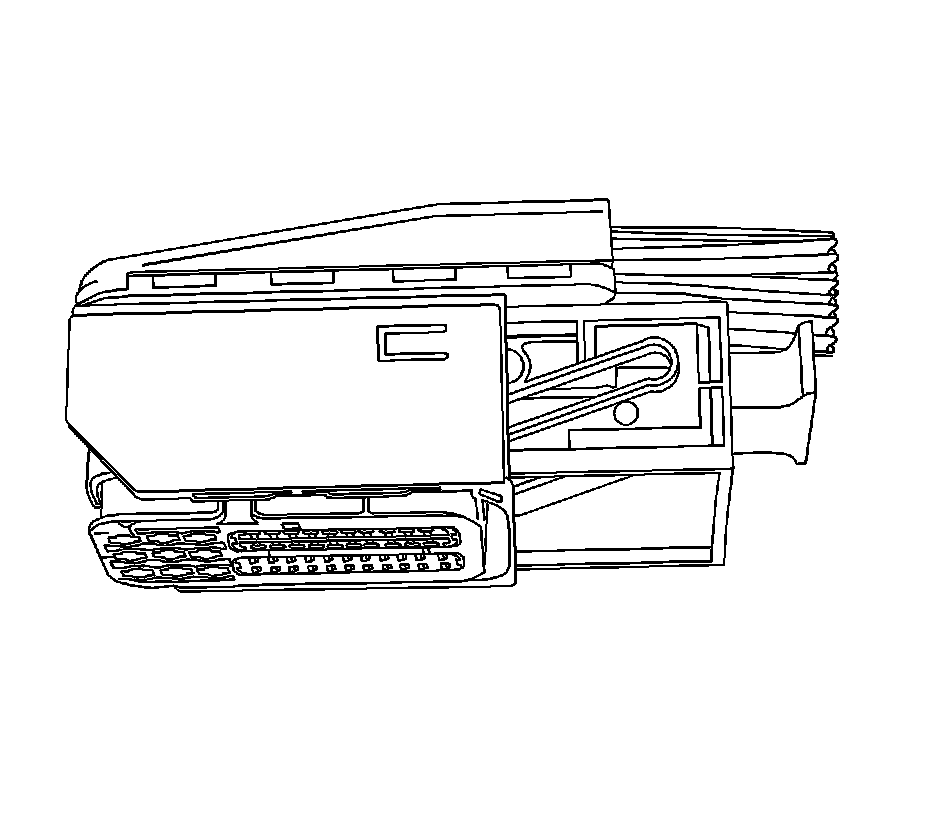

3. Use a small flat-blade tool to remove the dress cover.
4. Slide the dress cover forward and off of the connector.
5. The terminal positive assurance (TPA) is located in the front and rear of the connector.
Note: The front TPA cannot be removed from the connector. Only move it to the preset position.

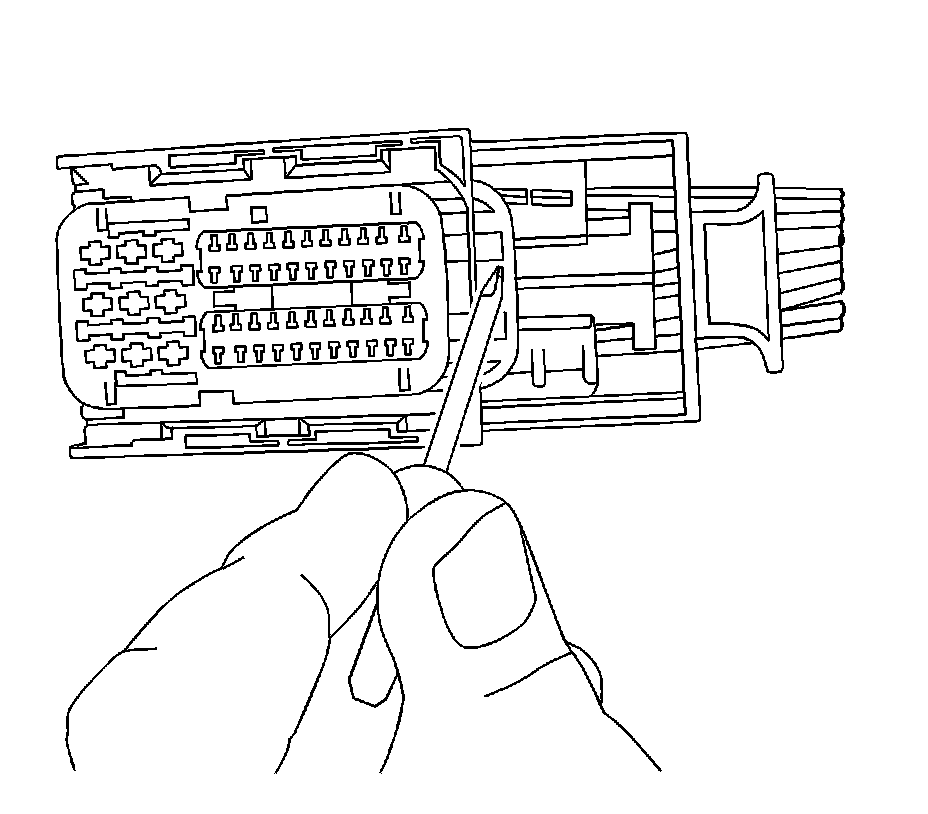

6. Use a small flat-blade tool to move the front TPA to the preset position, outboard approximately 0.125 in. (3 mm).

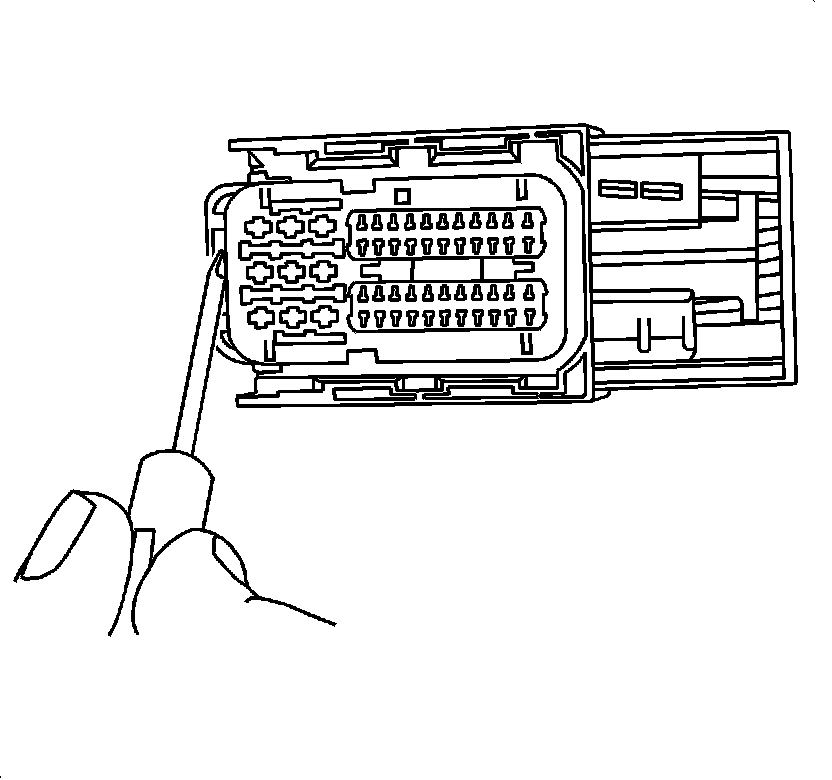

7. Use a small flat-blade tool to completely remove the rear TPA from the connector.

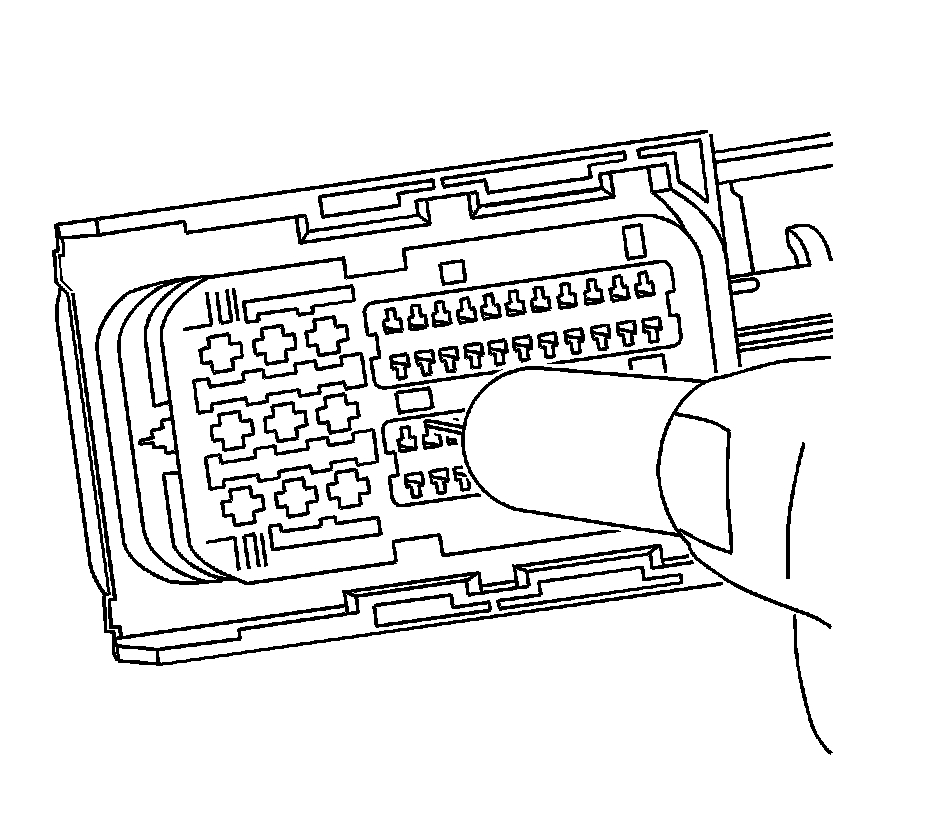

8. Use the J 38125-24 or the J 38125-560 tool to release the terminals by inserting the tool into the terminal release cavity. See the release tool cross reference in the Reference Guide of the J-38125 to ensure that the correct release tool is used.
9. While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a terminal out of a connector.
Repair Procedure
Use the appropriate terminal and follow the instructions in the J-38125.
Location of the terminal in the repair tray and the proper crimp tool can be found in the appropriate connector end view.
