Powertrain Component Views

Powertrain Component Views

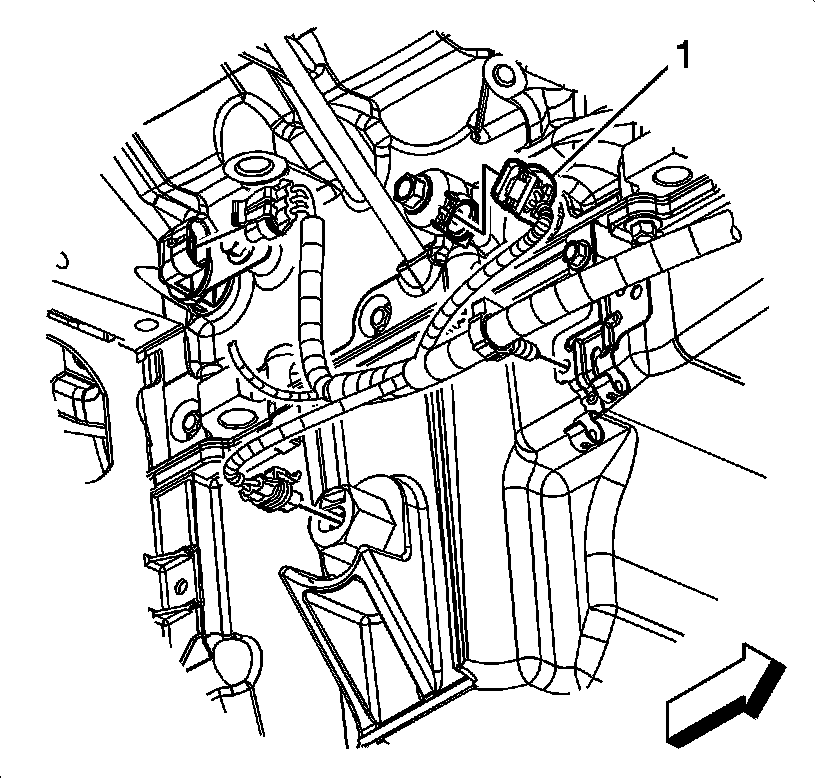

Lower Right of Engine (LU3)




1 - Knock Sensor (KS) 2

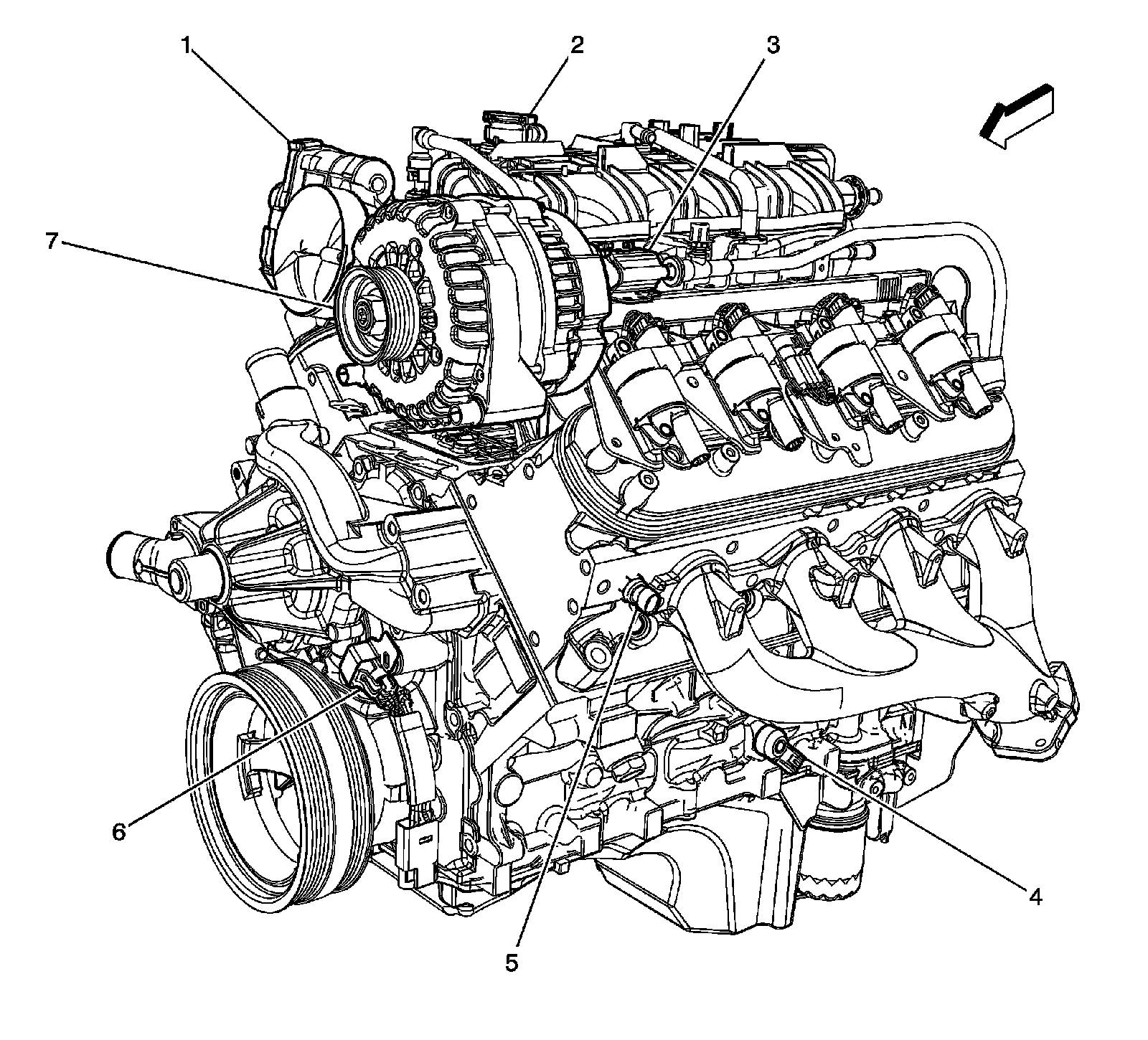

Front of the Engine Components (L20, LMF or L96)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Camshaft Position (CMP) Sensor
7 - Generator

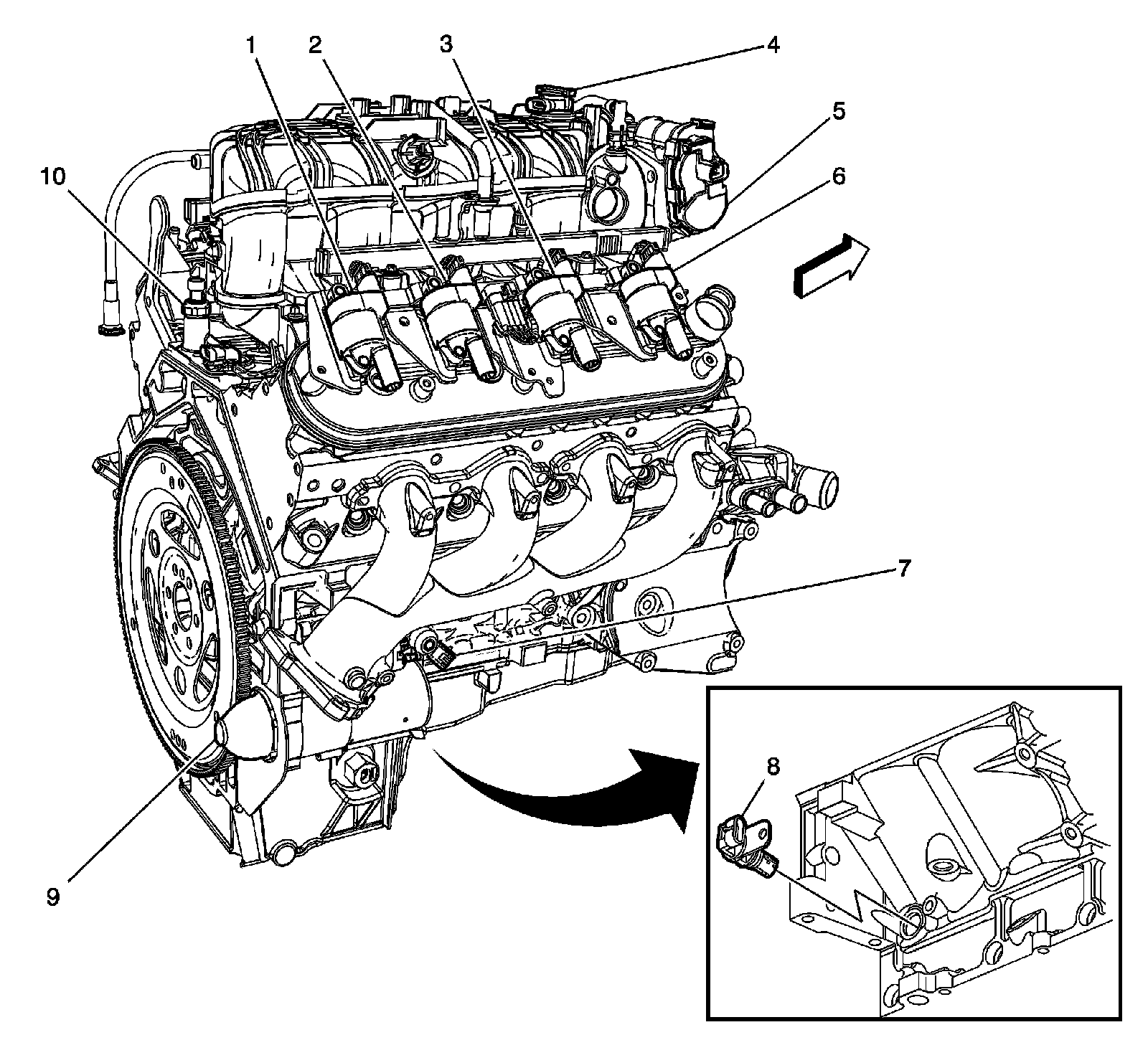

Right Side of the Engine Components (L20, LMF or L96)




1 - Ignition Coil 8
2 - Ignition Coil 6
3 - Ignition Coil 4
4 - Manifold Absolute Pressure (MAP) Sensor
5 - Throttle Body
6 - Ignition Coil 2
7 - Knock Sensor (KS) 2
8 - Crankshaft Position (CKP) Sensor
9 - Starter
10 - Engine Oil Pressure (EOP) Sensor

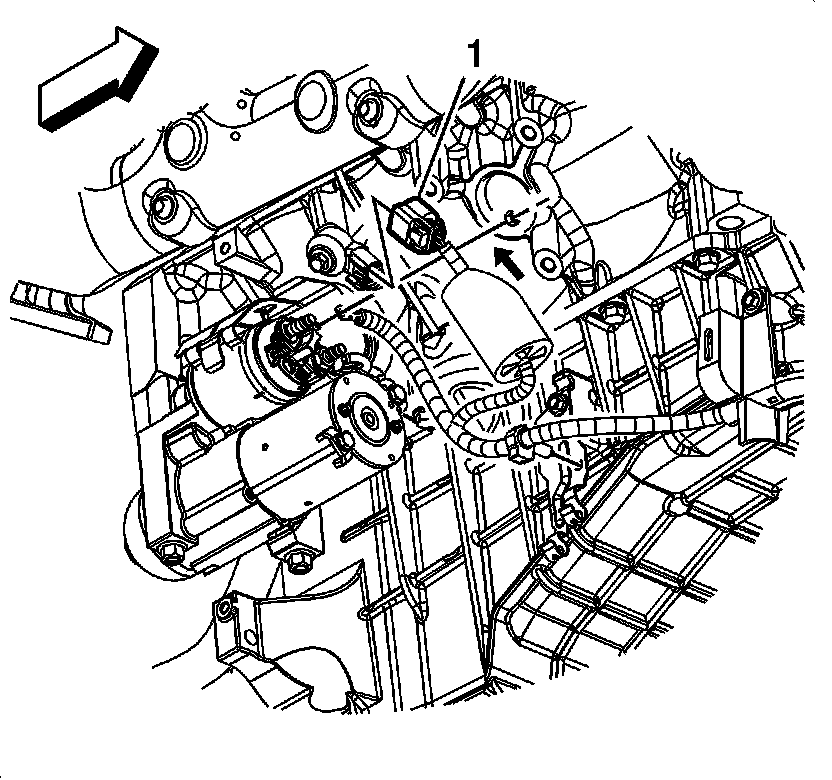

Lower Right of Engine (L20, LMF or L96)




1 - Knock Sensor (KS) 2
