2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE

Fuel Level Sensor: Service and Repair




Fuel Level Sensor Replacement

Removal Procedure

1. Remove the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Fuel Tank Fuel Pump Module Replacement).
2. Remove the two wire fuel level sensor connectors from the fuel sender assembly.

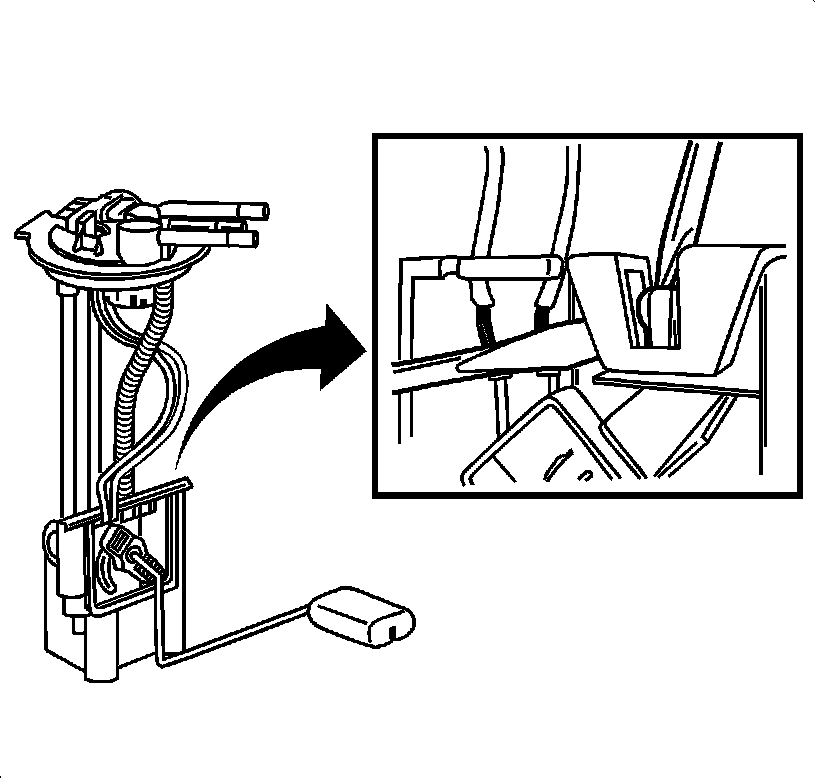

Factory service manual diagram



3. Using one of two pocket screwdrivers, pull the front retaining tab away from the front of the fuel level sensor while with the second pocket screwdriver push the fuel level sensor away and down from the fuel sender assembly.
4. Remove the fuel level sensor from the fuel sender assembly.

Installation Procedure

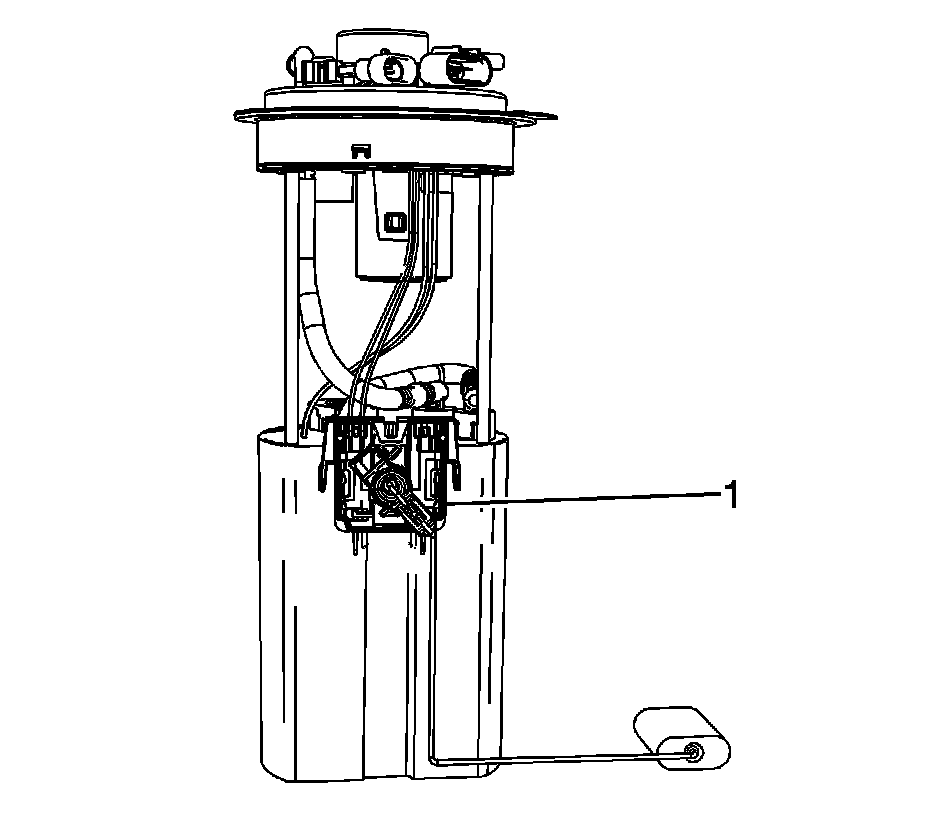

Factory service manual diagram



1. Install the fuel level sensor (1).
2. Connect the electrical connector to the fuel tank sender.
3. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (Fuel Tank Fuel Pump Module Replacement).
