2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Power Distribution Schematics
POWER DISTRIBUTION SCHEMATICS

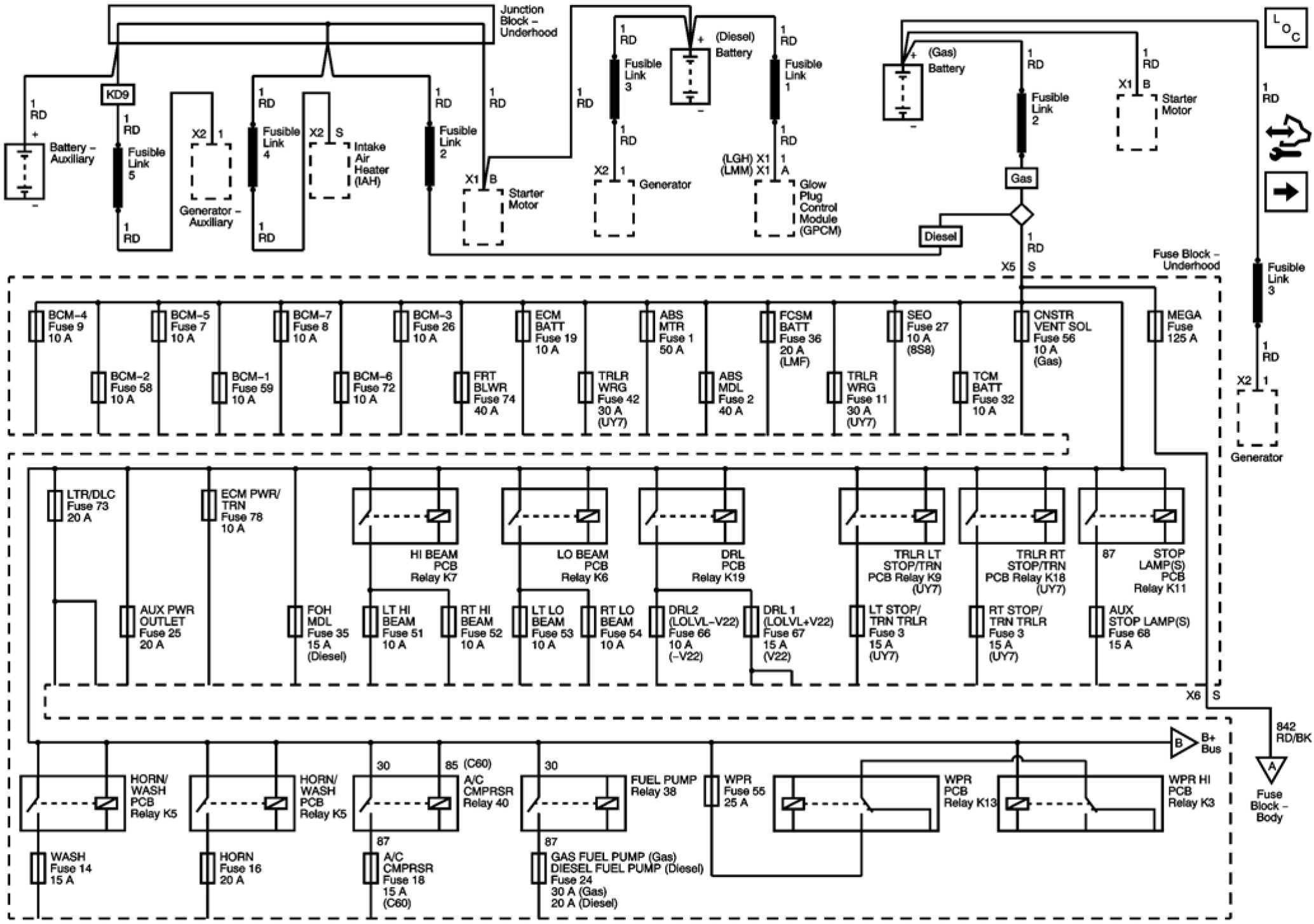

B+ Bus - Underhood Fuse Block (1 of 2)

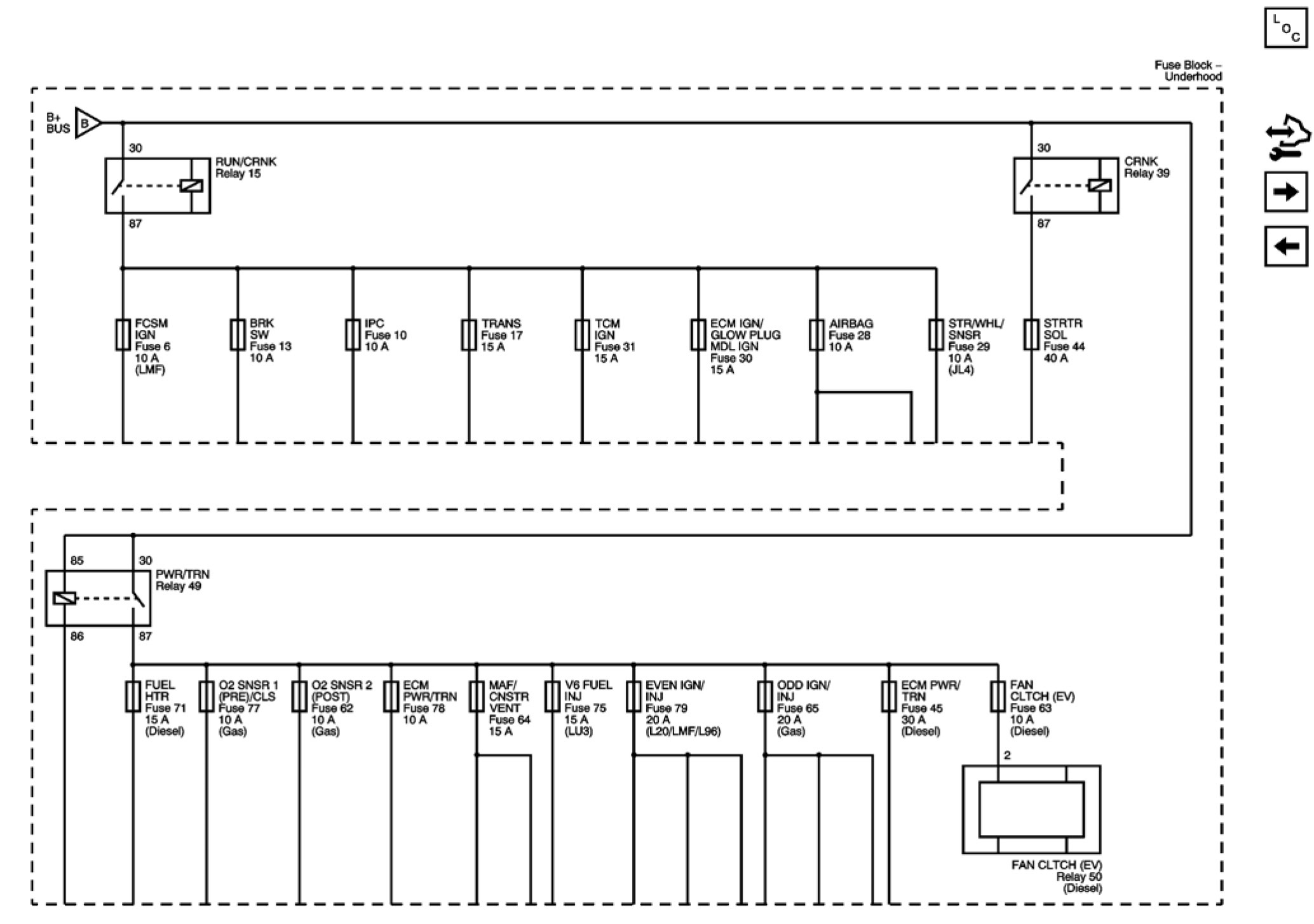

B+ Bus - Underhood Fuse Block (2 of 2)

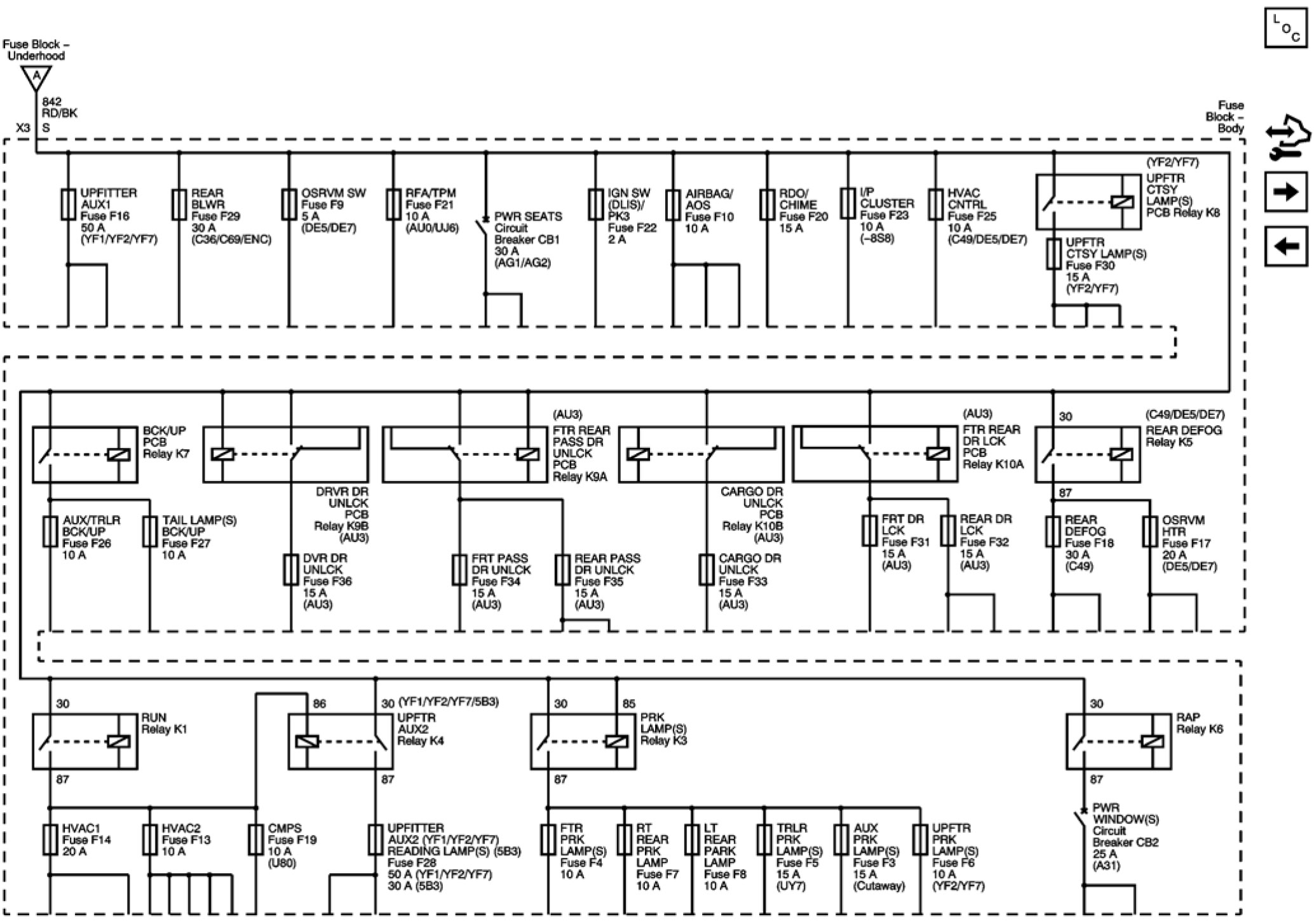

B+ Bus - Body Fuse Block

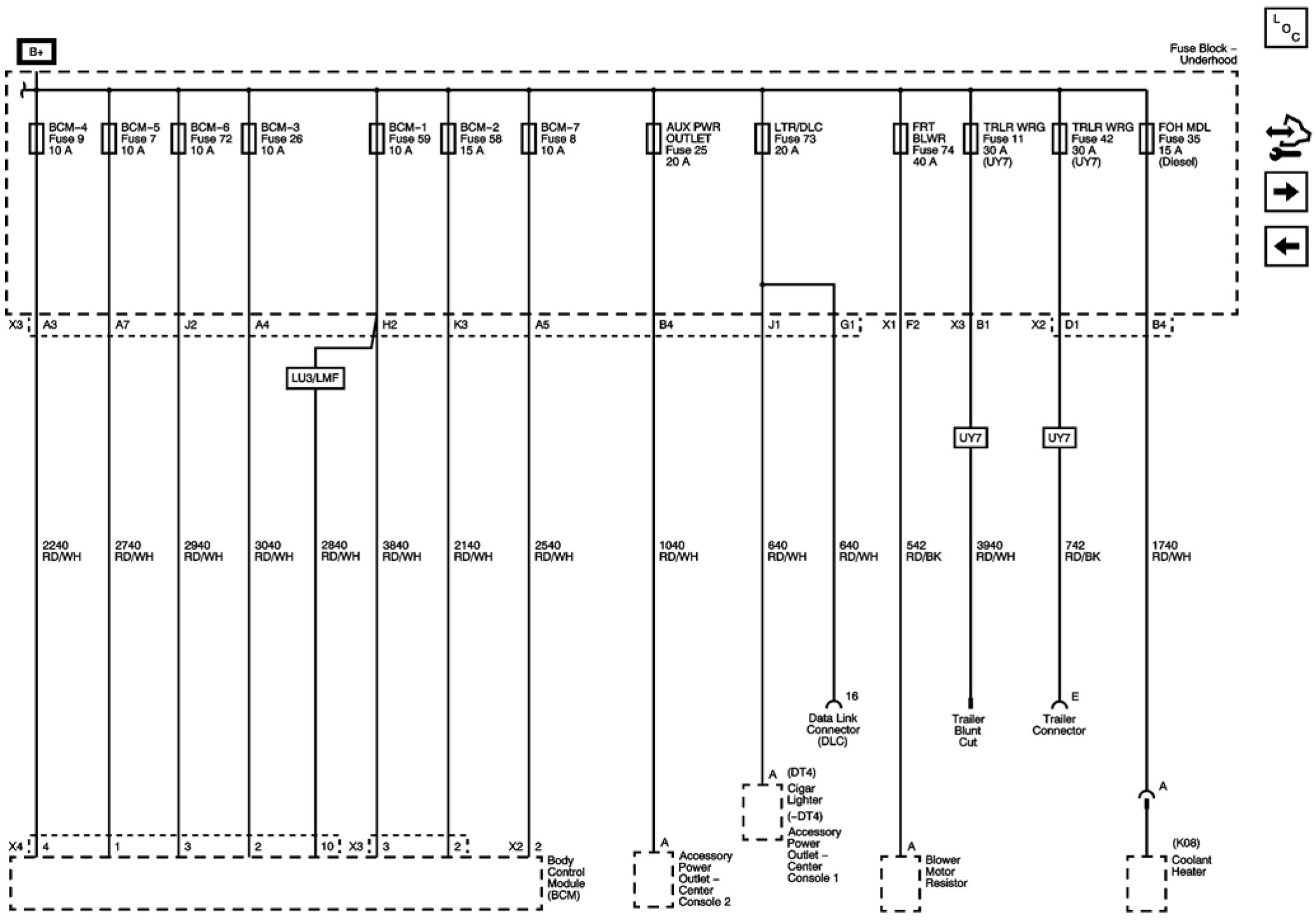

AUX PWR OUTLET, BCM-1, BCM-2, BCM-3, BCM-4, BCM-5, BCM-6, BCM-7, FOH MDL, FRT BLWR, LTR/DLC, and TRLR WRG Fuses
A/C CMPRSR, ABS MDL, ABS MTR, DIESEL FUEL PUMP, GAS FUEL PUMP, HORN, and WASH Fuses

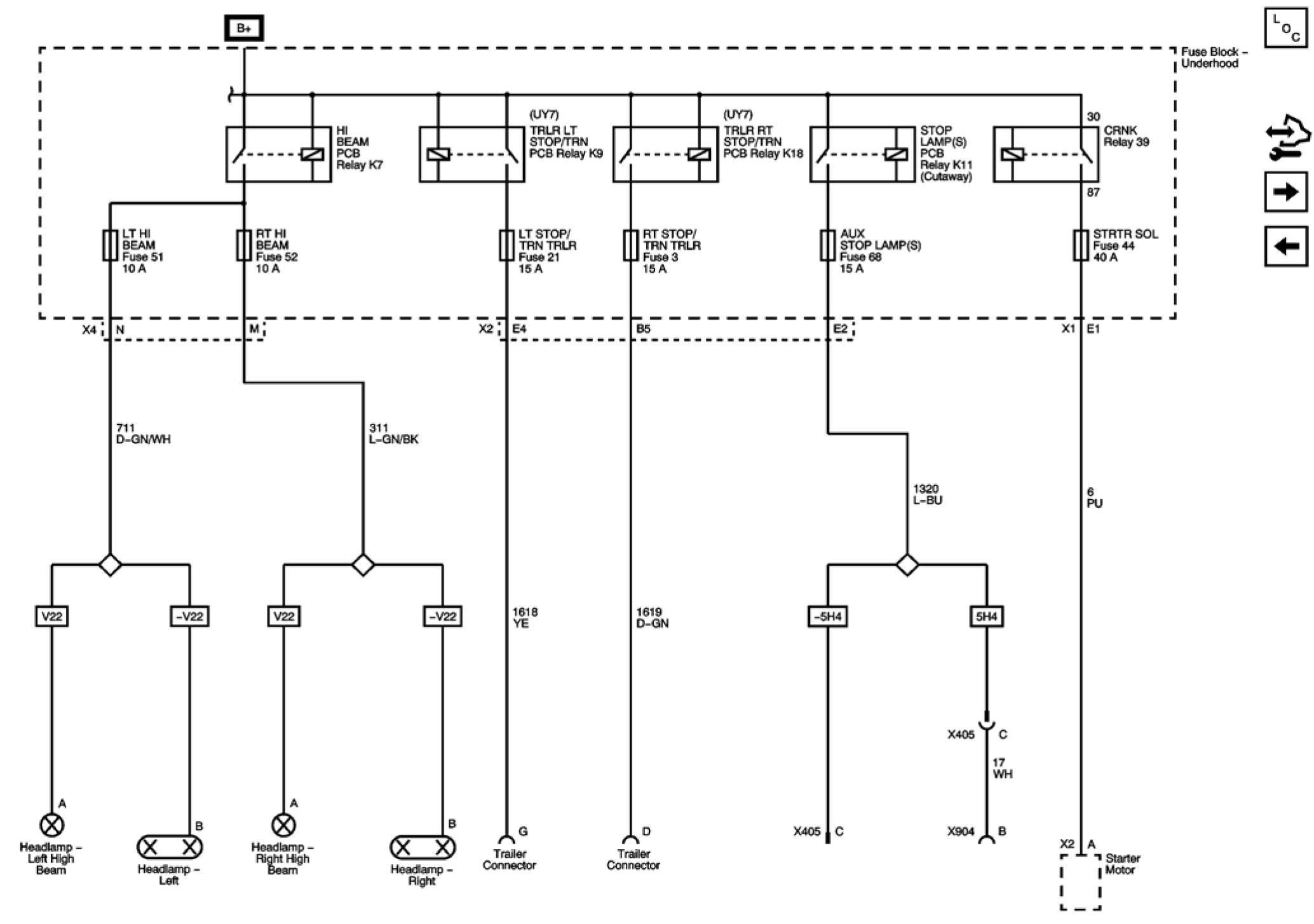

AUX STOP LAMP(S), LT HI BEAM, LT STOP/TRN TRLR, RT HI BEAM, RT STOP/TRN TRLR, and STRTR SOL Fuses
DRL 1, DRL 2, LT LO BEAM, RT LO BEAM, SEO, and TCM BATT Fuses

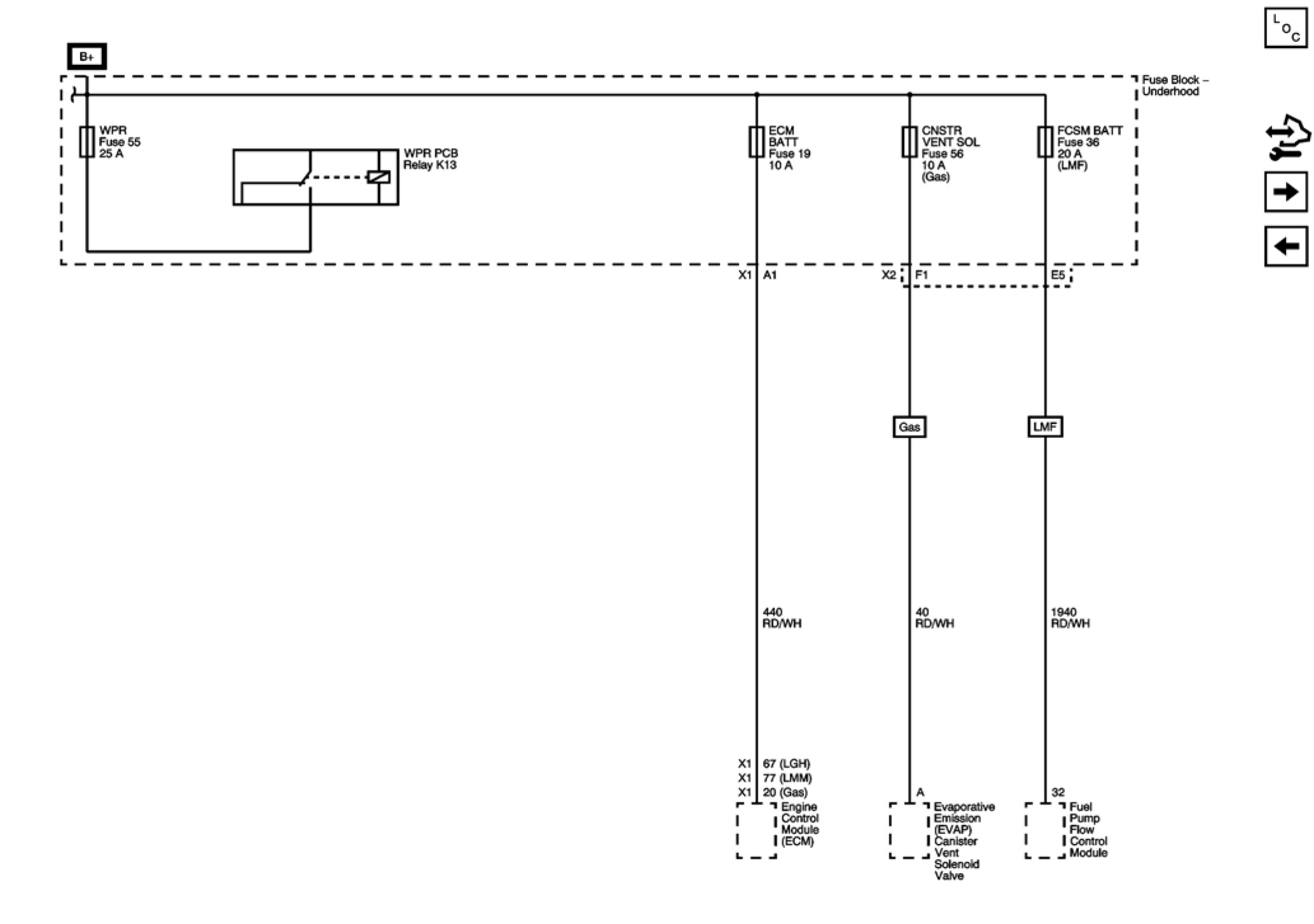

CNSTR VENT SOL, ECM BATT, FCSM BATT, and WPR Fuses

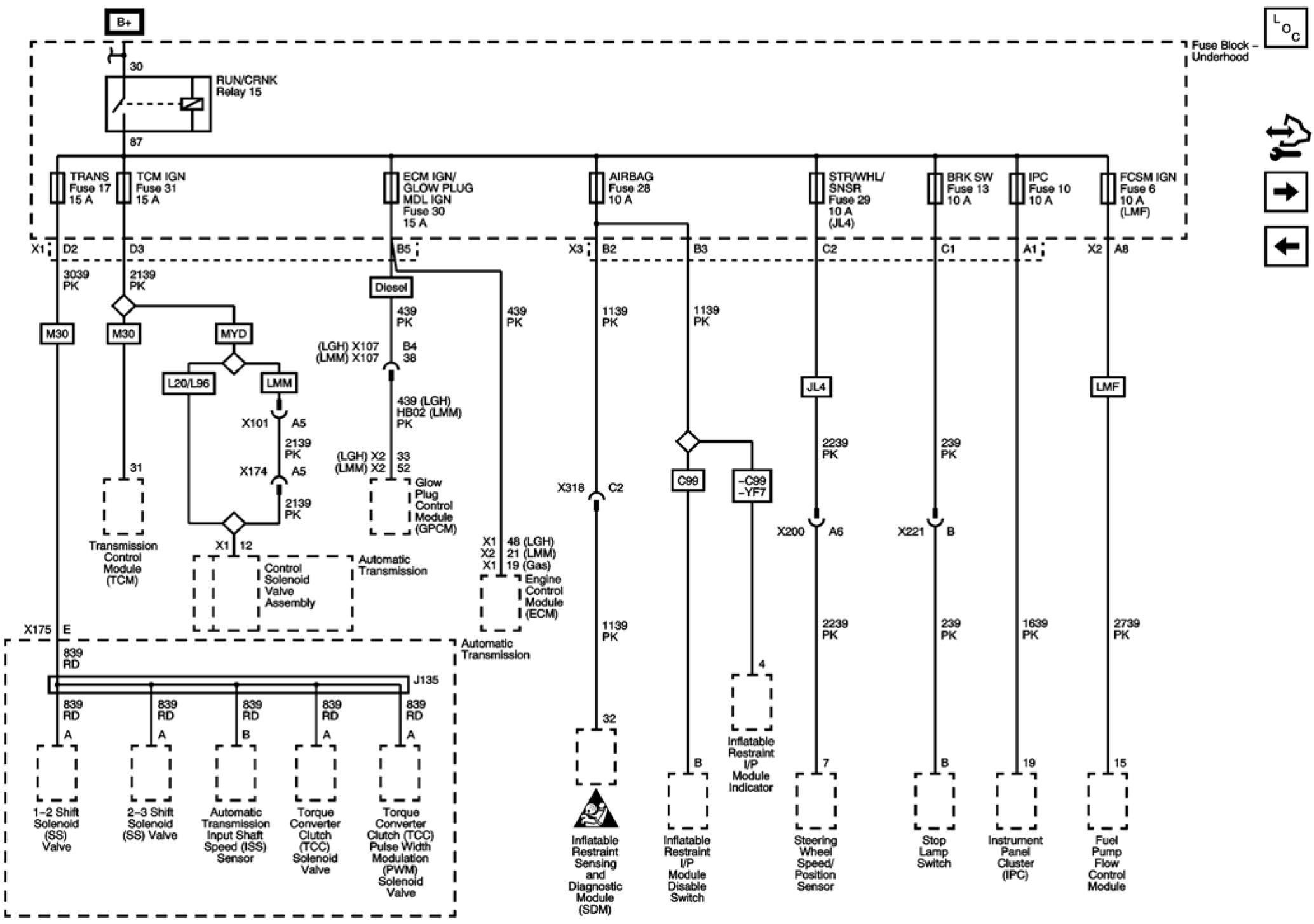

AIRBAG, BRK SW, ECM IGN/GLOW PLUG MDL IGN, FCSM IGN, IPC, STR/WHL/SNSR, TCM IGN, and TRANS Fuses

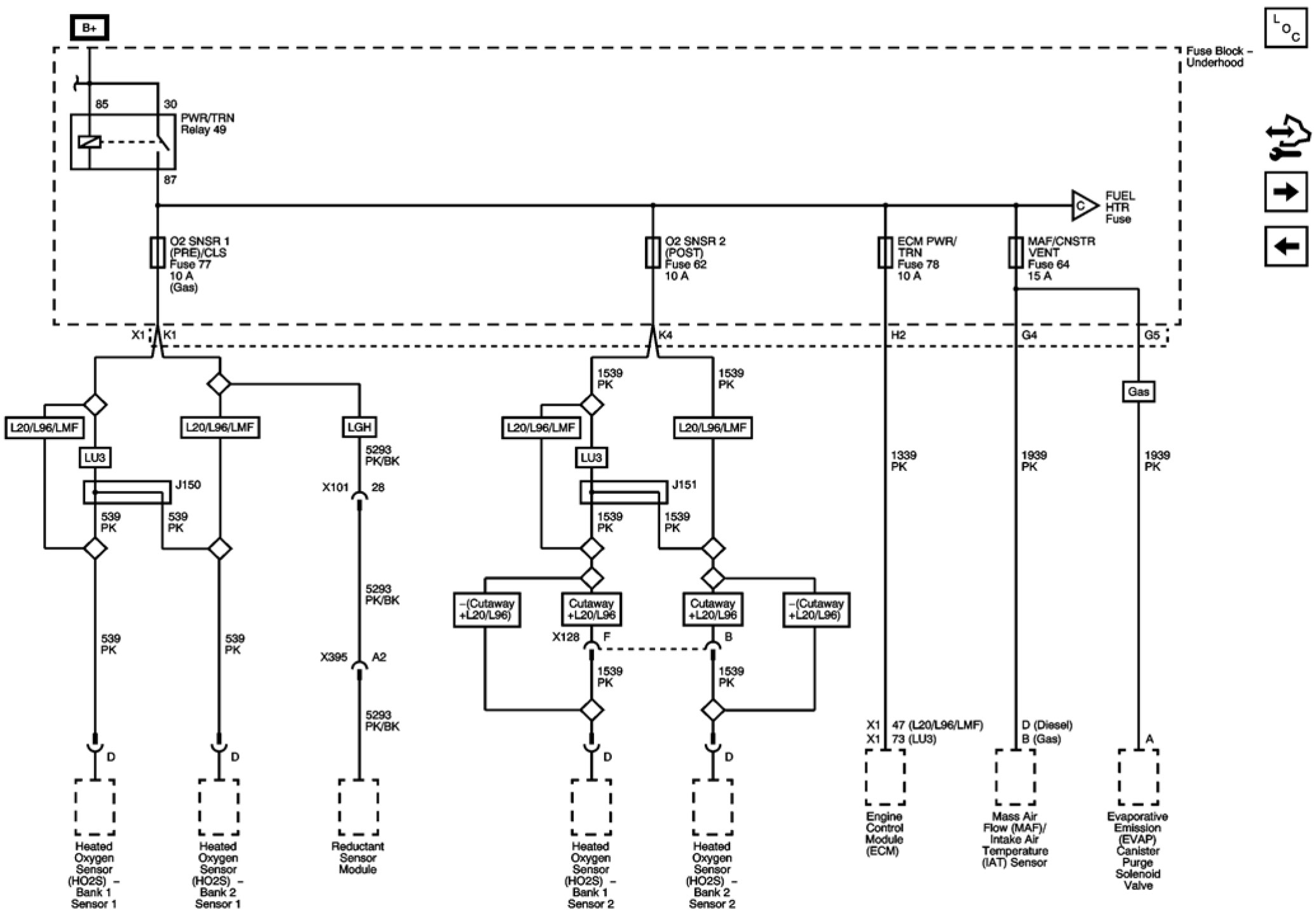

ECM PWR/TRN, MAF/CNSTR VENT, O2 SNSR 1 (PRE)/CLS, and O2 SNSR 2 (POST) Fuses

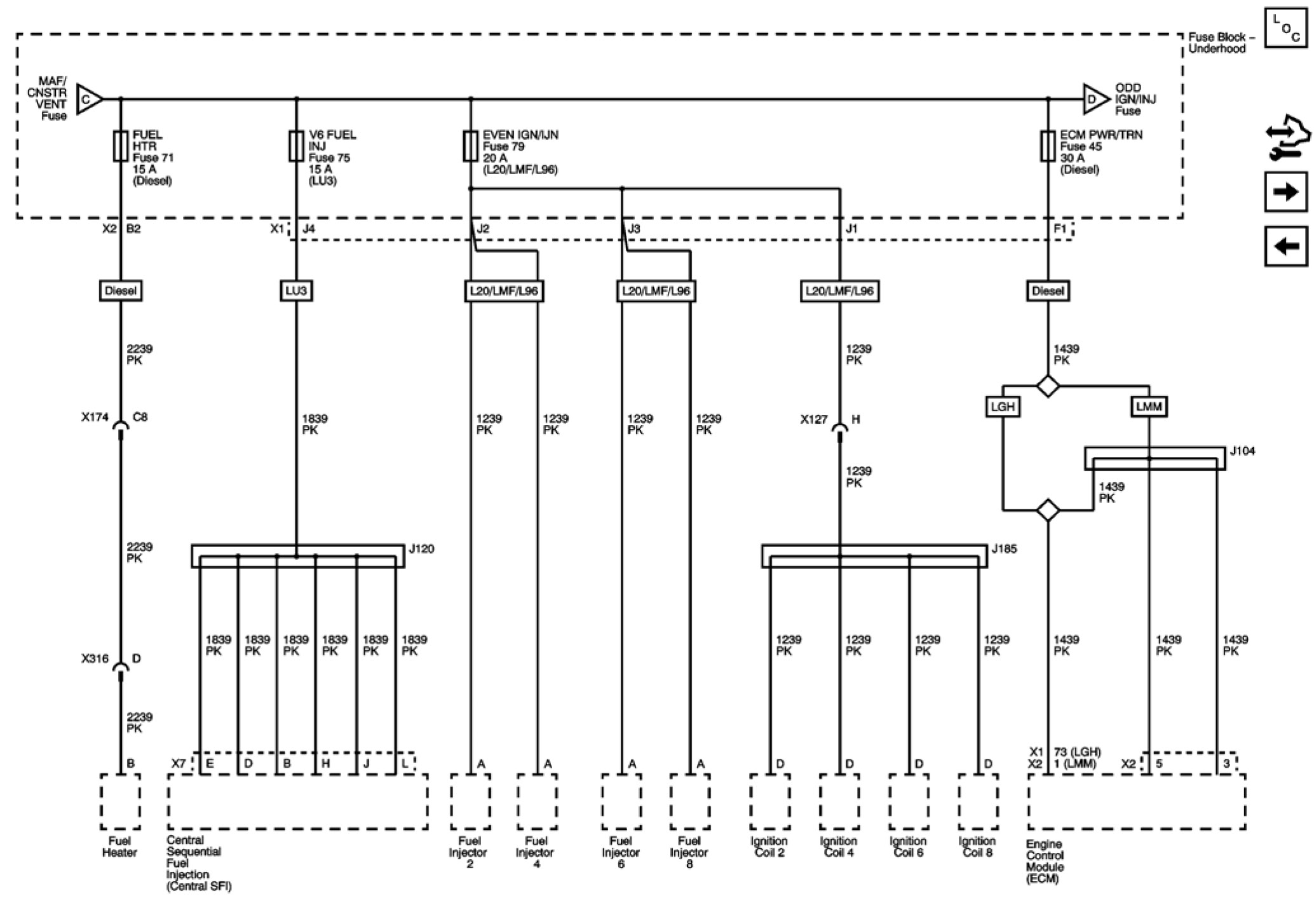

ECM PWR/TRN, EVEN IGN/INJ, FUEL HTR, and V6 FUEL INJ Fuses

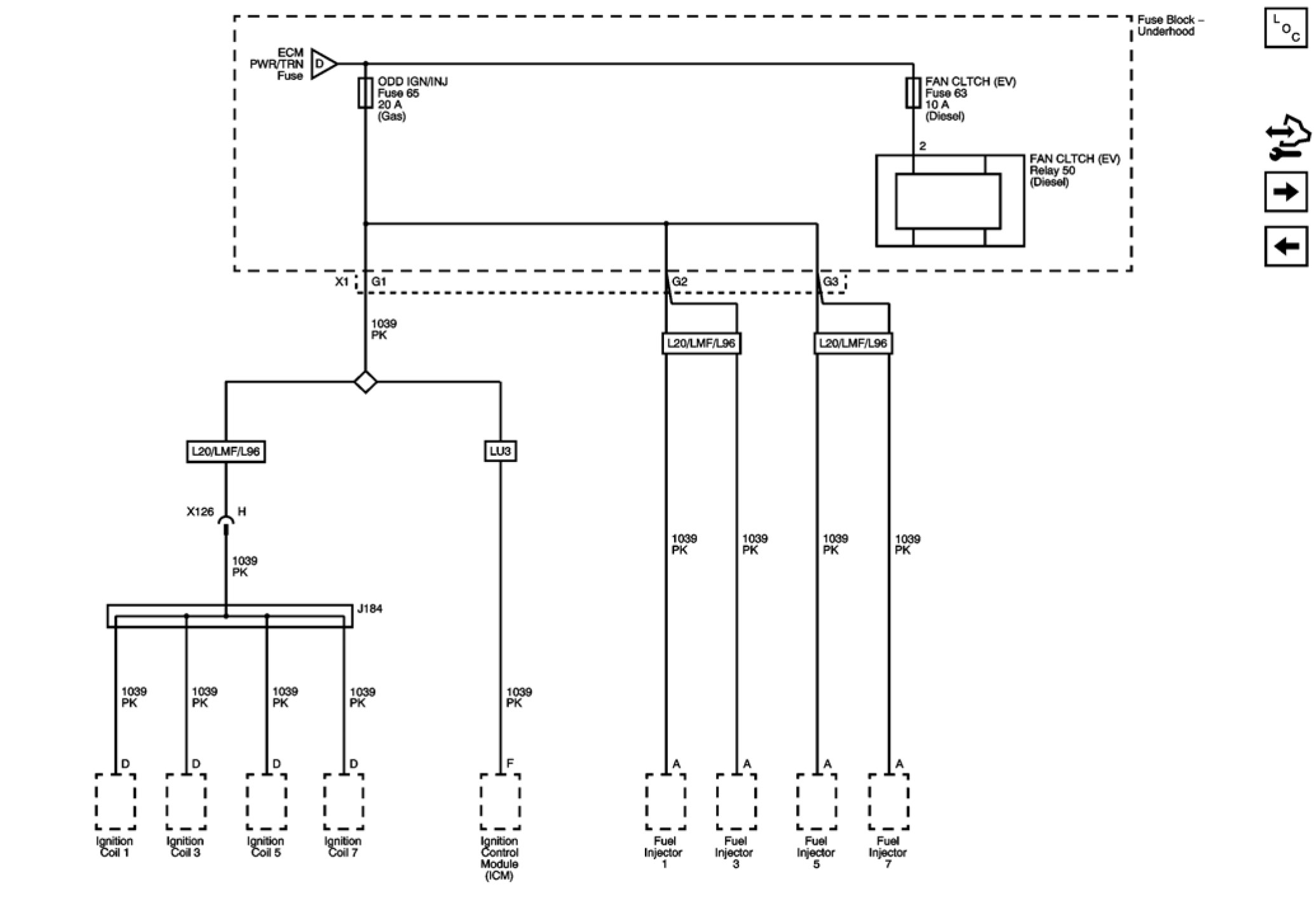

FAN CLTCH (EV) and ODD IGN/INJ Fuses
HVAC CNTRL, I/P CLUSTER, OSRVM SW, RDO/CHIME, REAR BLWR, and RFA/TPM Fuses and PWR SEATS Circuit Breaker

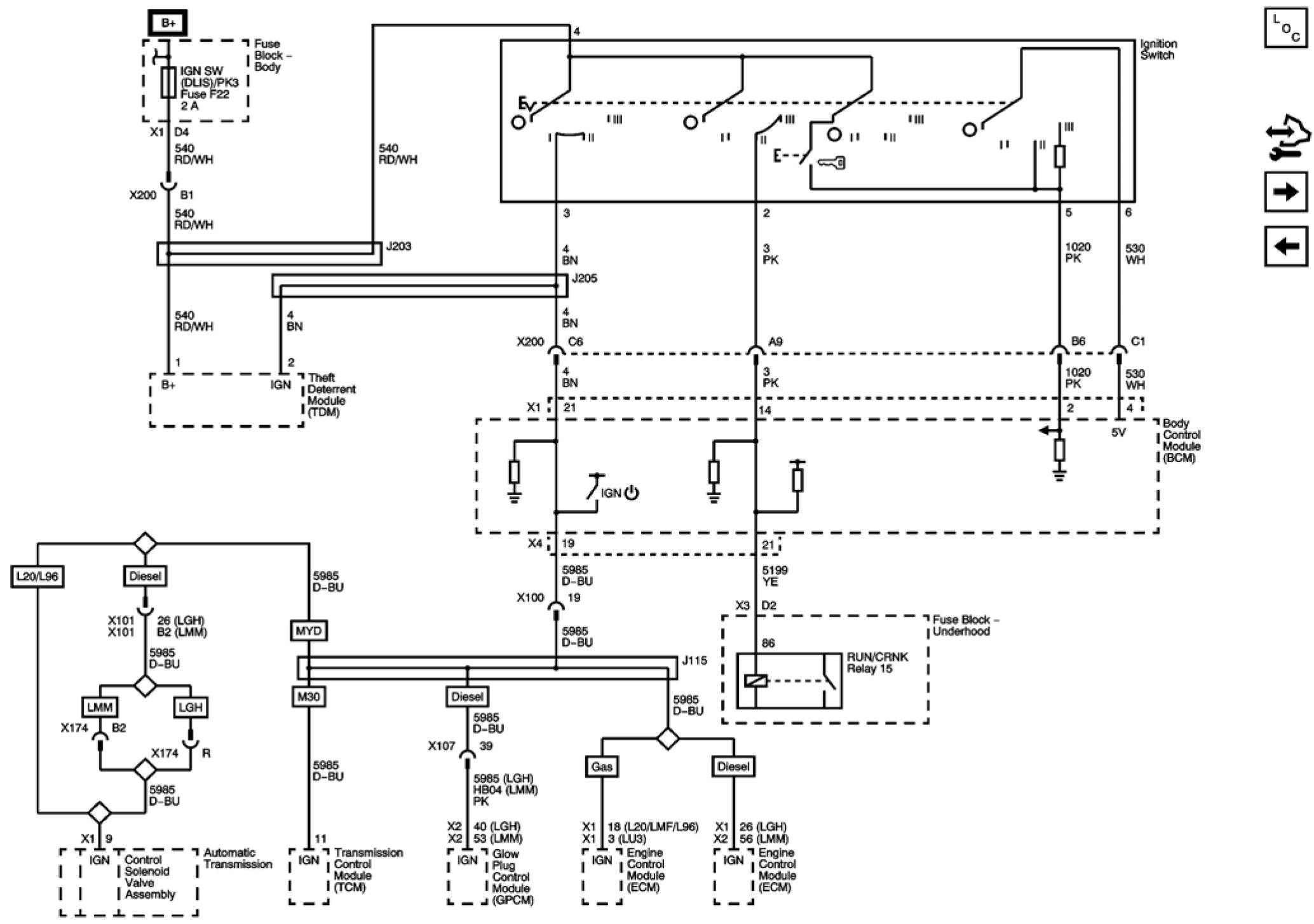

Ignition Switch and IGN SW (DLIS)/PK3 MDL Fuse

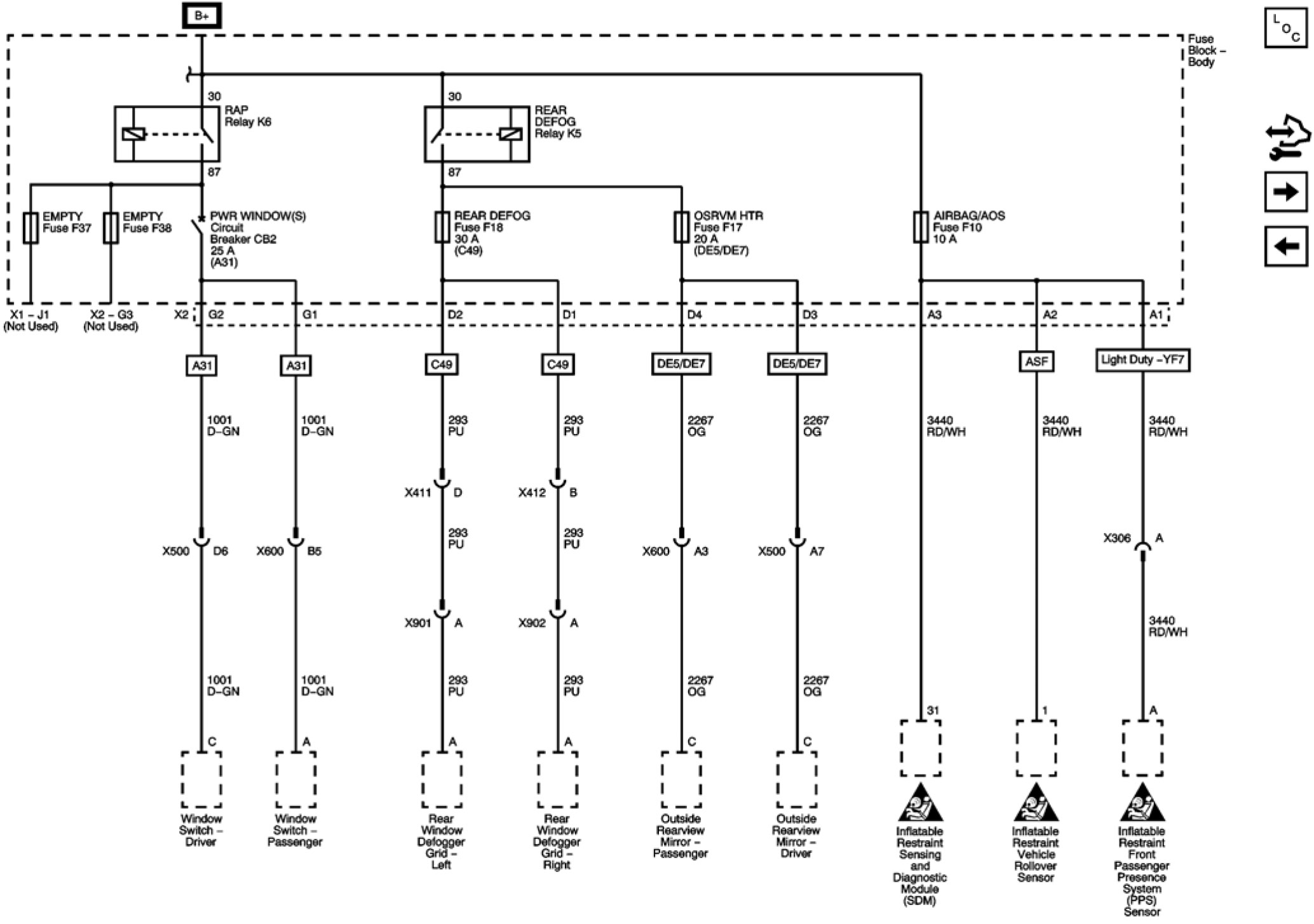

AIRBAG/AOS, OSRVM HTR, and REAR DEFOG Fuses and PWR WINDOW(S) Circuit Breaker

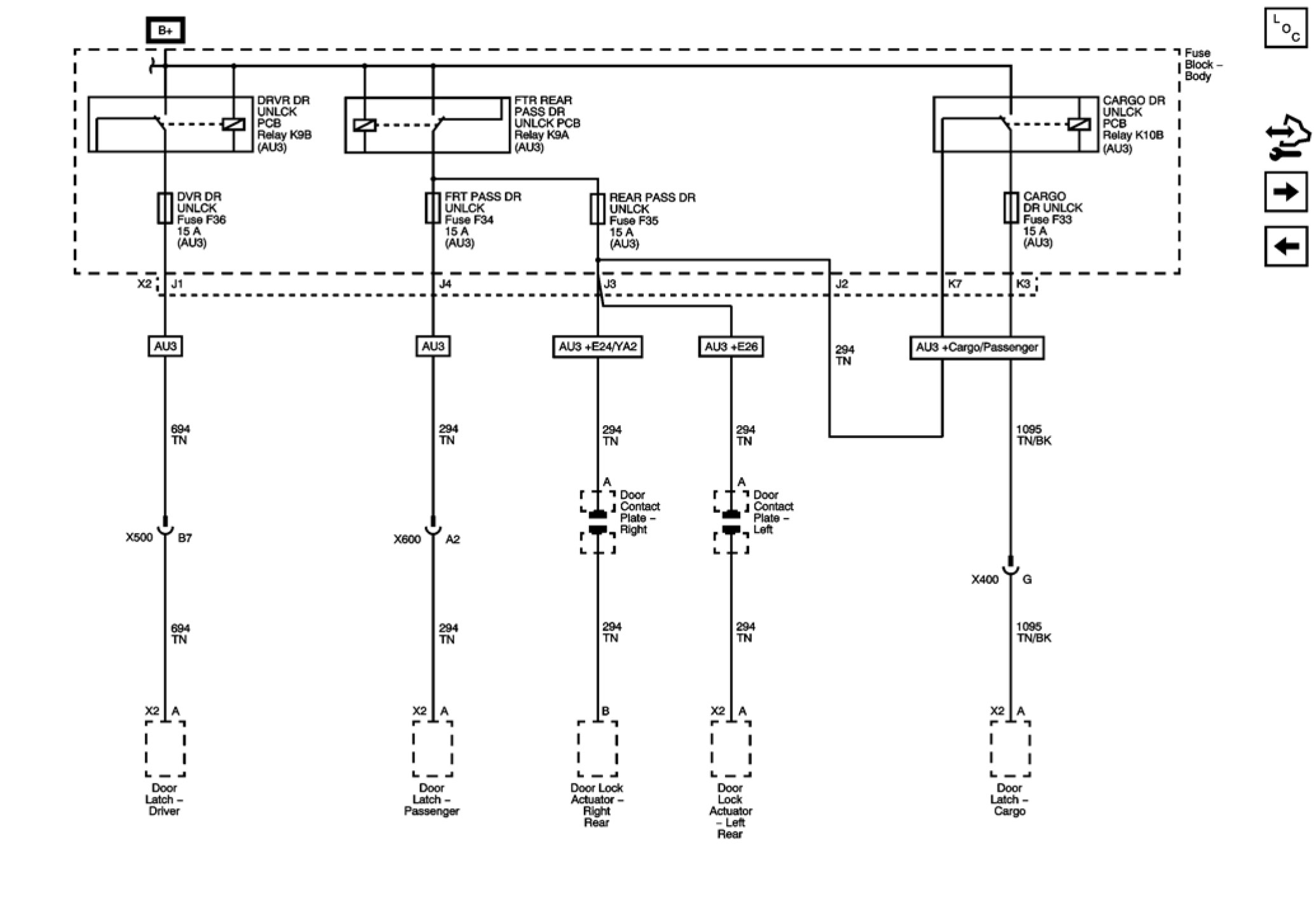

CARGO DR UNLCK, DVR DR UNLCK, FRT PASS DR UNLCK and REAR PASS DR UNLCK Fuses

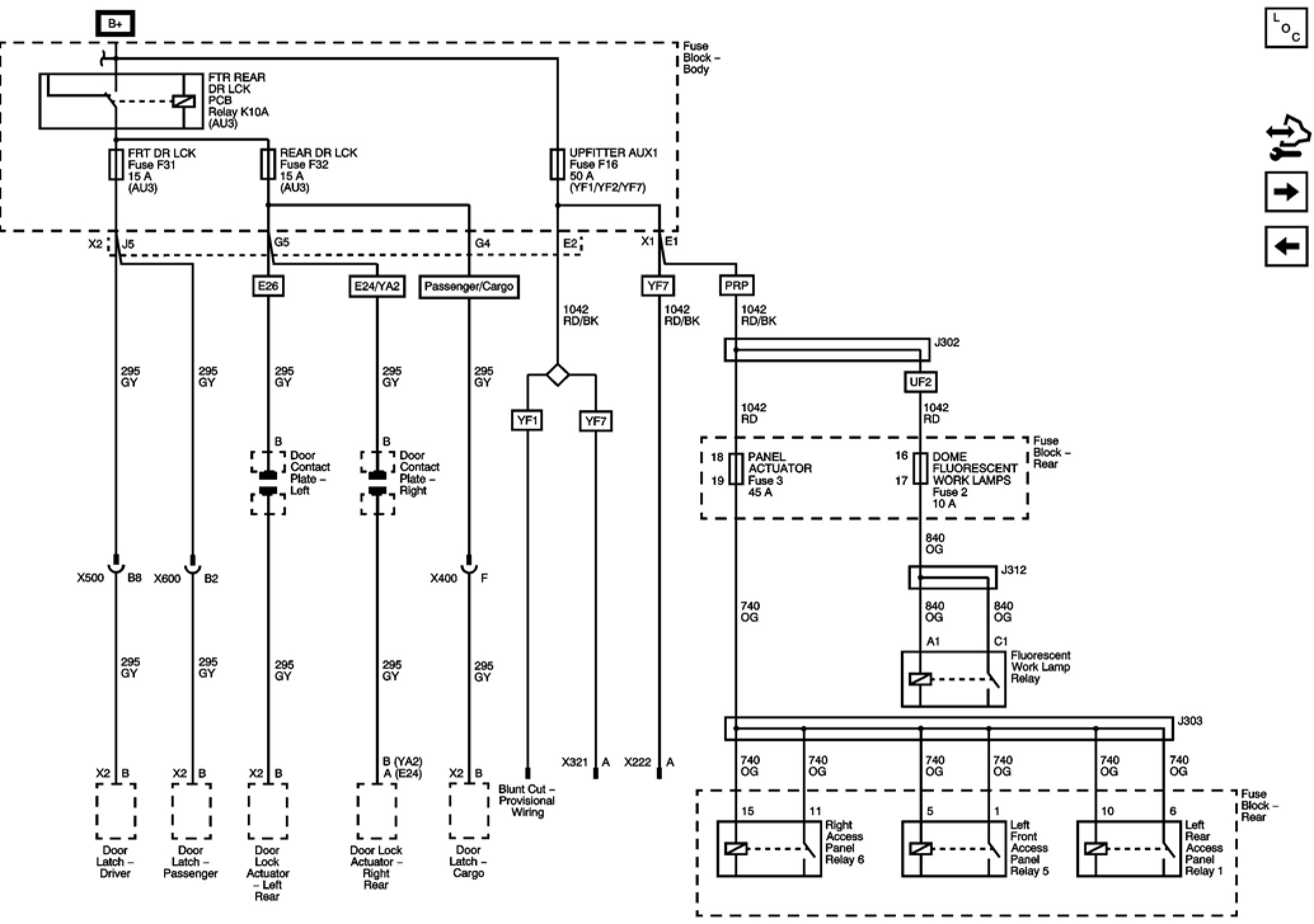

FRT DR LCK, REAR DR LCK and UPFITTER AUX1 Fuses

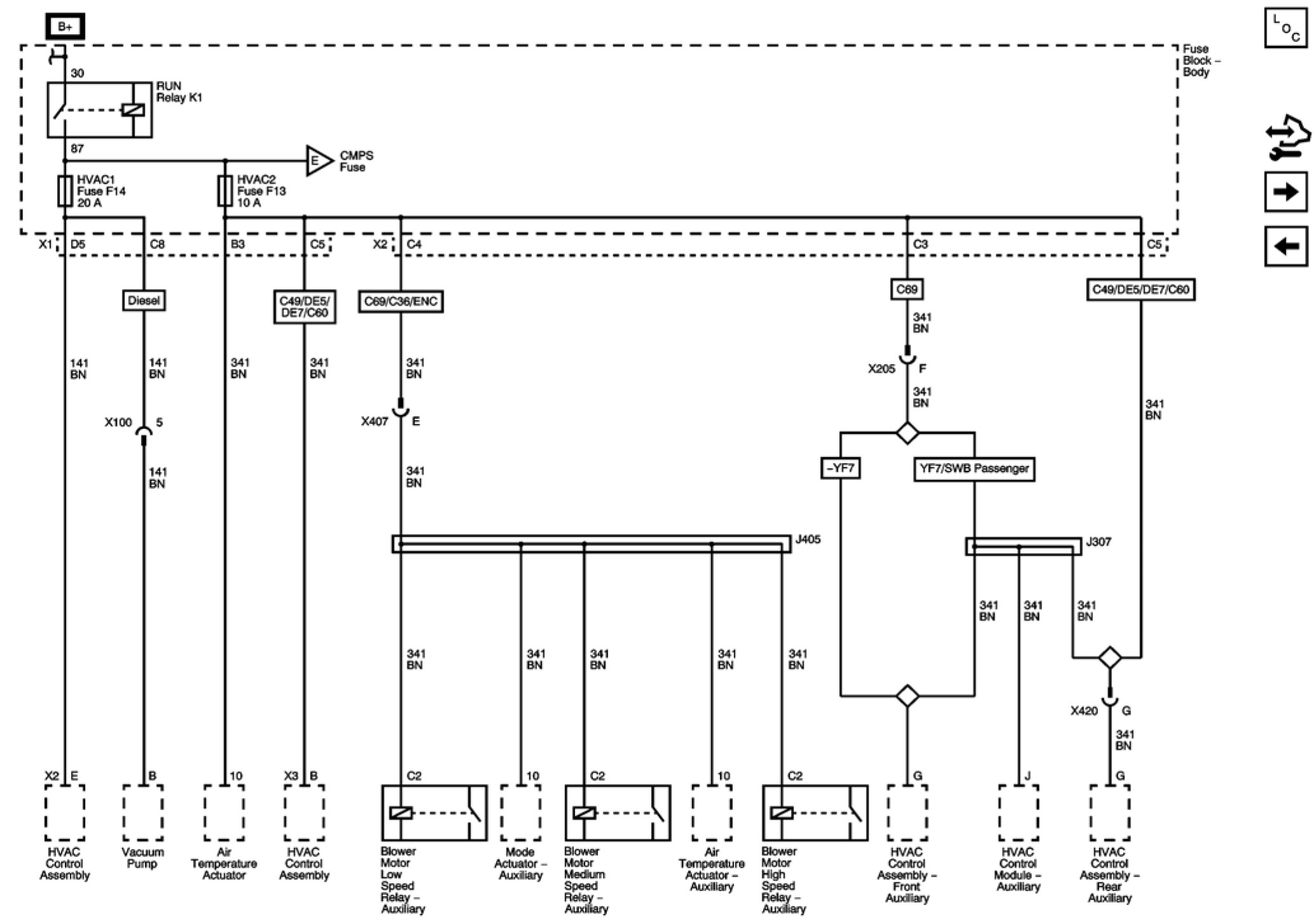

HVAC1 AND HVAC2 Fuses

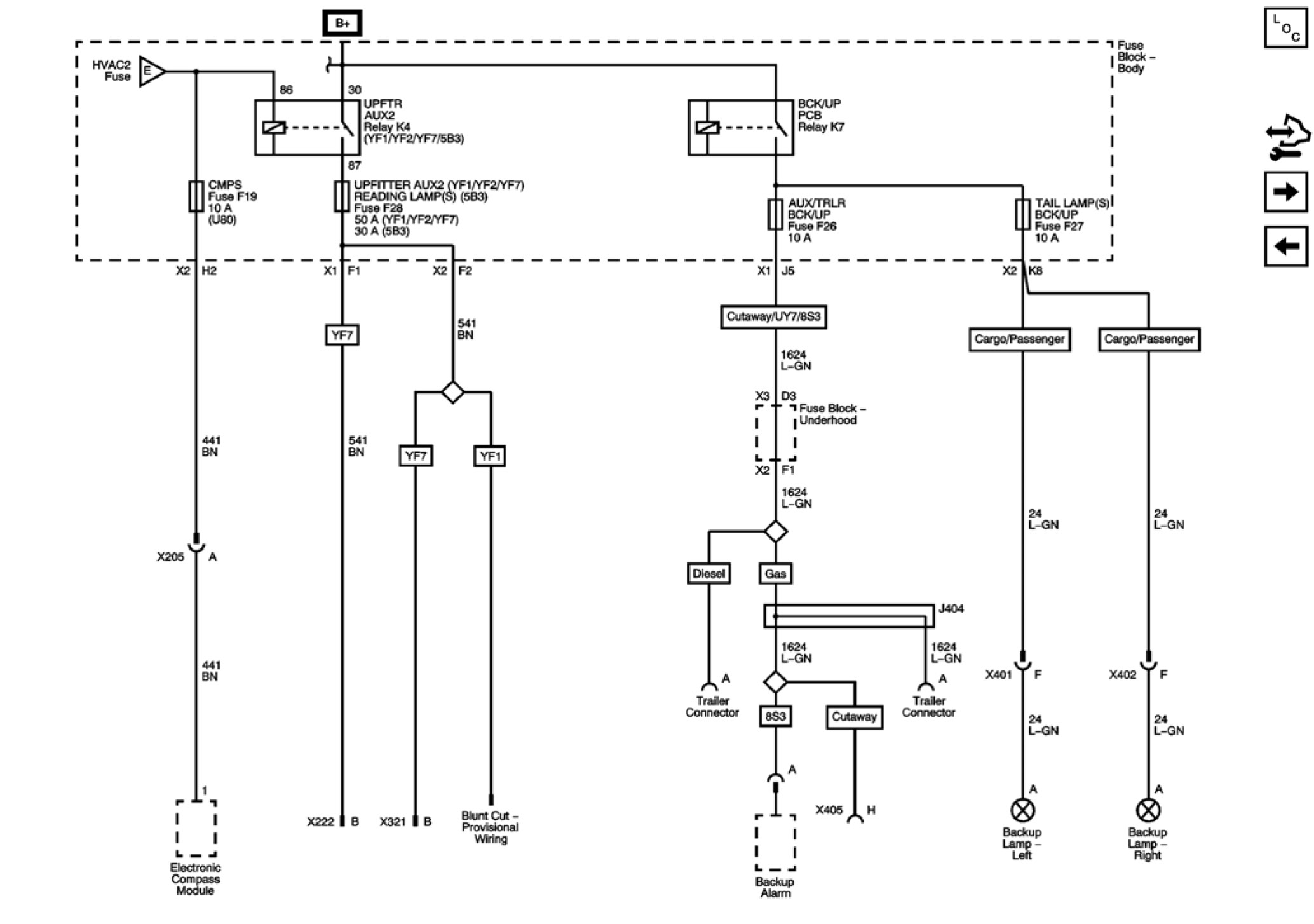

AUX/TRLR BCK/UP, CMPS, READING LAMP(S), TAIL LAMP(S), and UPFITTER AUX2 Fuses

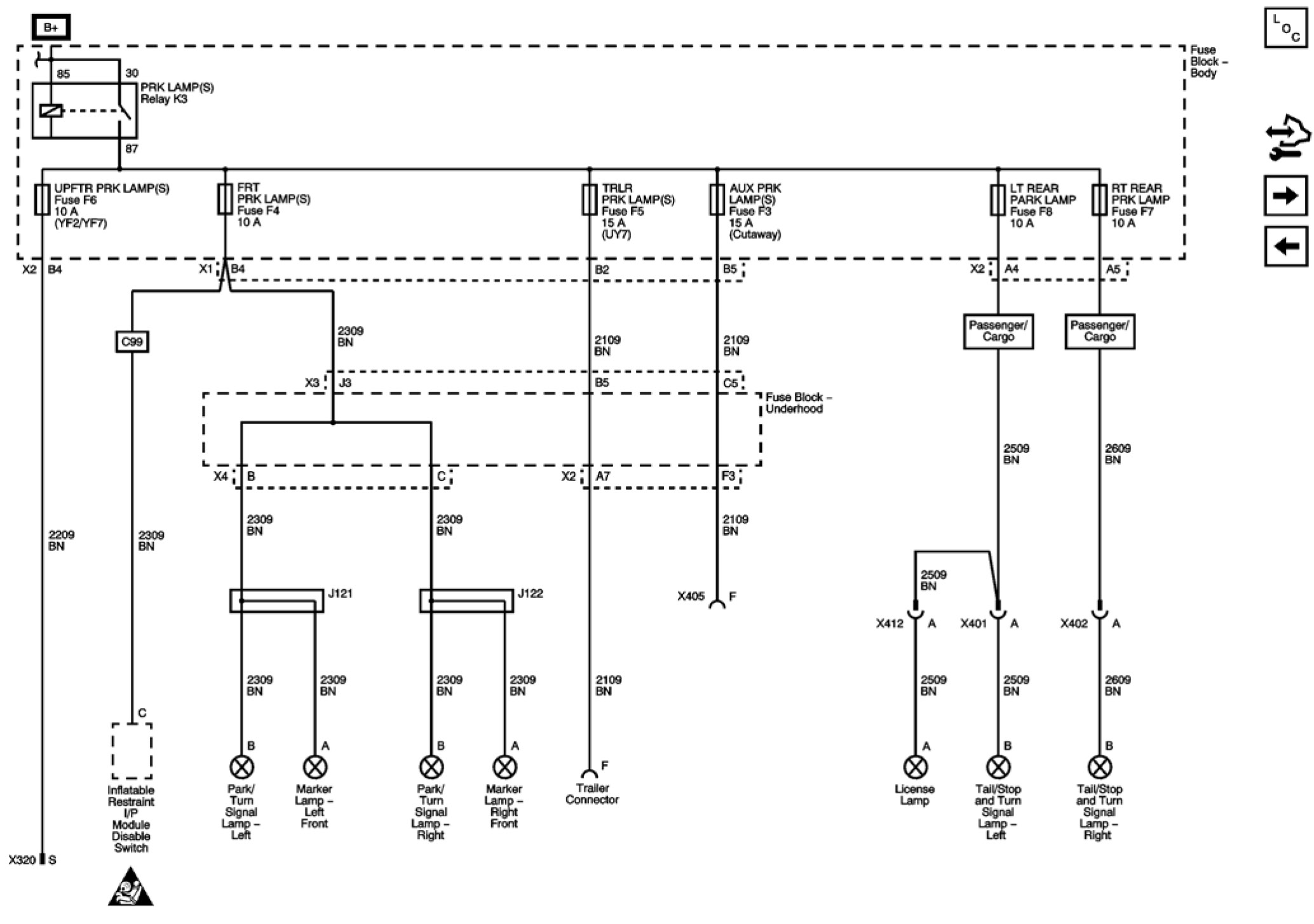

AUX PRK LAMP(S), FRT PRK LAMP(S), LT REAR PARK LAMP, RT REAR PRK LAMP, TRLR PRK LAMP(S), and UPFTR PRK LAMP(S) Fuses

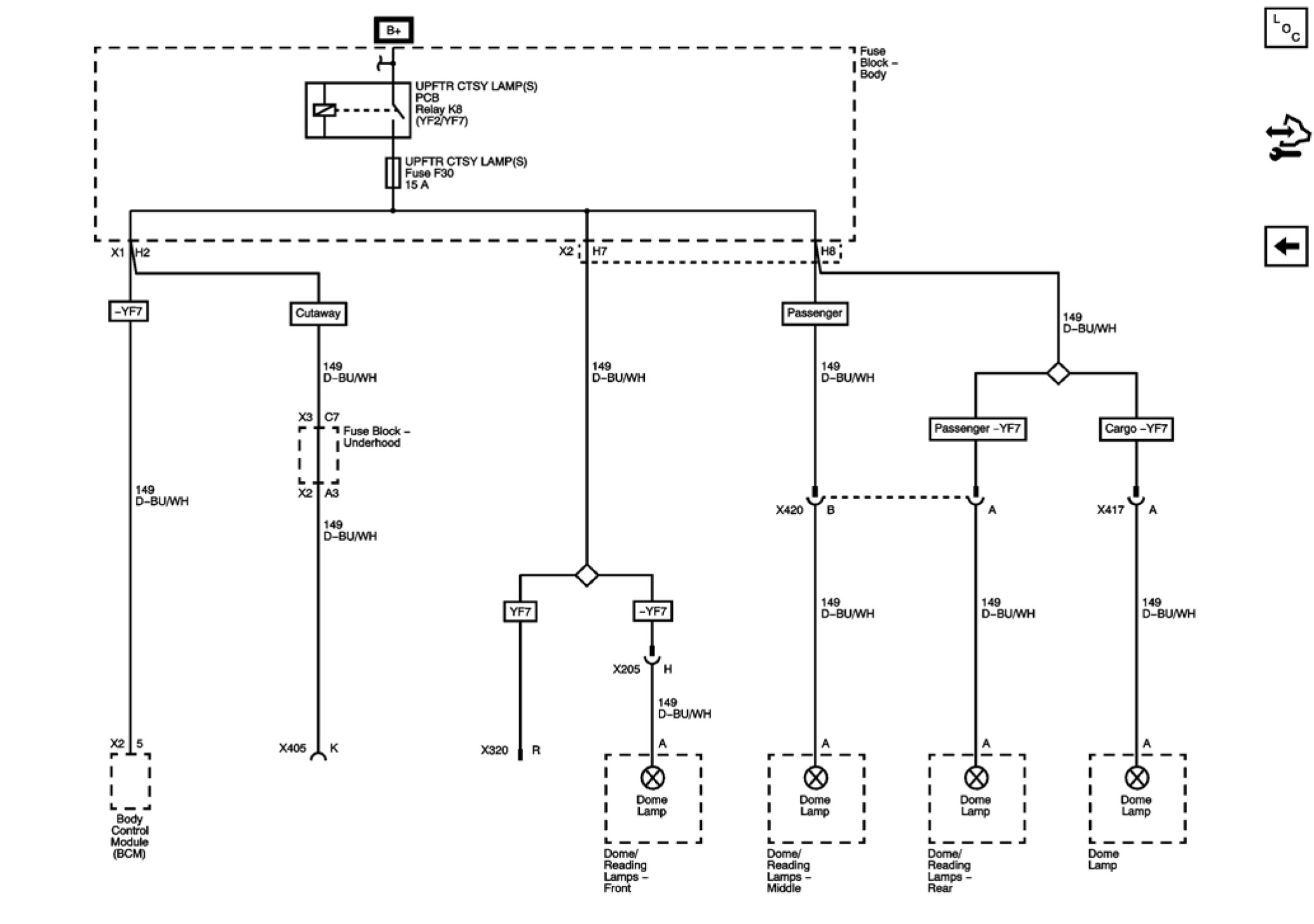

UPFTR CTSY LAMP(S) Fuse
