2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
A - Z Index

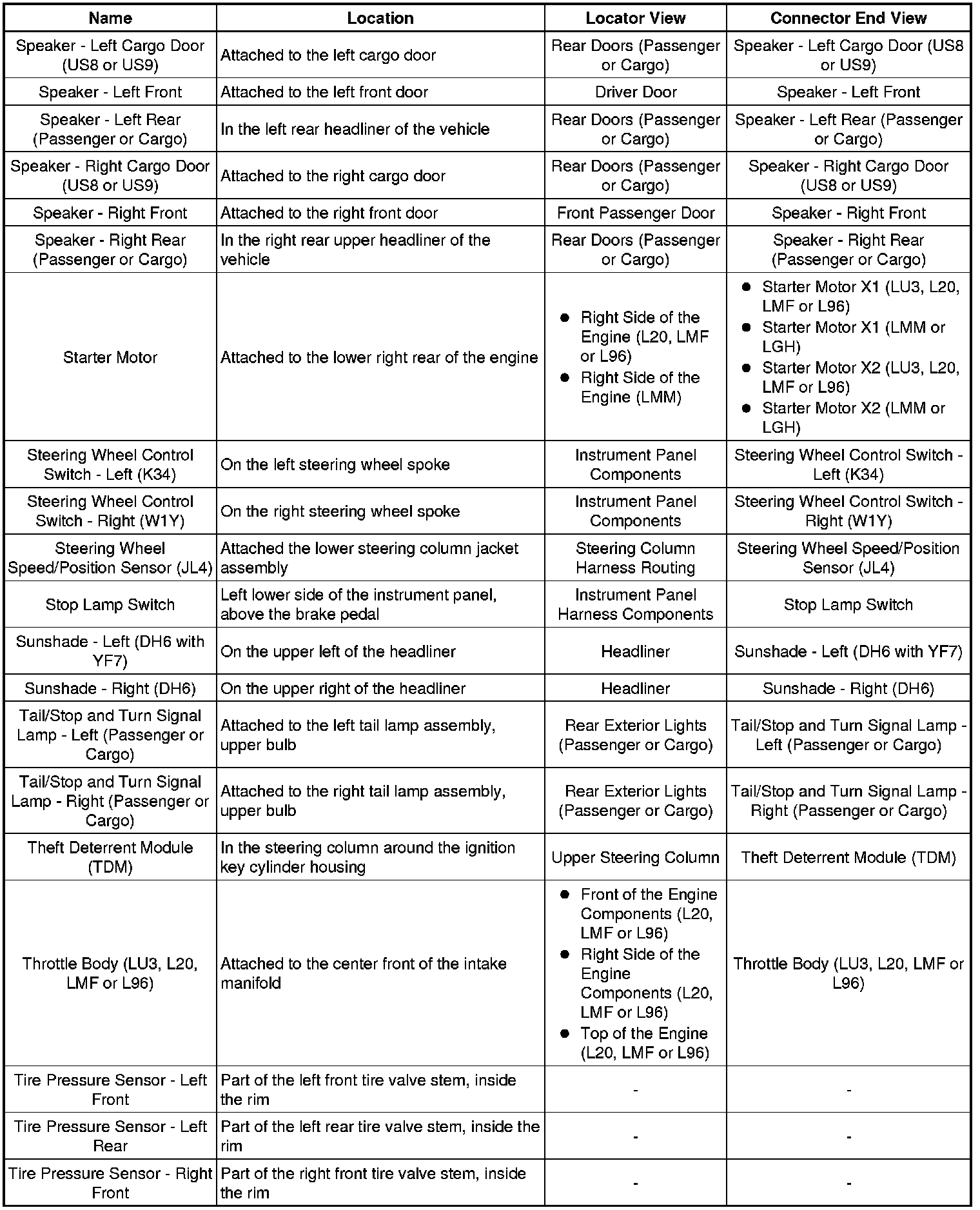

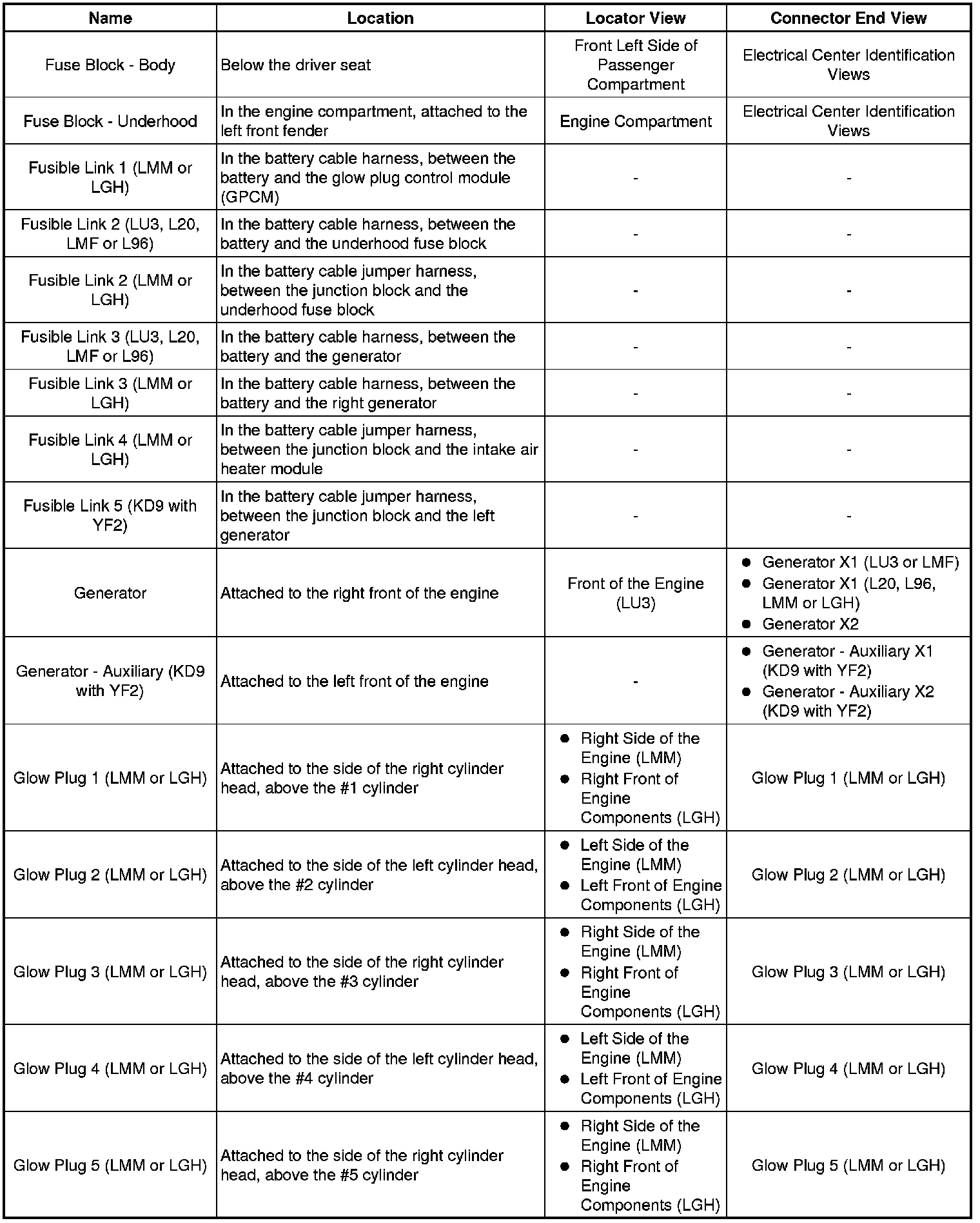

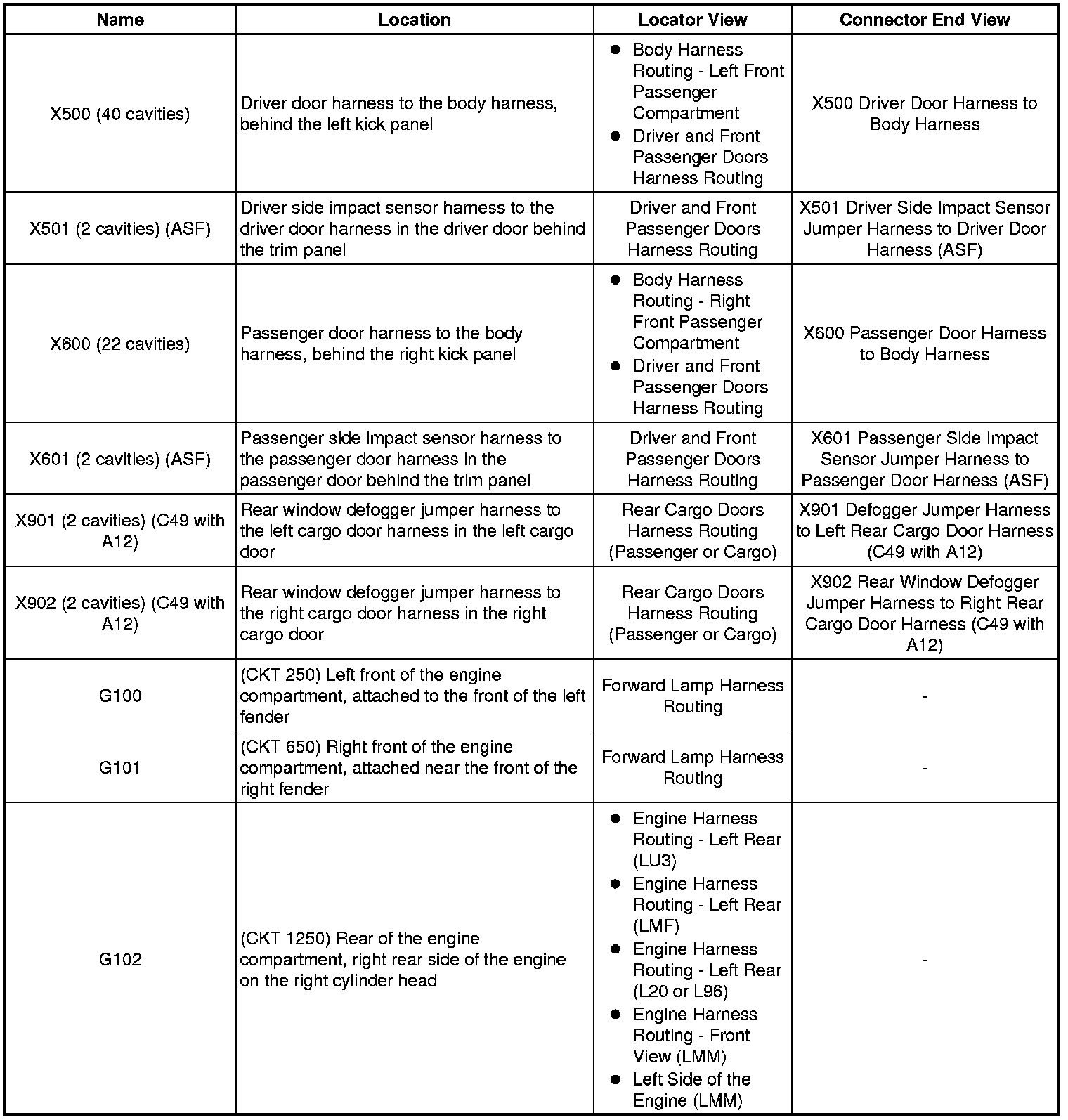

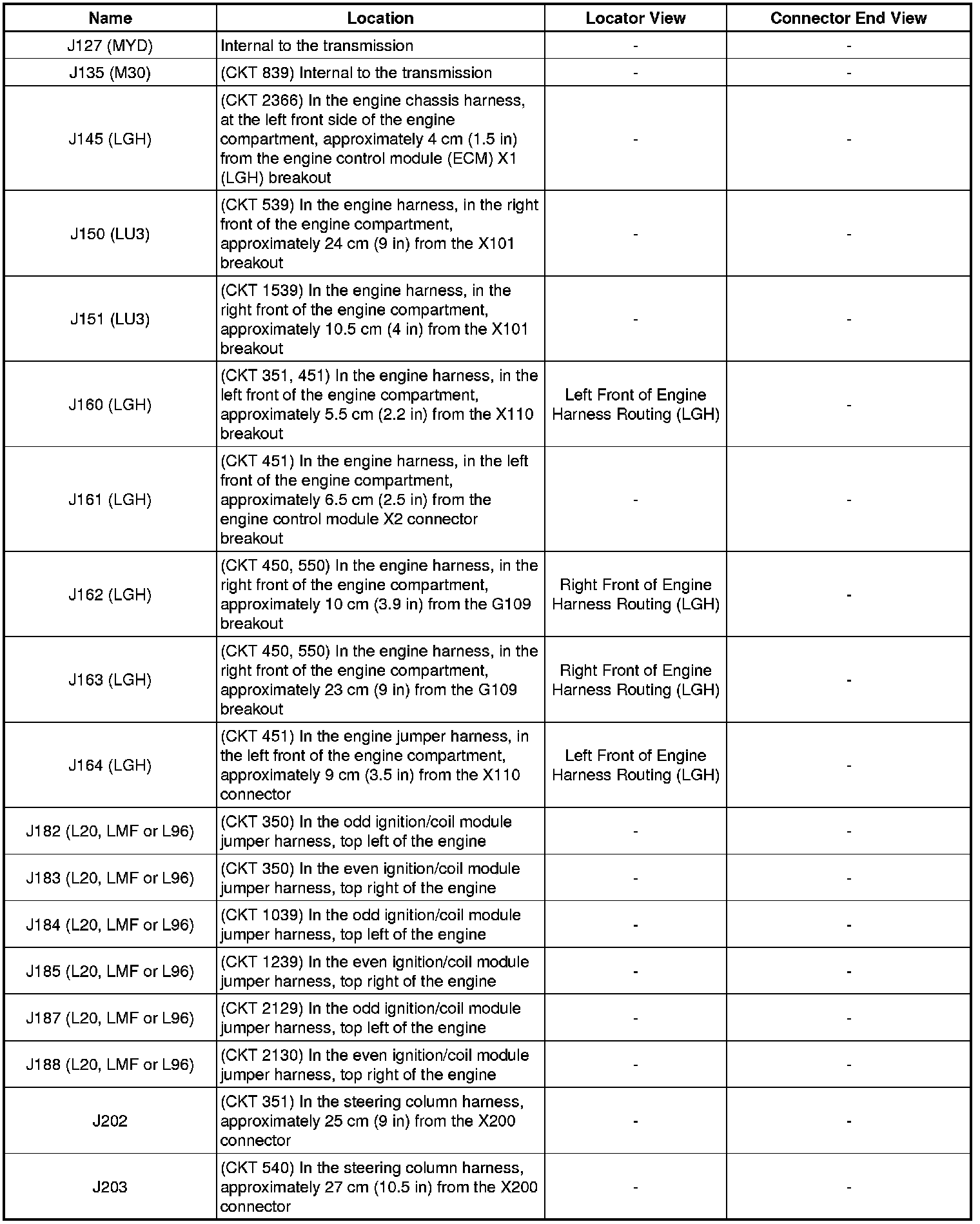

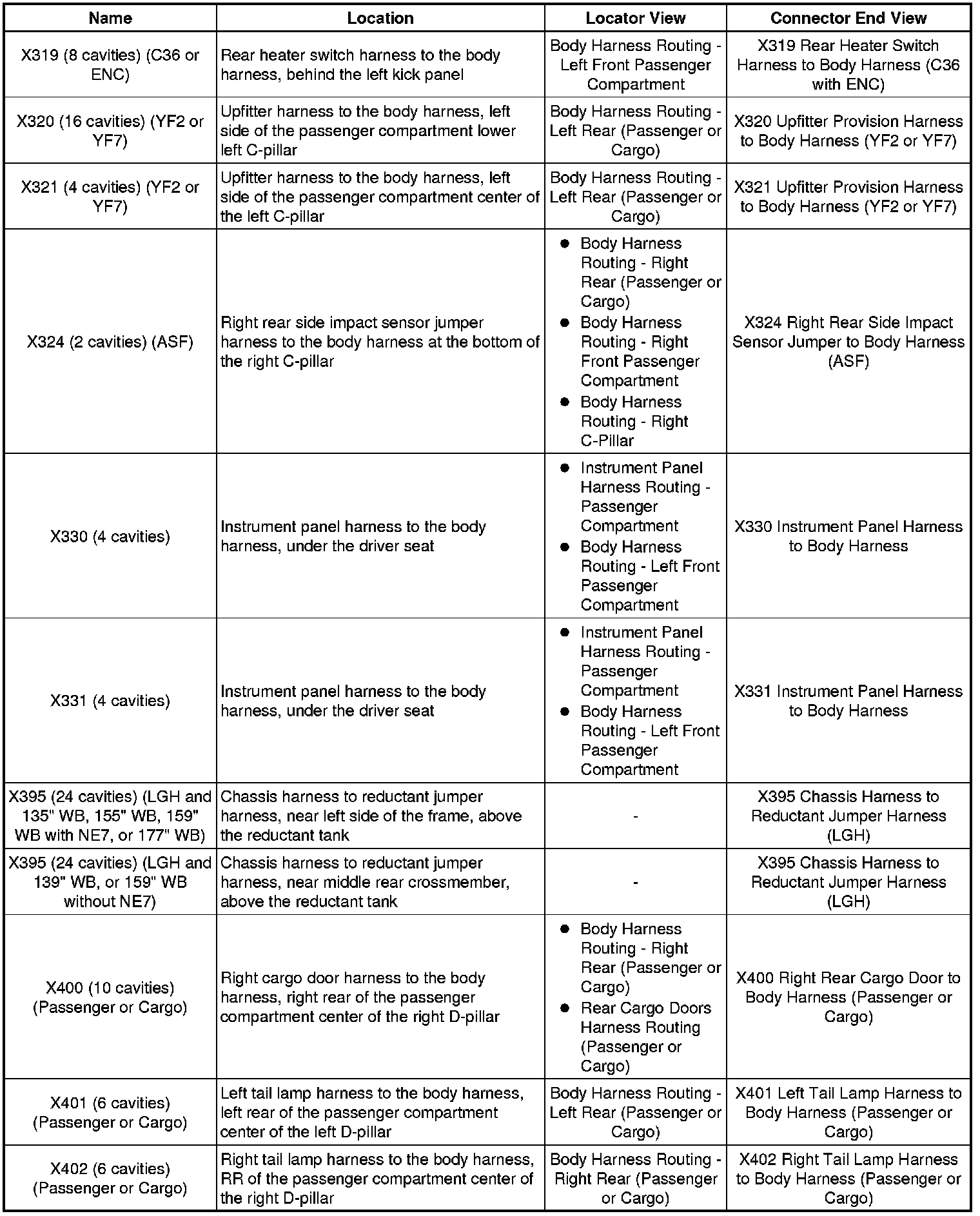

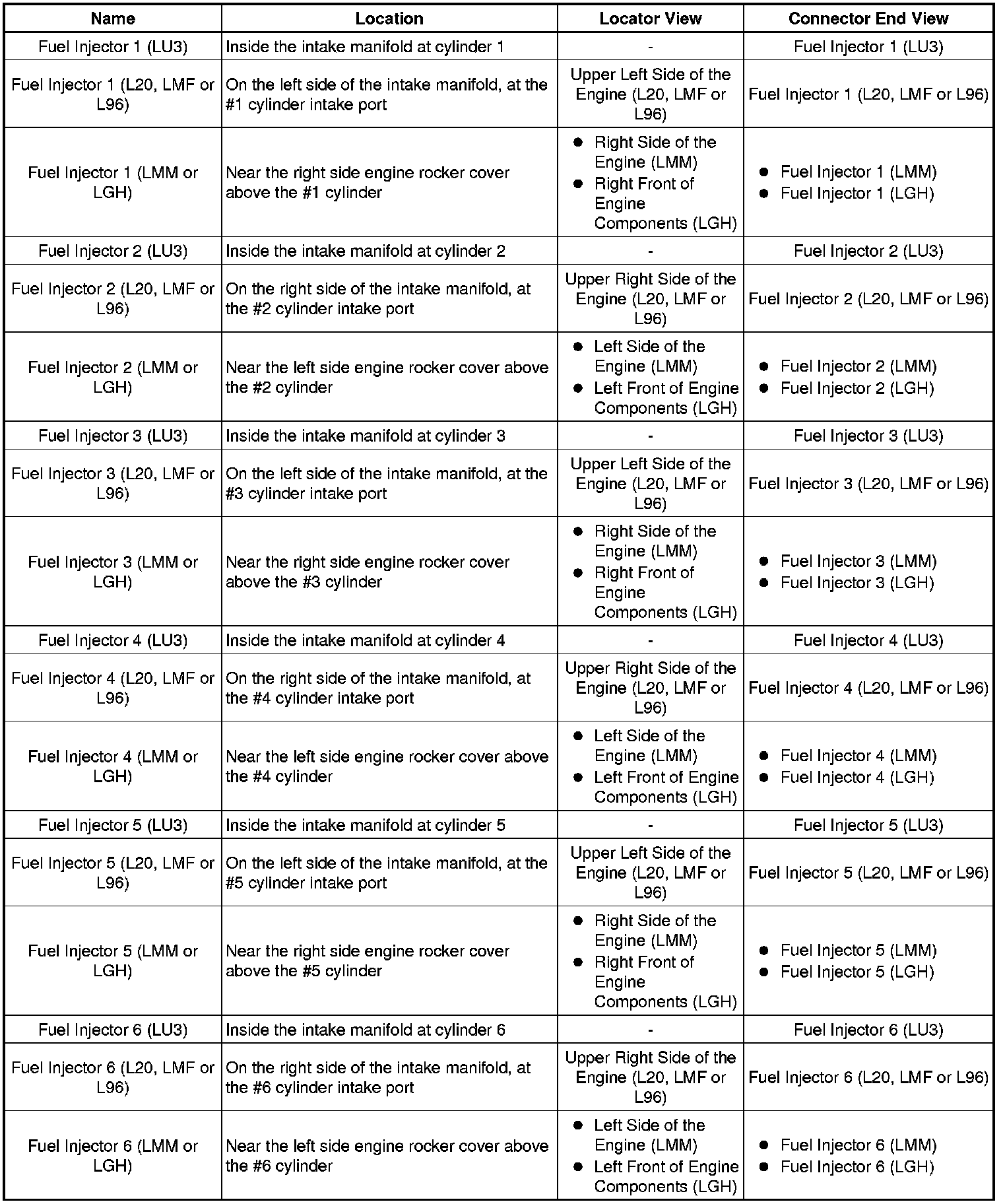

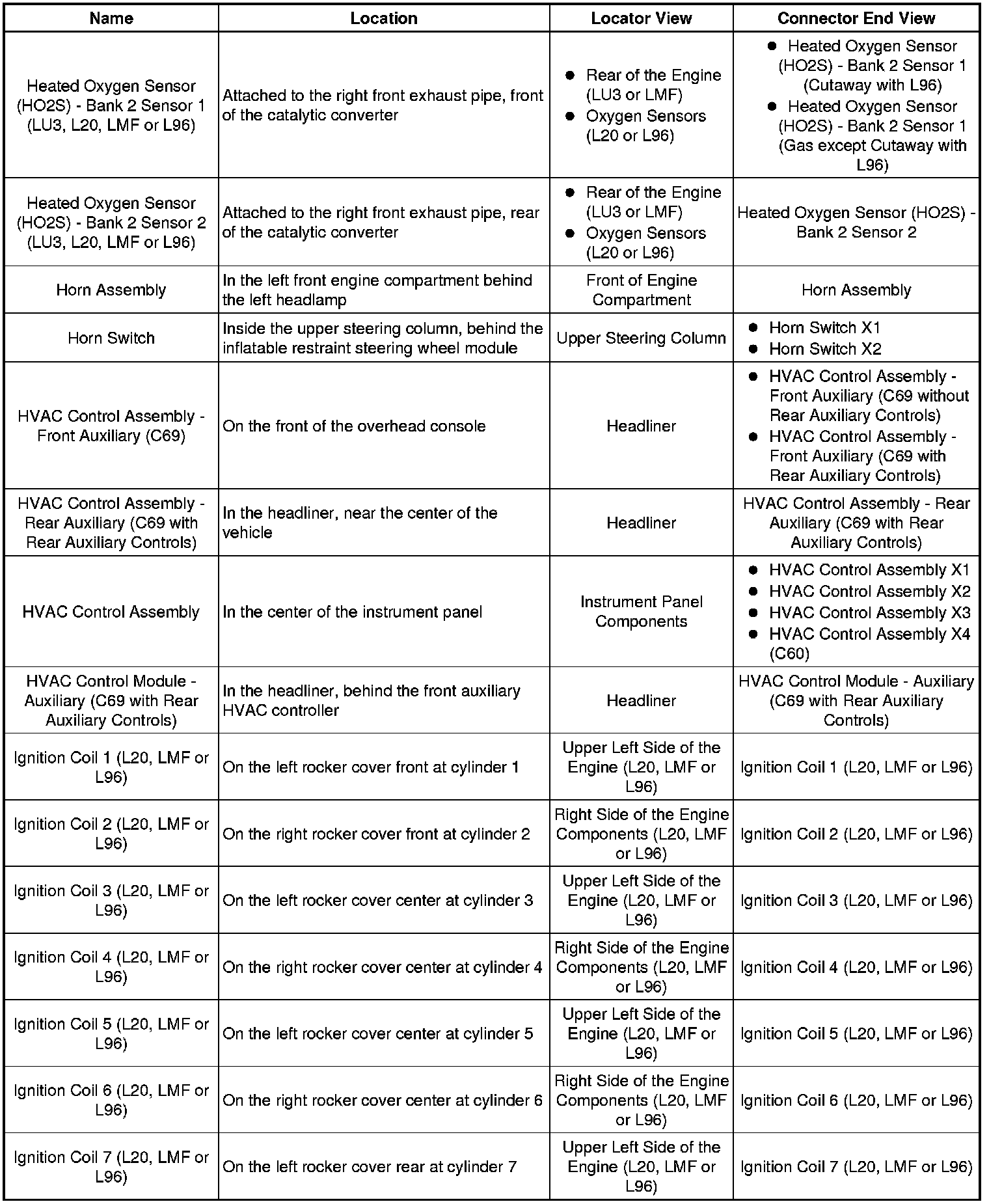

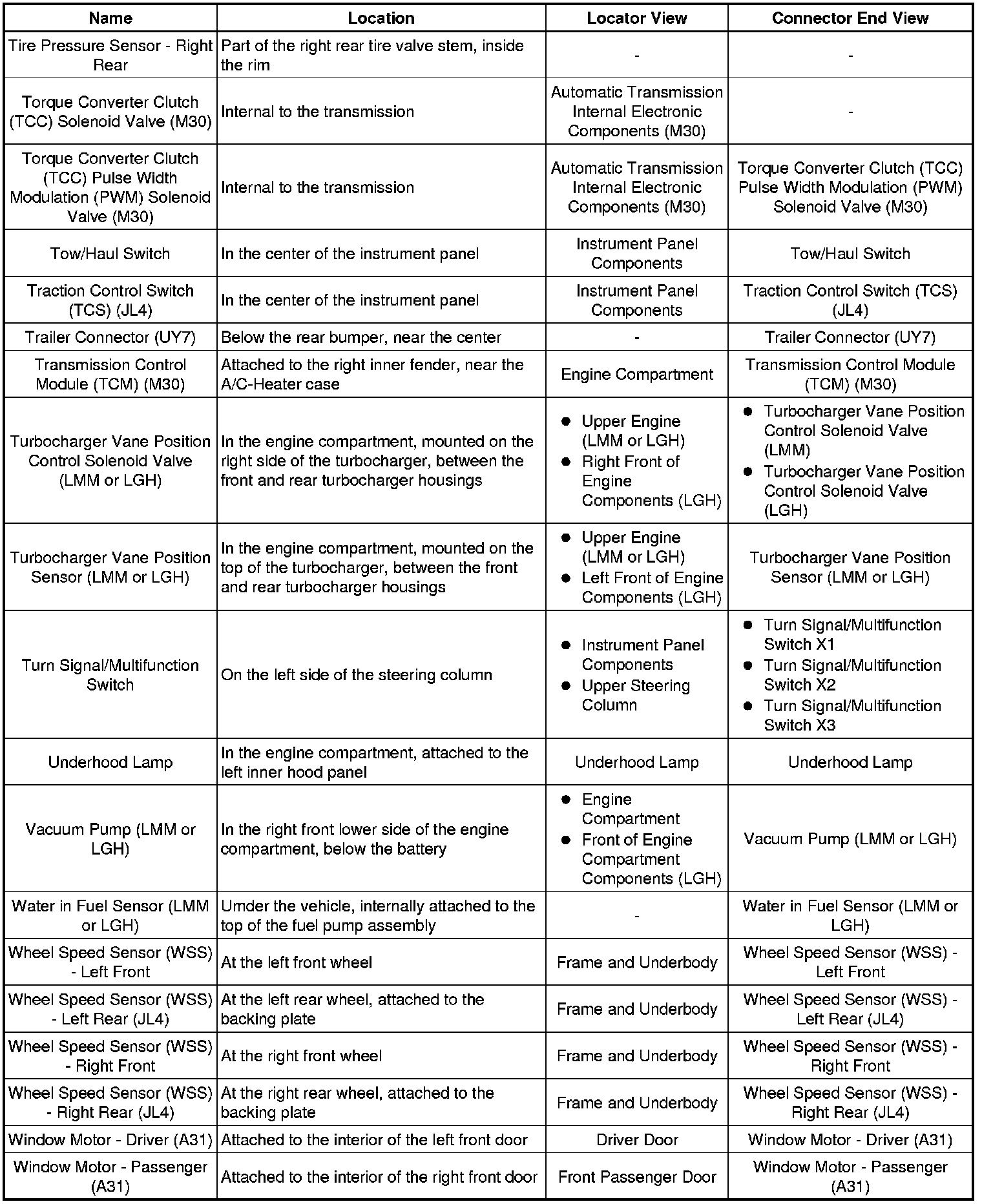

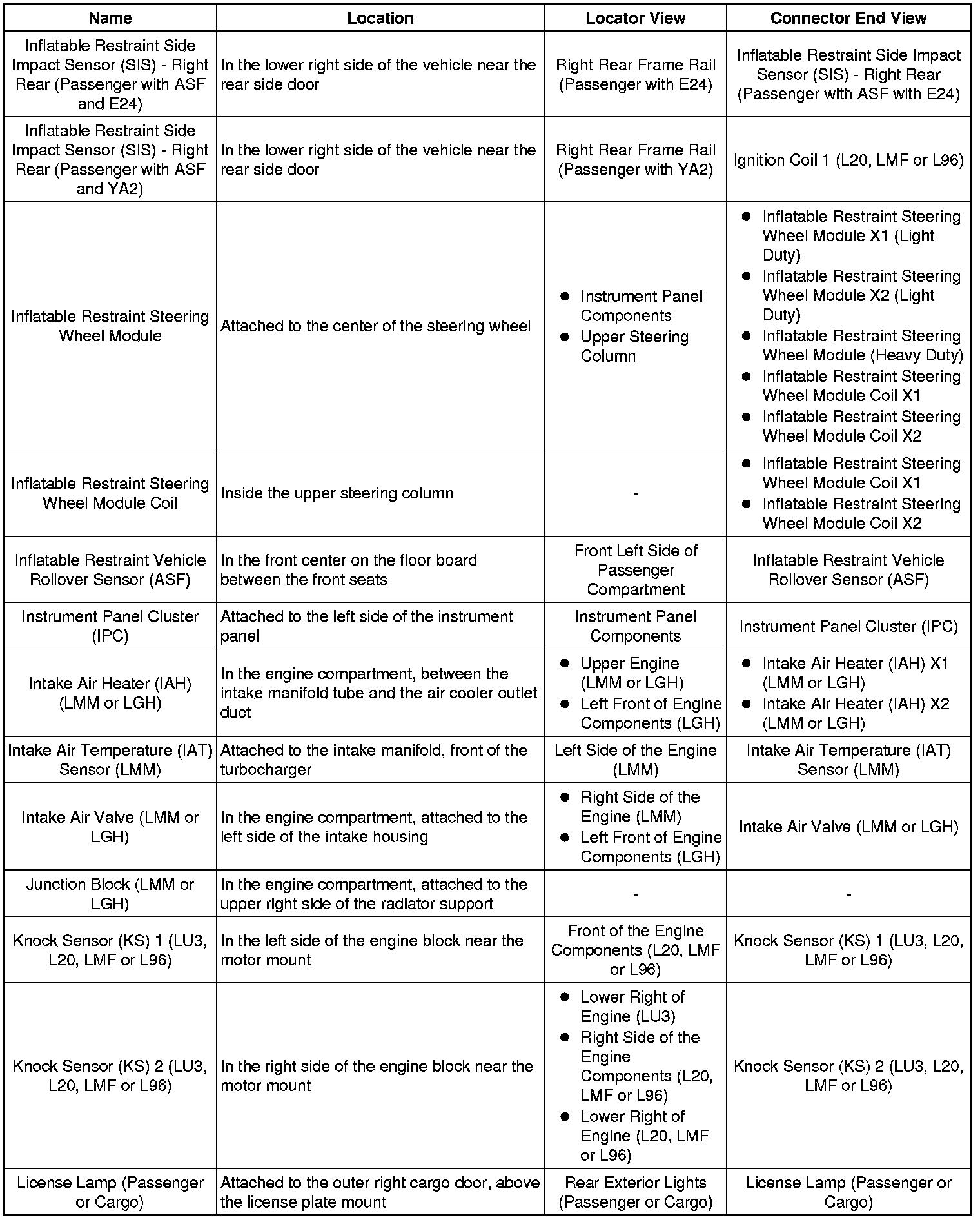

Master Electrical Component List

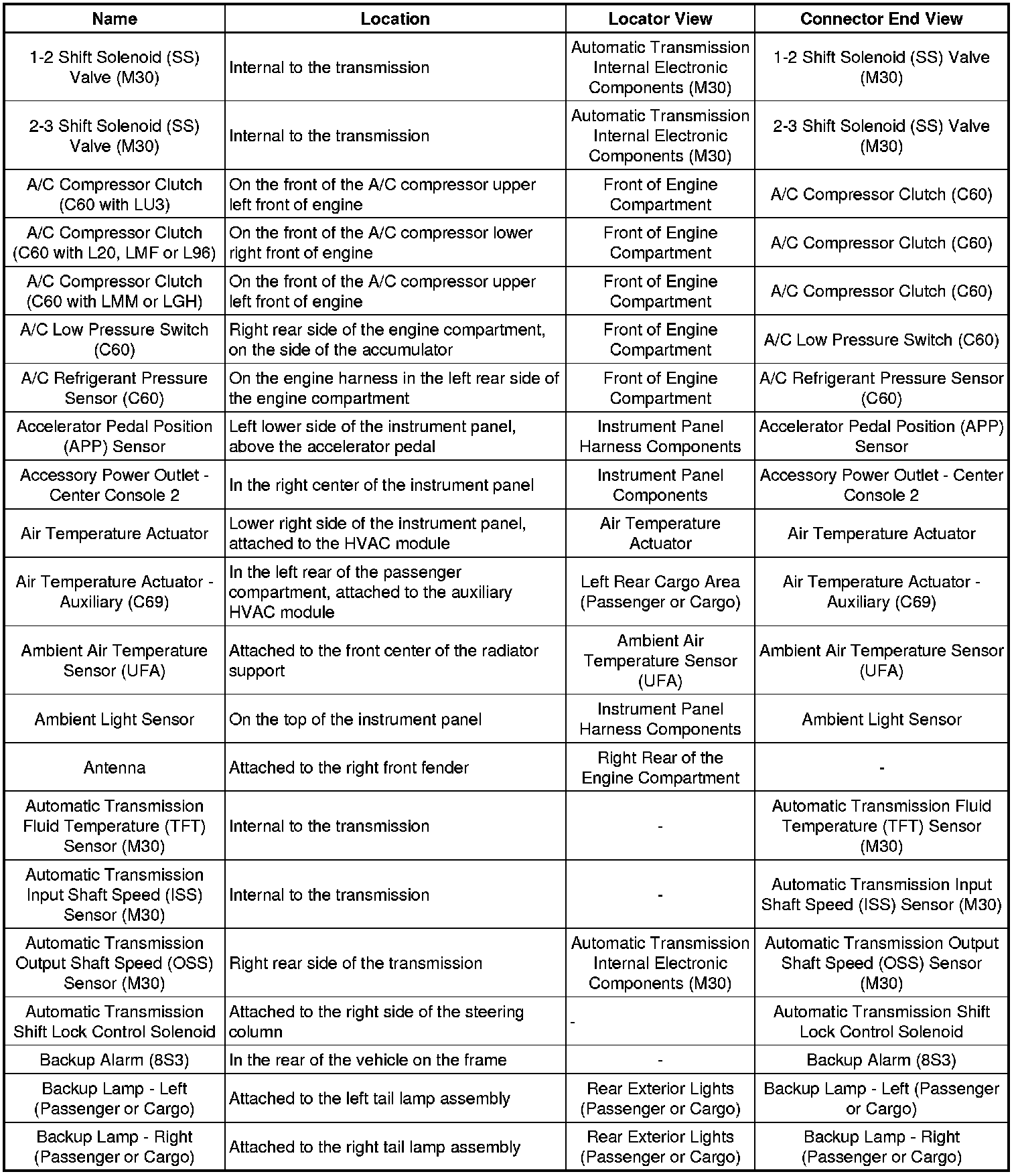

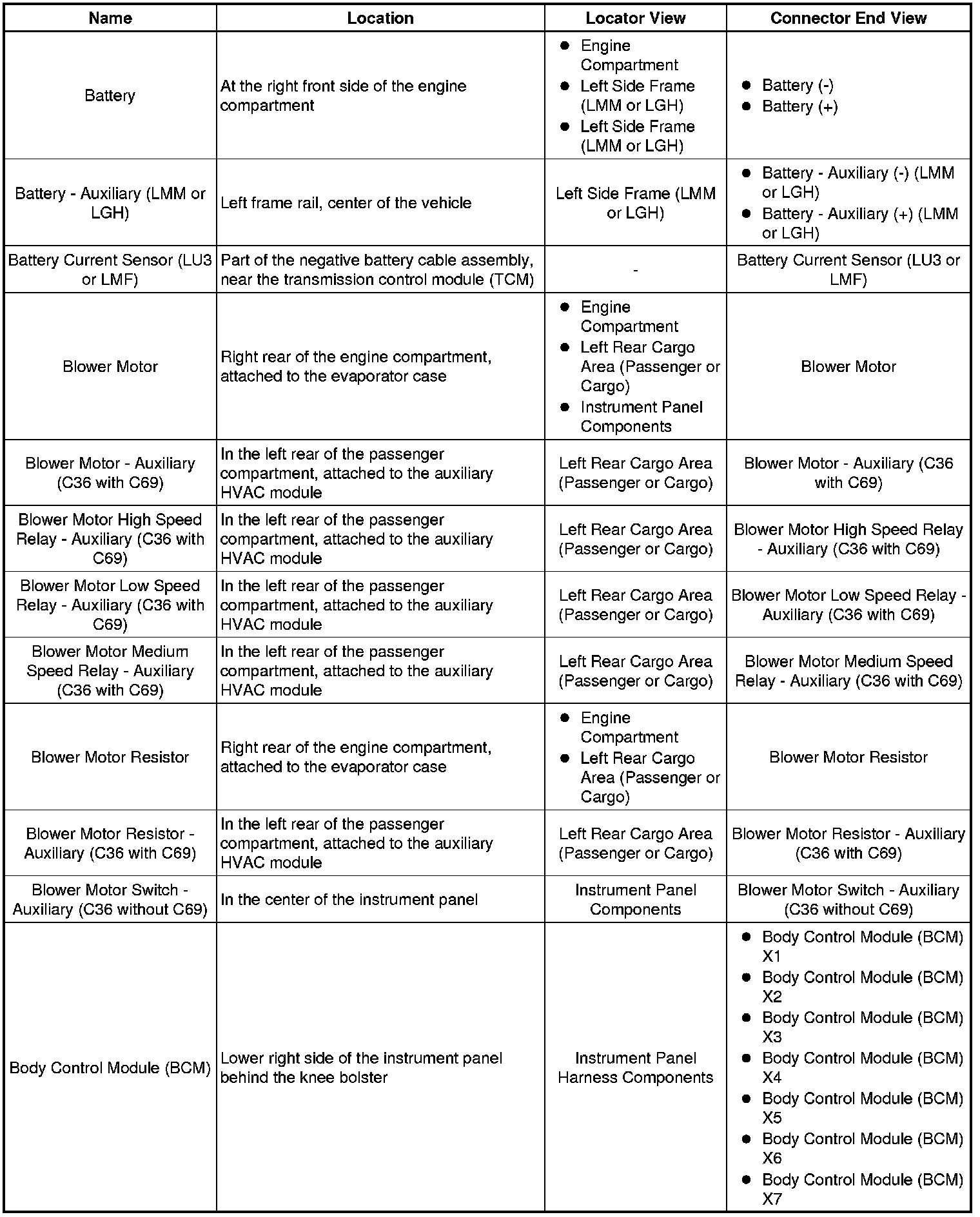

1-2 Sh - Ba:
Ba - Bo:

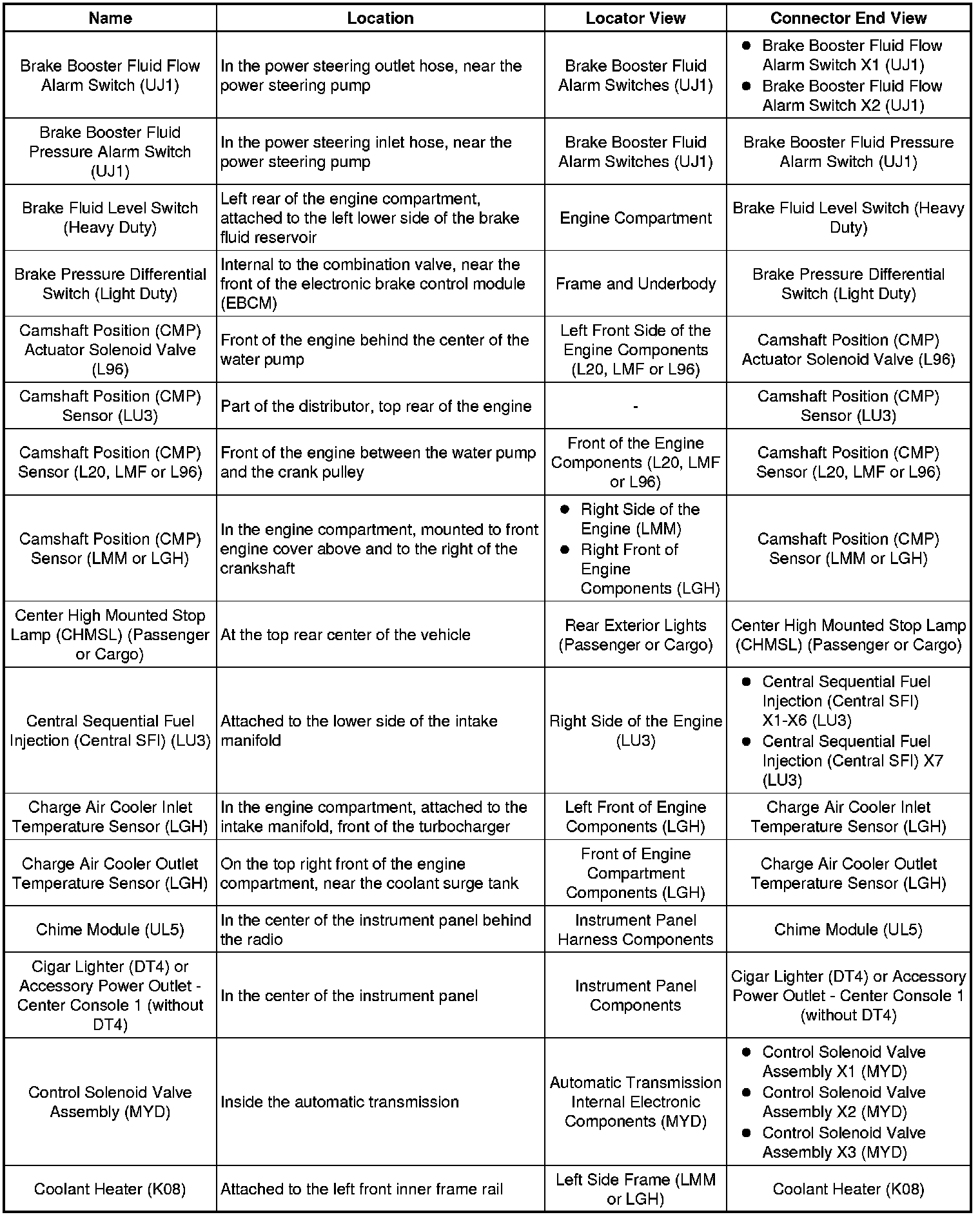

Br - Co:

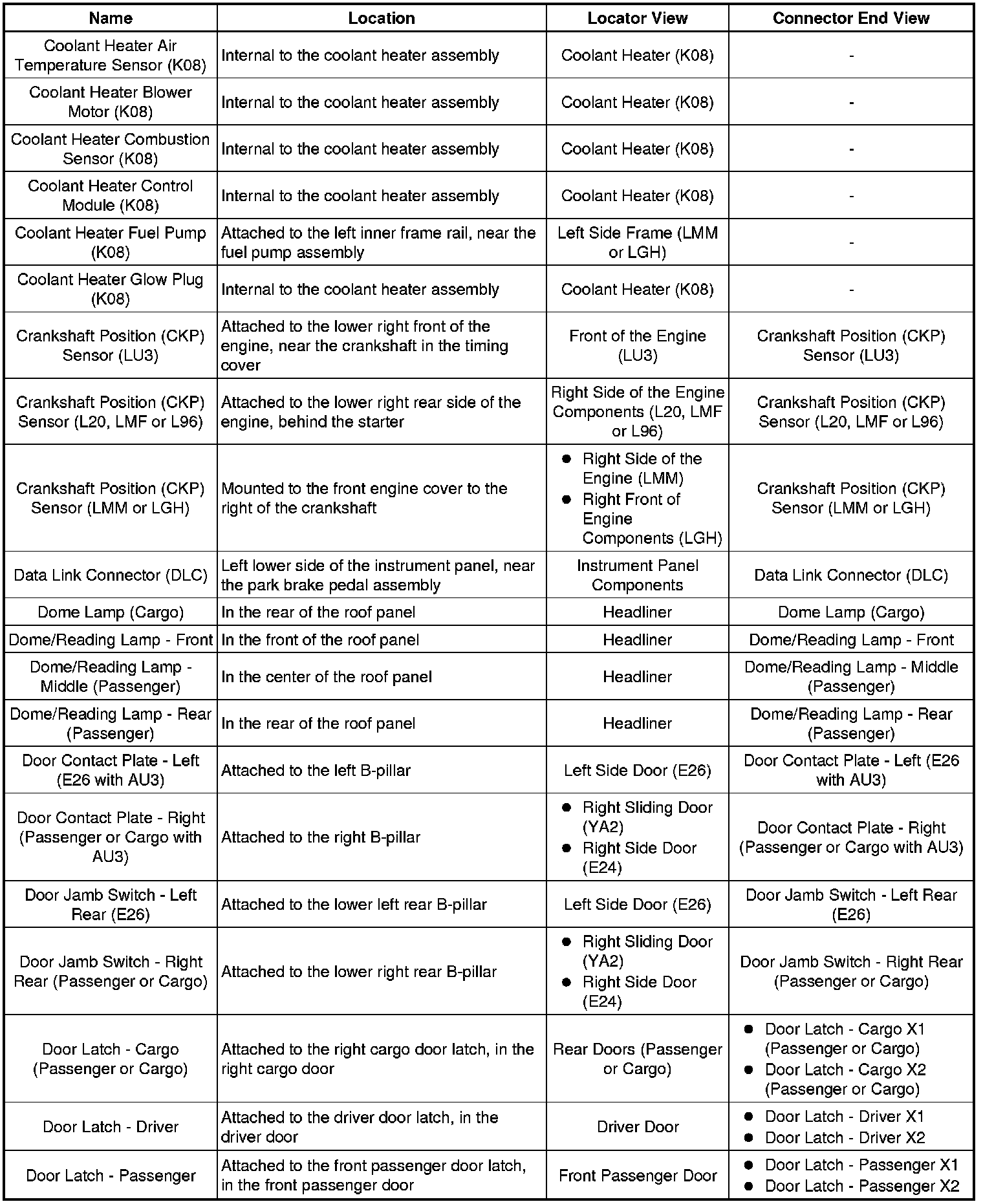

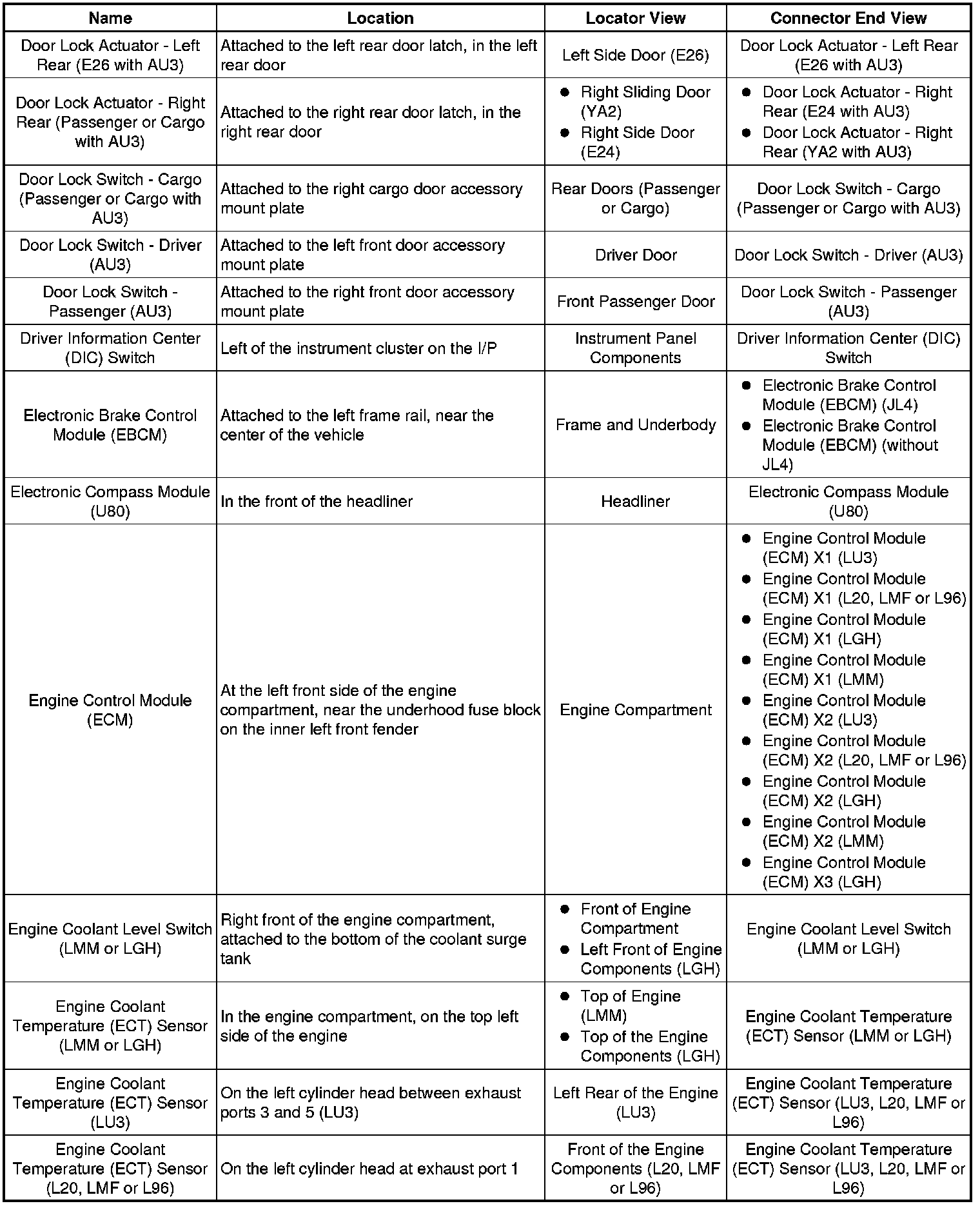

Co - Do:

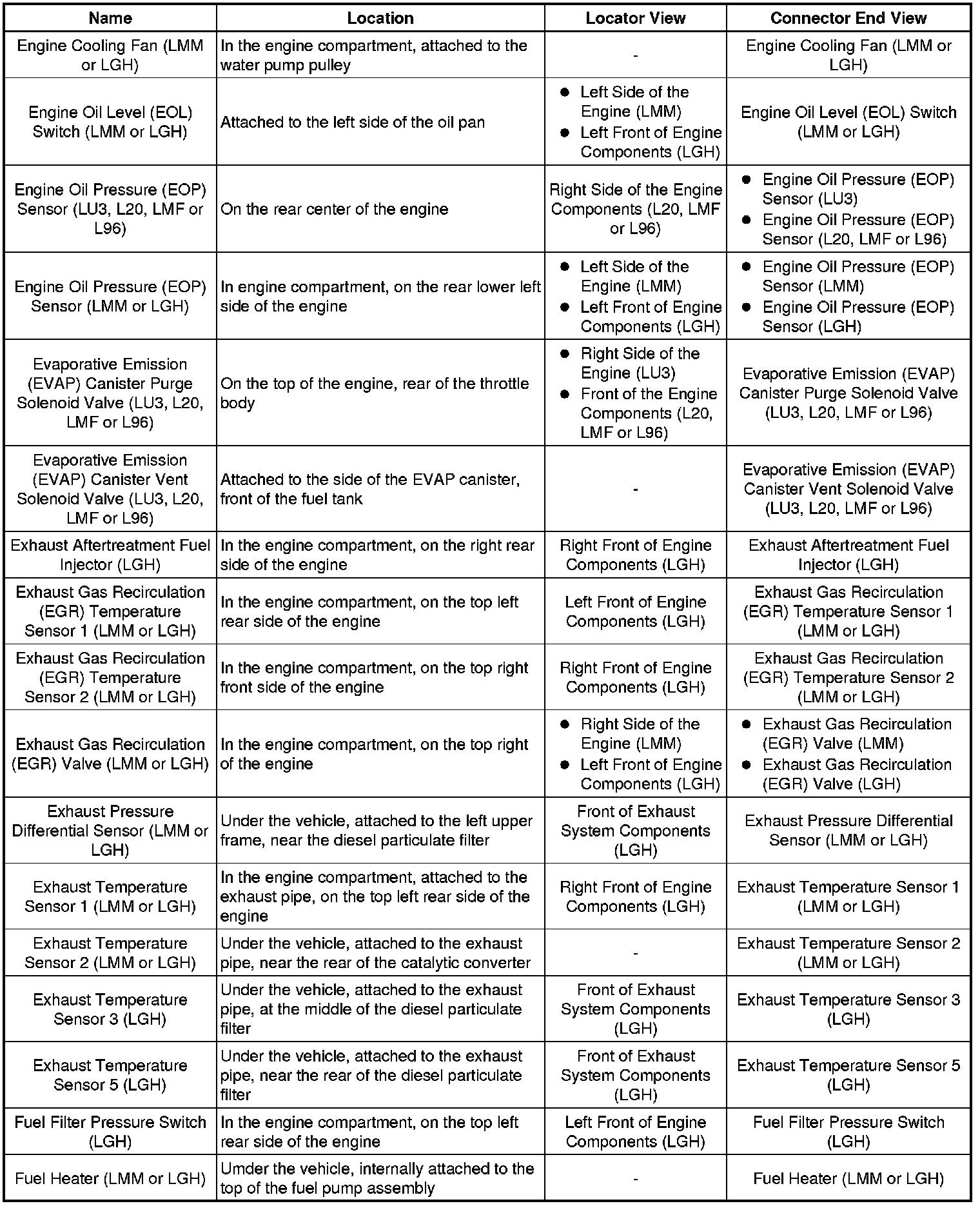

Do - En:
En - Fu:

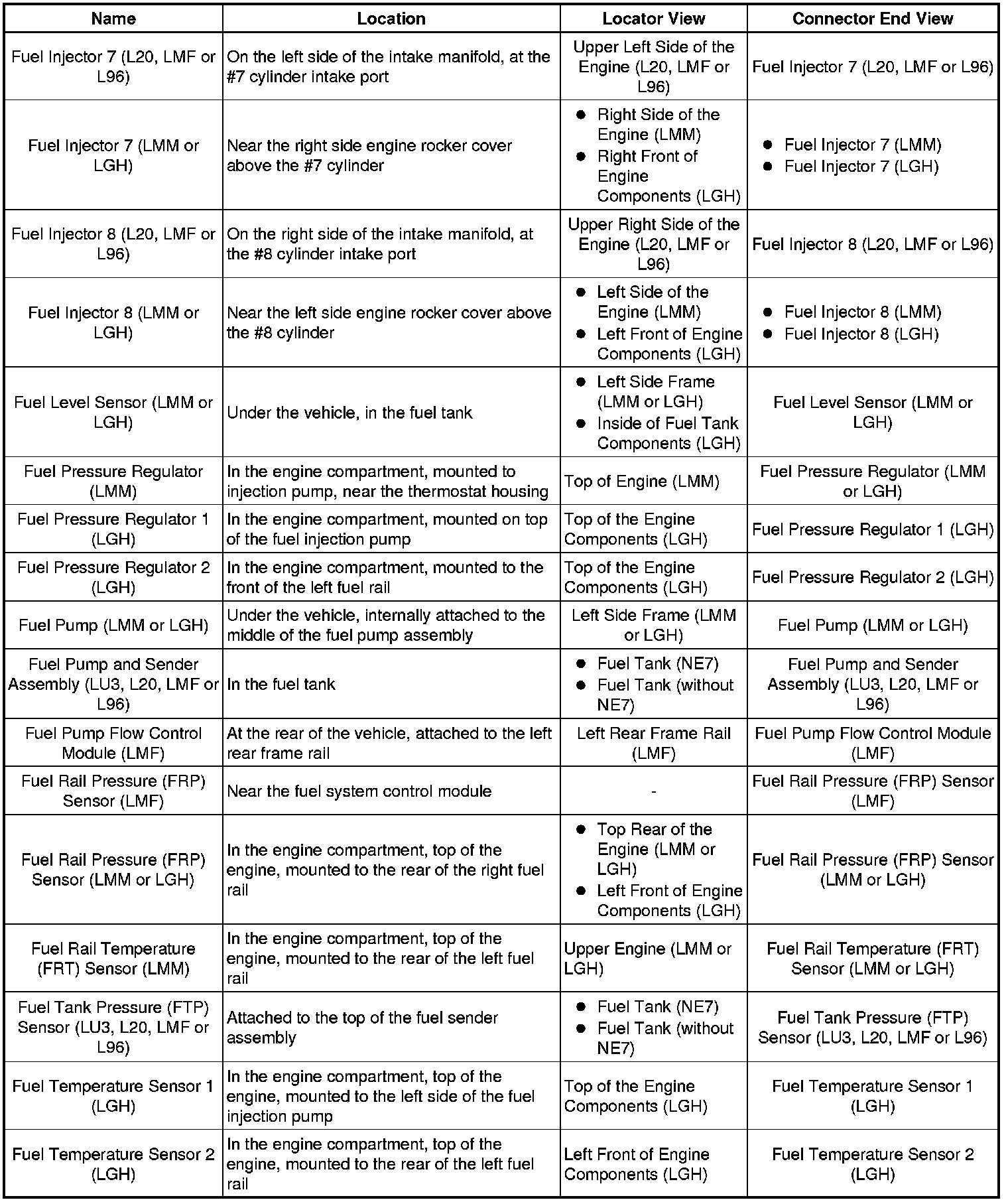

Fu - Fu:
Fu - Fu:
Fu - Gl:

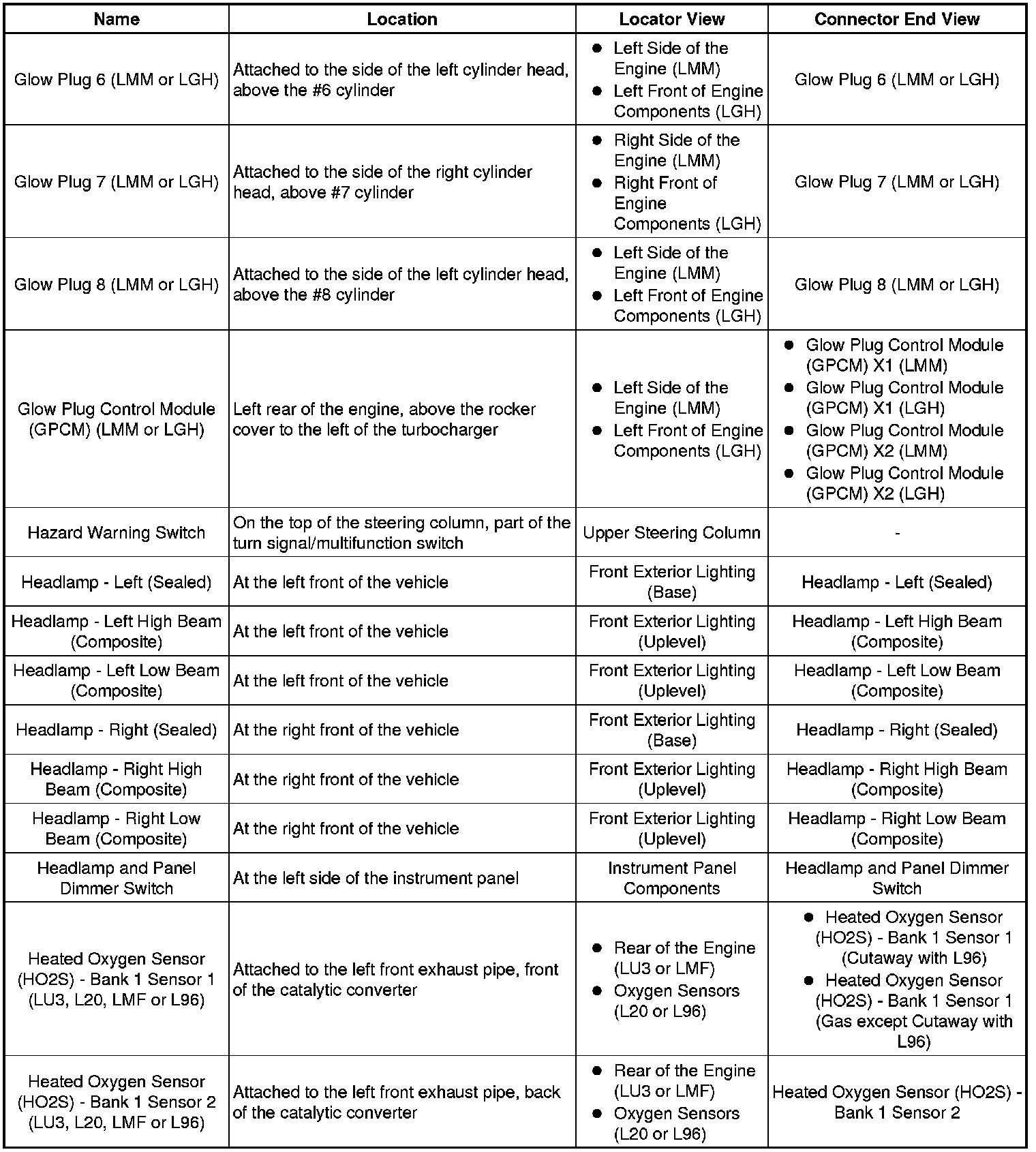

Gl - He:

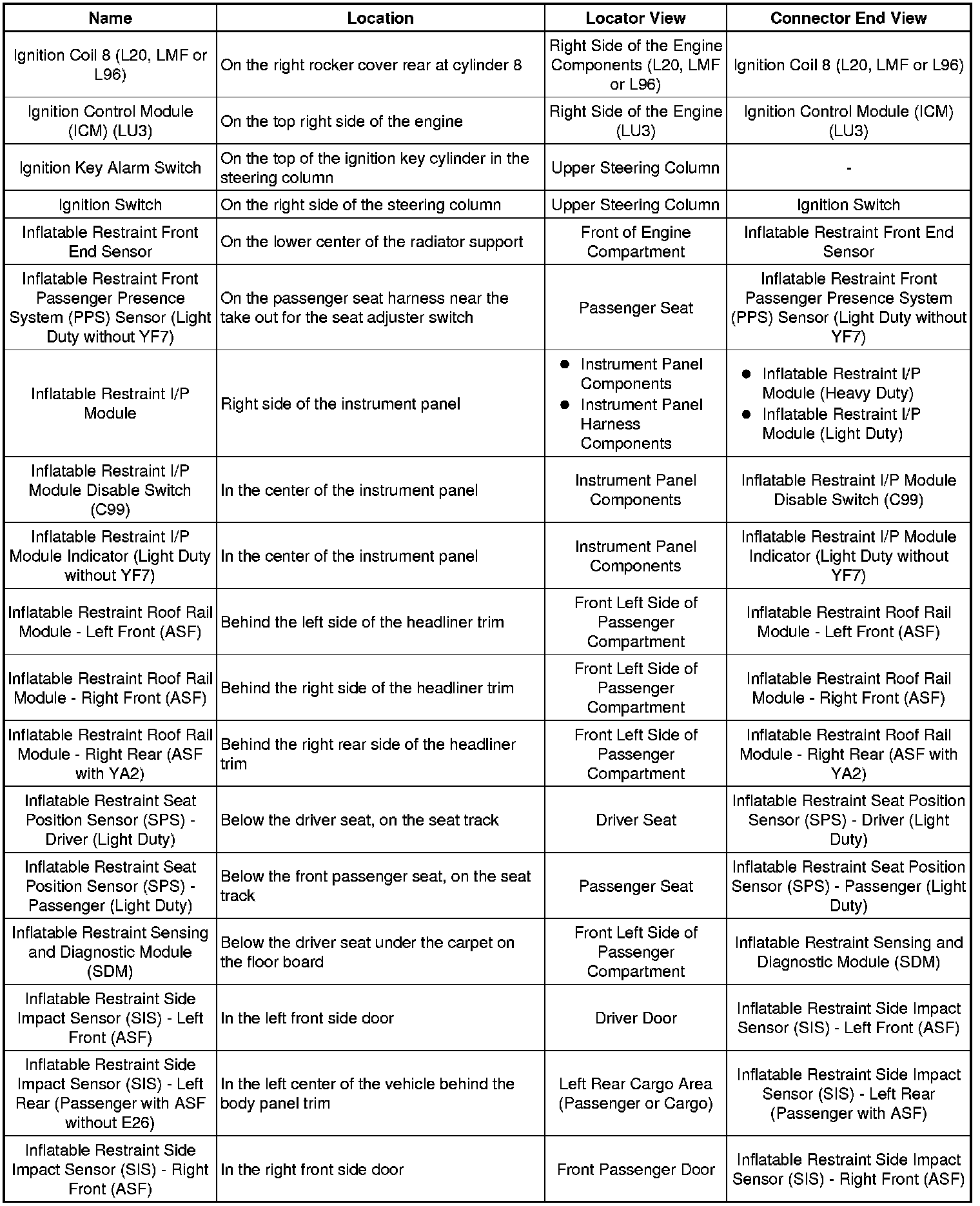

He - Ig:
Ig - In:
In - Li:

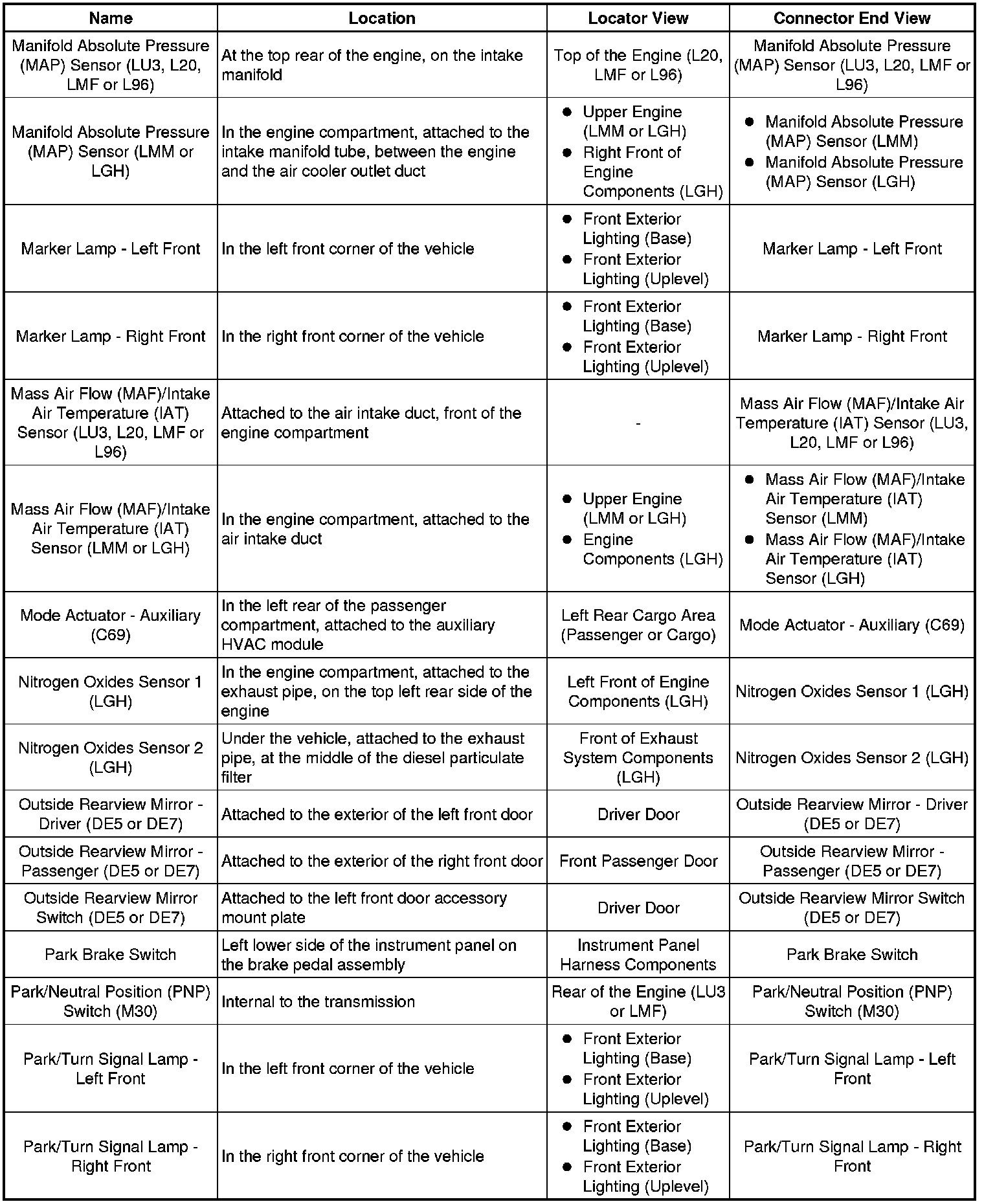

Ma - Pa:

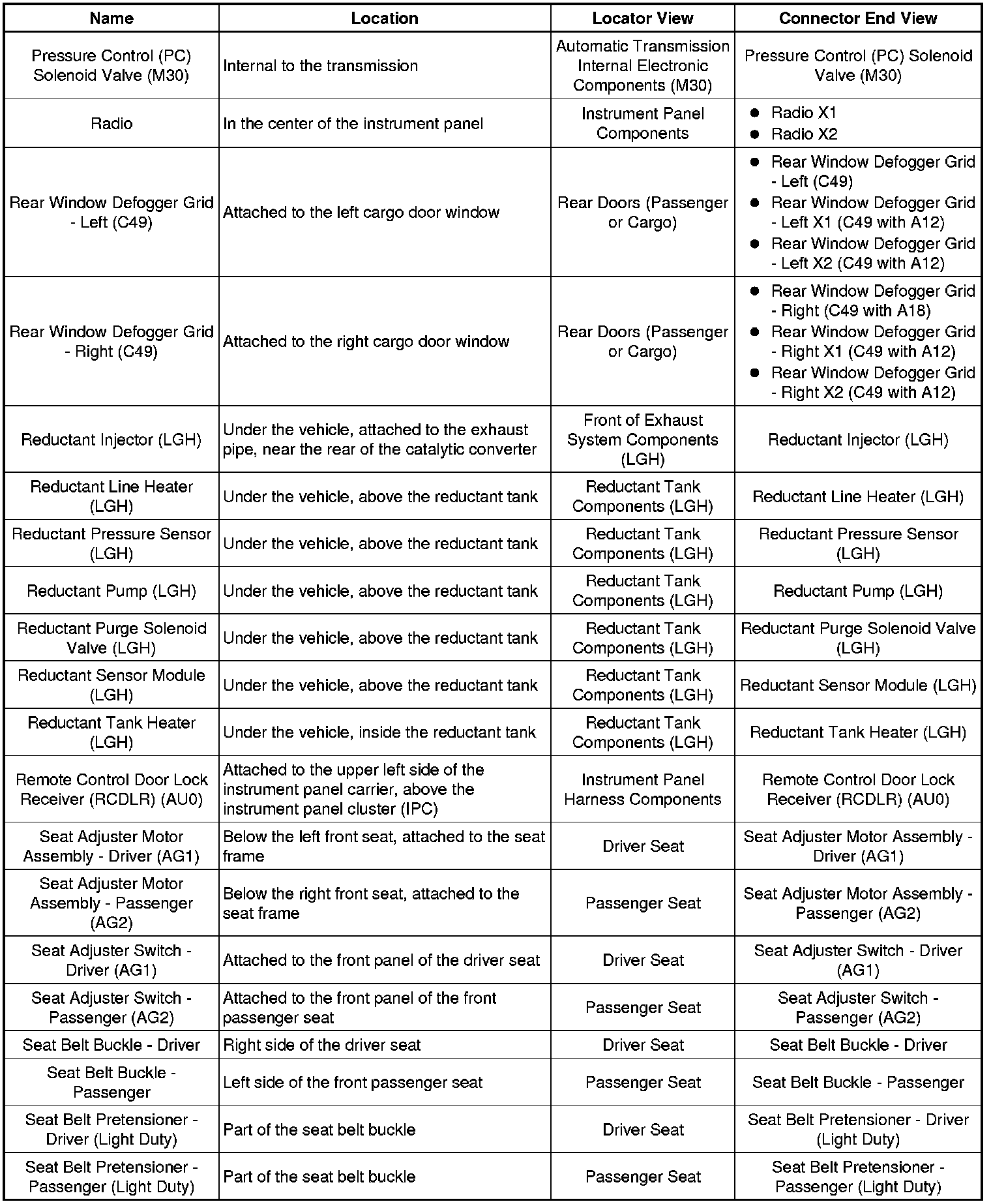

Pr - Se:
Sp - Ti:
Ti - Wi:

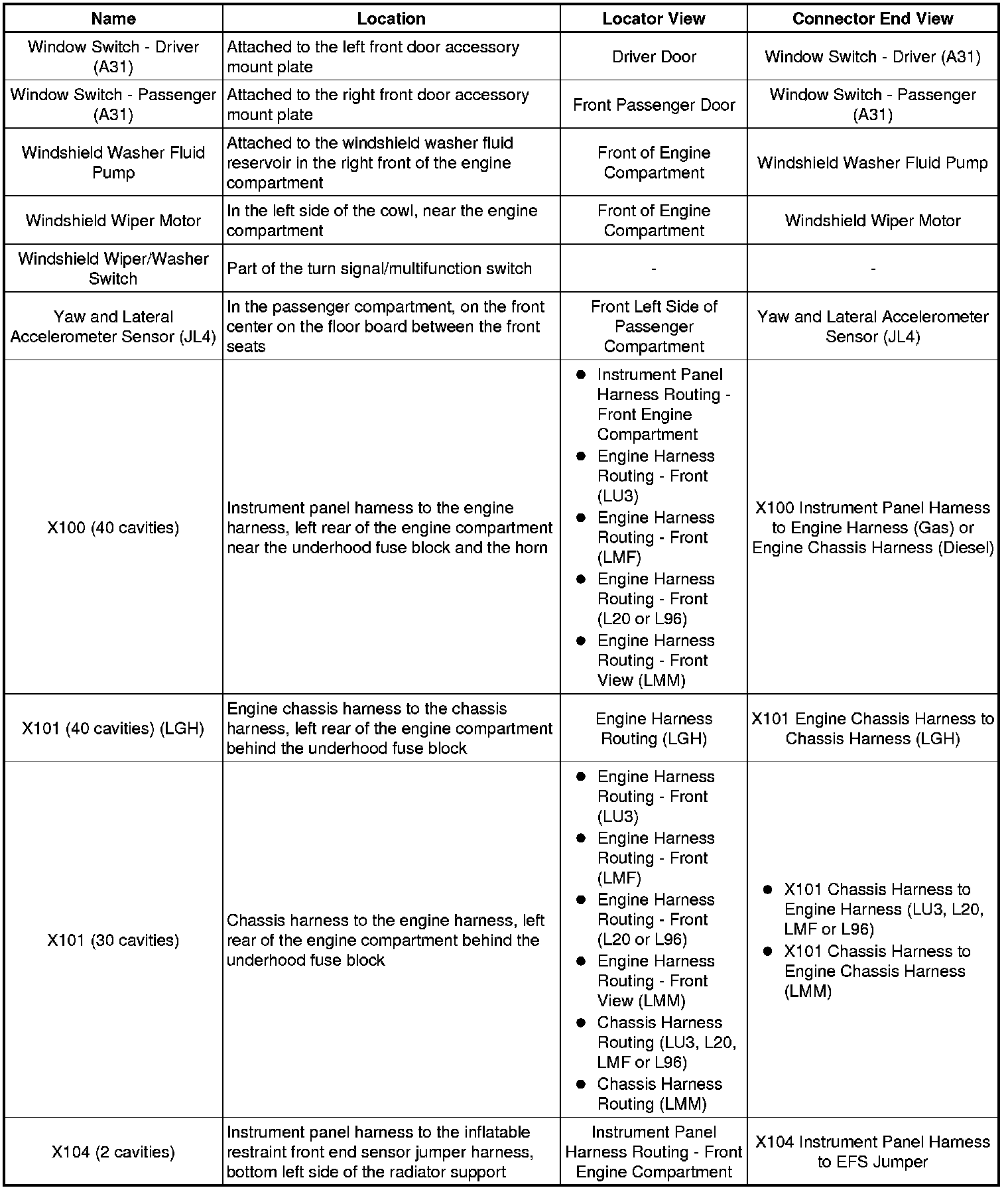

Wi - X104:

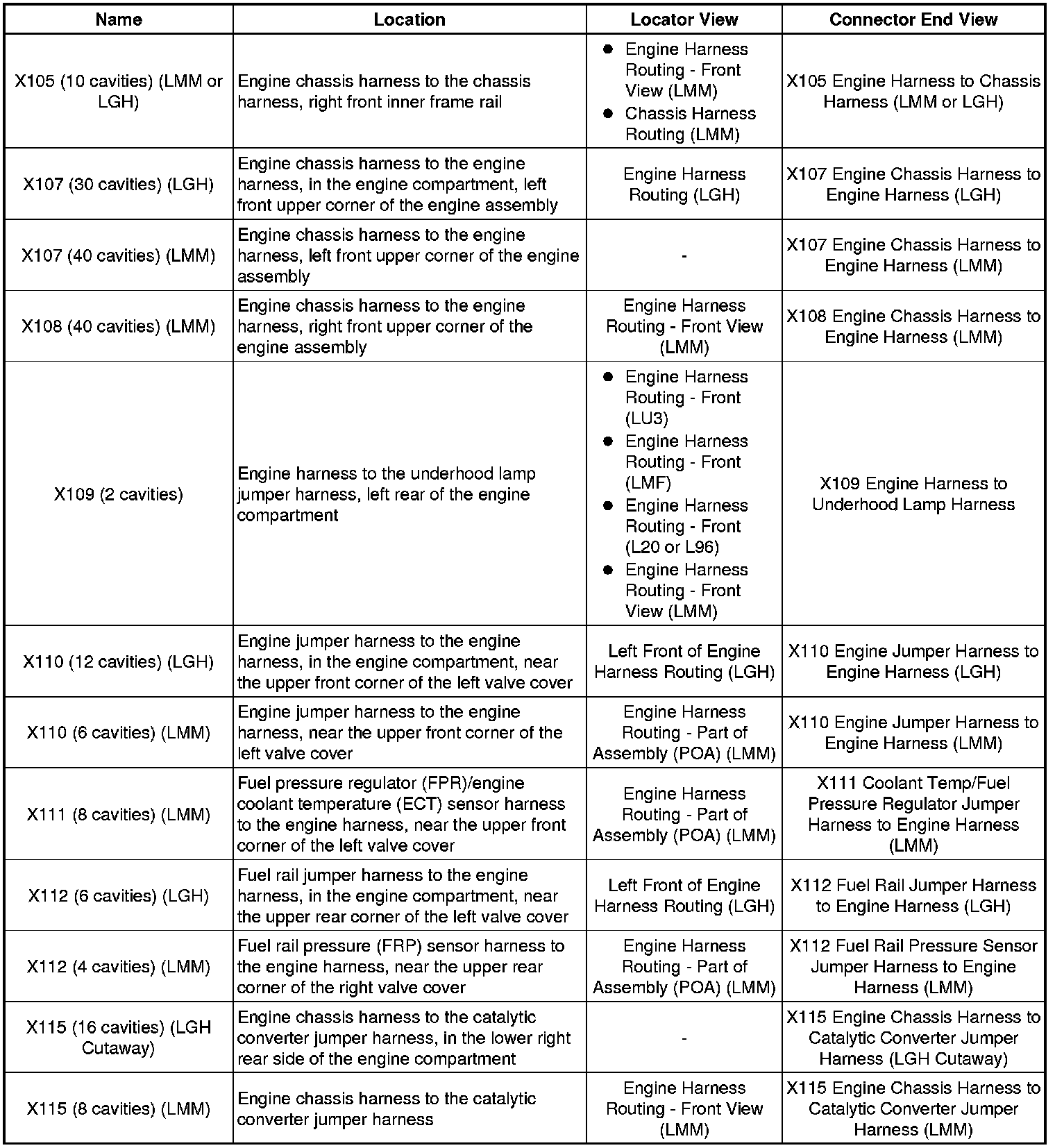

X105 - X115:

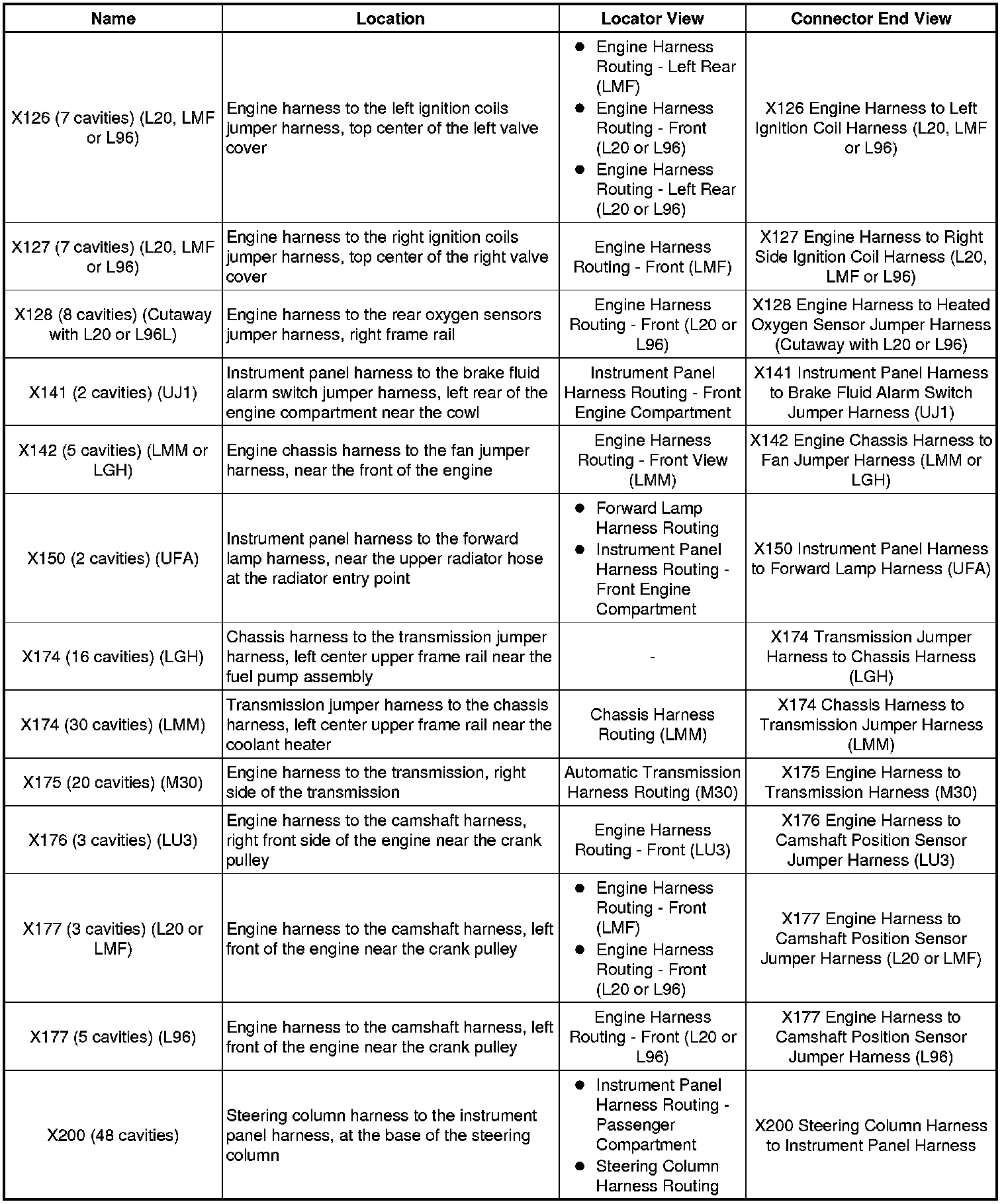

X126 - X200:

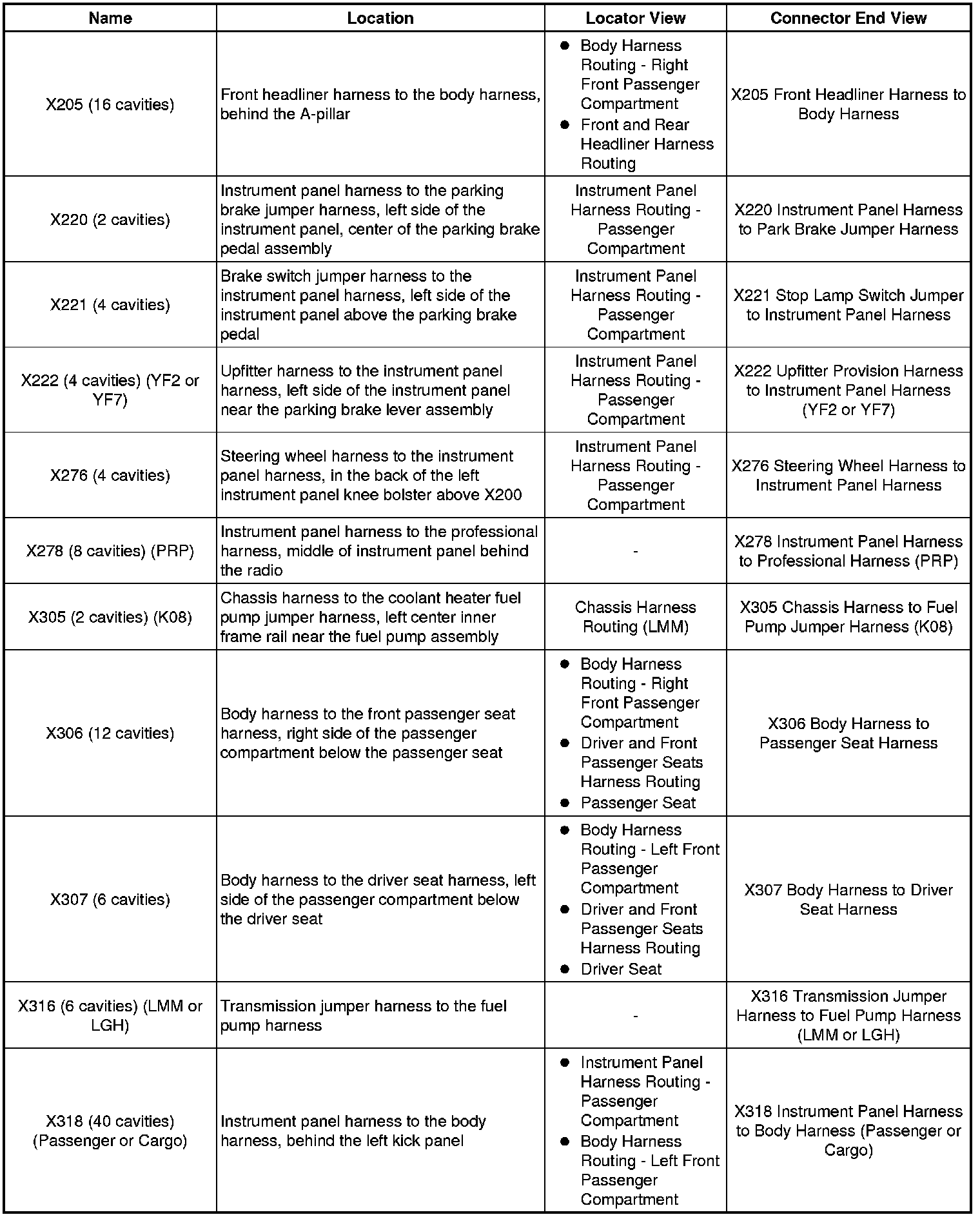

X205 - X318:
X319 - X402:

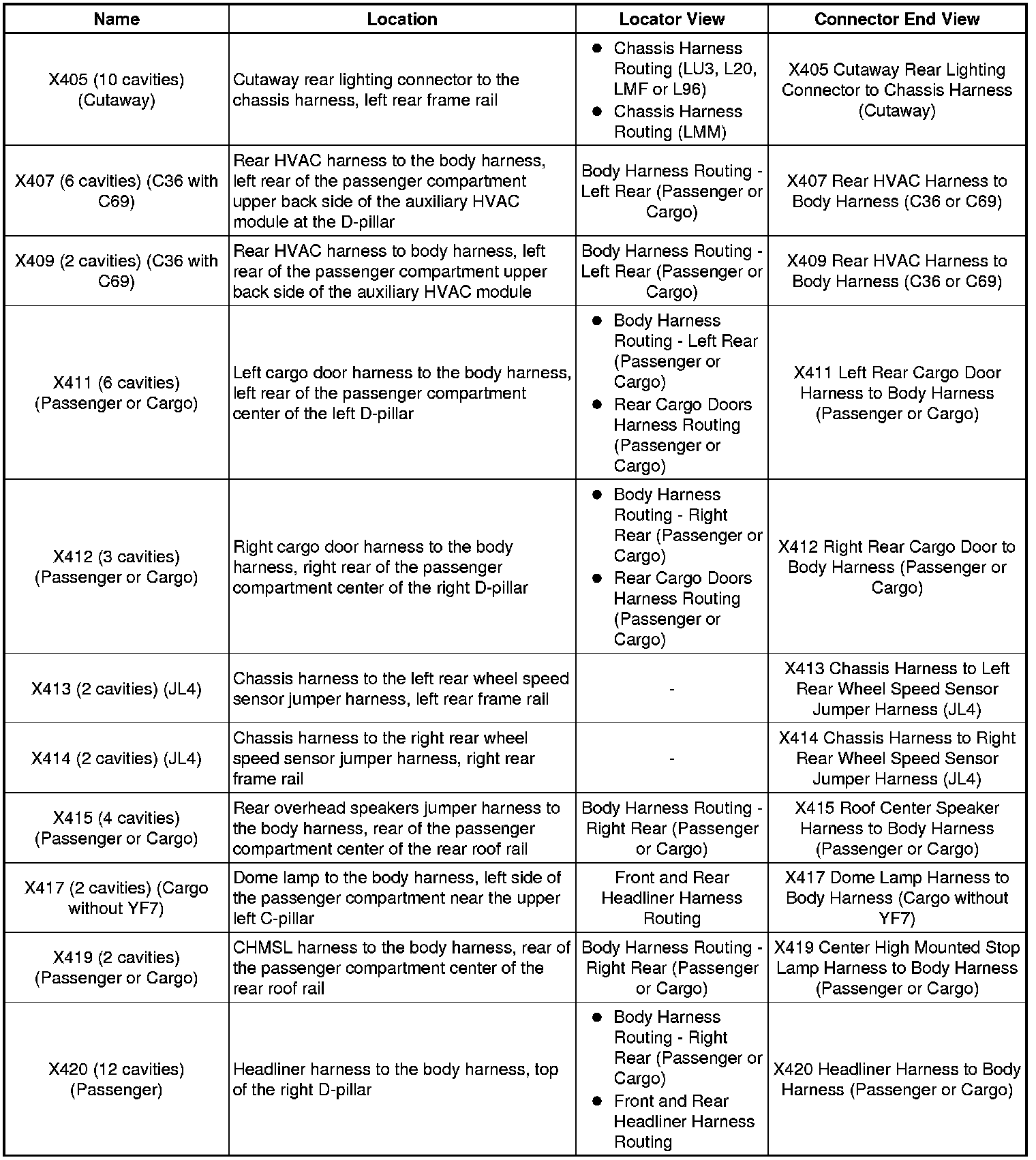

X405 - X420:
X500 - G102:

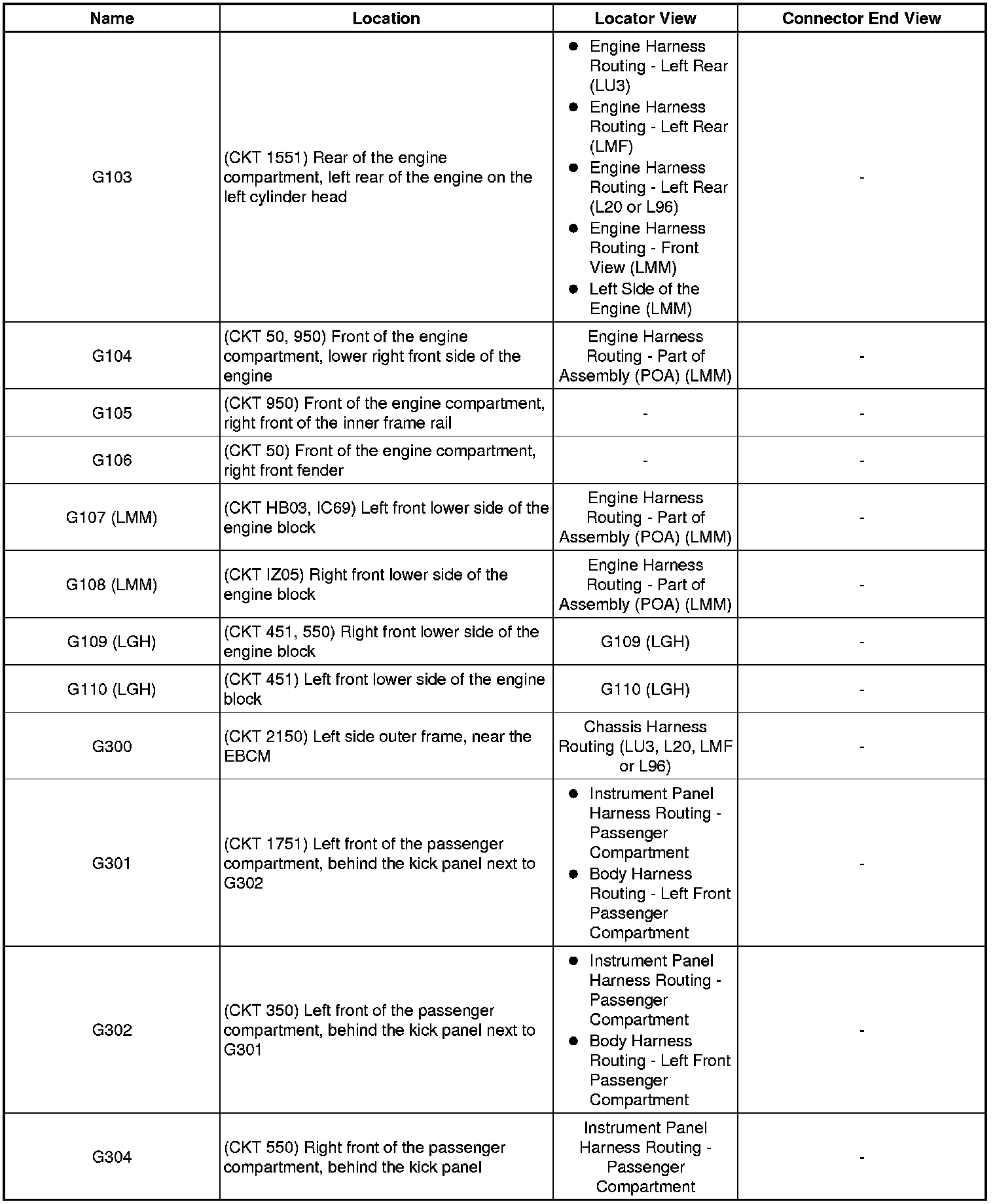

G103 - G304:

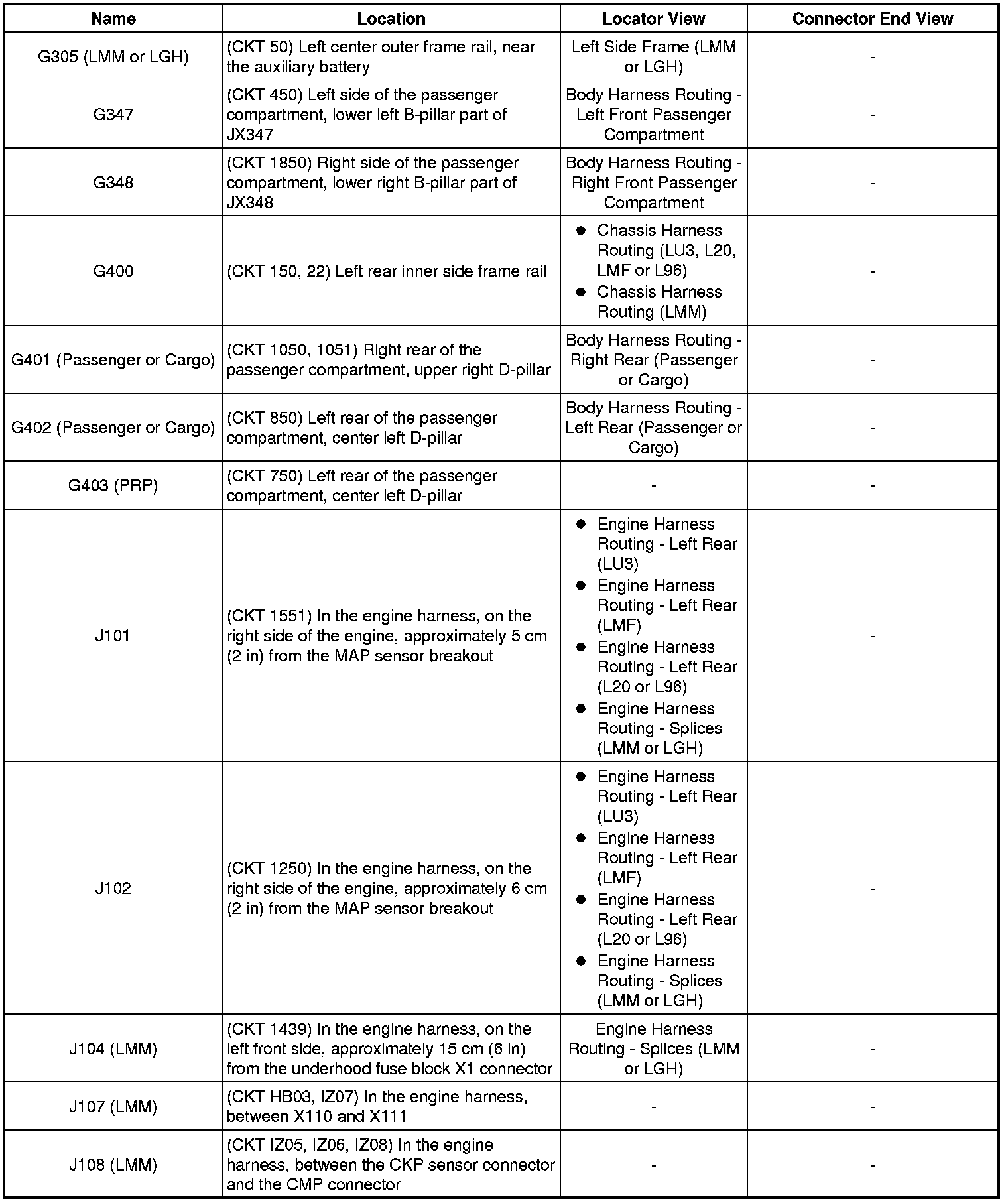

G305 - J108:

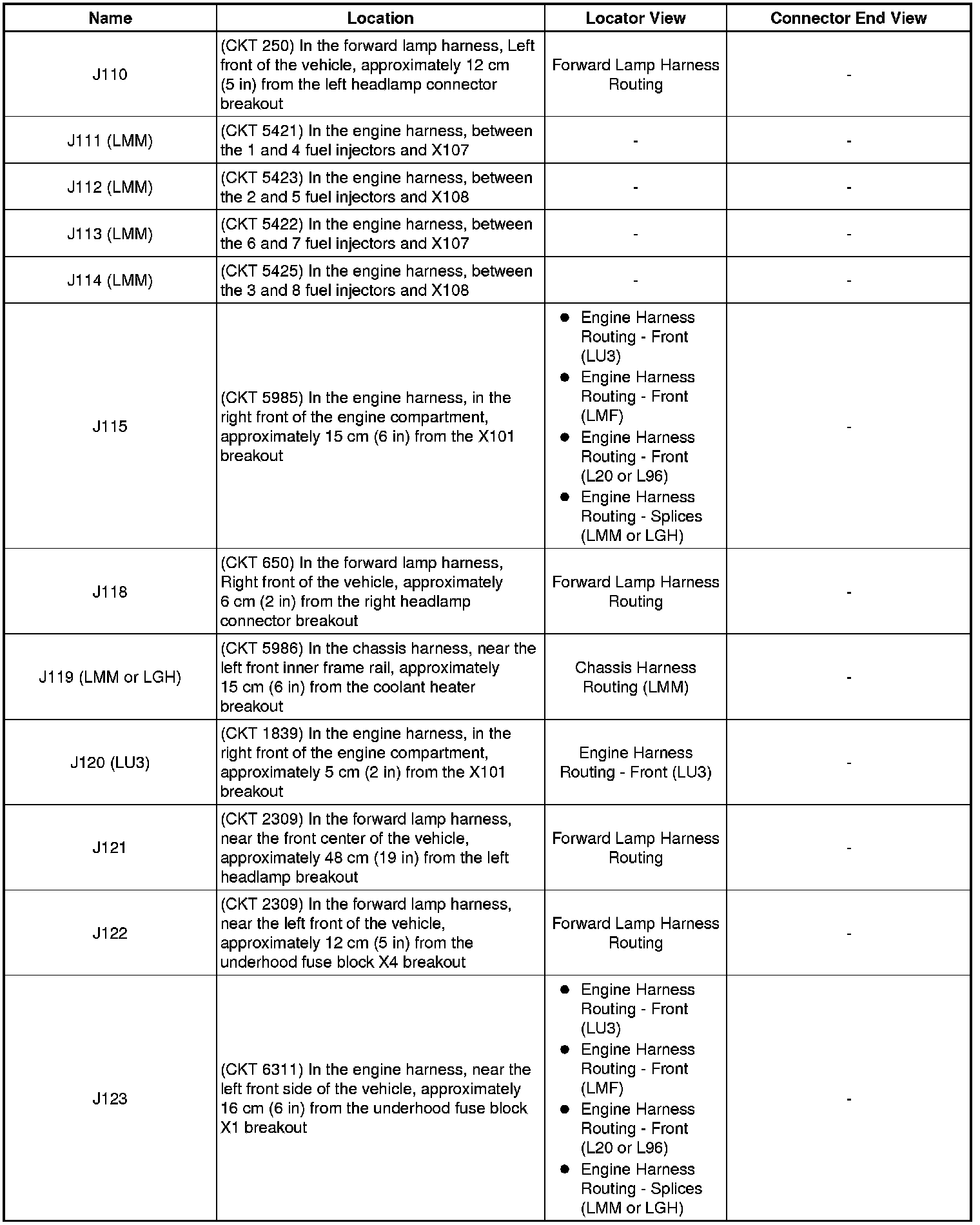

J110 - J123:
J127 - J203:

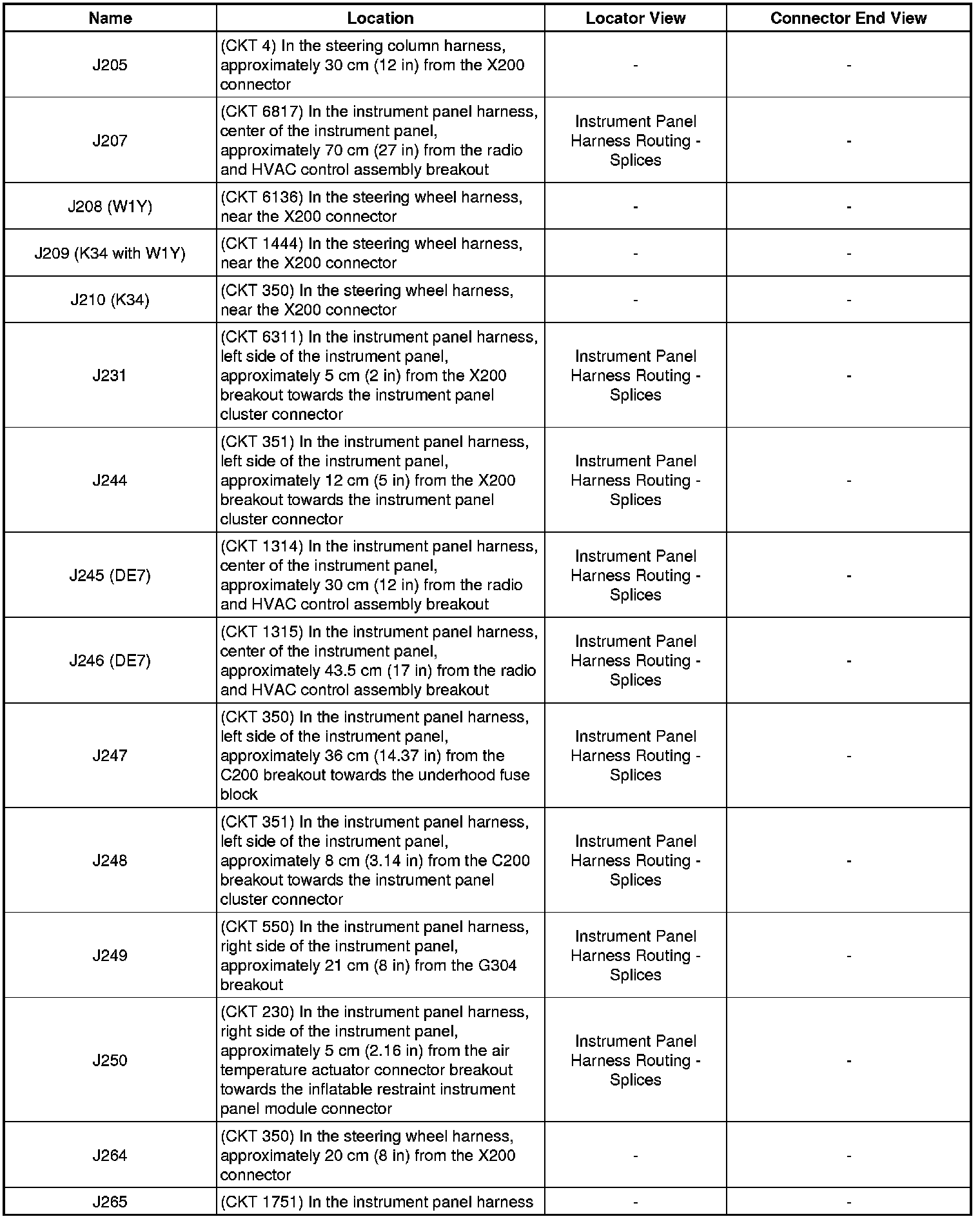

J205 - J265:

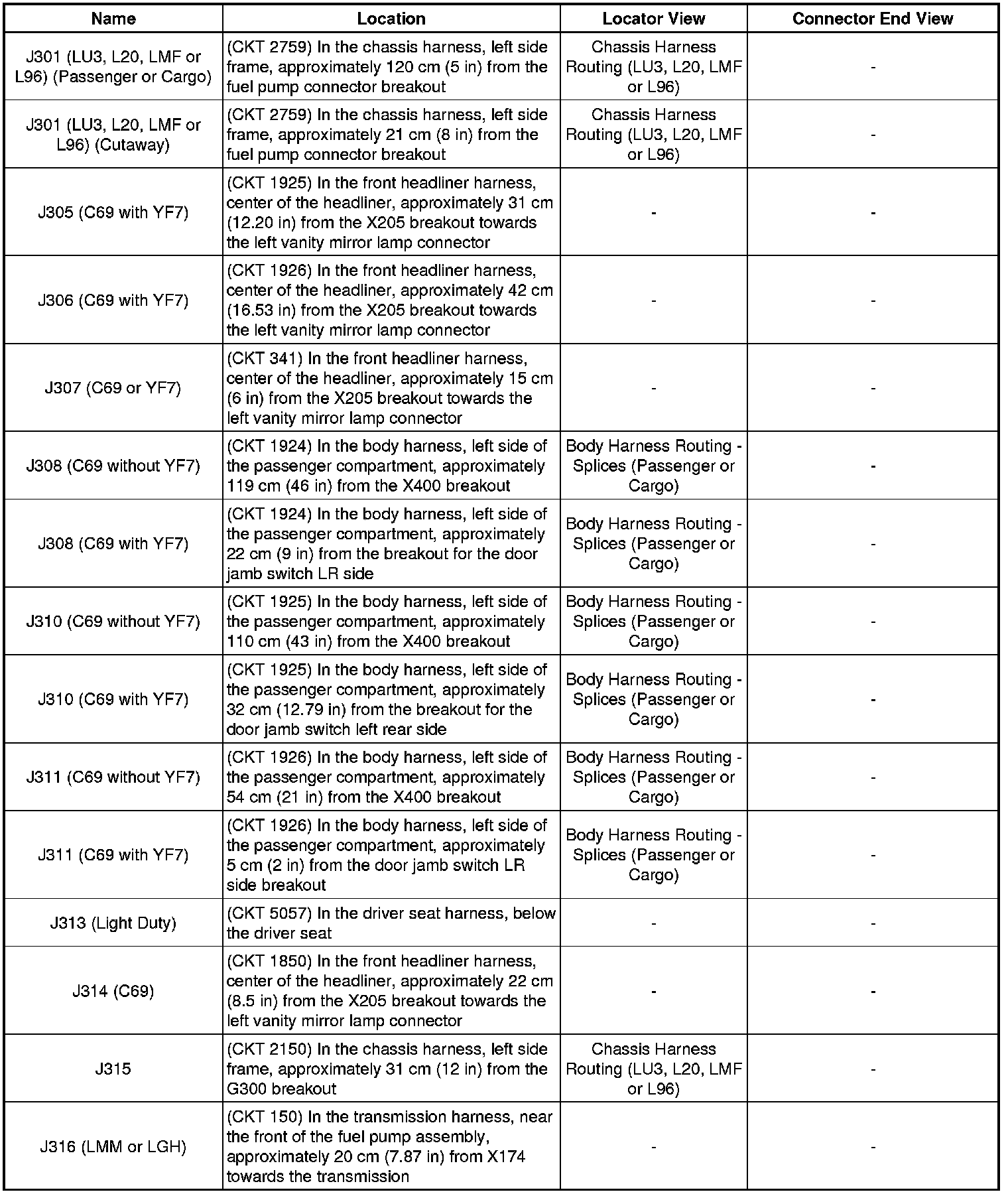

J301 - J316:

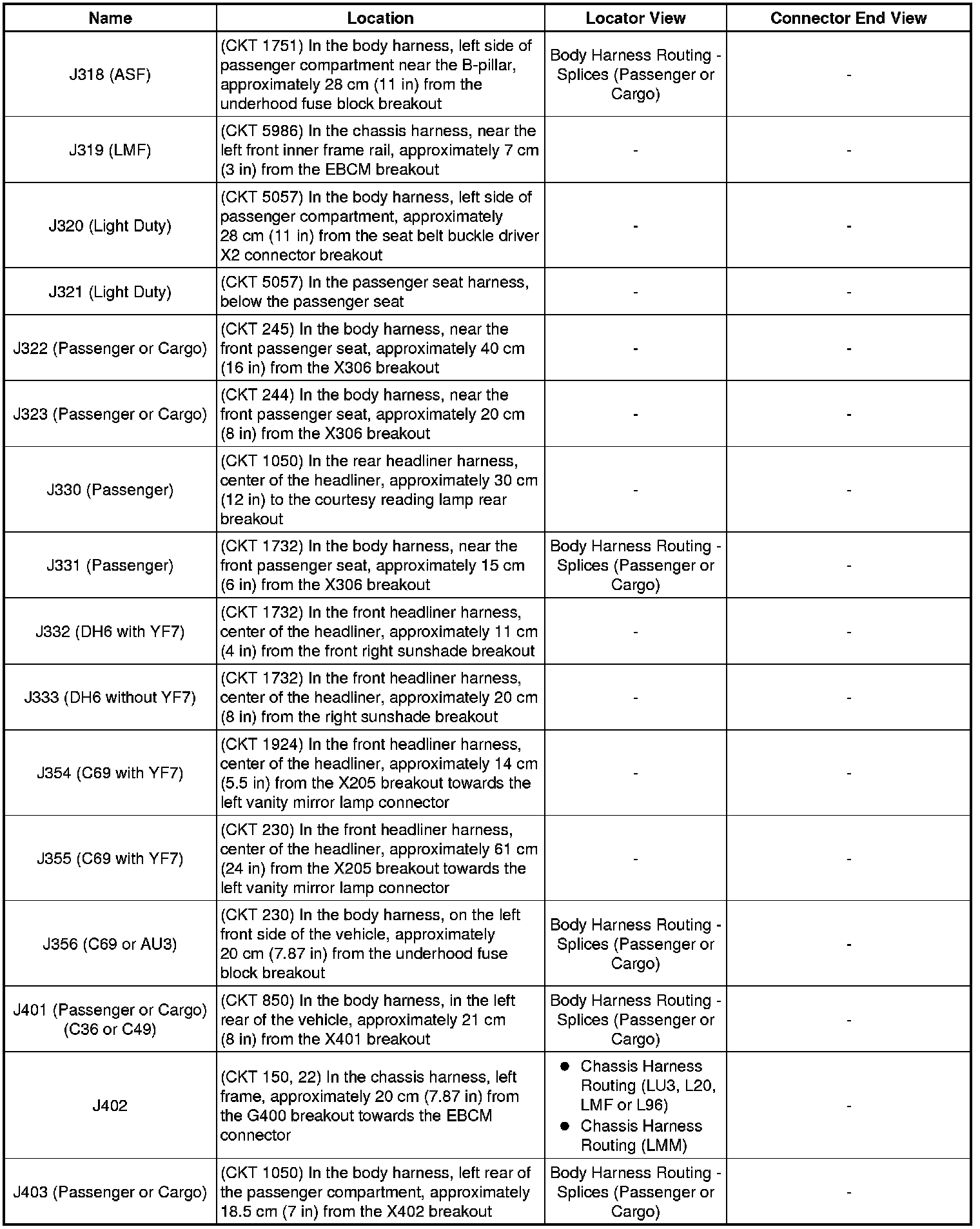

J318 - J403:

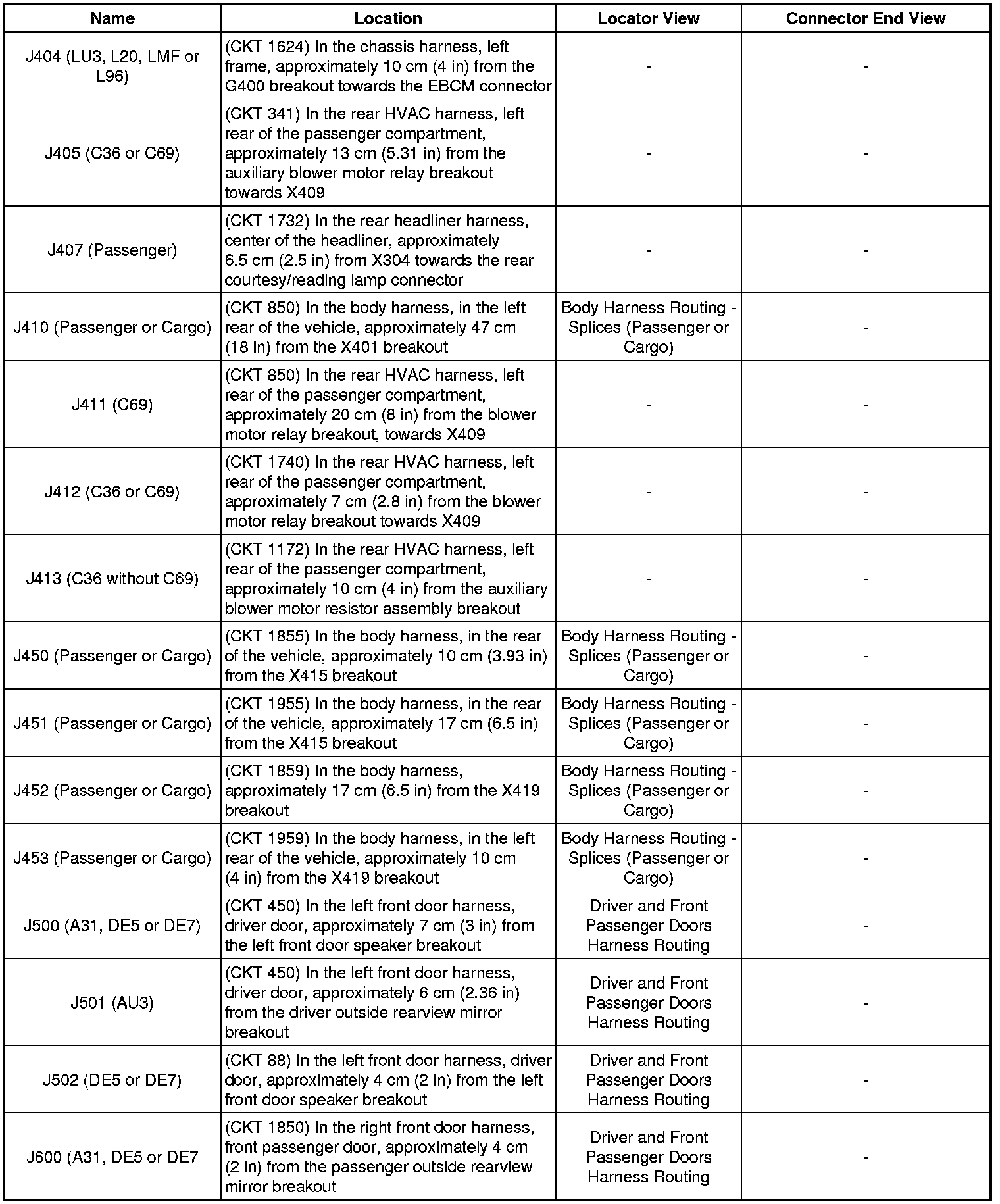

J404 - J600:

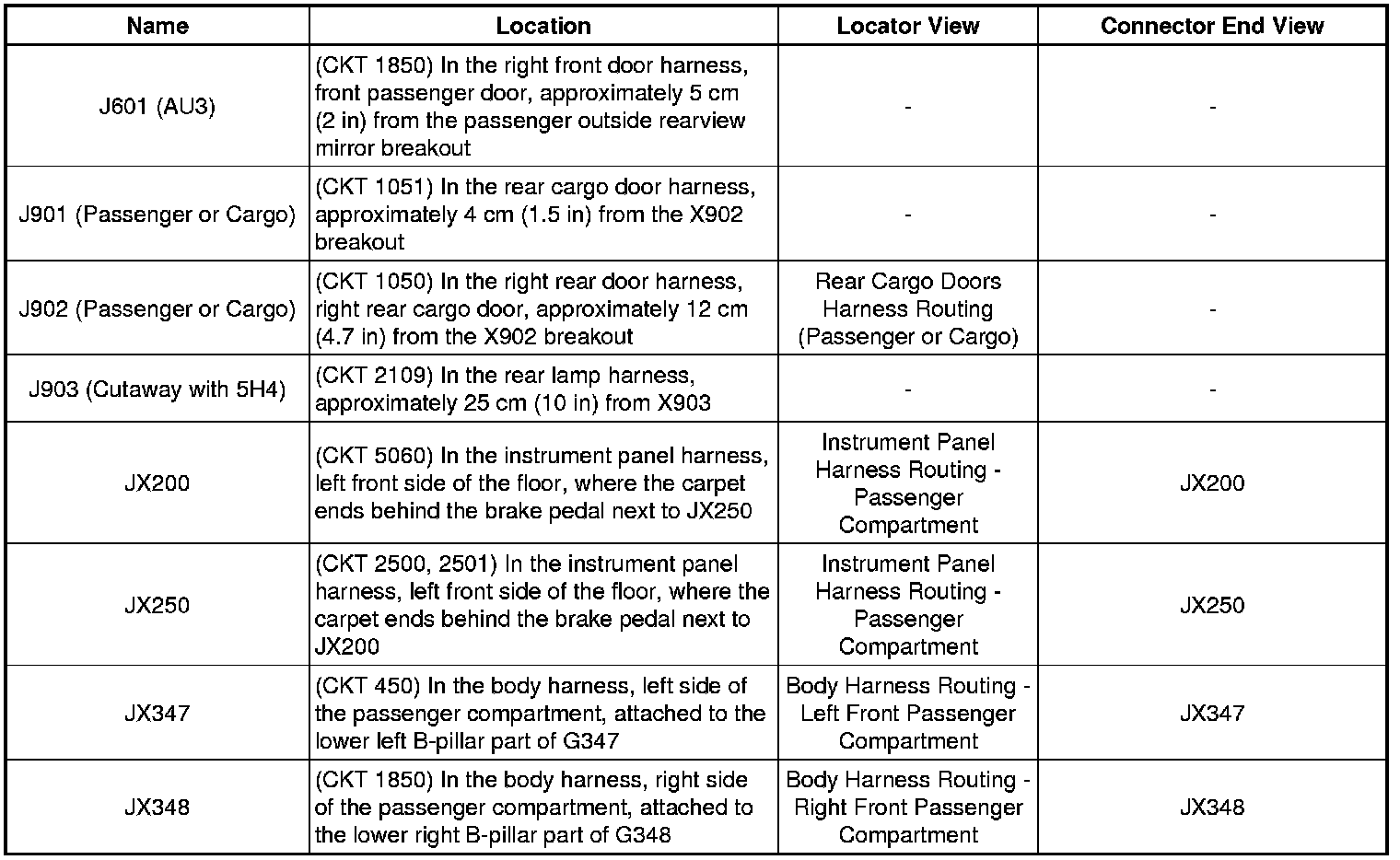

J601 - JX348:
