2010 GMC Savana 3500 V8-6.0LFACTORY OEM SERVICE PROCEDURE
Keyless Entry Module: Service and Repair
Remote Control Door Lock Receiver Replacement
Removal Procedure
1. Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Instrument Panel Upper Trim Pad Replacement).

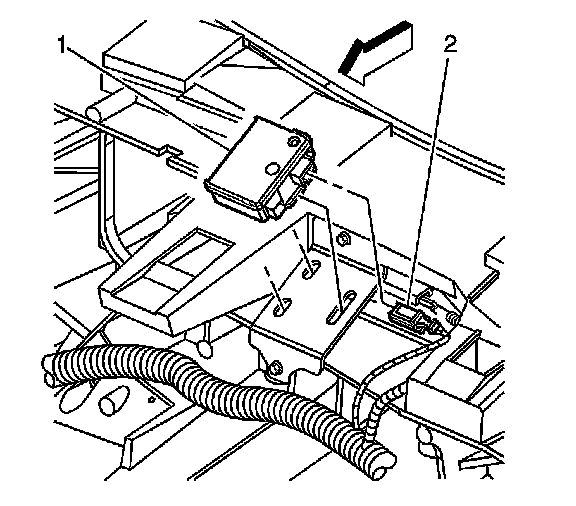

2. Disconnect the electrical connector (2) from the door lock receiver (1).
3. Disengage the remote control door lock receiver (1) from the door lock receiver bracket.
4. Remove the door lock receiver.
Installation Procedure
1. Perform the following to install the door lock receiver (1) to the door lock receiver bracket.
Slide the tab on door lock receiver (1) into the door lock receiver bracket and snap into place to secure.
2. Connect the electrical connector (1) to the door lock receiver (2).
3. Install the I/P trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Instrument Panel Upper Trim Pad Replacement).
4. Refer to Control Module References (Programming and Relearning) for programming and setup information.
