2010 GMC Canyon 4D Pickup Extra Cab, 5.3 P, RWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

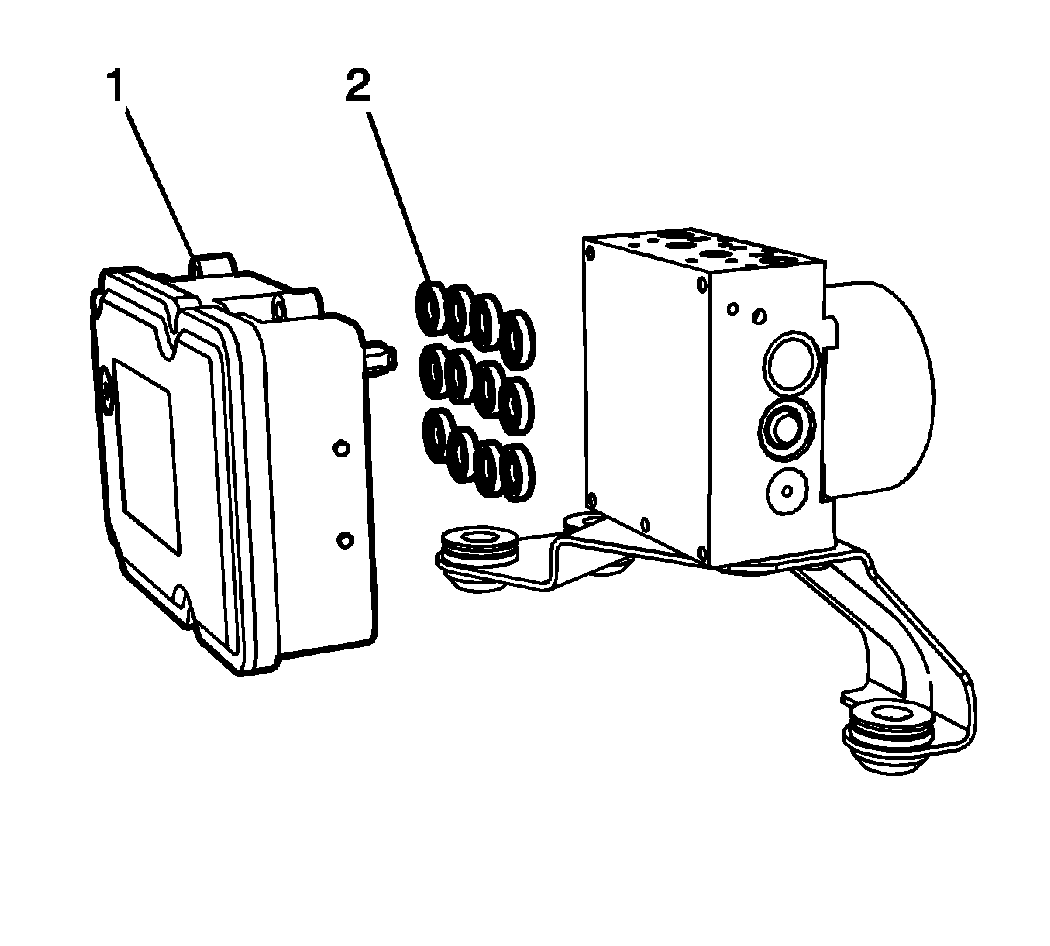

    Fig 1: Separating EBCM
    GM2136331Courtesy of GENERAL MOTORS CORP.
  1. Carefully install the EBCM (1) and the 12 seals (2) to the BPMV.

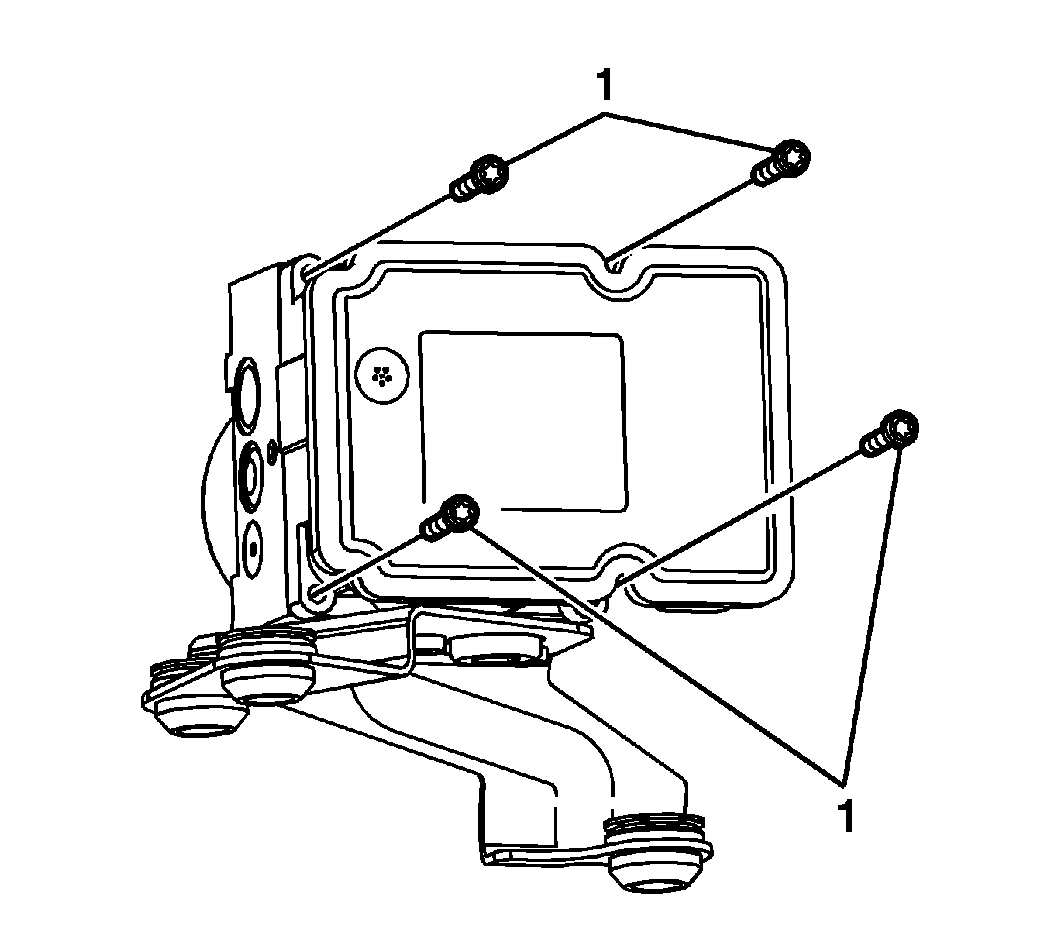

  2. Fig 2: EBCM Bolts
    GM2136329Courtesy of GENERAL MOTORS CORP.
