2007 GMC Acadia SLT, FWDFACTORY OEM SERVICE PROCEDURE
Shift Lock Control Component Views

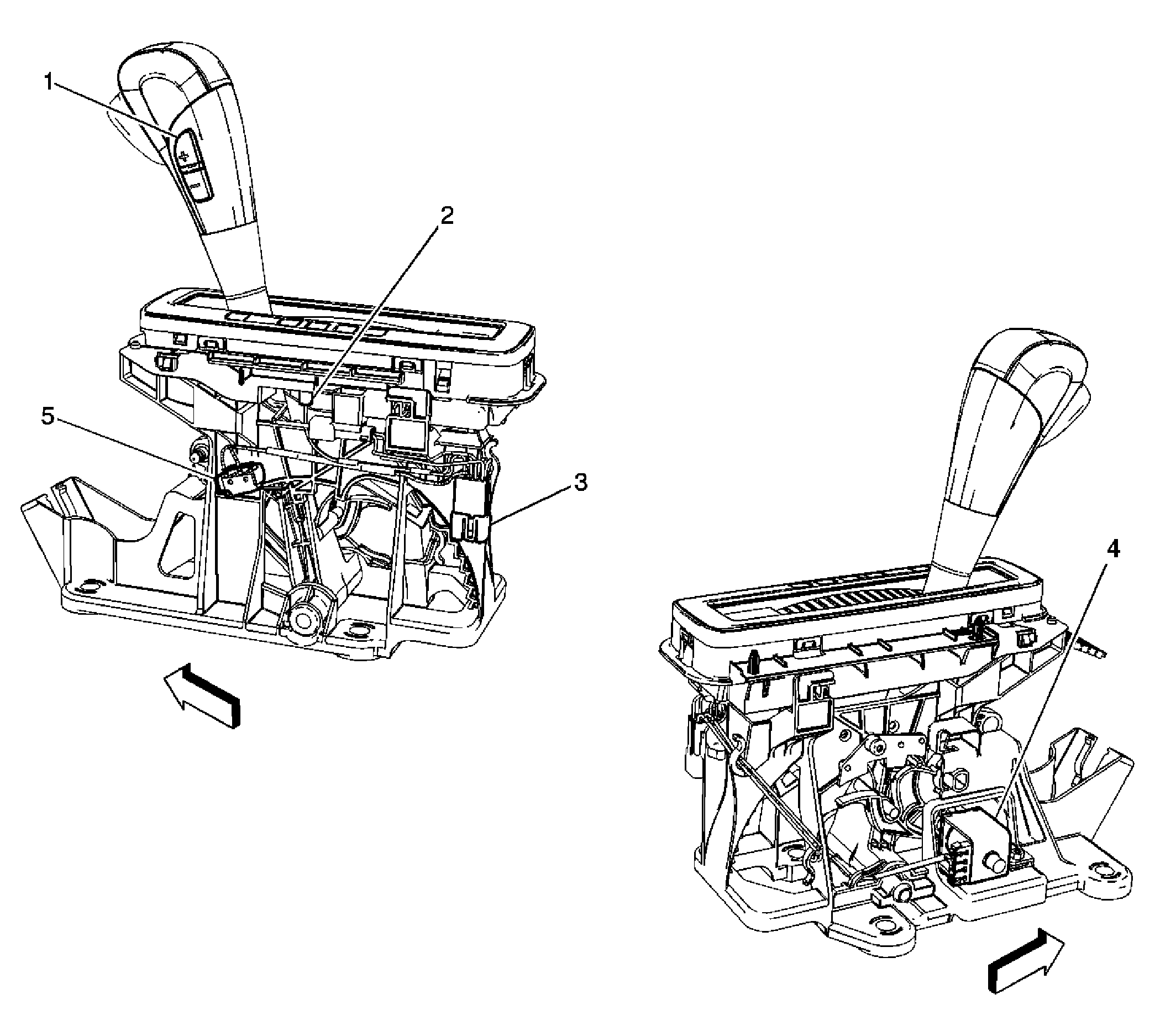

| Callout | Component Name |
|---|---|
| 1 | Tap Up/Tap Down Switch |
| 2 | PRNDL Lamp |
| 3 | X341 |
| 4 | A/T Shift Lock Control Solenoid |
| 5 | Ignition Lock Switch |

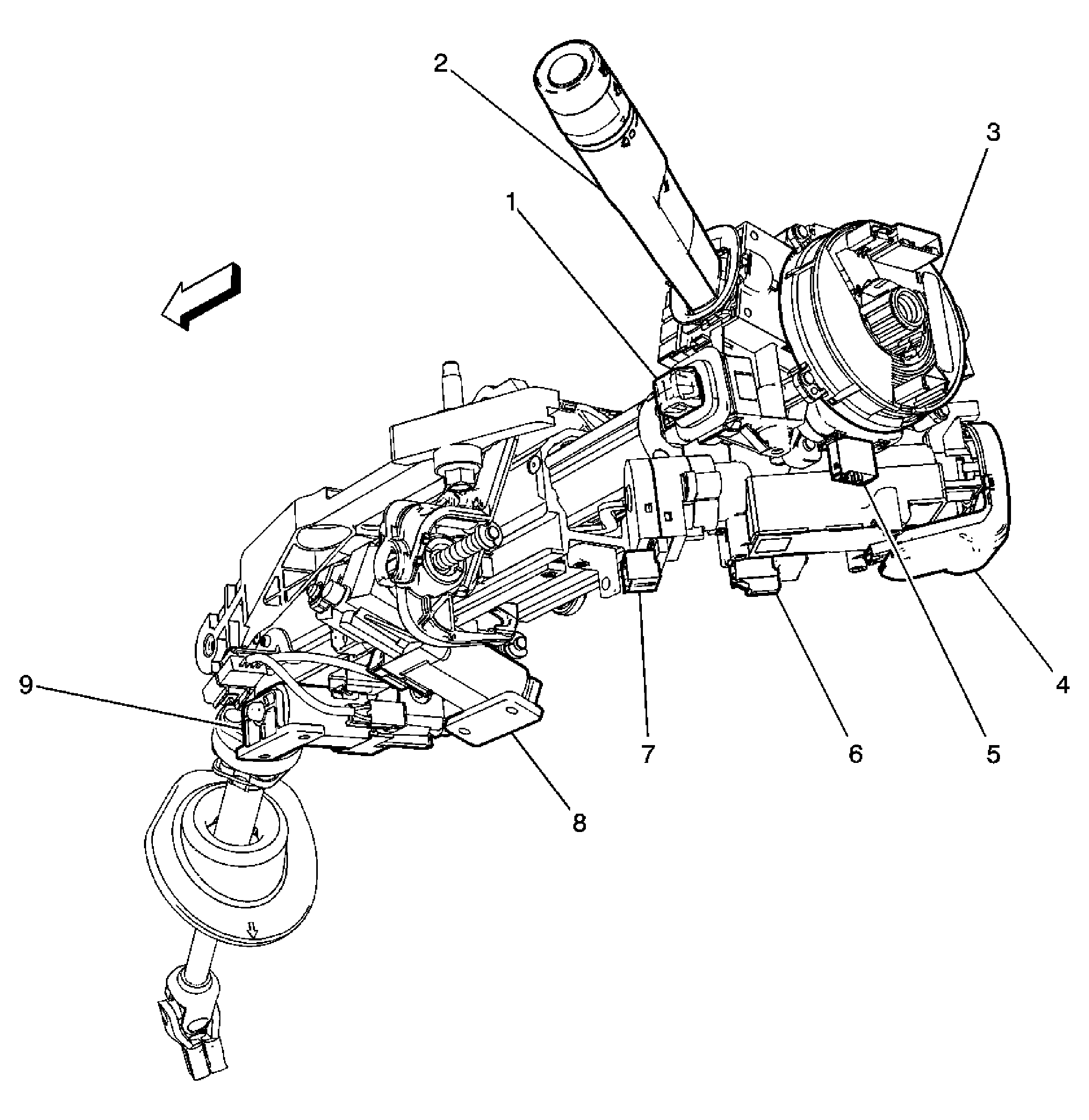

| Callout | Component Name |
|---|---|
| 1 | Tilt/Telescope Switch (N38) |
| 2 | Turn Signal/Multifunction Switch |
| 3 | Inflatable Restraint Steering Wheel Module Coil |
| 4 | Theft Deterrent Control Module |
| 5 | Steering Wheel Speed Position Sensor |
| 6 | Ignition Lock Cylinder Control Actuator |
| 7 | Ignition Switch |
| 8 | Tilt Motor |
| 9 | Telescope Actuator |
