2007 GMC Acadia FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Battery Current Sensor: Locations

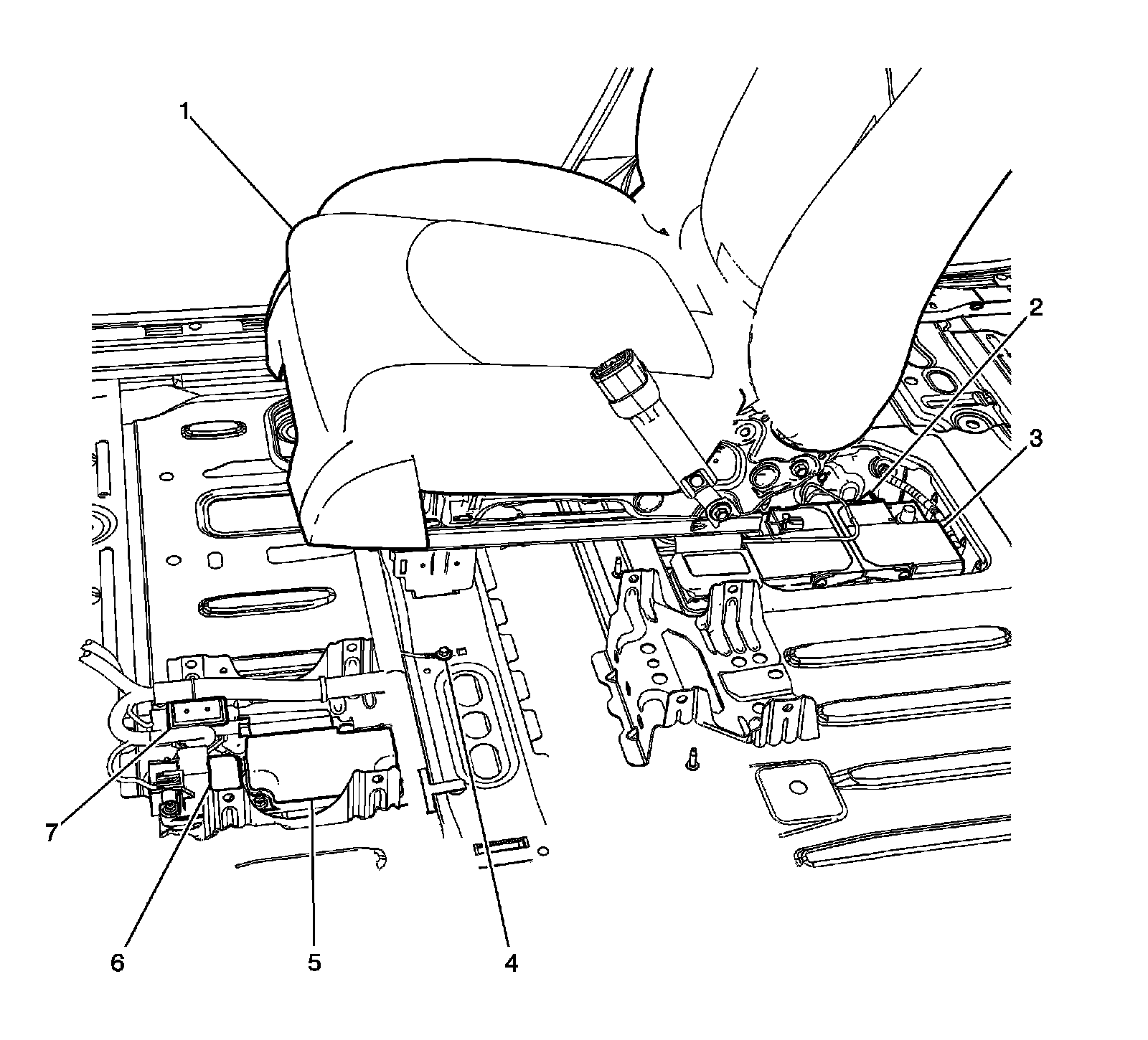

Starting and Charging Component Views
Near the Passenger Seat
1 - Passenger Seat
2 - Battery Current Sensor
3 - Battery
4 - G304
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint Vehicle Rollover Sensor
7 - YAW Rate and Lateral Acceleration Sensor
