2007 GMC Acadia FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair

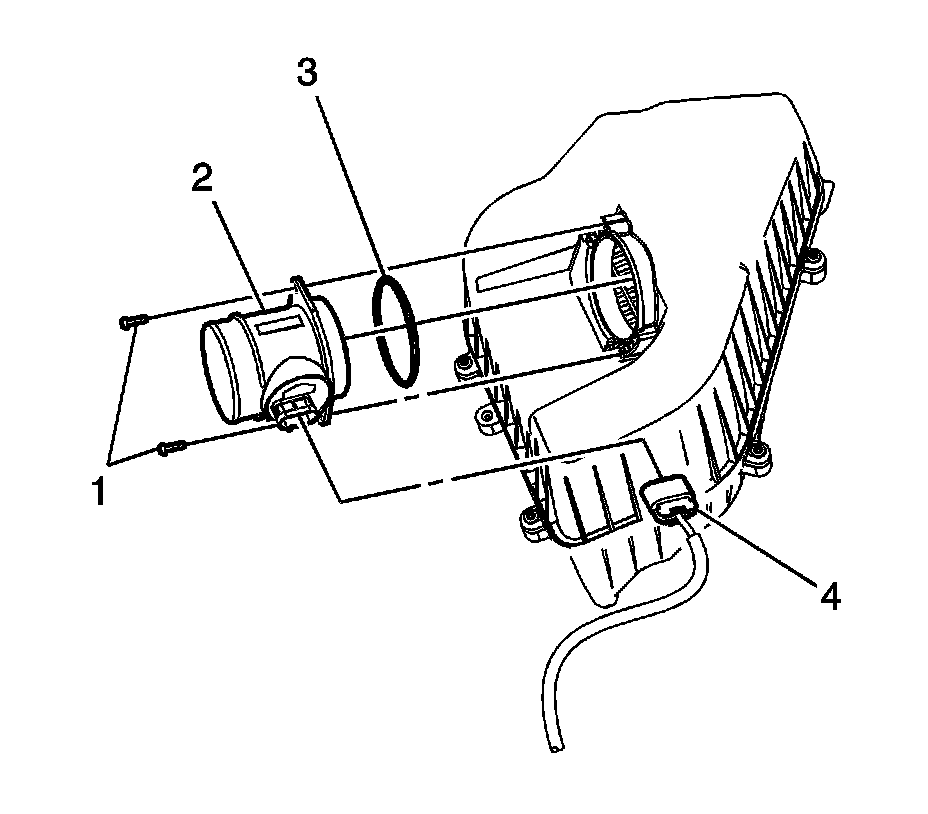

MASS AIRFLOW SENSOR/INTAKE AIR TEMPERATURE SENSOR REPLACEMENT
REMOVAL PROCEDURE
1. Remove the air cleaner outlet duct.
2. Disconnect the engine wiring harness electrical connector (4) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
3. Remove the MAF/IAT sensor screws (1).
4. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
5. Remove the MAF/IAT sensor seal (3).
INSTALLATION PROCEDURE
1. Install the MAF/IAT sensor seal (3) onto the MAF/IAT sensor.
2. Install the MAF/IAT sensor (2) to the air cleaner assembly.
3. NOTE: Refer to Fastener Notice.
Install the MAF/IAT sensor screws (1).
Tighten the screws to 4 N.m (35 lb in).
4. Connect the engine wiring harness electrical connector (4) to the MAF/IAT sensor.
5. Install the air cleaner outlet duct.
