2007 GMC Acadia FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Thread Repair Specifications
Thread Repair Specifications

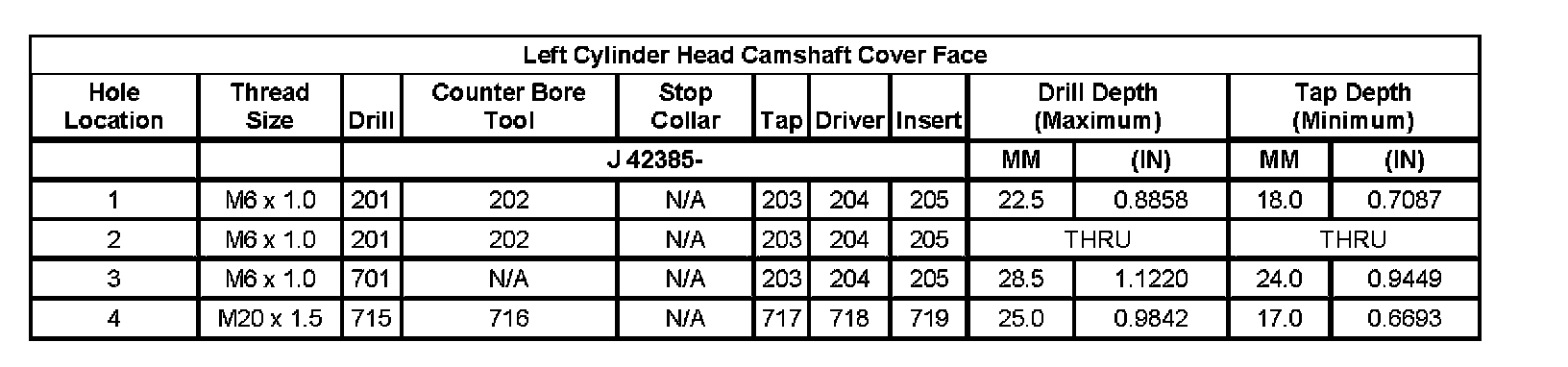

Left Cylinder Head Camshaft Cover Face:
Left Cylinder Head Camshaft Cover Face:

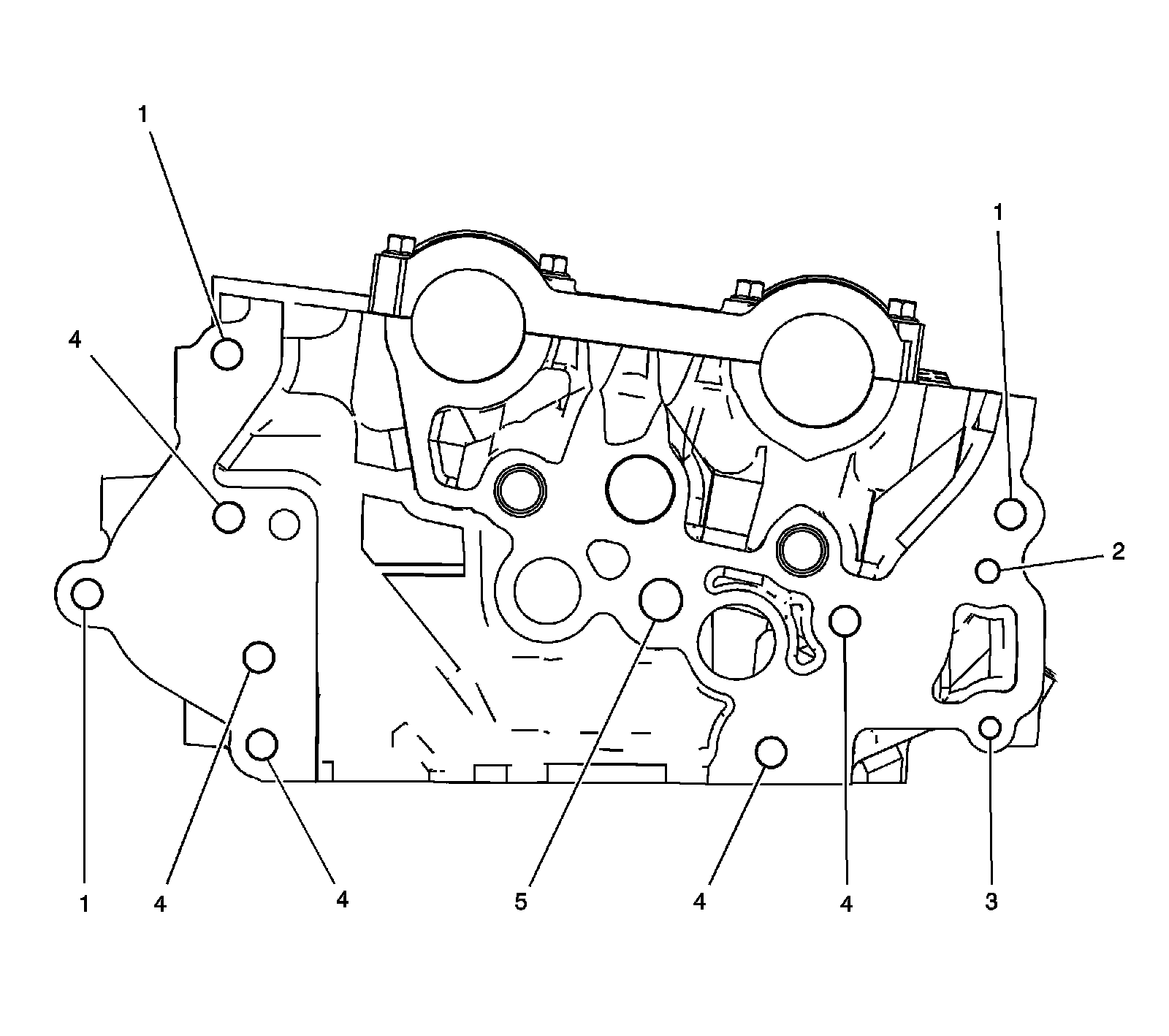

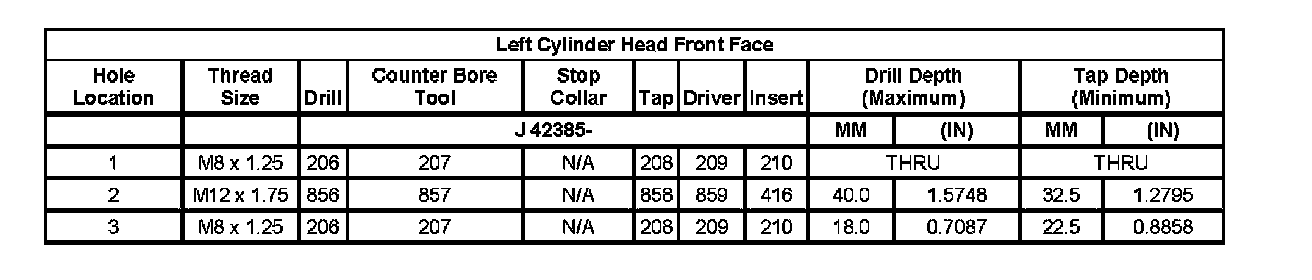

Left Cylinder Head Front Face:
Left Cylinder Head Front Face:

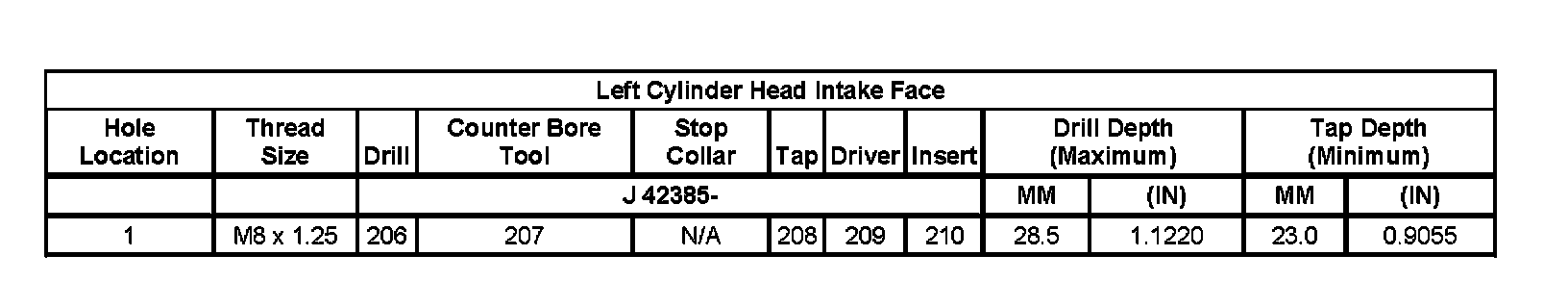

Left Cylinder Head Intake Face:
Left Cylinder Head Intake Face:

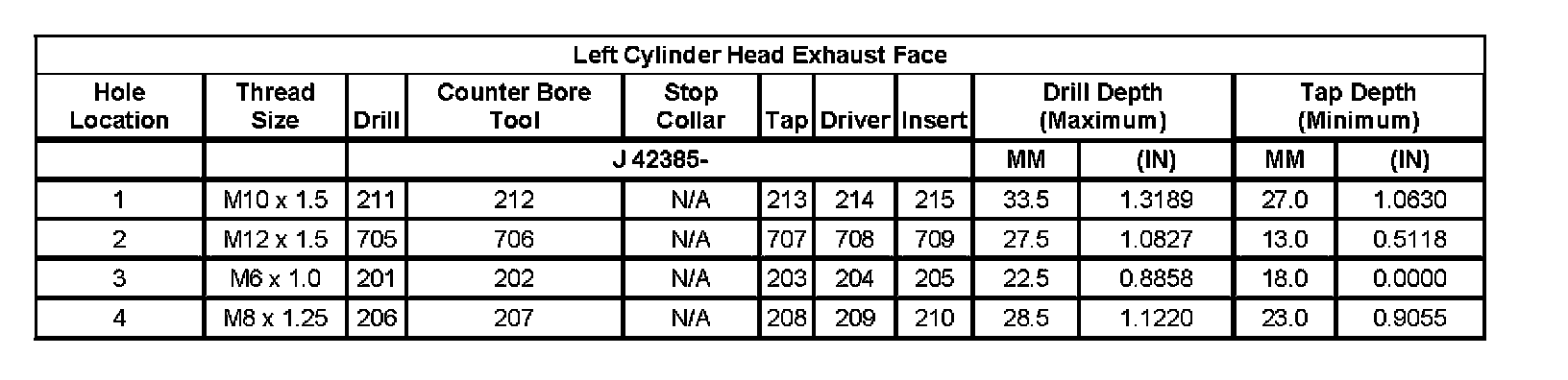

Left Cylinder Head Exhaust Face:
Left Cylinder Head Exhaust Face:

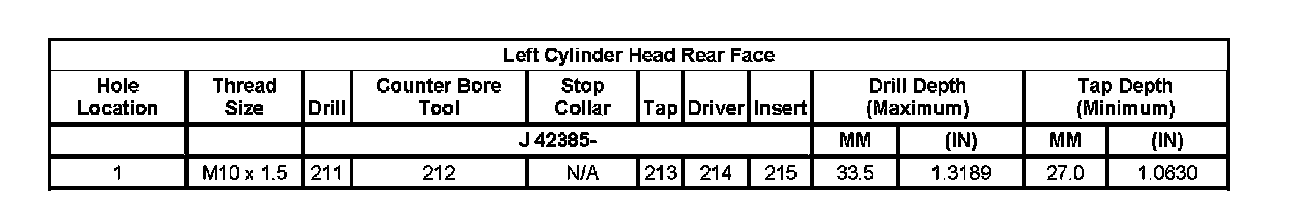

Left Cylinder Head Rear Face:
Left Cylinder Head Rear Face:

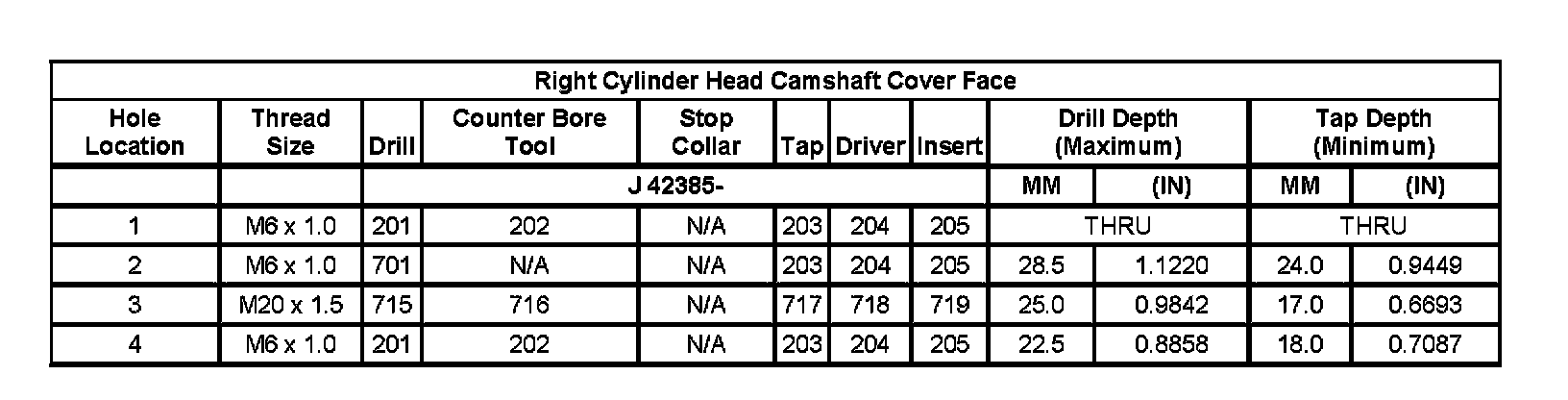

Right Cylinder Head Camshaft Cover Face:
Right Cylinder Head Camshaft Cover Face:

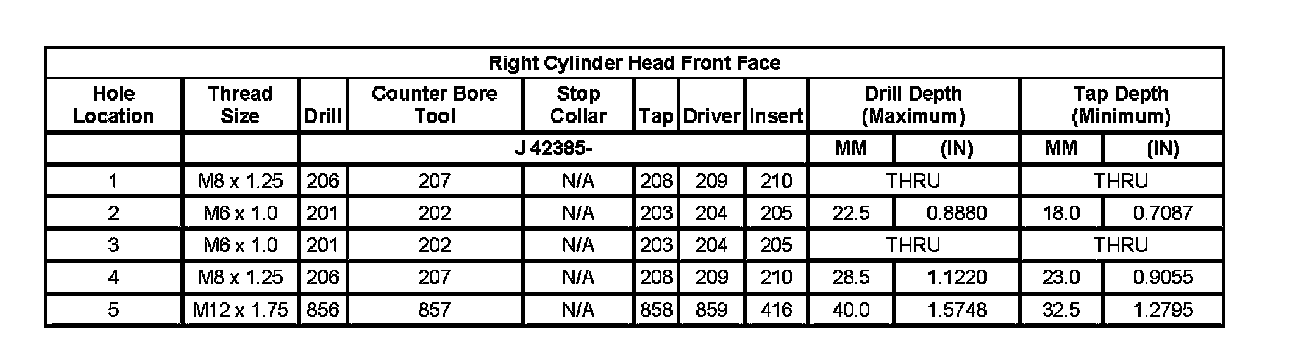

Right Cylinder Head Front Face:
Right Cylinder Head Front Face:

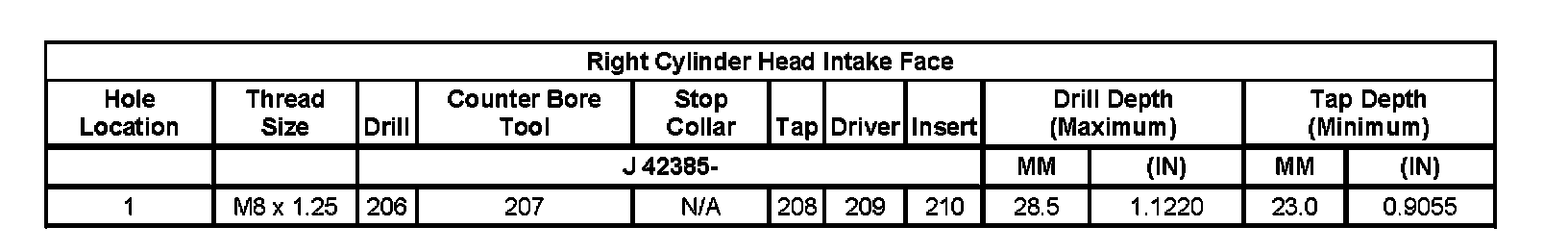

Right Cylinder Head Intake Face:
Right Cylinder Head Intake Face:

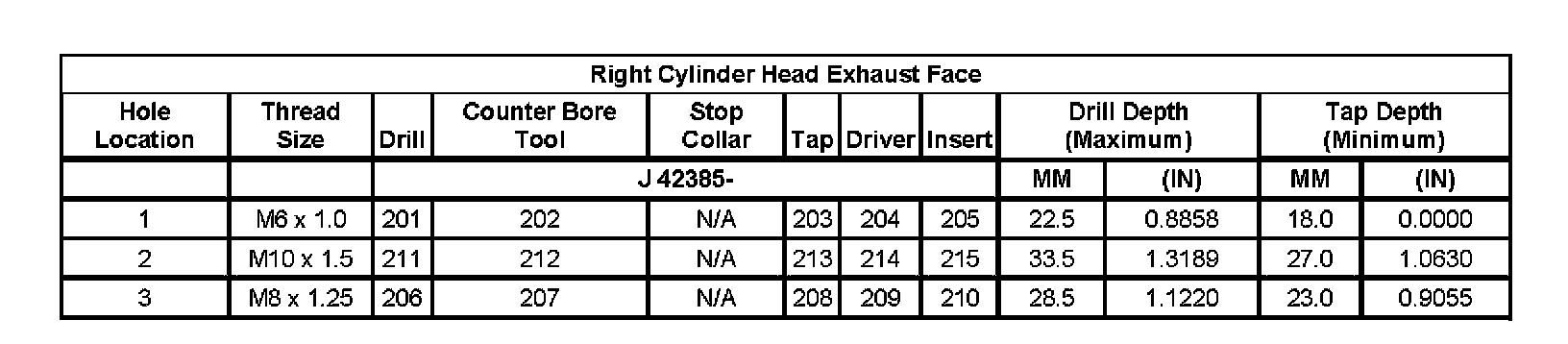

Right Cylinder Head Exhaust Face:
Right Cylinder Head Exhaust Face:

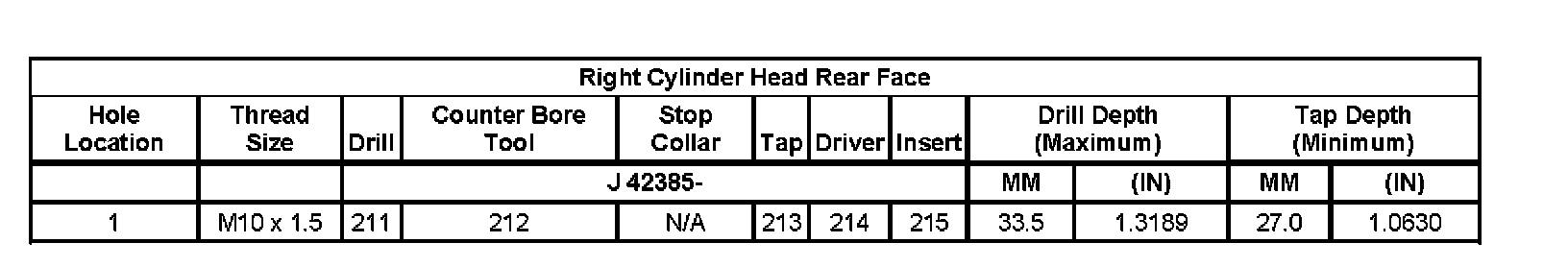

Right Cylinder Head Rear Face:
Right Cylinder Head Rear Face:

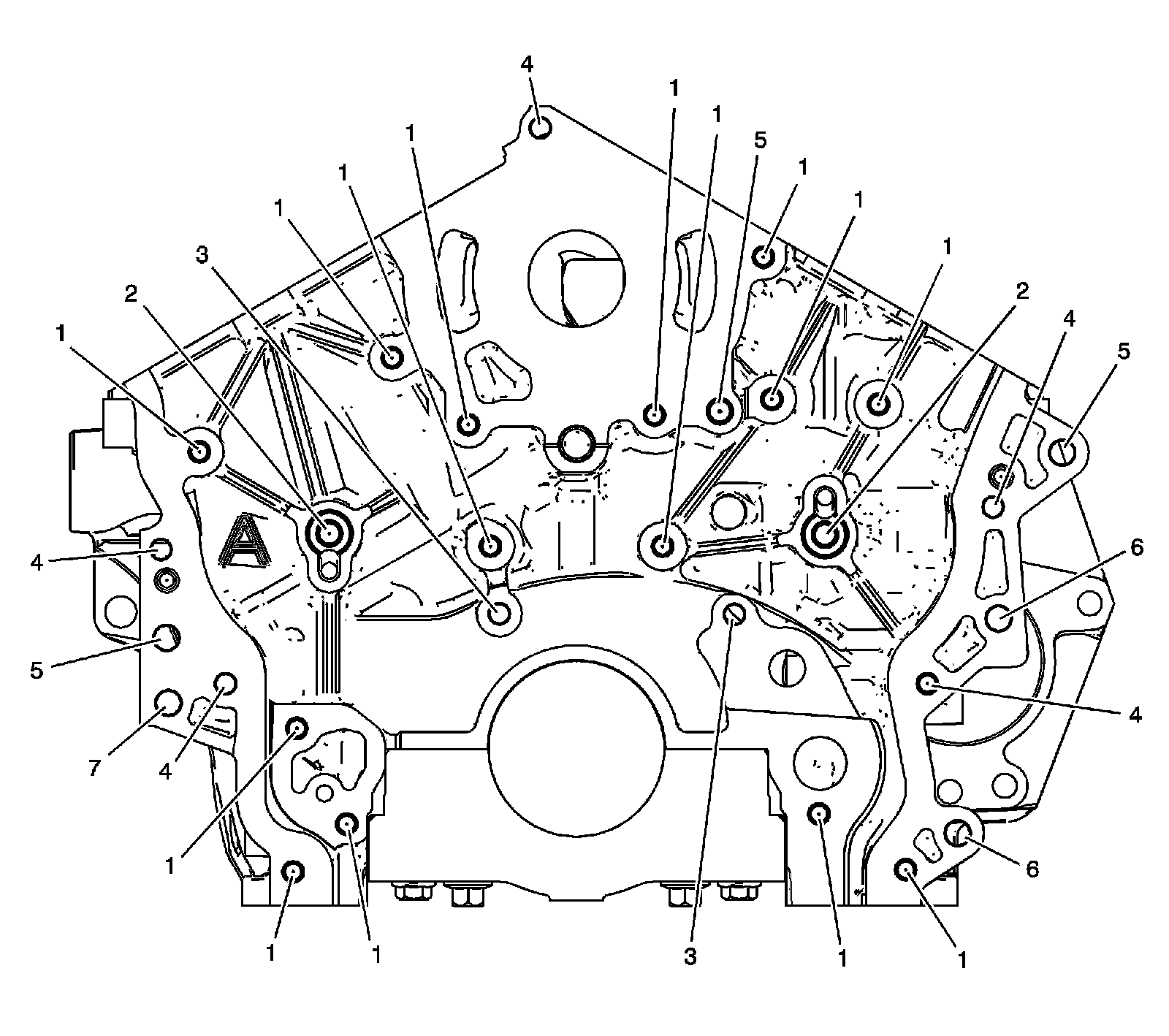

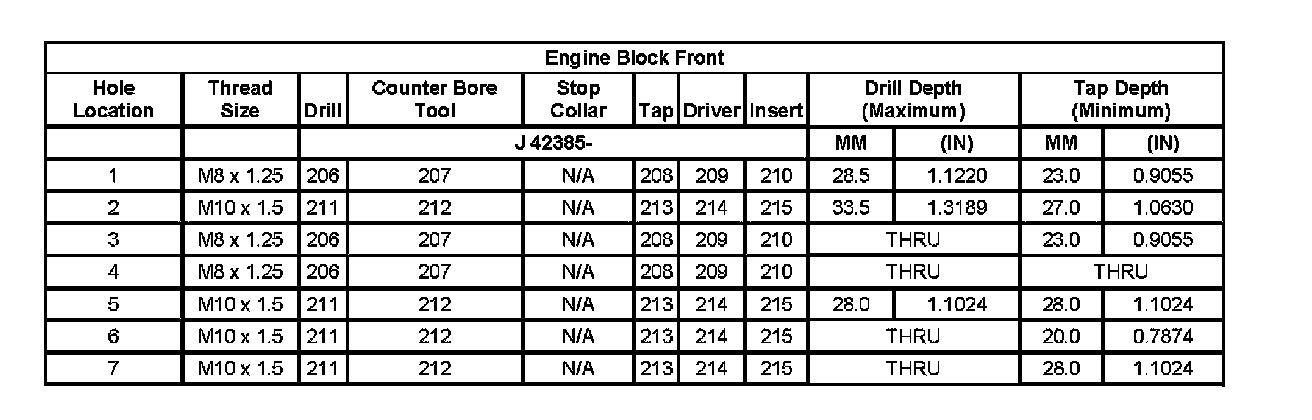

Engine Block Front:
Engine Block Front:

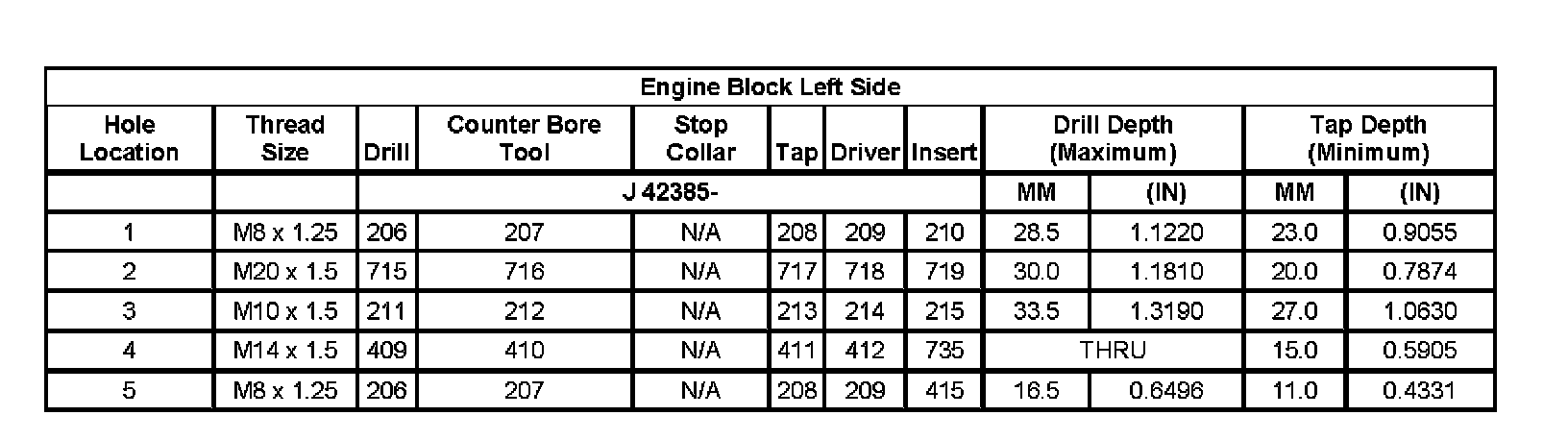

Engine Block Left Side:
Engine Block Left Side:

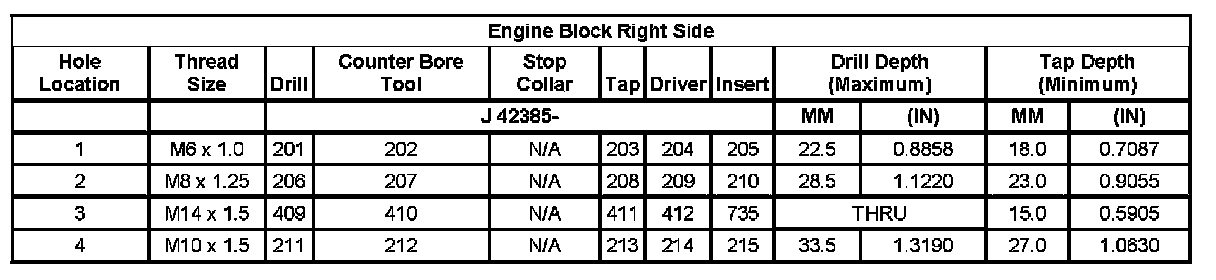

Engine Block Right Side:
Engine Block Right Side:

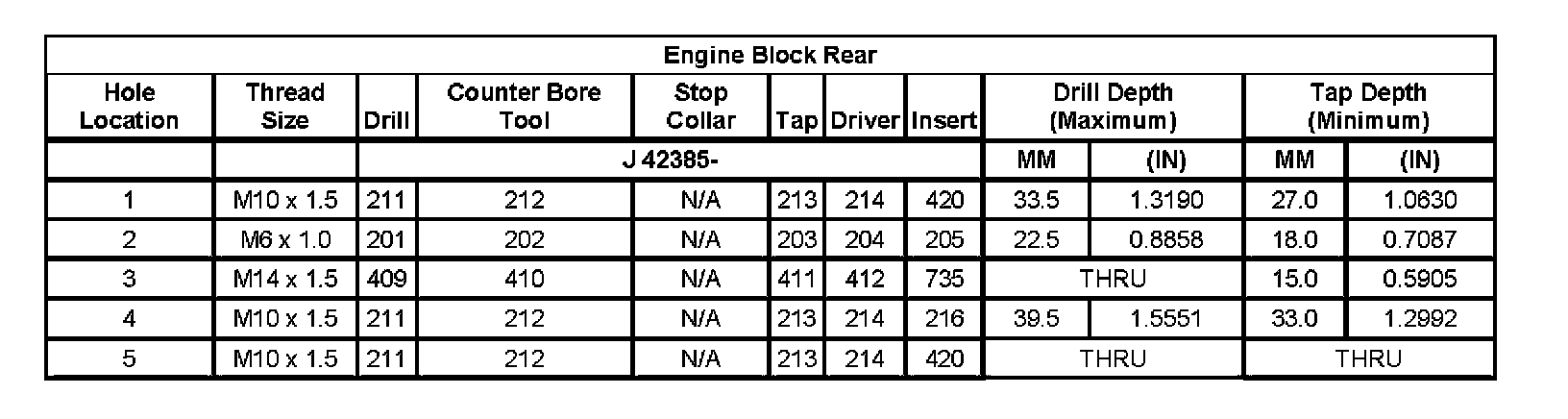

Engine Block Rear:
Engine Block Right Side:

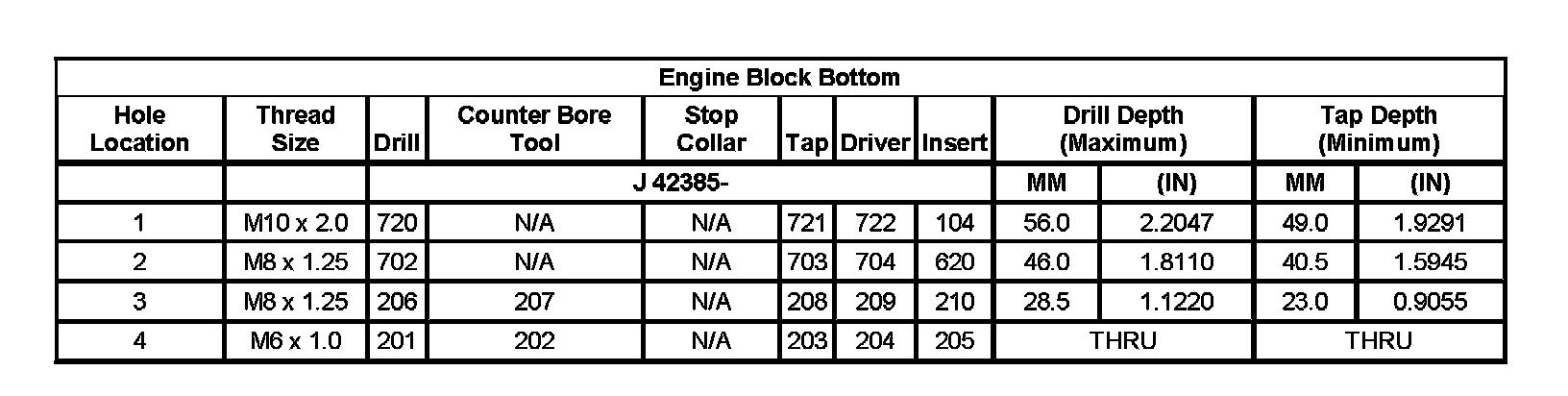

Engine Block Bottom:
Engine Block Bottom:

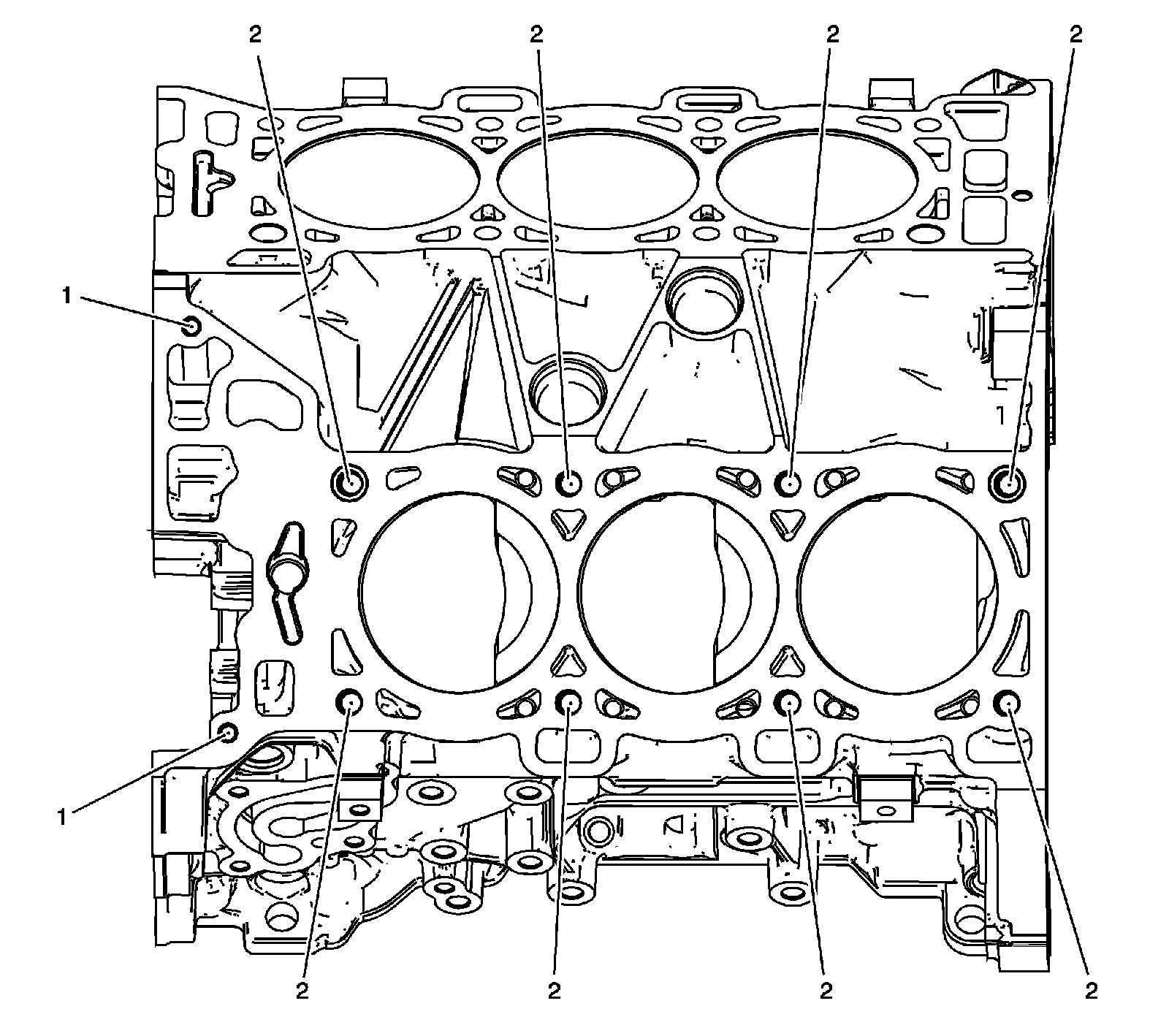

Engine Block Left Deck Face:
Engine Block Left Deck Face:

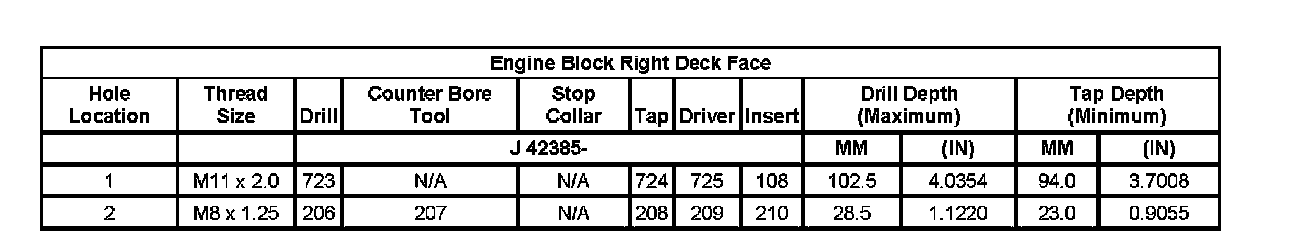

Engine Block Right Deck Face:
Engine Block Right Deck Face:

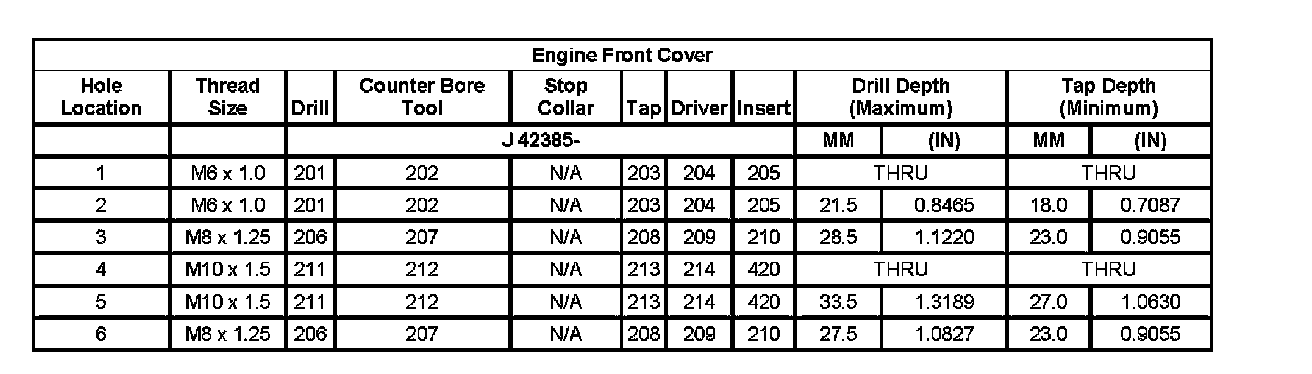

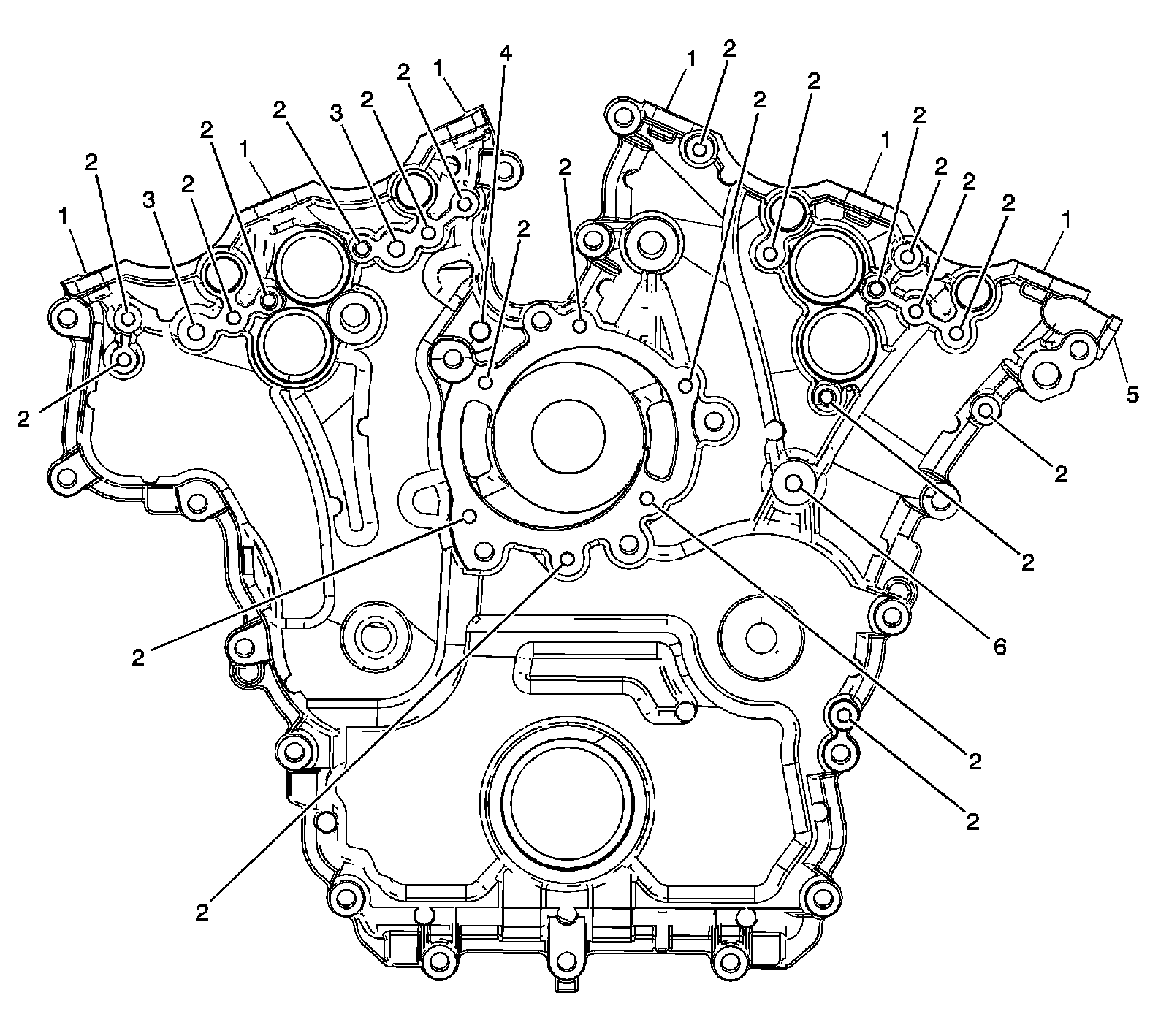

Engine Front Cover:
Engine Front Cover:

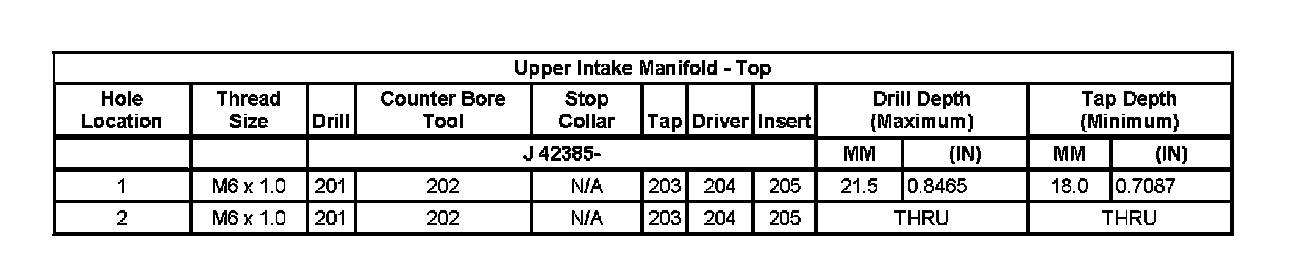

Upper Intake Manifold - Top:
Upper Intake Manifold - Top:

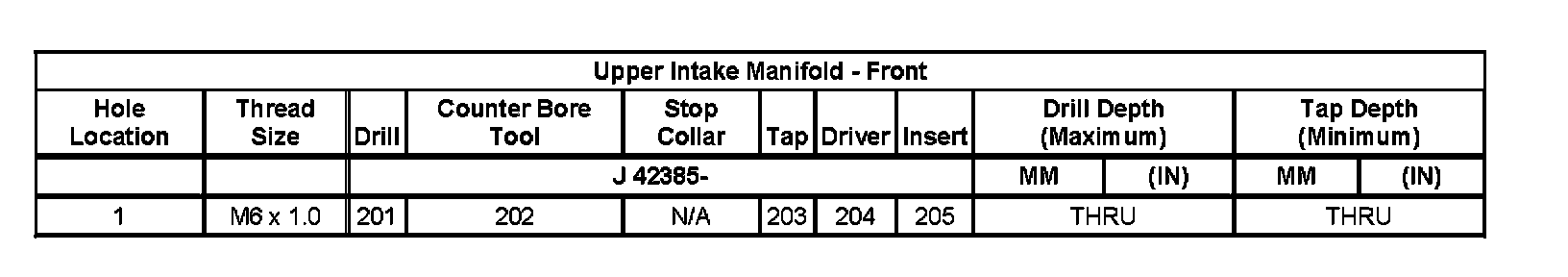

Upper Intake Manifold - Front:
Upper Intake Manifold - Front:

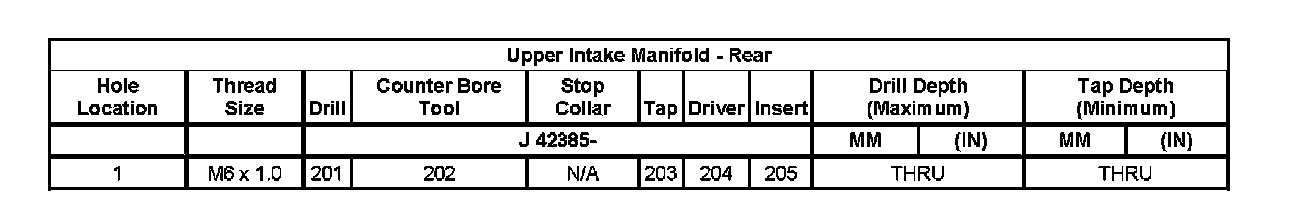

Upper Intake Manifold - Rear:
Upper Intake Manifold - Rear:

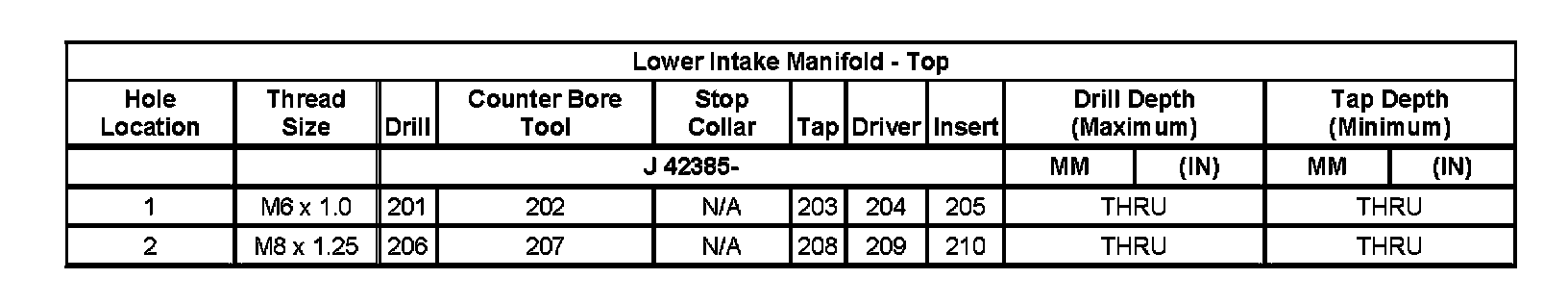

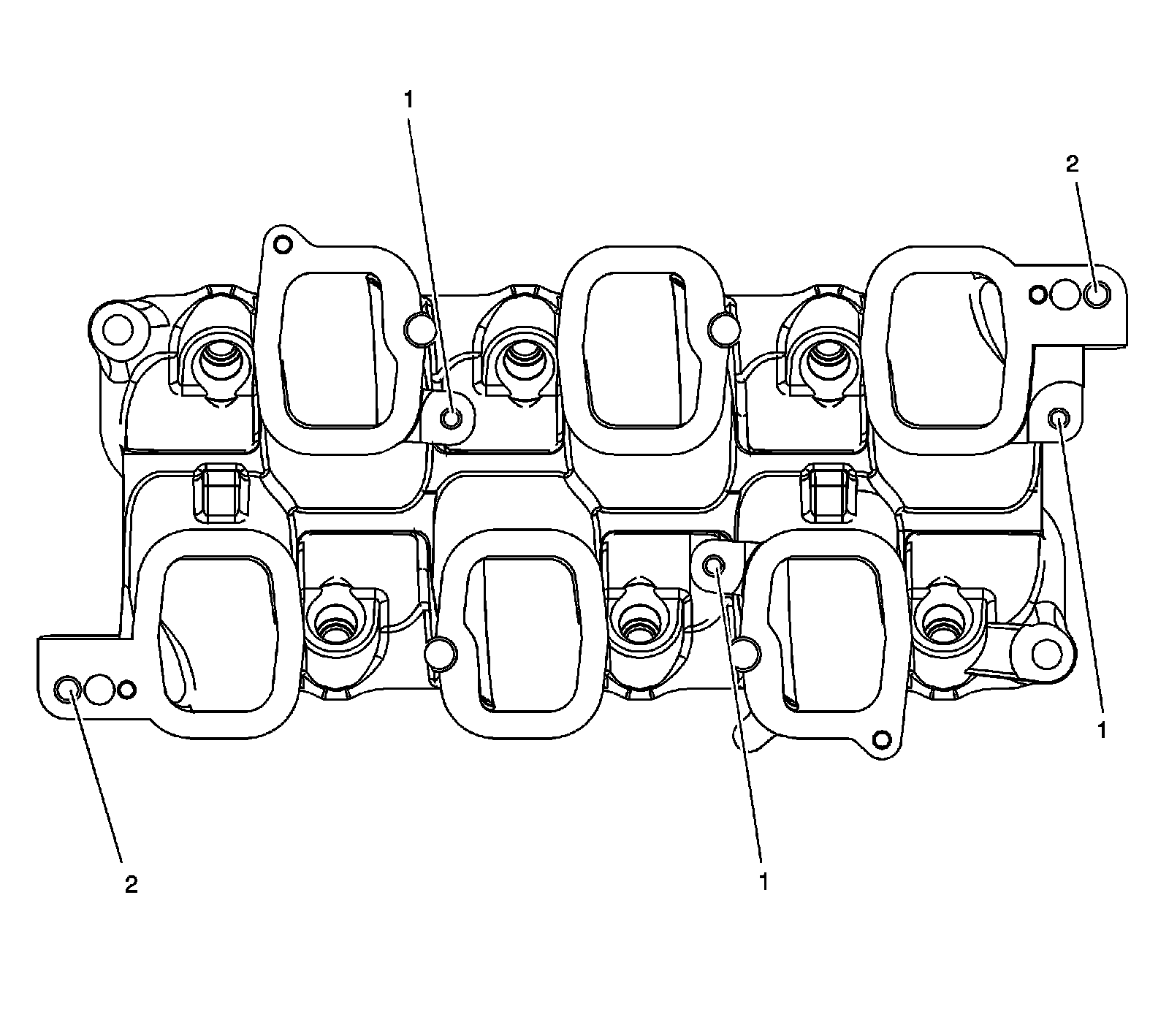

Lower Intake Manifold - Top:
Lower Intake Manifold - Top:

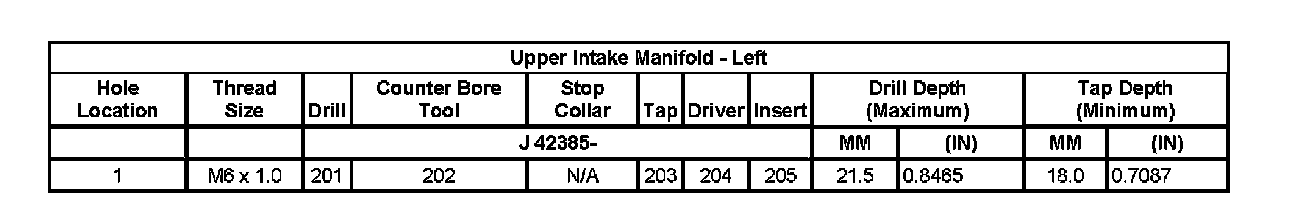

Upper Intake Manifold - Left:
Upper Intake Manifold - Left:

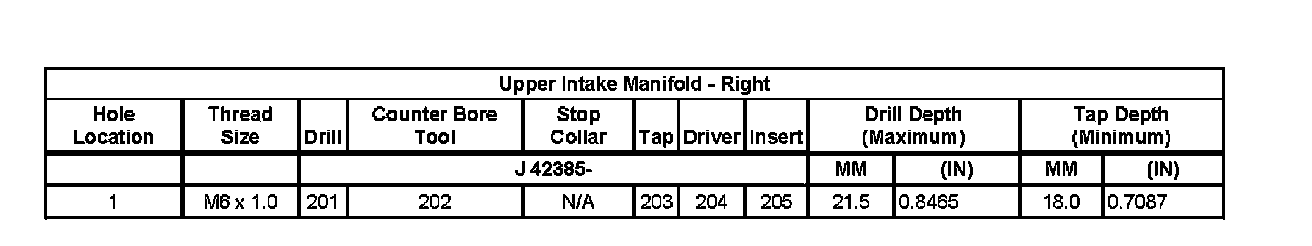

Upper Intake Manifold - Right:
Upper Intake Manifold - Right:

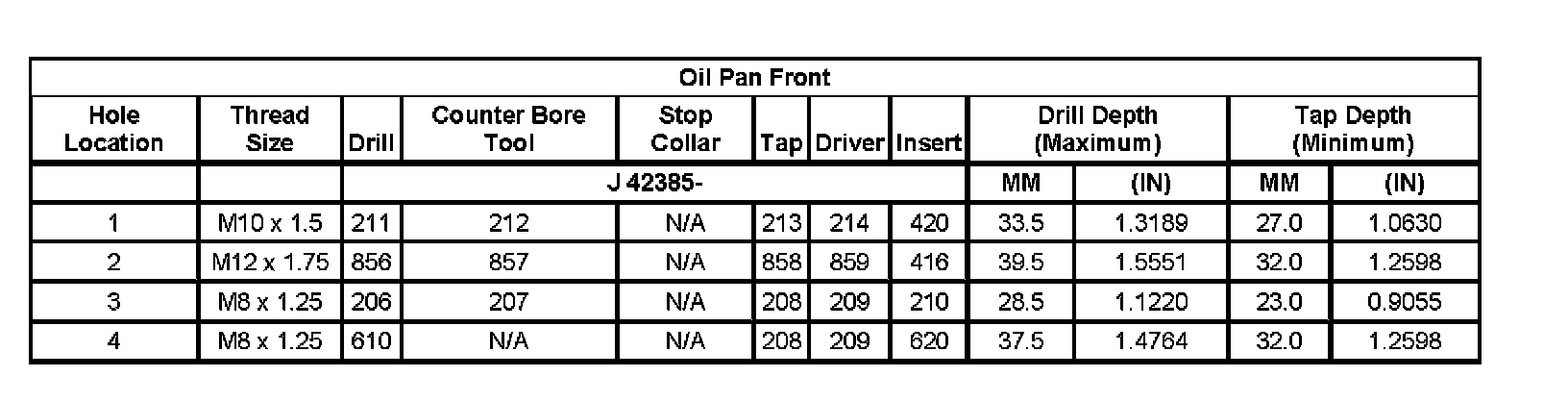

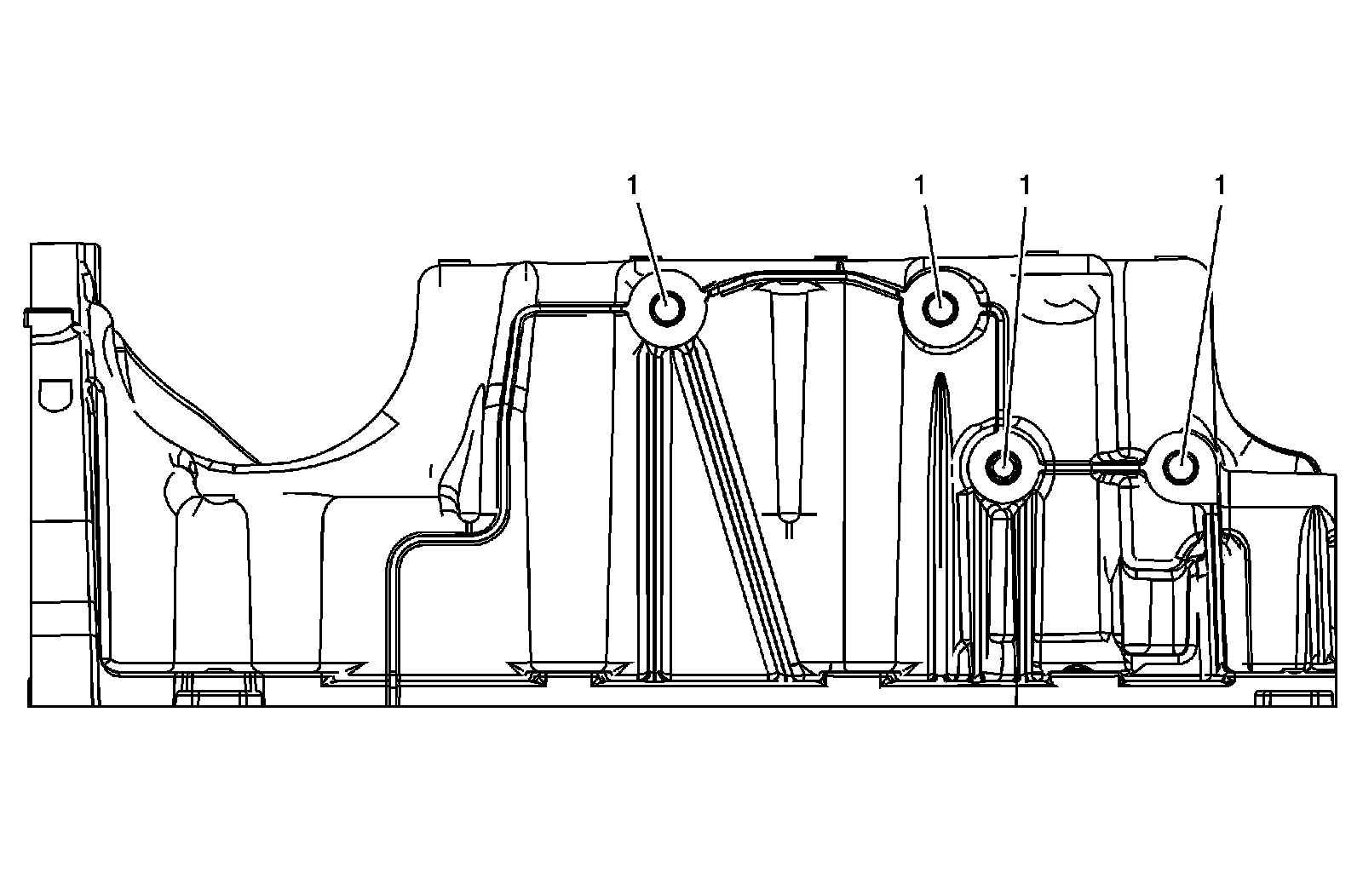

Oil Pan Front:
Oil Pan Front:

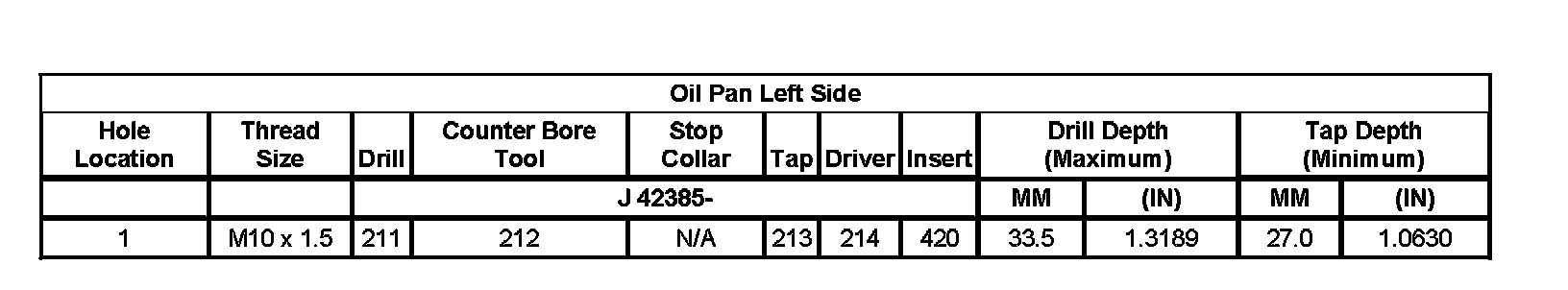

Oil Pan Left Side:
Oil Pan Left Side:

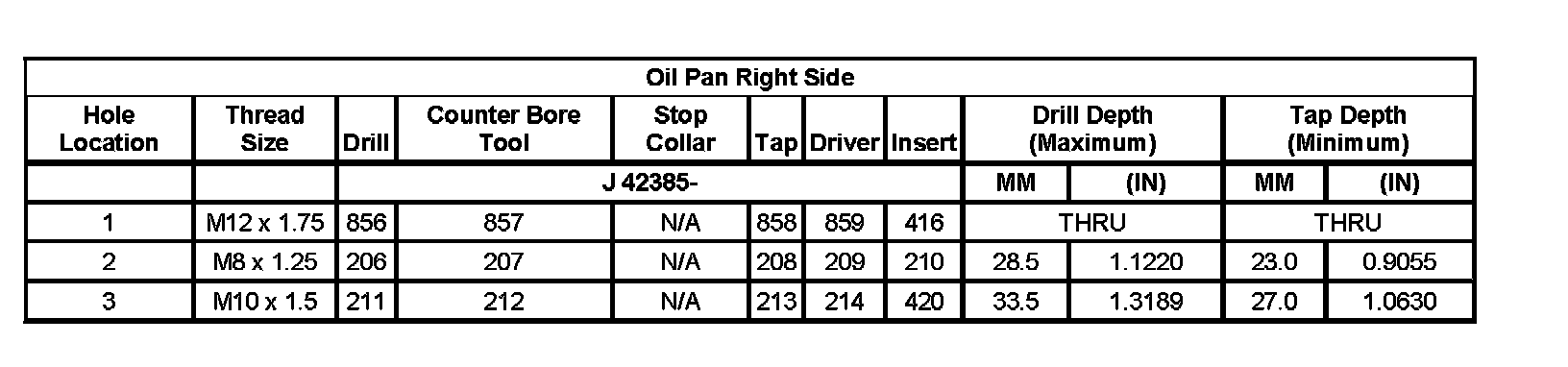

Oil Pan Right Side:
Oil Pan Right Side:

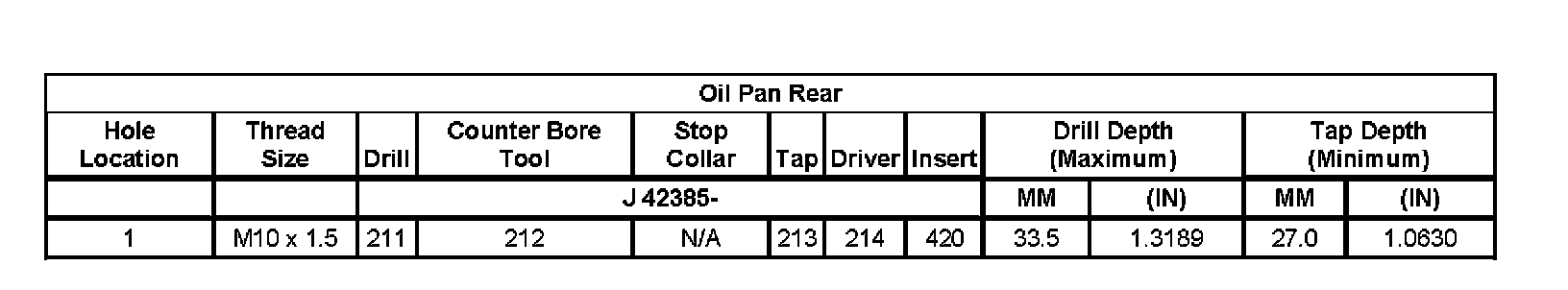

Oil Pan Rear:
Oil Pan Rear:

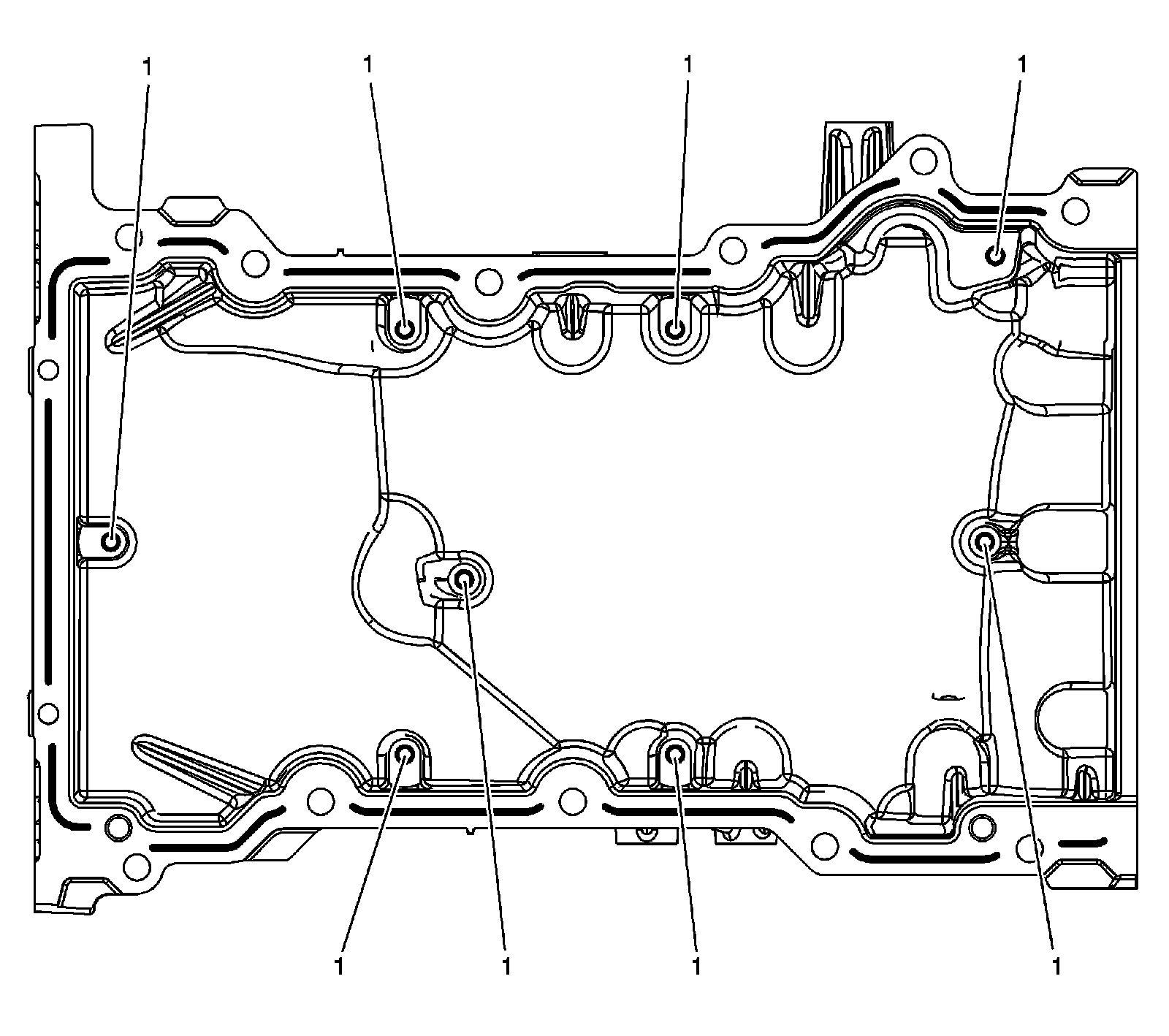

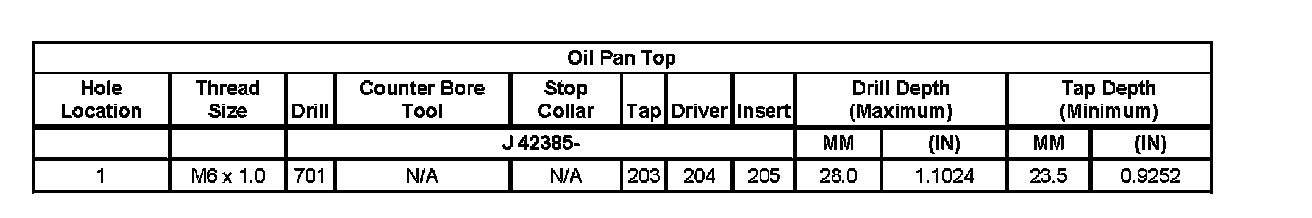

Oil Pan Top:
Oil Pan Top:
