2007 GMC Acadia FWD V6-3.6LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Module: Diagrams

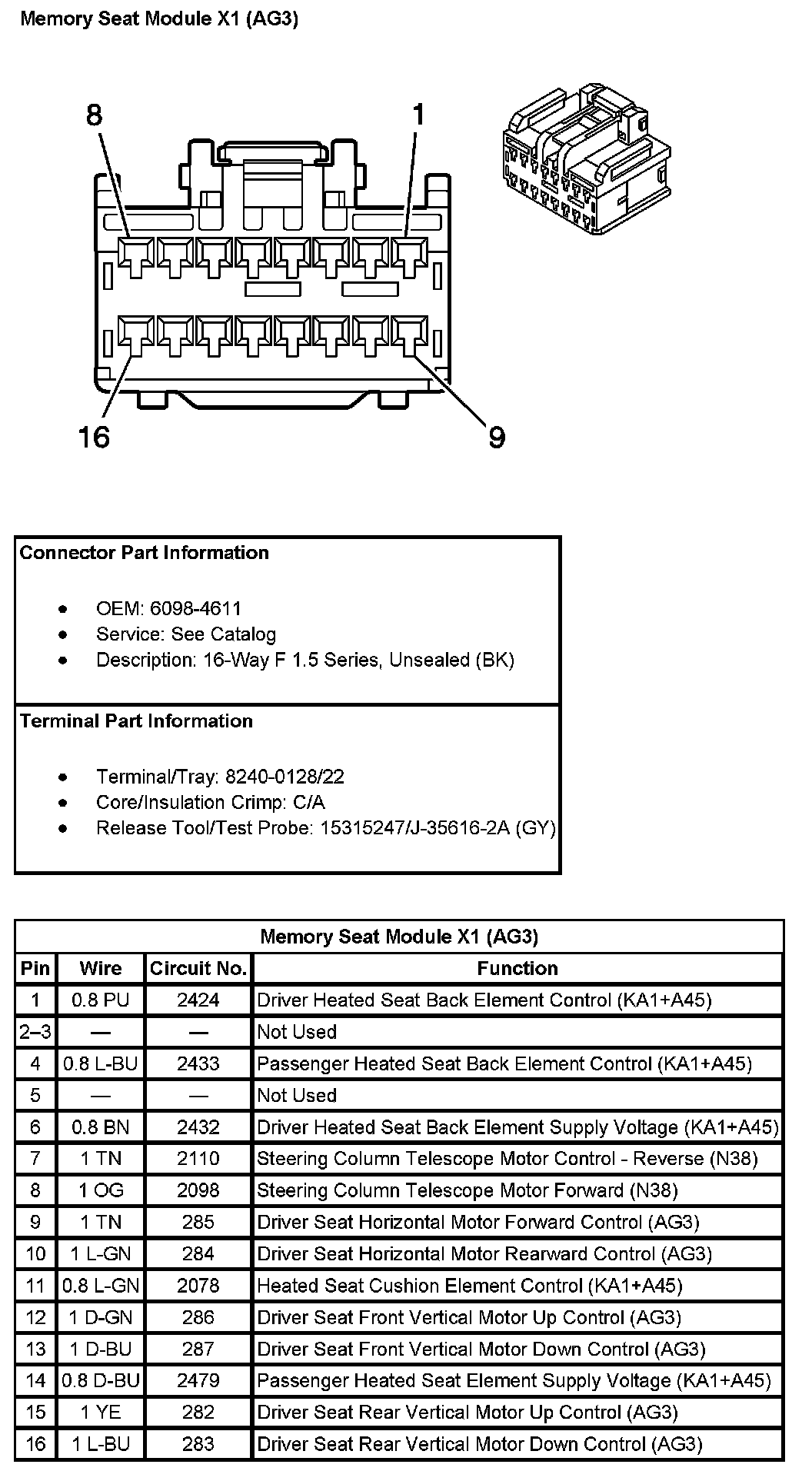

Memory Seat Module X1 (With RPO Code AG3):

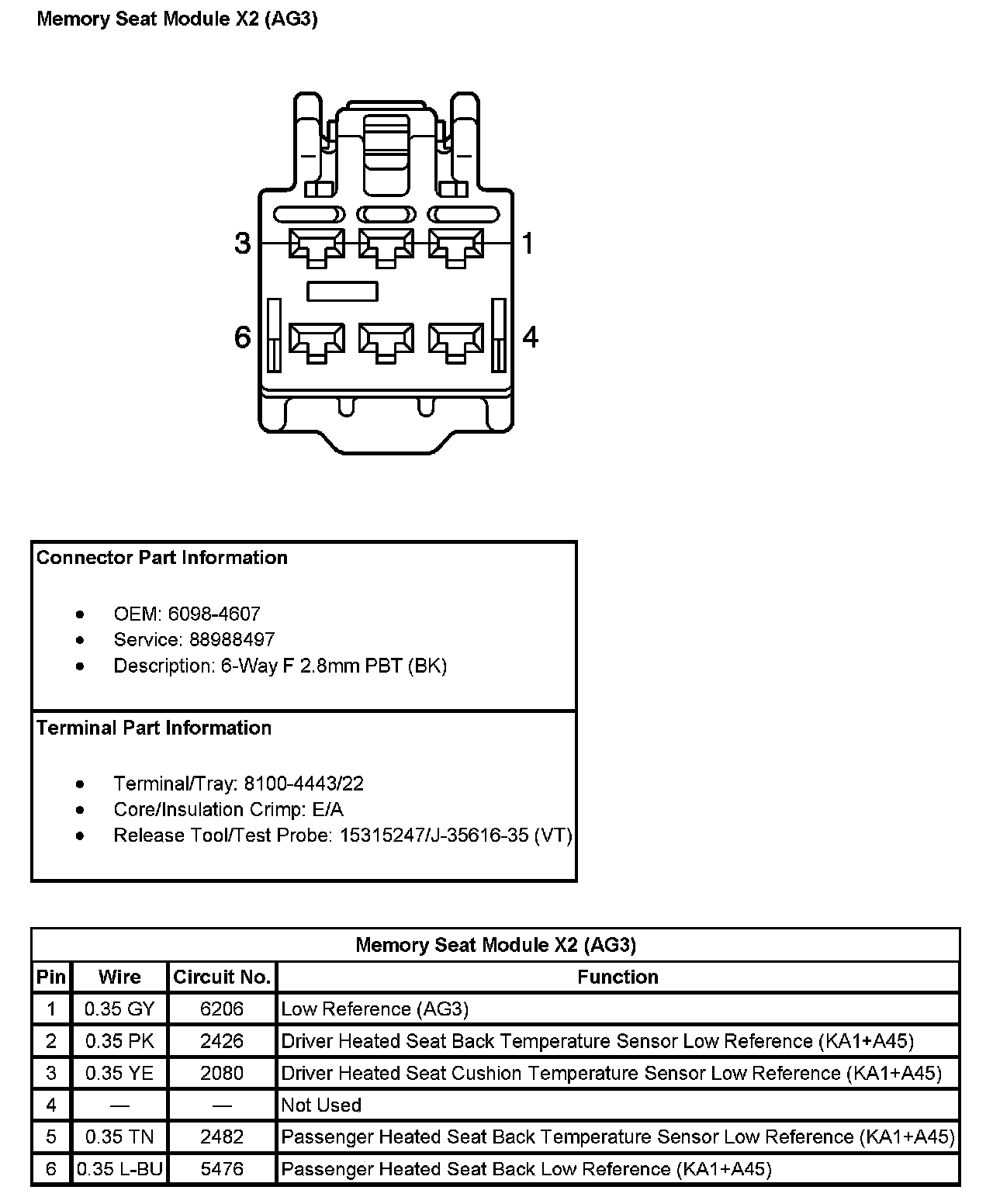

Memory Seat Module X2 (With RPO Code AG3):

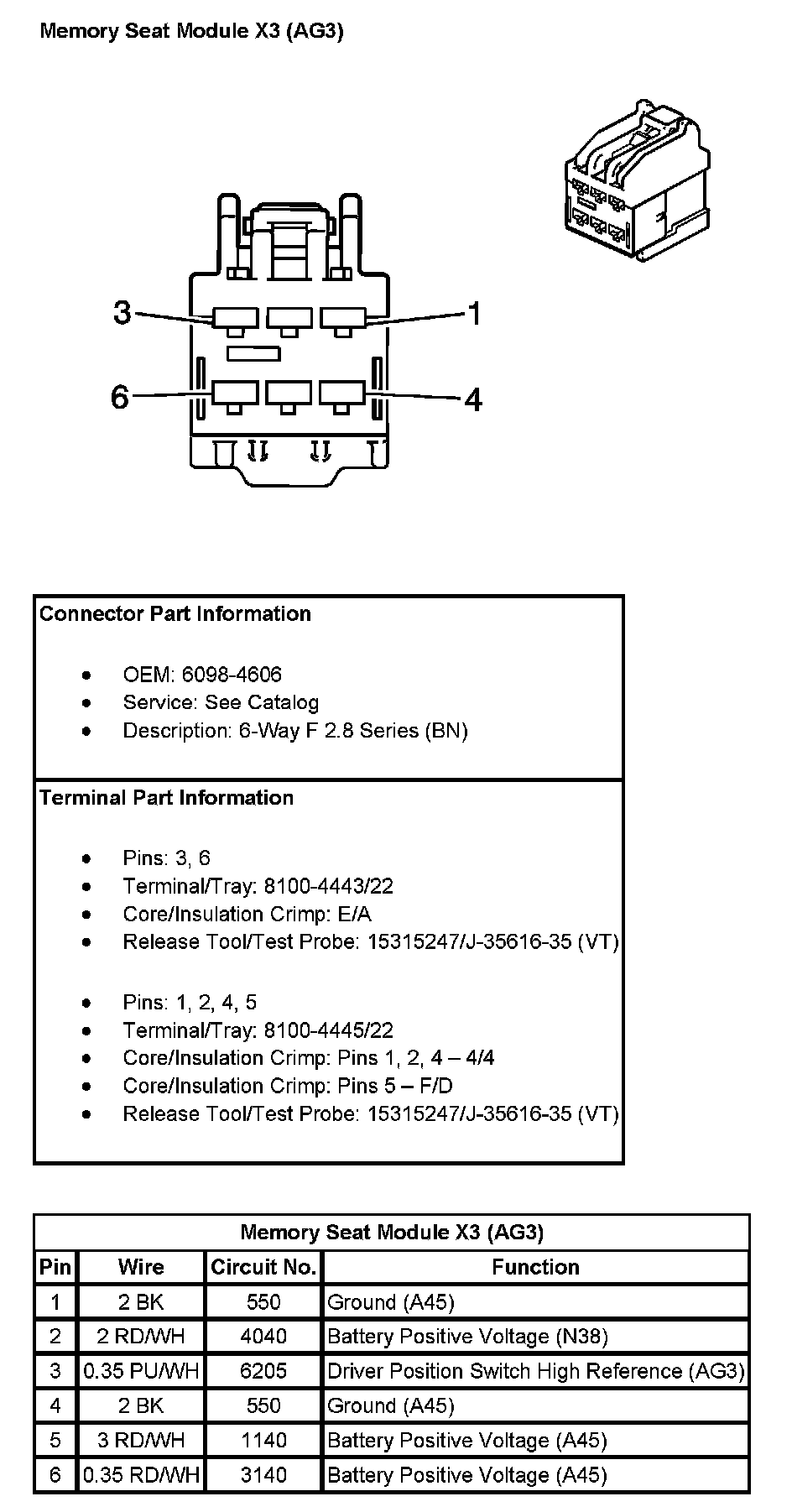

Memory Seat Module X3 (With RPO Code AG3):

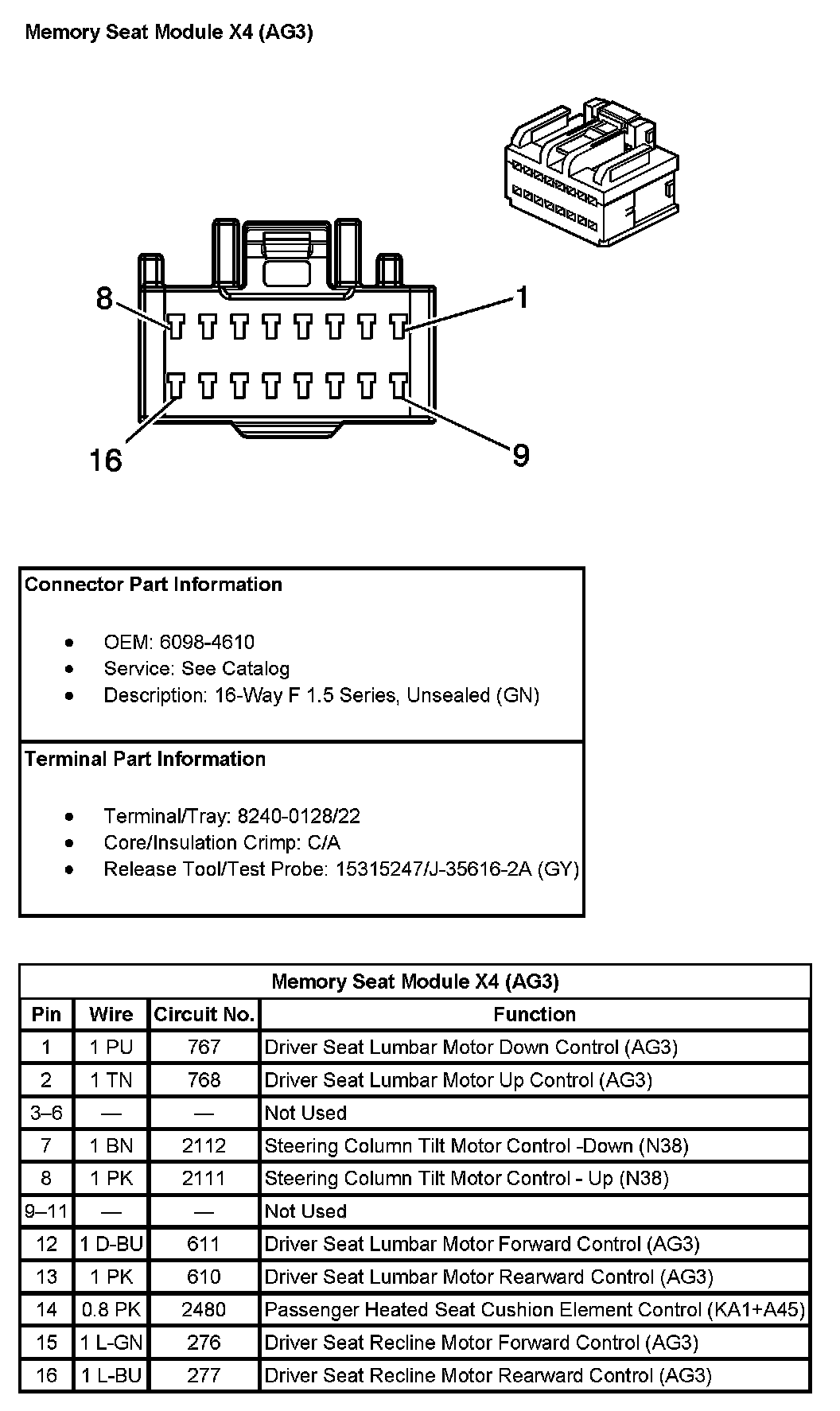

Memory Seat Module X4 (With RPO Code AG3):

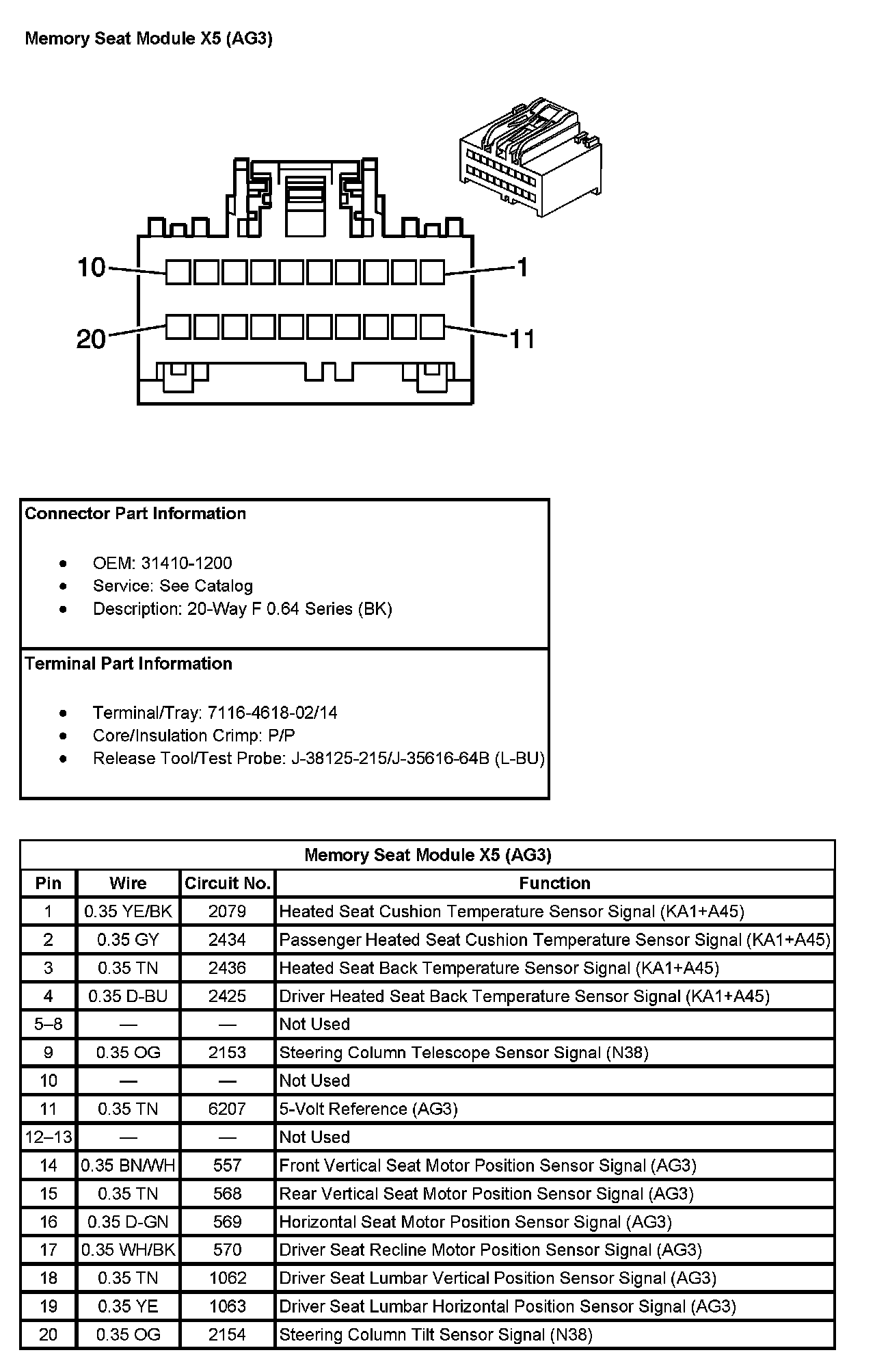

Memory Seat Module X5 (With RPO Code AG3):

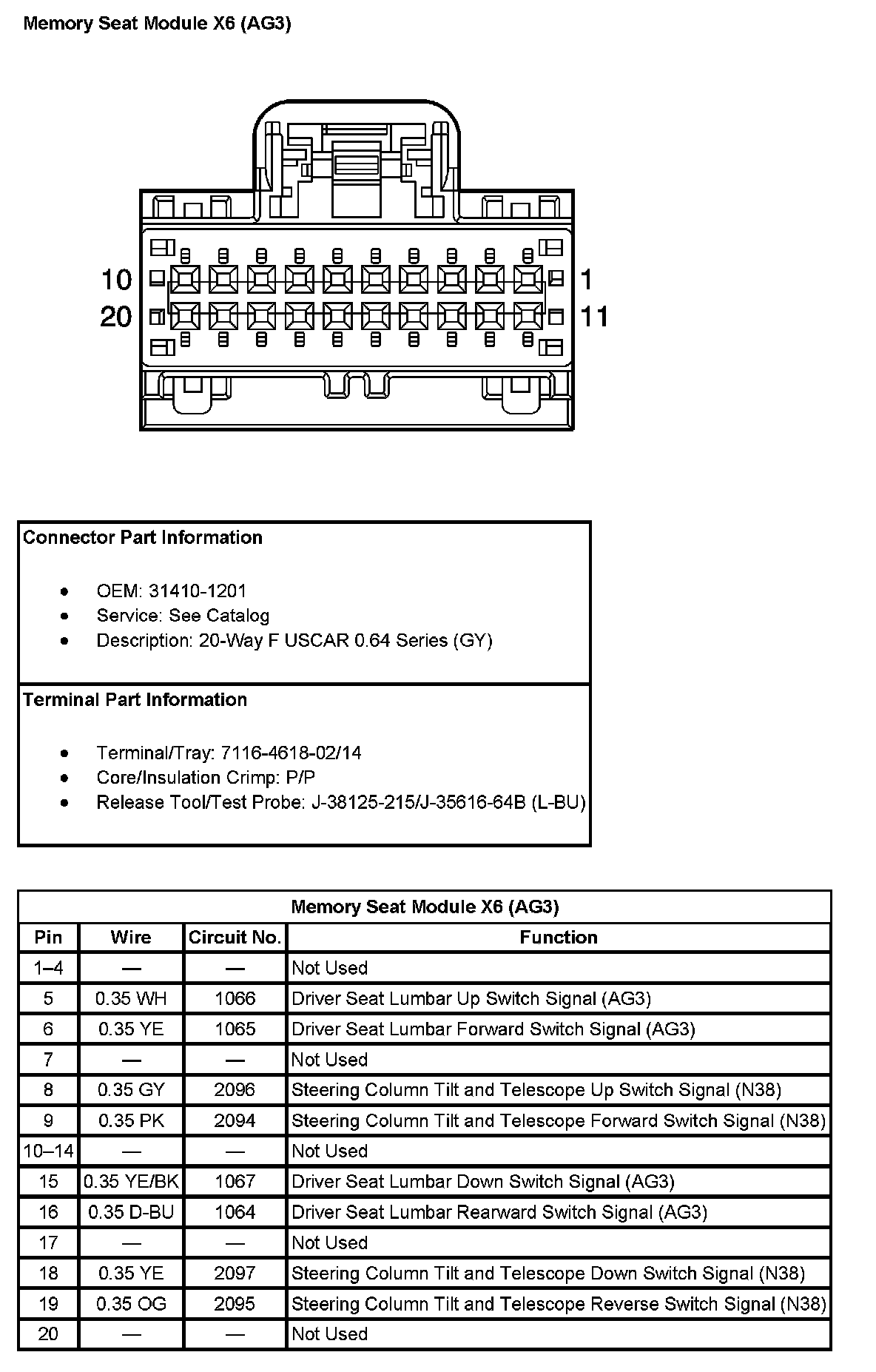

Memory Seat Module X6 (With RPO Code AG3):

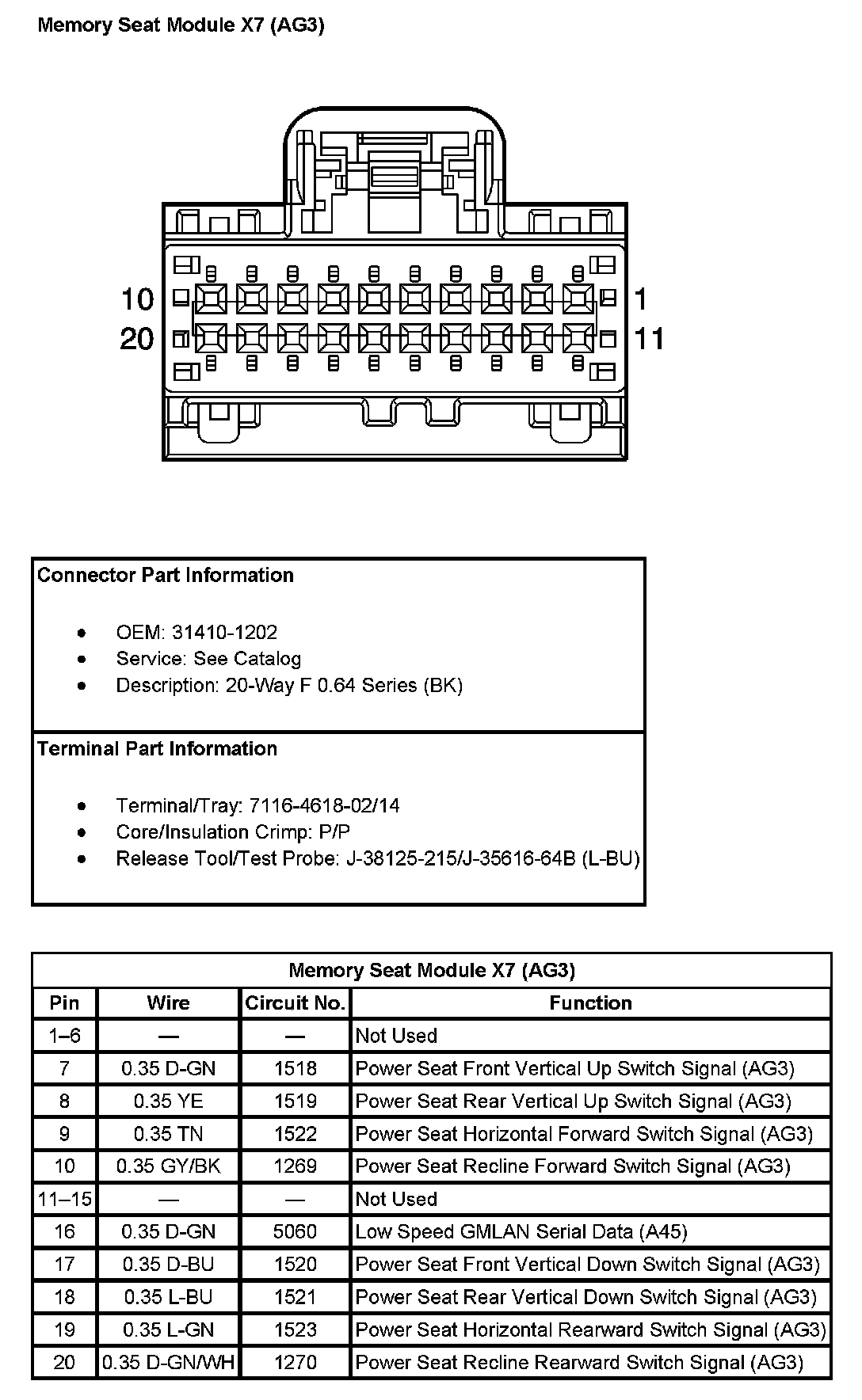

Memory Seat Module X7 (With RPO Code AG3):
