2006 GMC Sierra 1500, 2D Pickup, 5.3 Z, 4WD, Part TimeFACTORY OEM SERVICE PROCEDURE

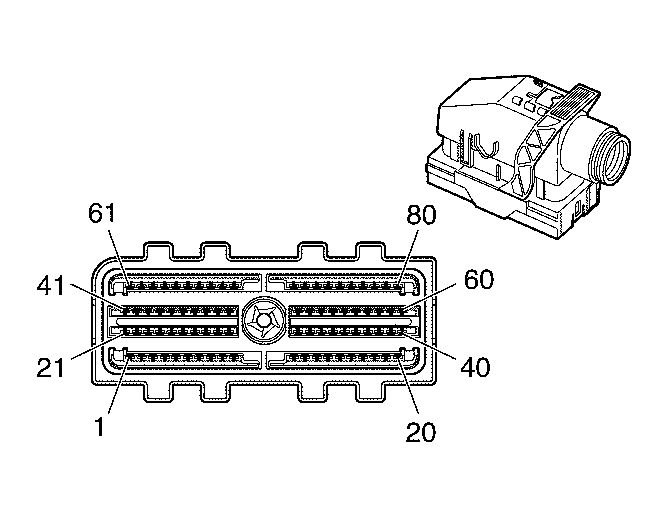

Transmission Control Module Connector End View

Transmission Control Module (TCM) 80-Way Connector

GM1653286Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13551663
  • Service:
  • Description: 80-Way
Pin  Wire Color  Circuit No.  Function
1 - - Not Used
2 PU 420 Torque Converter Clutch (TCC) Brake Switch/Cruise Control Release Signal
3-4 - - Not Used
5 OG/BK 483 Requested Torque Signal
6 TN/WH 2500 High Speed GMLAN Serial Data Bus High
7-8 - - Not Used
9 BK/WH 451 Ground
10 OG 4440 Battery Positive Voltage
11 RD/BK 1228 Actuator Supply Voltage 1 (HSD1)
12-13 - - Not Used
14 GY 773 Transmission Range Switch Signal C
15-16 - - Not Used
17 PK 1224 Fluid Pressure Switch Signal 1
18 YE 400 Vehicle Speed Sensor (VSS) Signal High
19 - - Not Used
20 L-BU 1984 Transmission Turbine Speed Switch Low
21 - - Not Used
22 WH 2467 Unmanaged Torque Signal
23 YE 2522 Power Take-Off (PTO) Engage Signal
24-25 - - Not Used
26 TN/WH 2500 High Speed GMLAN Serial Data Bus High
27 TN 2501 High Speed GMLAN Serial Data Bus Low
28 - - Not Used
29 D-BU 2466 Transmission Malfunction Indicator Lamp (MIL) Request Signal
30-32 - - Not Used
33 YE/BK 1223 Shift Solenoid 2 (SS2) Low
34 WH 776 Transmission Range Switch Signal P
35 - - Not Used
36 BN/WH 2469 Pressure Control Solenoid 2 (PCS2) Low
37-38 - - Not Used
39 D-BU/BK 1231 Automatic Transmission Input Speed Sensor (AT ISS) Signal Low
40 L-GN/BK 822 Vehicle Speed Sensor (VSS) Signal Low
41 - - Not Used
42 GY/BK 1694 Four Wheel Drive (4WD) Low Signal
43 PU 806 Crank Voltage
44 TN/BK 464 Delivered Torque Signal
45 - - Not Used
46 YE 2470 Class 2 Serial Data
47 L-BU 6106 High Speed GMLAN Serial Data Bus Low
48-50 - - Not Used
51 OG/WH 2527 Shift Solenoid 3 (SS3) Low
52 L-GN 1222 Shift Solenoid 1 (SS1) Low
53 YE 772 Transmission Range Switch Signal B
54 YE/BK 1227 Transmission Fluid Temperature (TFT) Sensor Signal
55 L-BU/WH 1229 Pressure Control Solenoid 1 (PCS1) Low
56 PU 5526 Driver Shift Request Signal
57 RD 1226 Fluid Pressure Switch Signal 3
58 BK 2762 Transmission Fluid Temperature (TFT) Sensor Return
59 RD/BK 1280 Automatic Transmission Input Speed Sensor (AT ISS) Signal High
60 PU/WH 821 Vehicle Speed Sensor (VSS) Signal High
61-62 - - Not Used
63 PK 1020 Ignition 0 Voltage
64-65 - - Not Used
66 D-BU 6105 High Speed GMLAN Serial Data Bus High
67-68 - - Not Used
69 BK/WH 451 Ground
70 - - Not Used
71 BN 323 Actuator Supply Voltage 2 (HSD2)
72 - - Not Used
73 BK/WH 771 Transmission Range Switch Signal A
74 D-BU 1530 Mod Main Pressure Control Solenoid Low
75-76 - - Not Used
77 L-GN/BK 2529 Fluid Pressure Switch Signal 4
78 BN 418 Torque Converter Clutch Pressure Control Solenoid (TCC PCS) Low
79 D-BU 1225 Fluid Pressure Switch Signal 2
80 OG 1983 Transmission Turbine Speed Switch Signal
