2006 GMC Envoy 5.3 M, RWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

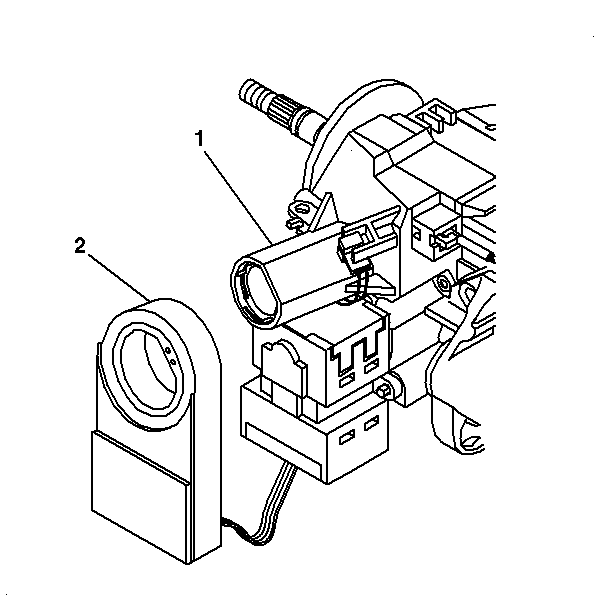

- Install the theft deterrent control module (2) onto the ignition lock cylinder case assembly (1).
- Connect the connector to the theft deterrent control module.
- If necessary, connect the connector to the ignition lock cylinder case.
- Install the lock cylinder. Refer to Ignition Lock Cylinder Replacement in Steering Wheel and Column.
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement in Steering Wheel and Column.
- Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
- Program the theft deterrent control module. Refer to Programming Theft Deterrent System Components .
CAUTION:
Refer to SIR Inflator Module Coil Caution in Cautions and Notices.
