2006 GMC Canyon 4WD L5-3.5L VIN 6FACTORY OEM SERVICE PROCEDURE

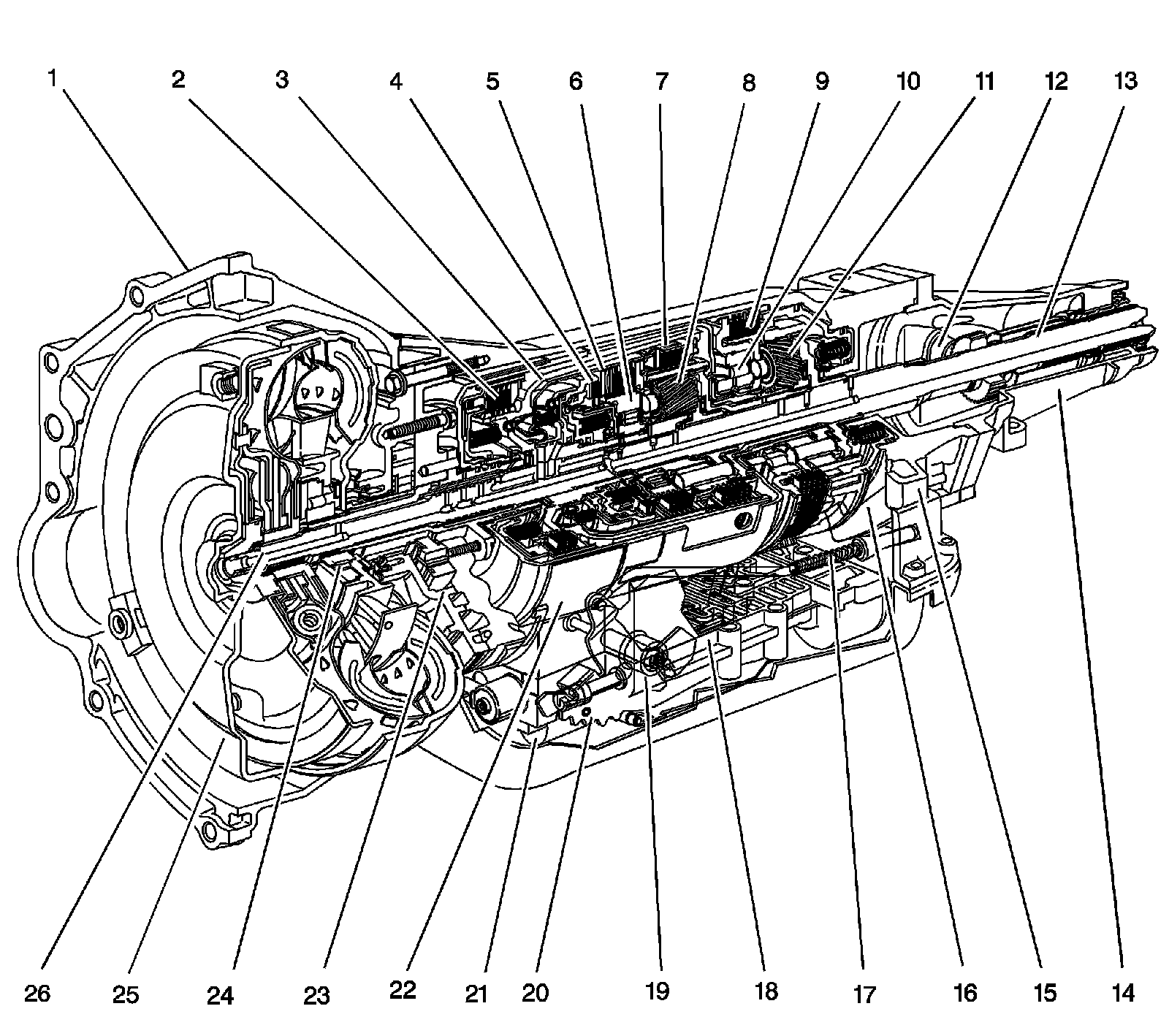

Component Location
Component Location
Components:
1 - Converter Housing
2 - Reverse Input Clutch
3 - Input Clutch Housing
4 - Overrun Clutch
5 - Forward Clutch
6 - Forward Sprag Clutch Assembly
7 - 3-4 Clutch
8 - Input Planetary Gear Set
9 - Lo and Reverse Clutch
10 - Lo Roller Clutch Assembly
11 - Reaction Planetary Gear Set
12 - Speed Sensor
13 - Output Shaft
14 - Case Extension
15 - Main Section Case
16 - Parking Pawl
17 - Parking Lock Actuator Assembly
18 - Control Valve Assembly
19 - Manual Shaft
20 - Inside Detent Lever
21 - Secondary Fluid Pump Assembly - M33 Models Only
22 - 2-4 Band Assembly
23 - Pump Assembly
24 - Stator Roller Clutch
25 - Torque Converter Assembly
26 - Turbine Shaft
