2006 GMC Canyon 4WD L5-3.5L VIN 6FACTORY OEM SERVICE PROCEDURE
Fuel System Diagnosis
FUEL SYSTEM DIAGNOSIS
SYSTEM DESCRIPTION
The fuel system is a returnless on-demand design. The fuel pressure regulator is a part of the fuel tank module, eliminating the need for a return pipe from the engine. A returnless fuel system reduces the internal temperature of the fuel tank by not returning hot fuel from the engine to the fuel tank. Reducing the internal temperature of the fuel tank results in lower evaporative emissions.
An electric turbine style fuel pump attaches to the fuel tank module inside the fuel tank. The fuel pump supplies high pressure fuel through the fuel feed pipe to the fuel injection system. The fuel pump provides fuel at a higher rate of flow than is needed by the fuel injection system. The fuel pressure regulator, a part of the fuel tank module, maintains the correct fuel pressure to the fuel injection system. The fuel tank module contains a reverse flow check valve. The check valve and the fuel pressure regulator maintain fuel pressure in the fuel feed pipe and the fuel rail in order to prevent long cranking times.
TEST

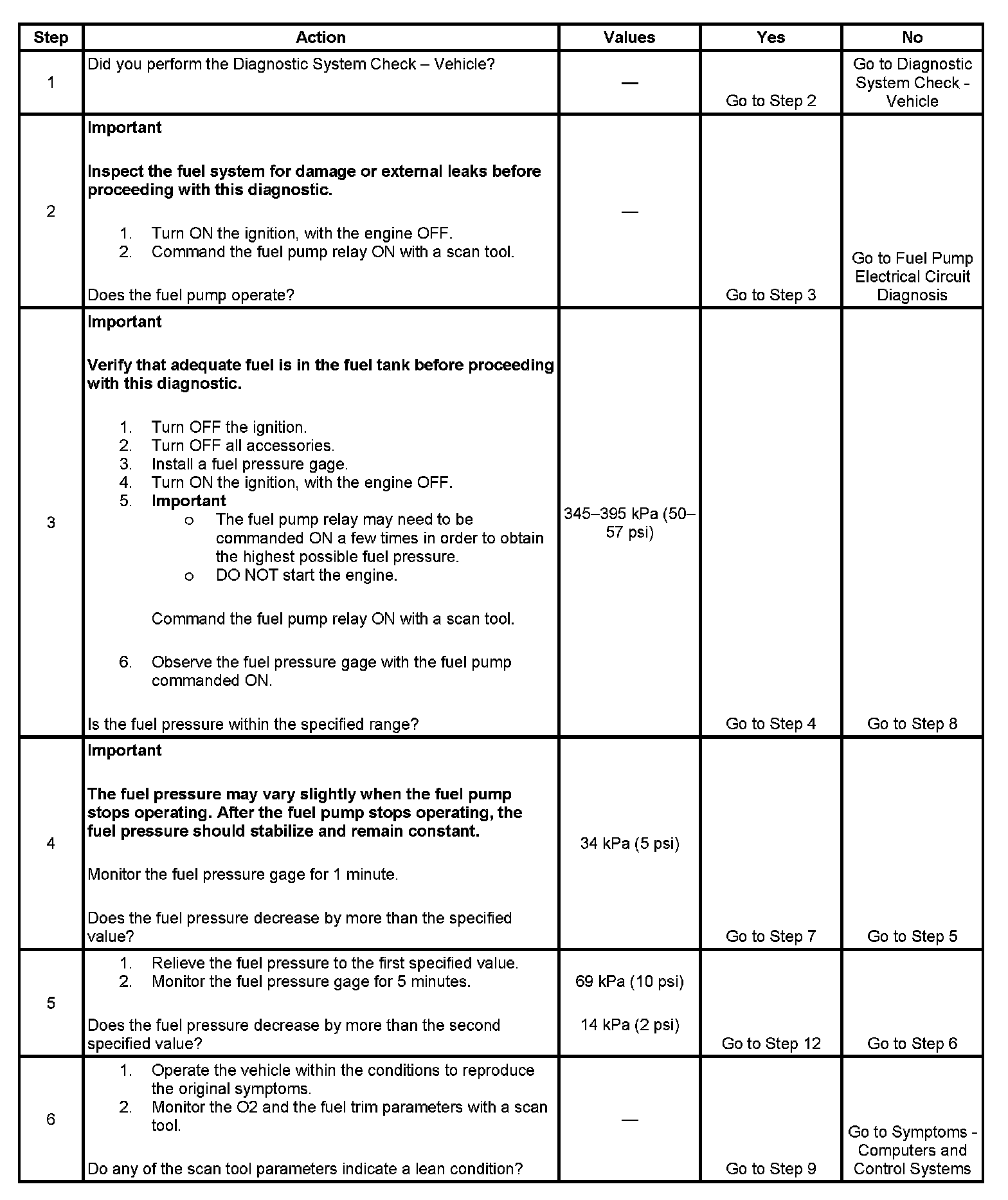

Step 1 - Step 6:

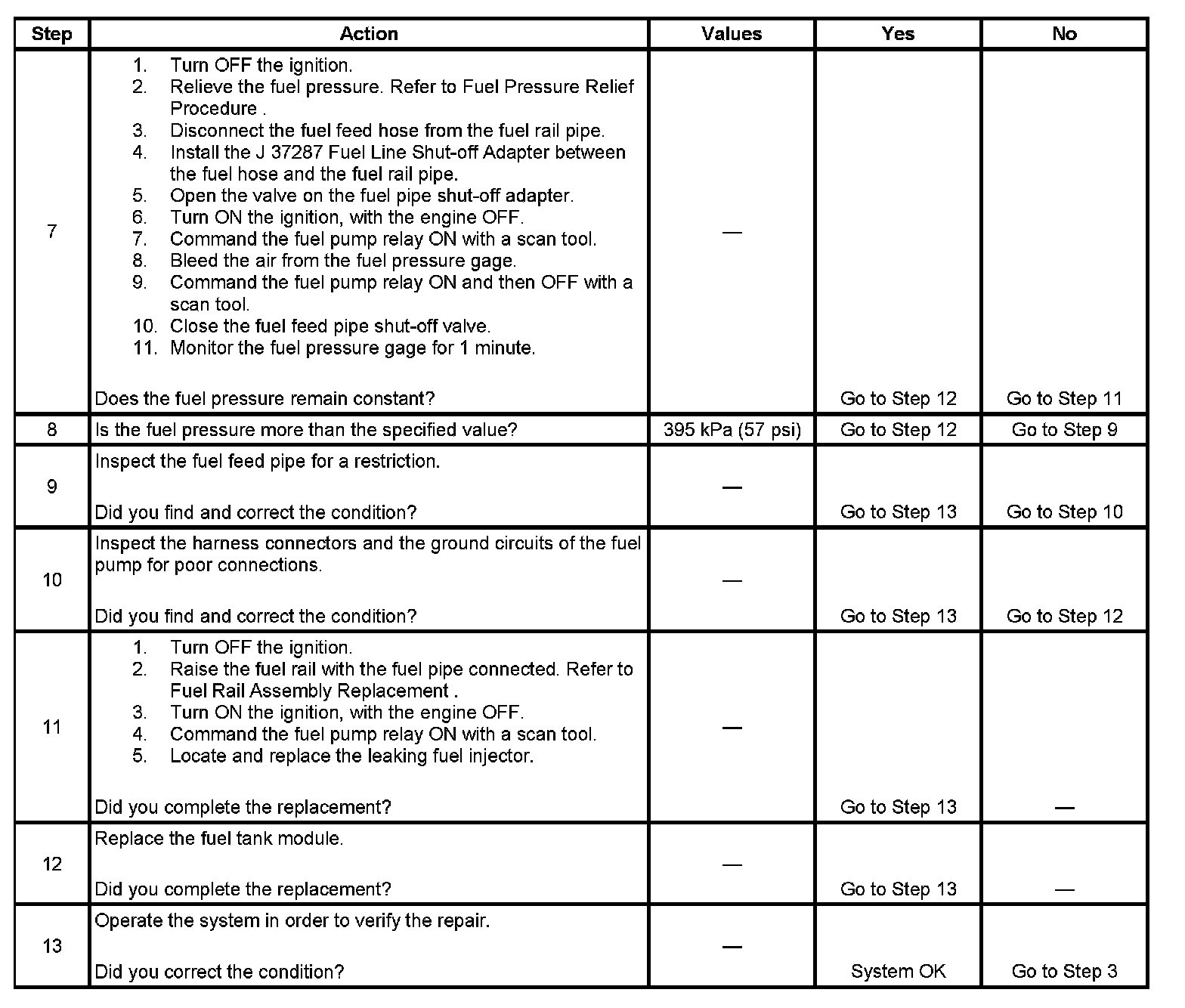

Step 7 - Step 13:
