2006 GMC Canyon 4WD L4-2.8L VIN 8FACTORY OEM SERVICE PROCEDURE

Fuel Injector Balance Test With Special Tool



FUEL INJECTOR BALANCE TEST WITH SPECIAL TOOL

SYSTEM DESCRIPTION

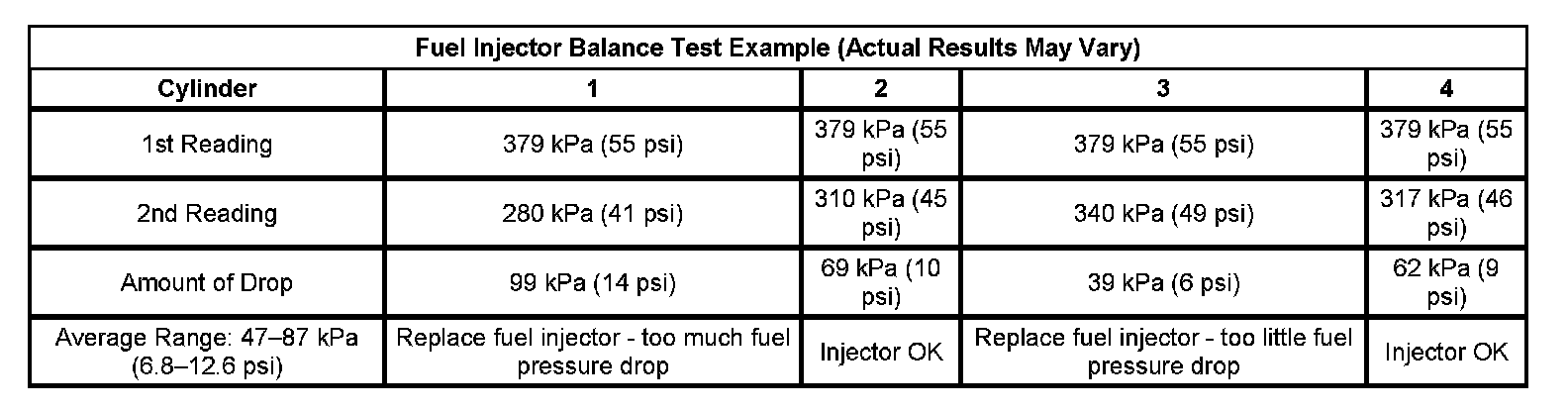

Fuel Injector Balance Test Example (Actual Results May Vary):

Factory service manual diagram



The scan tool is first used to energize the fuel pump relay. The fuel injector tester is then used to pulse each injector for a precise amount of time, allowing a measured amount of fuel into the manifold. This causes a drop in system fuel pressure that can be recorded and used to compare each injector.

TEST DESCRIPTION

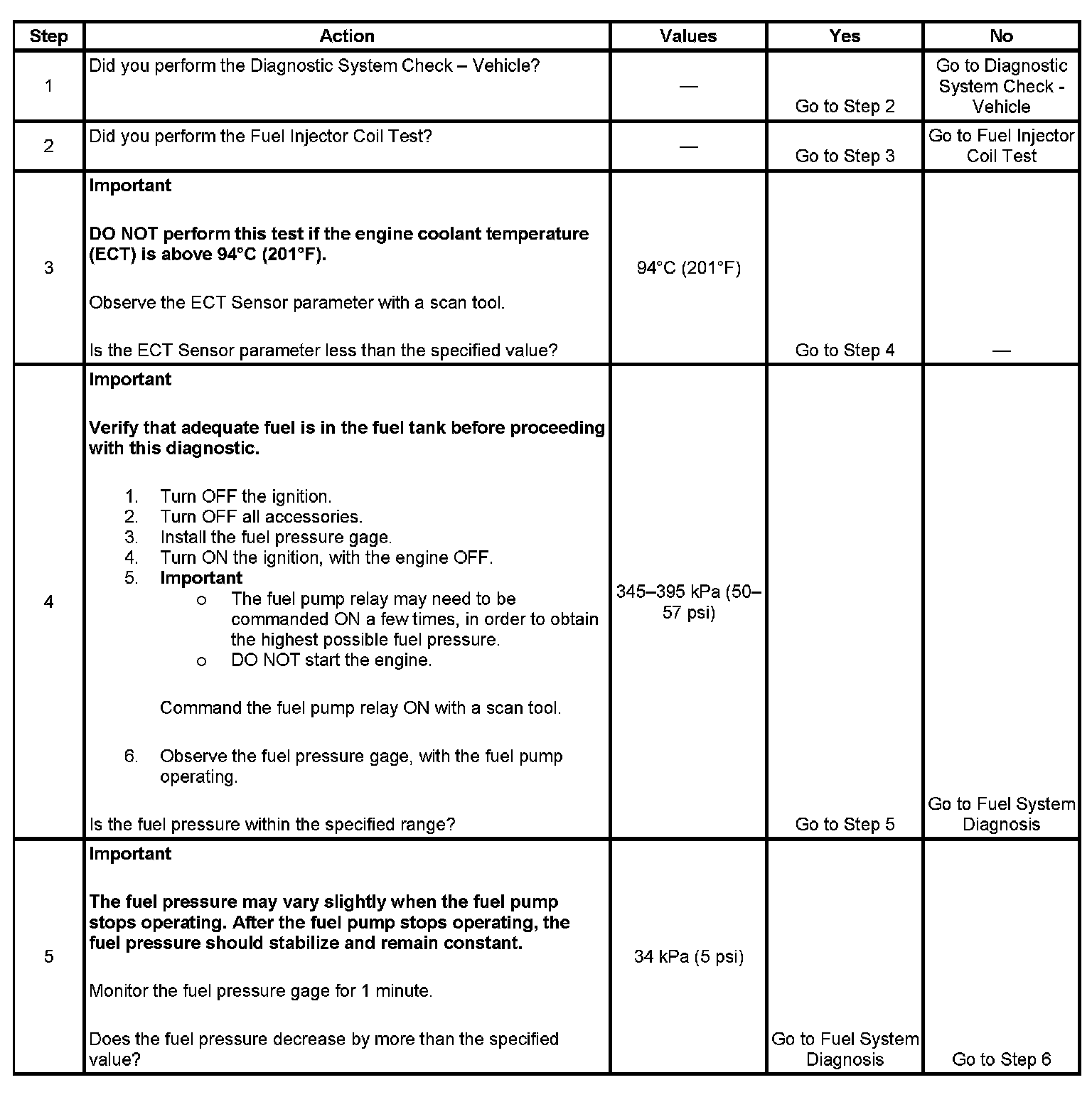

Step 1 - Step 5:

Factory service manual diagram

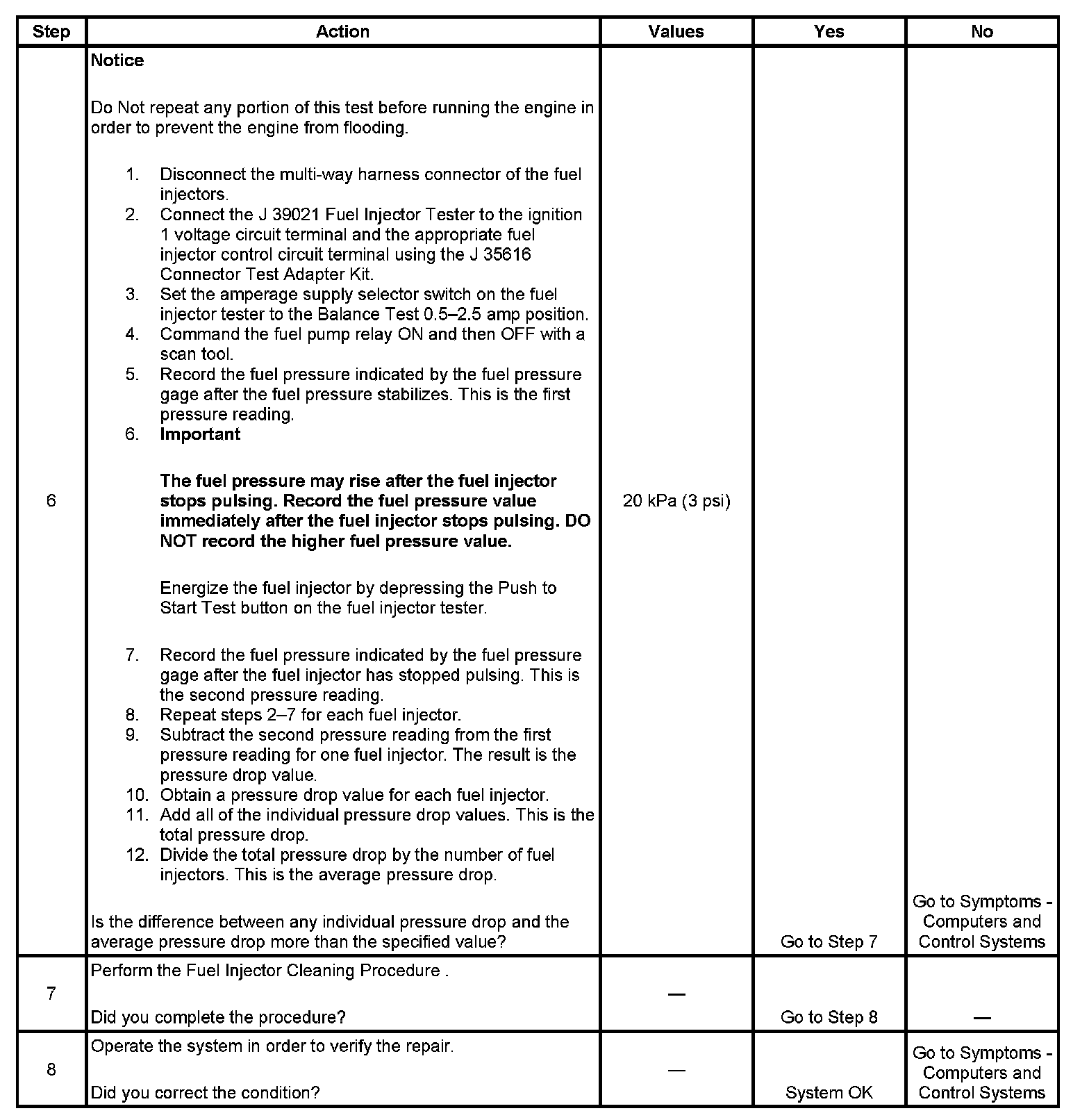

Step 6 - Step 8:

Factory service manual diagram



The number below refers to the step number on the diagnostic table.
3. The engine coolant temperature (ECT) must be below the operating temperature in order to avoid irregular fuel pressure readings due to hot soak fuel boiling.
