2004 GMC Jimmy 2D Utility, Part Time, AutomaticFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Component Views

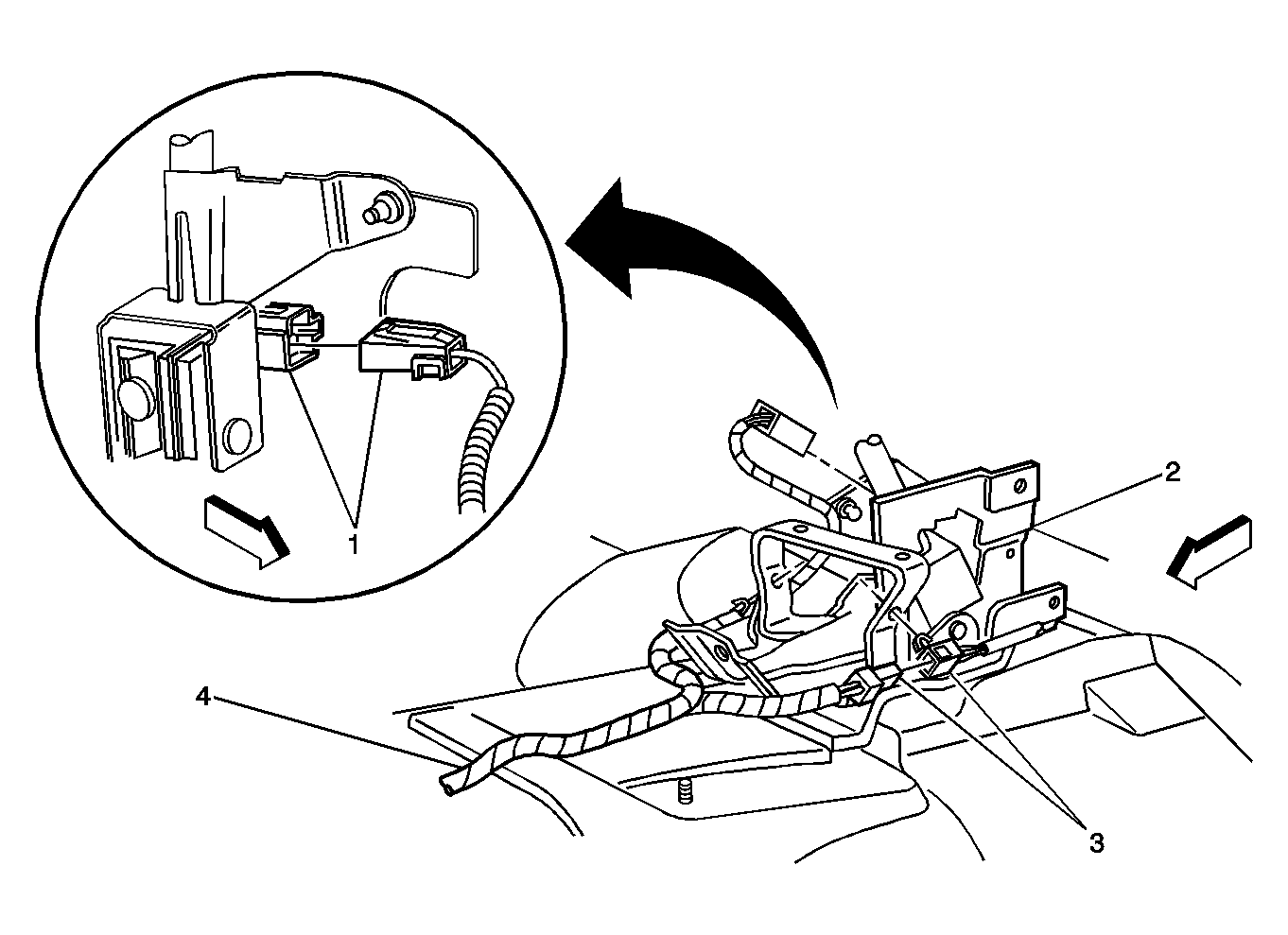

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Control Module Connector |
| 2 | Floor Shifter |
| 3 | Automatic Transmission Shift Lever Position Indicator |
| 4 | S335 |

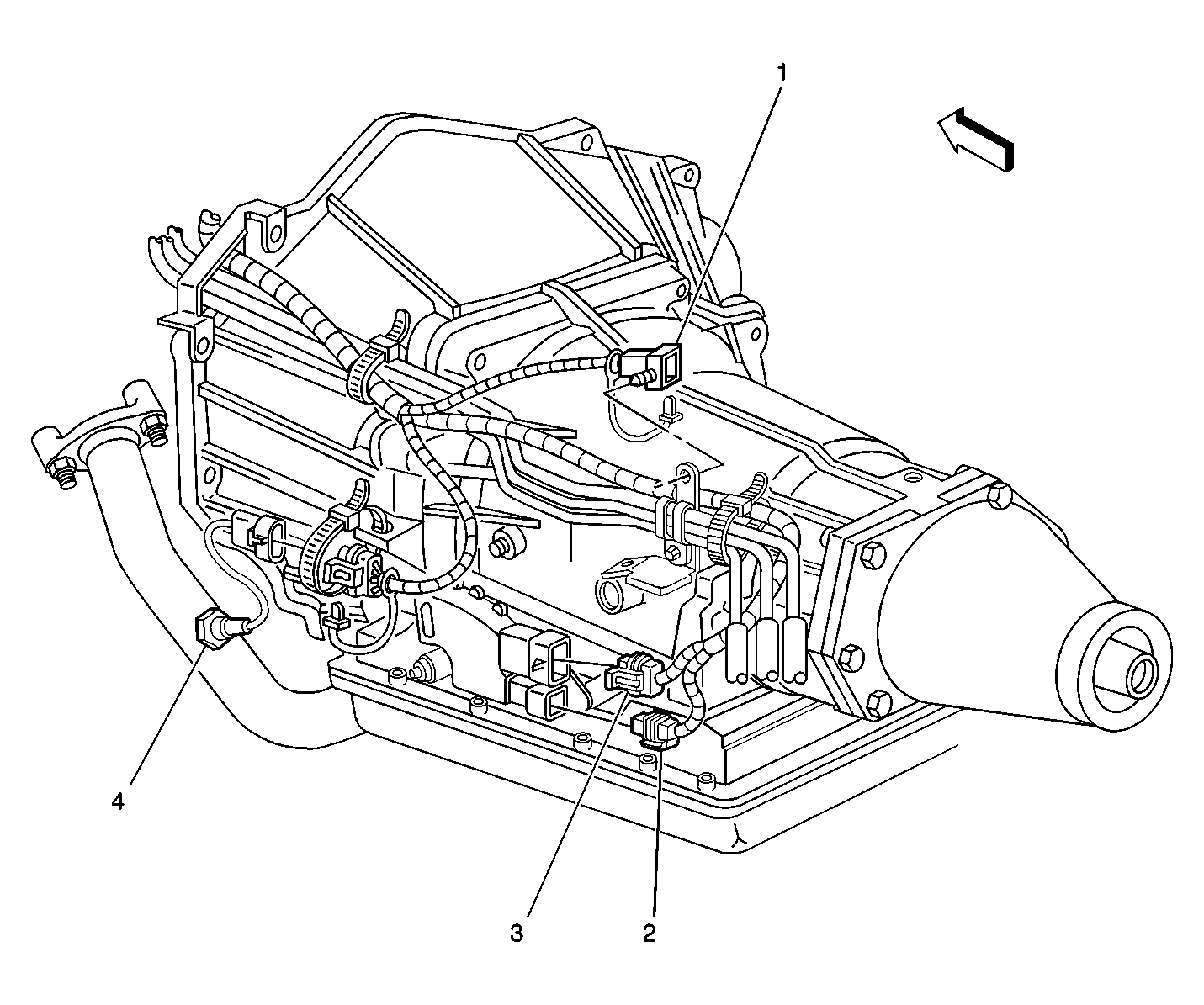

| Callout | Component Name |
|---|---|
| 1 | C104 |
| 2 | Park/Neutral Position (PNP) Switch Connector C2 |
| 3 | Park/Neutral Position (PNP) Switch Connector C1 |
| 4 | Oxygen Sensor (O2S) Bank 1 Sensor 1 |

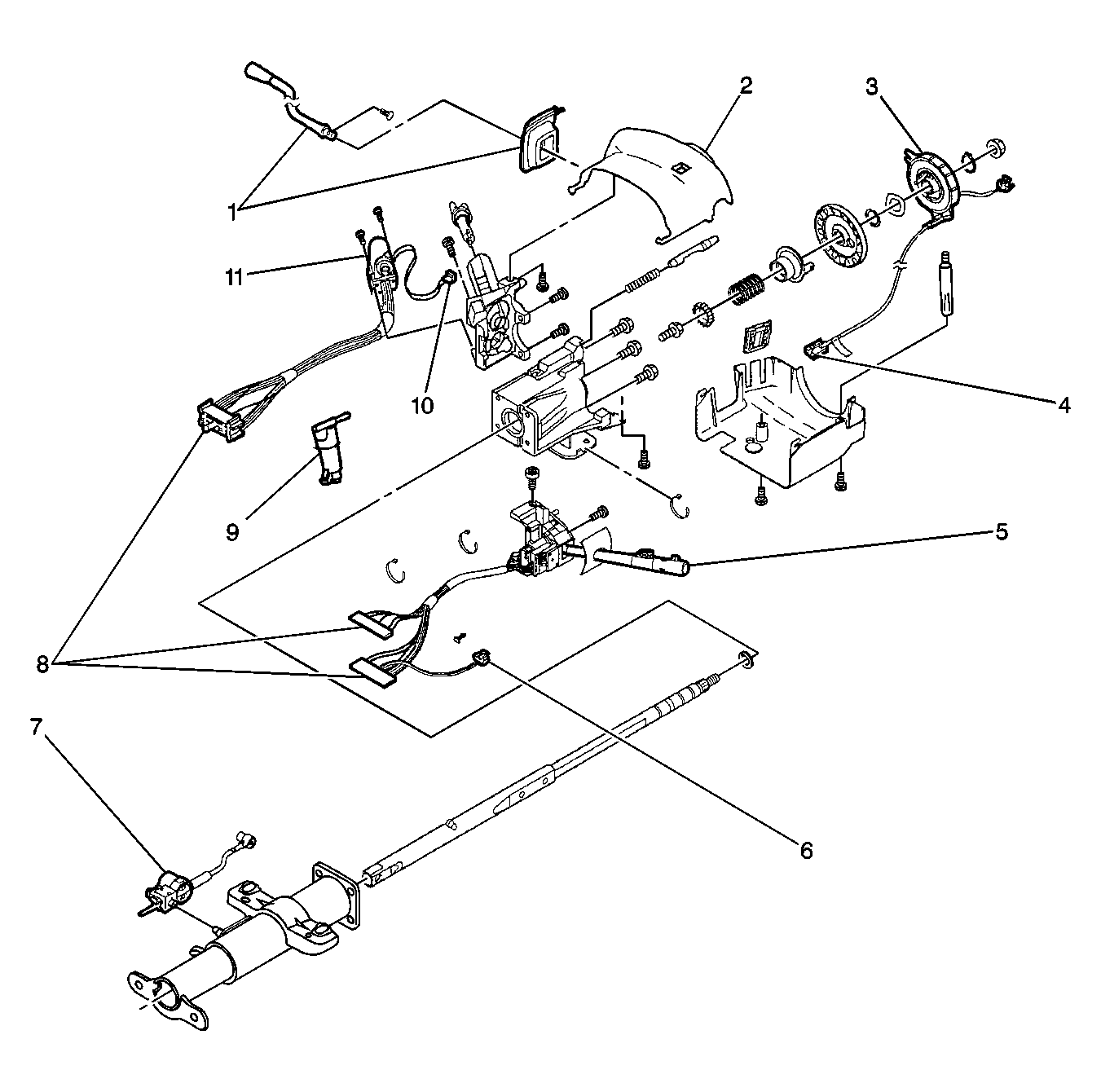

| Callout | Component Name |
|---|---|
| 1 | Shift Lever Assembly |
| 2 | Upper Shroud |
| 3 | Inflatable Restraint Steering Wheel Module Coil |
| 4 | C214 |
| 5 | Multifunction Switch |
| 6 | Ignition Lock Cylinder Control Actuator Connector - w/ Floor Shift, Automatic Transmission Shift Lock Actuator Connector - w/ Column Shift |
| 7 | Automatic Transmission Shift Lock Actuator - w/ Column Shift |
| 8 | C211 |
| 9 | Ignition Lock Cylinder Control Actuator - w/ Floor Shift |
| 10 | Passlock™ Sensor Connector |
| 11 | Ignition Switch and Ignition Key Alarm Switch |
