Installation Procedure
- Remove the caps from the fuel filler hose and the vent hose.

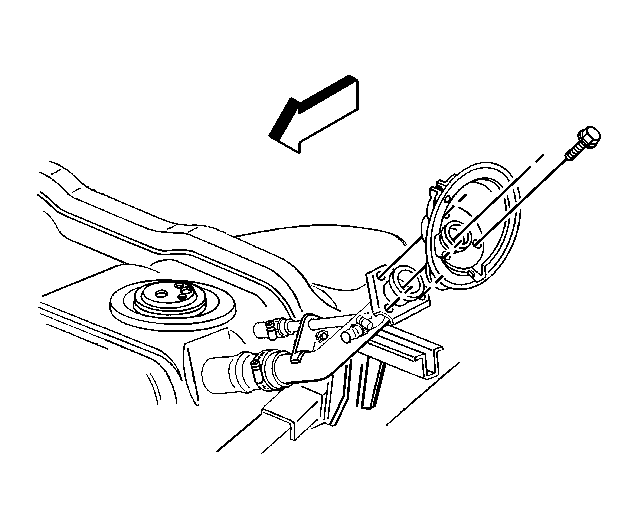

- Install the fuel filler pipe to the fuel tank fill and vent hoses and the fill pipe housing.
- Align the fuel filler pipe with the filler pipe housing.NOTE: Refer to Fastener Notice in Cautions and Notices.
Tighten:

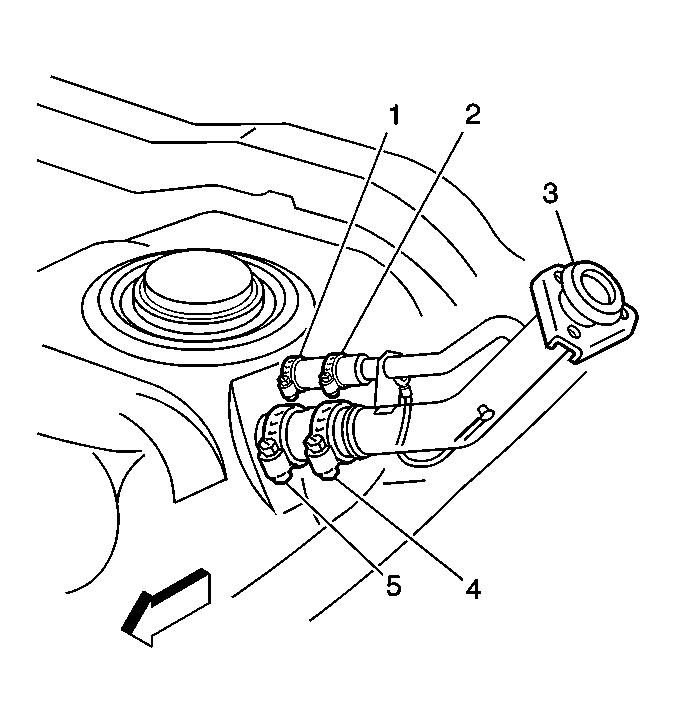

- Tighten the vent hose clamp (2) to 1.7 N.m (15 lb in).
- Tighten the fuel fill hose clamp (4) to 2.5 N.m (22 lb in).

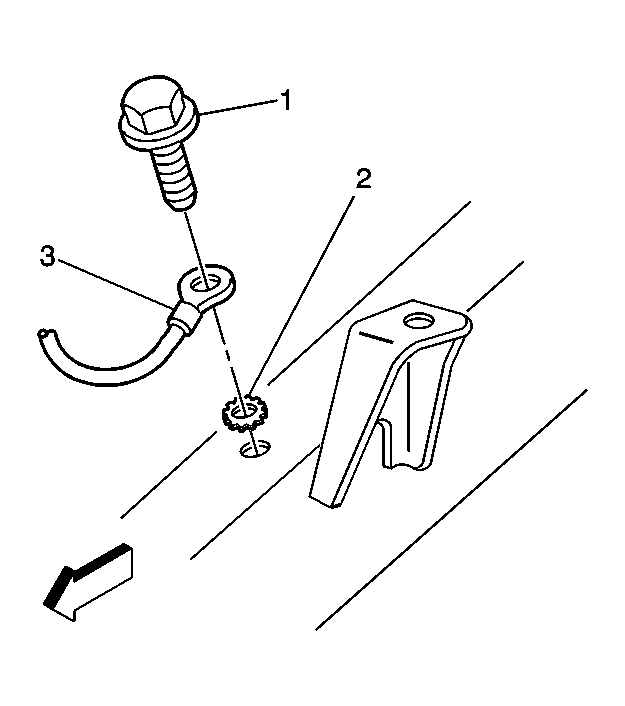

- Connect the filler pipe ground strap (3) to the frame with the bolt and washer.
Tighten: Tighten the ground strap bolt to 15 N.m (11 lb ft).
- Lower the vehicle.
- Install the fuel filler pipe to fill pipe housing attaching screws.
Tighten: Tighten the fuel filler pipe to fill pipe housing screws to 1.9 N.m (17 lb in).
- Install the fuel filler cap.
- Connect the negative battery cable.
- Inspect for leaks.
