2004 GMC Jimmy 2D Utility, Part Time, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Controls Connectors
Camshaft Position (CMP) Sensor

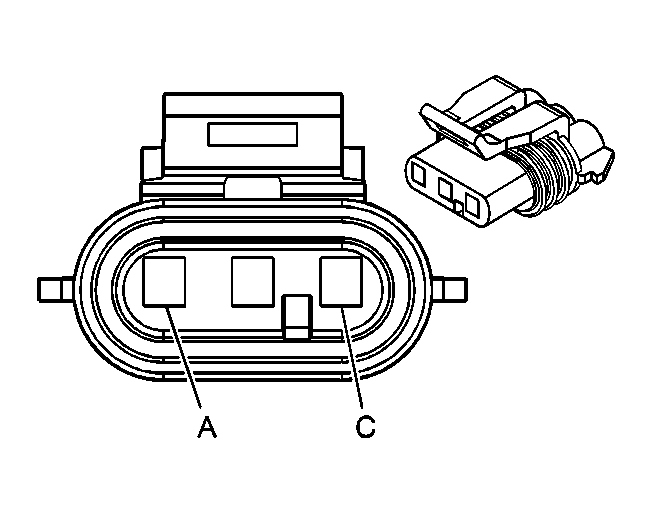

| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK/BLK | 632 | Low Reference |
| B | BRN/WHT | 633 | CMP Sensor Signal |
| C | RED | 631 | 12 Volt Reference |
Central Sequential Fuel Injection (Central SFI)

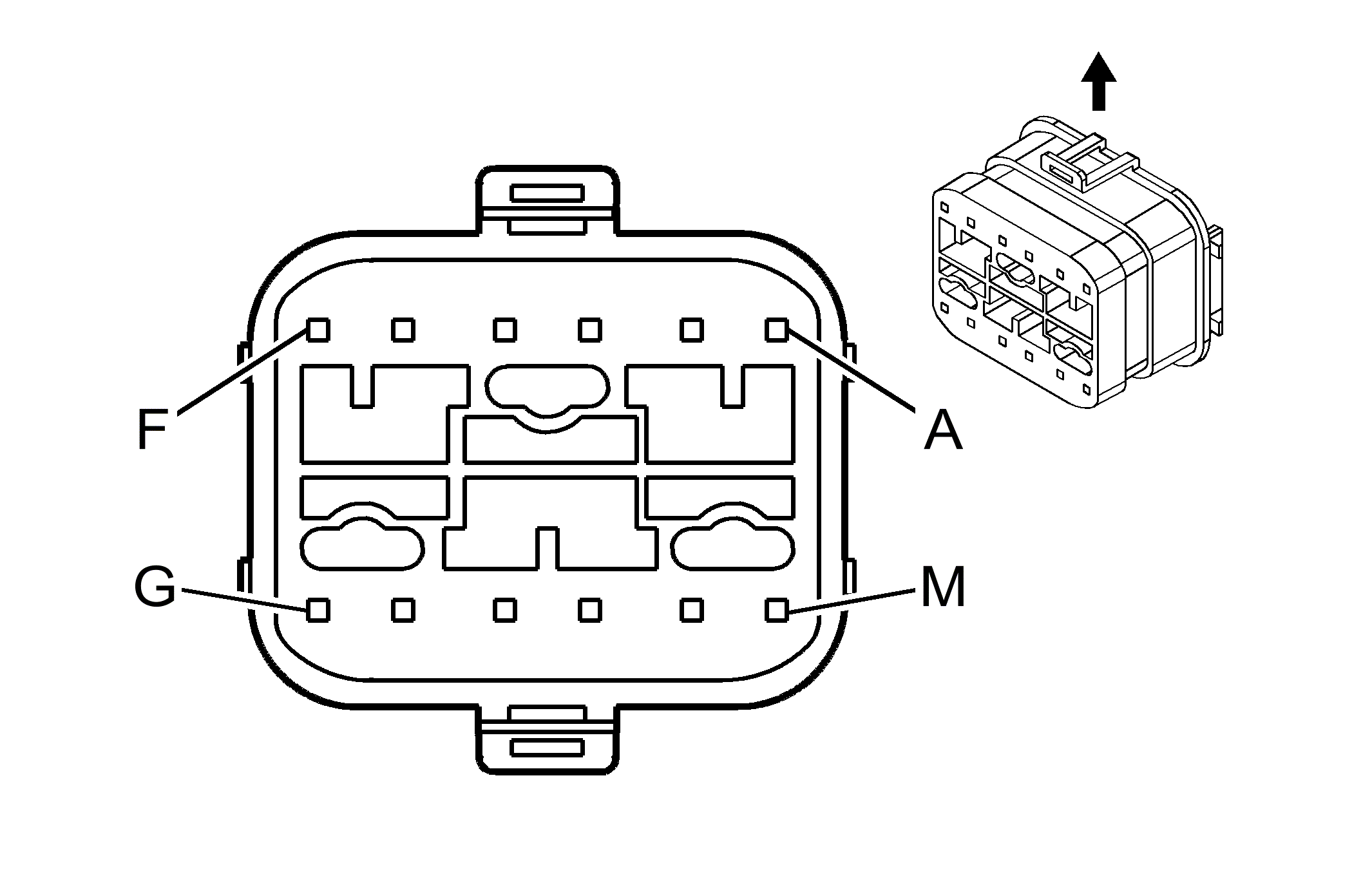

| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK/WHT | 845 | Fuel Injector 5 Control |
| B | PNK | 439 | Ignition 1 Voltage |
| C | PNK/BLK | 1746 | Fuel Injector 3 Control |
| D | PNK | 439 | Ignition 1 Voltage |
| E | PNK | 439 | Ignition 1 Voltage |
| F | BLK | 1744 | Fuel Injector 1 Control |
| G | LT GRN/BLK | 1745 | Fuel Injector 2 Control |
| H | PNK | 439 | Ignition 1 Voltage |
| J | PNK | 439 | Ignition 1 Voltage |
| K | LT BLU/BLK | 844 | Fuel Injector 4 Control |
| L | PNK | 439 | Ignition 1 Voltage |
| M | YEL/BLK | 846 | Fuel Injector 6 Control |
Crankshaft Position (CKP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT GRN | 1867 | 12 Volt Reference |
| B | PPL | 574 | Low Reference |
| C | YEL | 573 | CKP Sensor Signal |
Engine Coolant Temperature (ECT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 2761 | Low Reference |
| B | YEL | 410 | ECT Sensor Signal |
Evaporative Emission (EVAP) Canister Purge Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 239 | Ignition 1 Voltage |
| B | DK GRN/WHT | 428 | EVAP Canister Purge Solenoid Control |
Evaporative Emission (EVAP) Canister Vent Solenoid
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | ORN | 140 | Ignition 1 Voltage |
| B | WHT | 1310 | EVAP Canister Vent Solenoid Control |
Fuel Pump and Sender Assembly
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PPL | 1589 | Fuel Level Sensor Signal |
| B | GRY | 120 | Fuel Pump Supply Voltage |
| C | BLK | 1650 | Ground Utility |
| BLK | 1750 | Ground Pickup | |
| D | BLK/WHT | 470 | Low Reference |
Fuel Tank Pressure (FTP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK/WHT | 470 | Low Reference |
| B | DK GRN | 890 | Fuel Tank Pressure Sensor Signal |
| C | GRY | 474 | 5 Volt Reference |
Heated Oxygen Sensor (HO2S), Bank 1 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN/WHT | 1664 | HO2S Low Signal (Bank 1 Sensor 1) |
| B | PPL/WHT | 1665 | HO2S High Signal (Bank 1 Sensor 1) |
| C | BLK | 3113 | HO2S Heater Low Control (Bank 1 Sensor 1) |
| D | PNK | 539 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S), Bank 1 Sensor 2
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN/WHT | 1669 | HO2S Low Signal (Bank 1 Sensor 2) |
| B | PPL/WHT | 1668 | HO2S High Signal (Bank 1 Sensor 2) |
| C | BRN | 2391 | HO2S Heater Low Control (Bank 1 Sensor 2) |
| D | PNK | 539 | Ignition 1 Voltage |
Heated Oxygen Sensor (HO2S), Bank 2 Sensor 1
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | TAN | 1667 | HO2S Low Signal (Bank 2 Sensor 1) |
| B | PPL | 1666 | HO2S High Signal (Bank 2 Sensor 1) |
| C | LT GRN | 3212 | HO2S Heater Low Control (Bank 2 Sensor 1) |
| D | PNK | 539 | Ignition 1 Voltage |
Idle Air Control (IAC) Valve
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | LT GRN/BLK | 444 | IAC Coil B Low Control |
| B | LT GRN/WHT | 1749 | IAC Coil B High Control |
| C | LT BLU/BLK | 1748 | IAC Coil A Low Control |
| D | LT BLU/WHT | 1747 | IAC Coil A High Control |
Ignition Coil
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 439 | Ignition 1 Voltage |
| B | - | - | Not Used |
| C | WHT/BLK | 1847 | Ignition Coil Control |
Ignition Control Module (ICM)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | PNK | 439 | Ignition 1 Voltage |
| B | WHT | 423 | IC Timing Control |
| C | BLK/WHT | 451 | Ground |
| D | WHT/BLK | 1847 | Ignition Coil Control |
Intake Air Temperature (IAT) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BLK | 2760 | Low Reference |
| B | TAN | 472 | IAT Sensor Signal |
Knock Sensor (KS)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | DK BLU | 496 | Knock Sensor Signal |
| B | GRY | 1716 | Low Reference |
Manifold Absolute Pressure (MAP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | ORN | 469 | Low Reference |
| B | LT GRN | 432 | MAP Sensor Signal |
| C | GRY | 2704 | 5 Volt Reference |
Mass Air Flow (MAF) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | YEL | 492 | MAF Sensor Signal |
| B | BLK/WHT | 451 | Ground |
| C | PNK | 239 | Ignition 1 Voltage |
Throttle Position (TP) Sensor
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | GRY | 2701 | 5 Volt Reference |
| B | BLK | 2752 | Low Reference |
| C | DK BLU | 417 | TP Sensor Signal |
