2004 GMC Envoy RWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the resonator assembly. Refer to Air Cleaner Outlet Resonator Replacement .
- Remove the evaporative emission (EVAP) canister purge line from the throttle body.
- Disconnect the throttle body electrical connector.

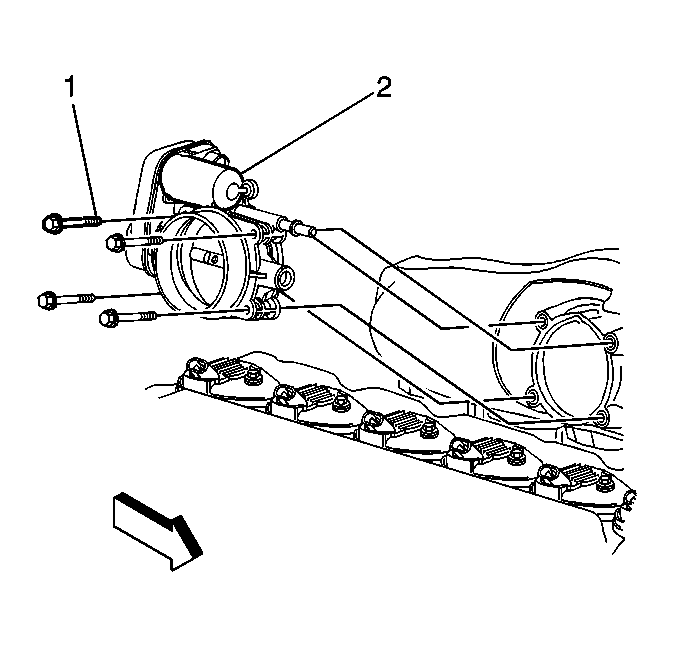

- Remove the throttle body assembly retaining bolts (1).
- Remove the throttle body assembly (2) and the gasket from the intake manifold.
- Clean the gasket surface.
