2004 GMC Envoy RWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .

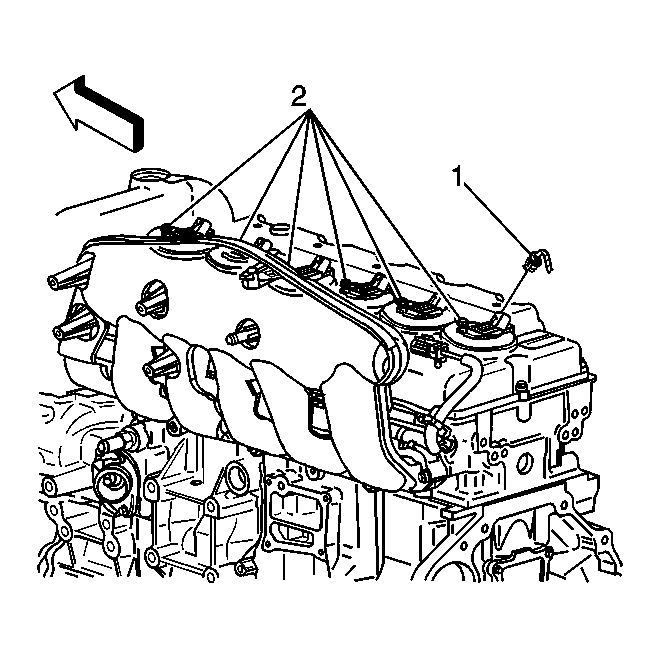

Fig 1: Disconnecting/Connecting Ignition Coil Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the ignition coil connectors (1) from the ignition coils.
Remove the retaining bolts (2) from the ignition coils.

Fig 2: Removing/Installing Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Remove the ignition coils (1) from the engine.
