2001 GMC C3500 HD 6.5 F, AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Remove the fuel tank filler cap.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cables.
Raise the vehicle on a hoist. Refer to Lifting And Jacking The Vehicle in General Information.
Remove the fuel tank. Refer to Fuel Tank Replacement (Extended Cab Side Tank) or Fuel Tank Replacement (Cab and Chassis Rear Tank) or Fuel Tank Replacement (Cab and Chassis Side Tank) .

Fig 1: Fuel Sender Unit Cam Lock

Courtesy of GENERAL MOTORS CORP.

Remove the sender unit by turning the cam lock counterclockwise using the J 36608 fuel sender tool. See Special Tools .

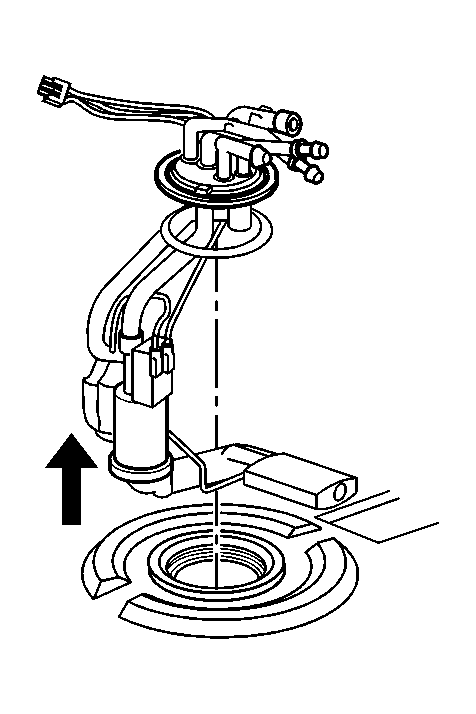

Fig 2: Fuel Sender Assembly & Seal Ring

Courtesy of GENERAL MOTORS CORP.
