2001 GMC C3500 HD 6.5 F, AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure

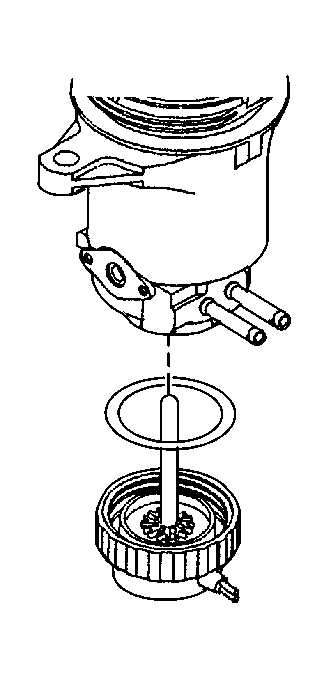

- Install the cap seal into filter housing.

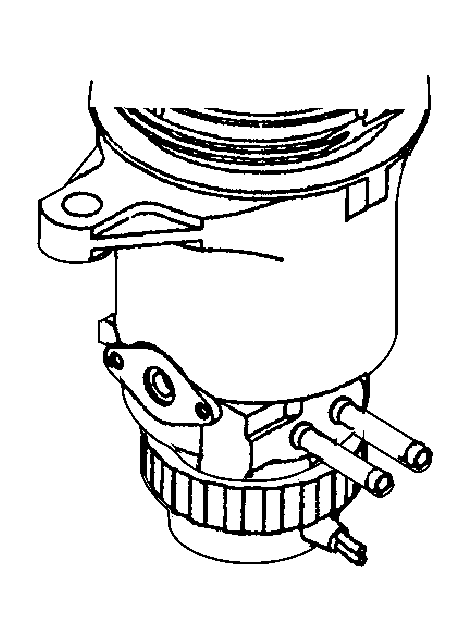

- Install the fuel heater.

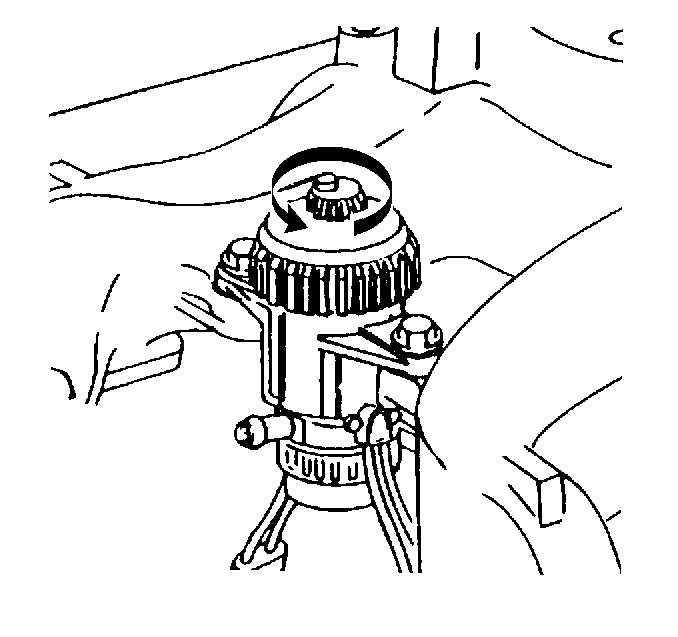

- Install the threaded cap nut.
Tighten: Tighten the cap nut securely by hand.

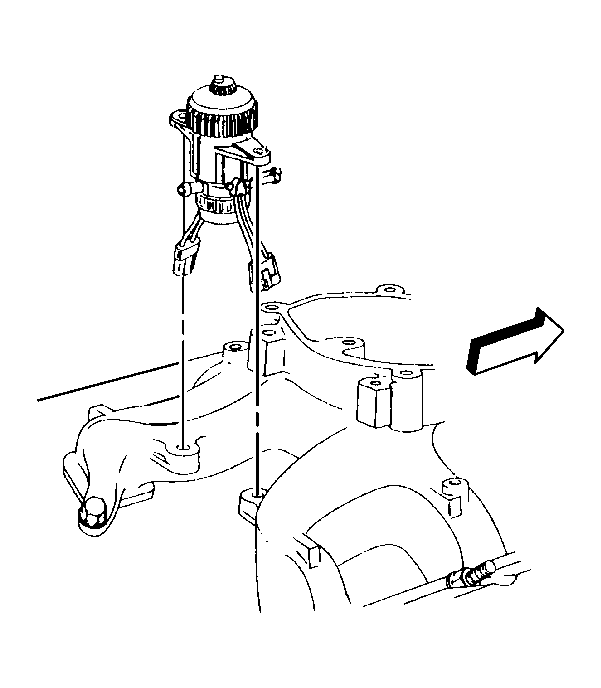

- Install the fuel manager/filter. Refer to Fuel Filter/Heater Element Housing Replacement .

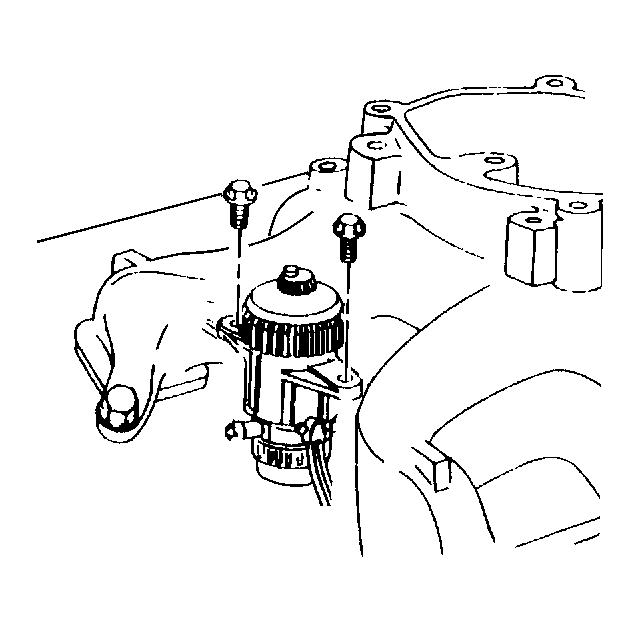

- Install the mounting bolts that connect the fuel manager/filter to the intake manifold.
Tighten: Tighten the mounting bolts to 25 N.m (18 lb ft).
- Open the air bleed valve on top of the fuel manager/filter to bleed air from fuel supply system. Refer to Fuel Feed and Fuel Return Pipe Purge Procedure .

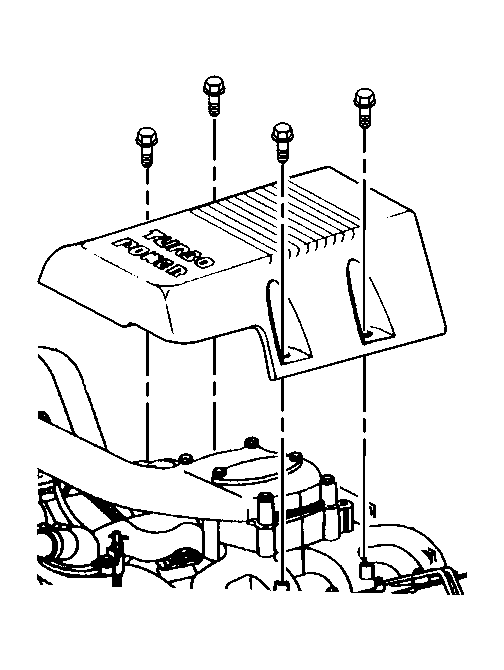

- Install the upper intake manifold cover.
NOTE:
Refer to Fastener Notice in Cautions and Notices.
