2001 GMC C3500 HD 6.5 F, AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Remove the negative battery cables.
Drain the cooling system below the level of the sensor.

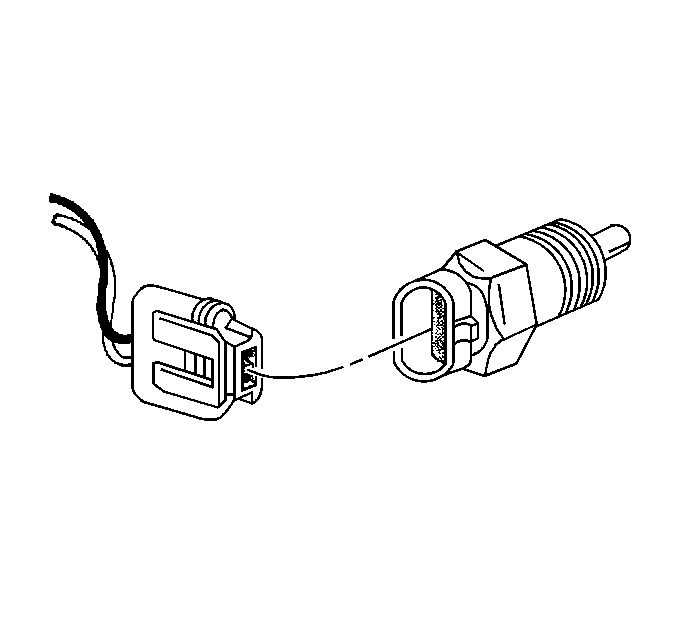

Fig 1: ECT Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the electrical connector by releasing the locking tab.

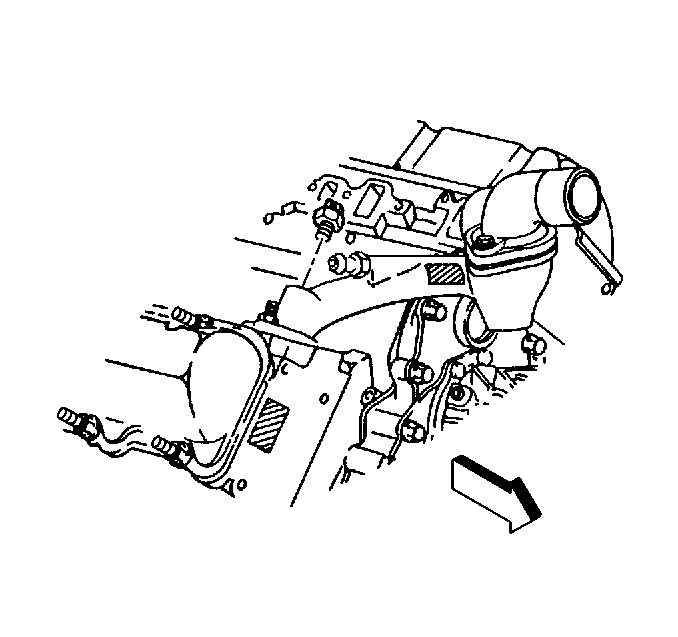

Fig 2: Removing ECT Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the sensor.
