Installation Procedure
- Install the air cleaner assembly.

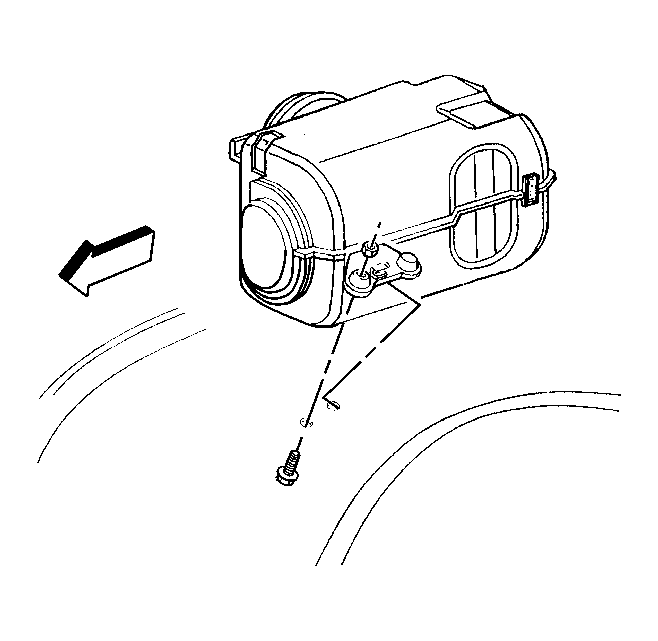

- Install the air cleaner assembly mounting bolts.
Tighten: Tighten the mounting bolts to 25 N.m (18 lb ft).
- Install the air cleaner filter with the inlet elbow attached.

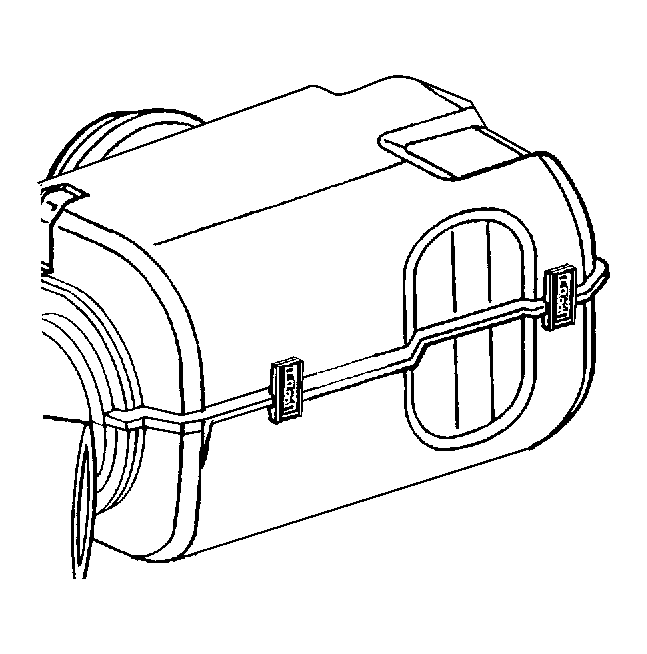

- Install the air cleaner cover to the housing and clip the air cleaner cover into place.
- Install the MAF sensor electrical connector (L56 only).

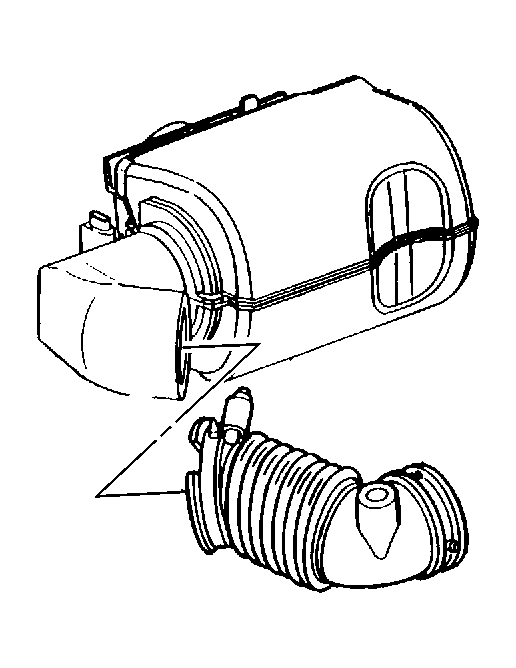

- Install the air cleaner inlet elbow to the turbocharger inlet elbow and tighten the clamp.
Tighten: Tighten the inlet elbow clamp to 5 N.m (44 lb in).
