1998 GMC Forward Control 7.4 BFACTORY OEM SERVICE PROCEDURE
Ignition Coil Test
- Turn ignition off. Remove engine cover. Disconnect distributor lead and wiring from ignition coil.

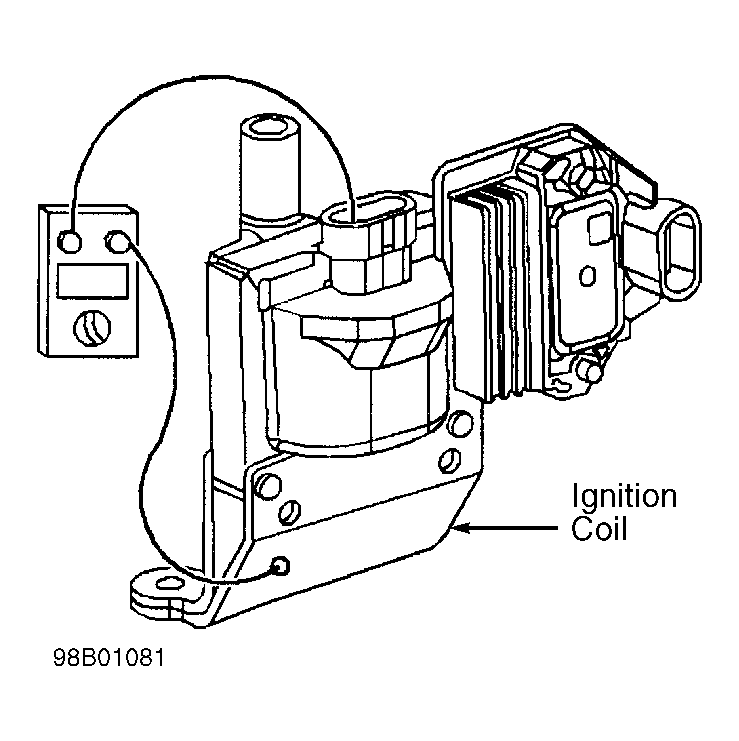

- Place DVOM on high scale. Connect DVOM as shown in step 1 of illustration. See Fig 1. If reading is not infinite, replace ignition coil.
- Place DVOM on low scale. Connect DVOM as shown in step 2 of illustration. See Fig 2. If reading is not 0.1 ohm, replace ignition coil.
- Place DVOM on high scale. Connect DVOM as shown in step 3 of illustration. See Fig 3. If reading is not 5000-25,000 ohms, replace ignition coil.
- Reconnect distributor lead and wiring to ignition coil. Install engine cover.
