Torque Converter End Play Check

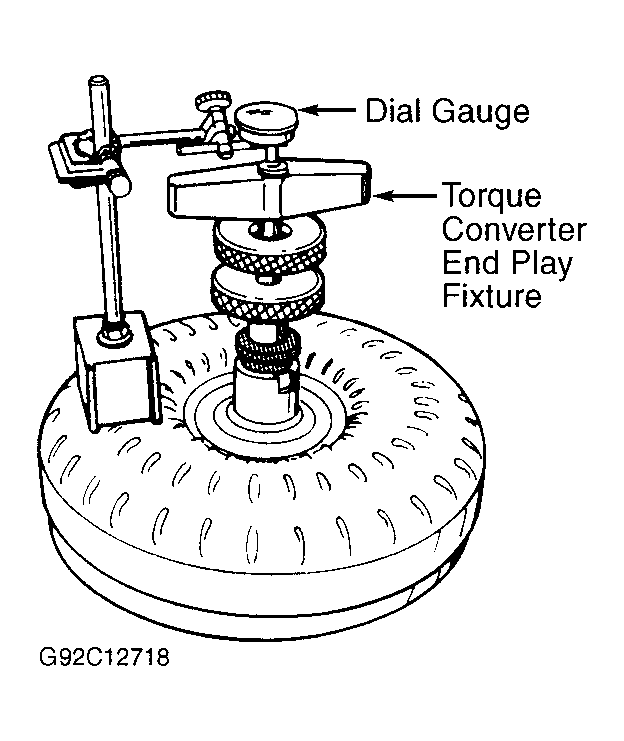

Mount Torque Converter End Play Fixture (J-39195) and Dial Gauge (J-8001) on torque converter to check end play. Push down on fixture handle to bottom stator. Zero dial gauge. Pull up on fixture handle and check reading. End play should be 0-.024" (0-0.60 mm). See Fig 1.
