1994 GMC Forward Control 7.4 NFACTORY OEM SERVICE PROCEDURE

Alignment Specifications

WHEEL ALIGNMENT SPECIFICATIONS

Application Preferred Range
Astro & Safari
Camber (1)(3)
2WD 0.8 0.3-1.3
4WD 0.89 0.49-1.29
Caster (1)(3)
2WD 2.7 2.2-3.2
4WD 2.0 1.5-2.5
Toe-In (2)
2WD 0.1 (2.5) 0.05-0.15 (1.5-4)
4WD - 0.05 (- 1.5) - 0.1-0 (- 2.5-0)
Commercial Van (3)(4), "S" & "T" Series Pickup, Blazer, Bravada, Jimmy & Sonoma
Camber (1)(3) 0.8 1.3
Caster (1)(3) 2 1.5-2.5
Toe-In (2) 0.15 (4) 0.1-0.2 (2.5-5)
Van
Camber (1) 0.5 0-1
Caster (1) (5) (5) ±0.05
Toe-In (2) 0 (0) - 0.05 to 0.05 (- 1.5 to 1.5)
(1) Measurement in degrees.
(2) Measurement in inches (mm).
(3) Left and right adjustments must be within 0.5 degree of each other.
(4) See Fig 1-5 for caster, camber and toe-in specifications.
(5) See Fig 7 for caster, camber and toe-in specifications.

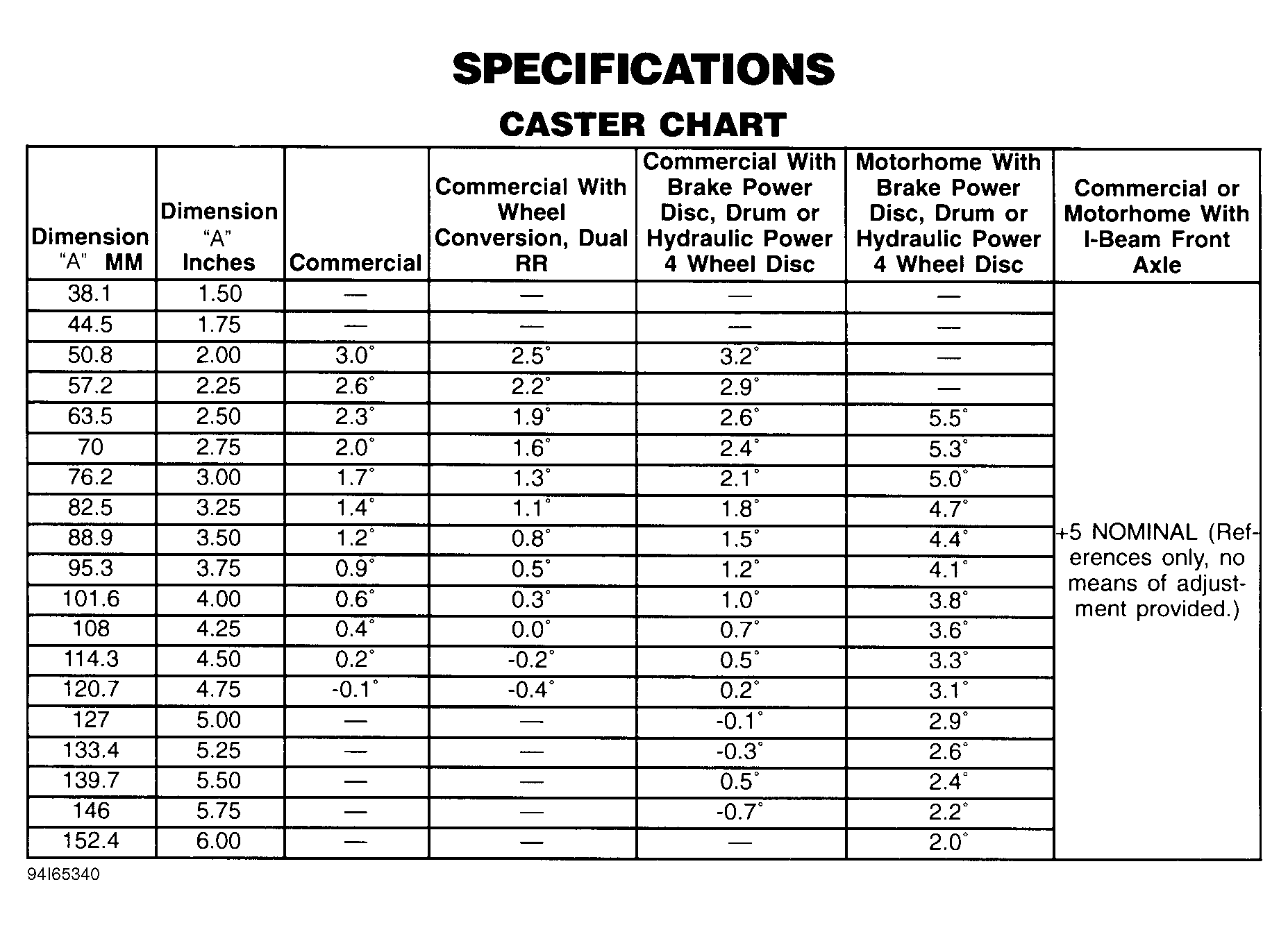

Fig 1: Caster Specifications (Commercial Van)
G94I65340Courtesy of GENERAL MOTORS CORP.
