1992 GMC Yukon AutomaticFACTORY OEM SERVICE PROCEDURE
Door Module: Installation

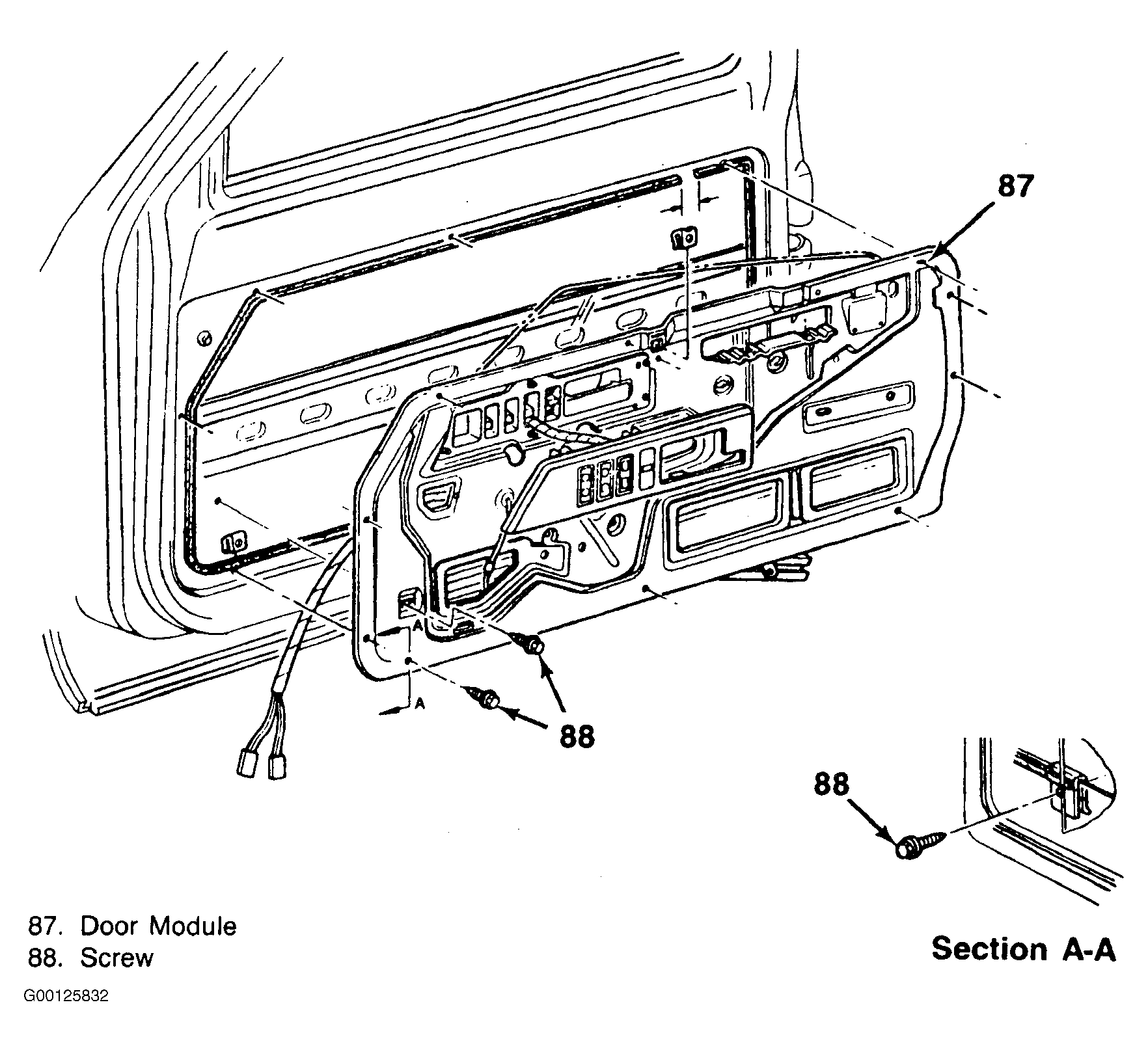

- Install module and glass assembly into the door. See Fig 1 . Fit the glass into the rear channel in the door.
- Install upper run channel bolt and tighten it.
- Connect lock and handle rods to the back of the module.
- Connect wiring connector, if present. Pull the wiring through the boot and connect it inside the door hinge pillar.
- Install new water deflector. See WATER DEFLECTOR/INNER DOOR PANEL .
- Install top front and the top rear module screws.
- Install module to door screws.
- Install lower run channel bolt.
- Install door trim panel. See DOOR TRIM PANEL .
