1992 GMC Value Van 5.7 K, AutomaticFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor (TPS)

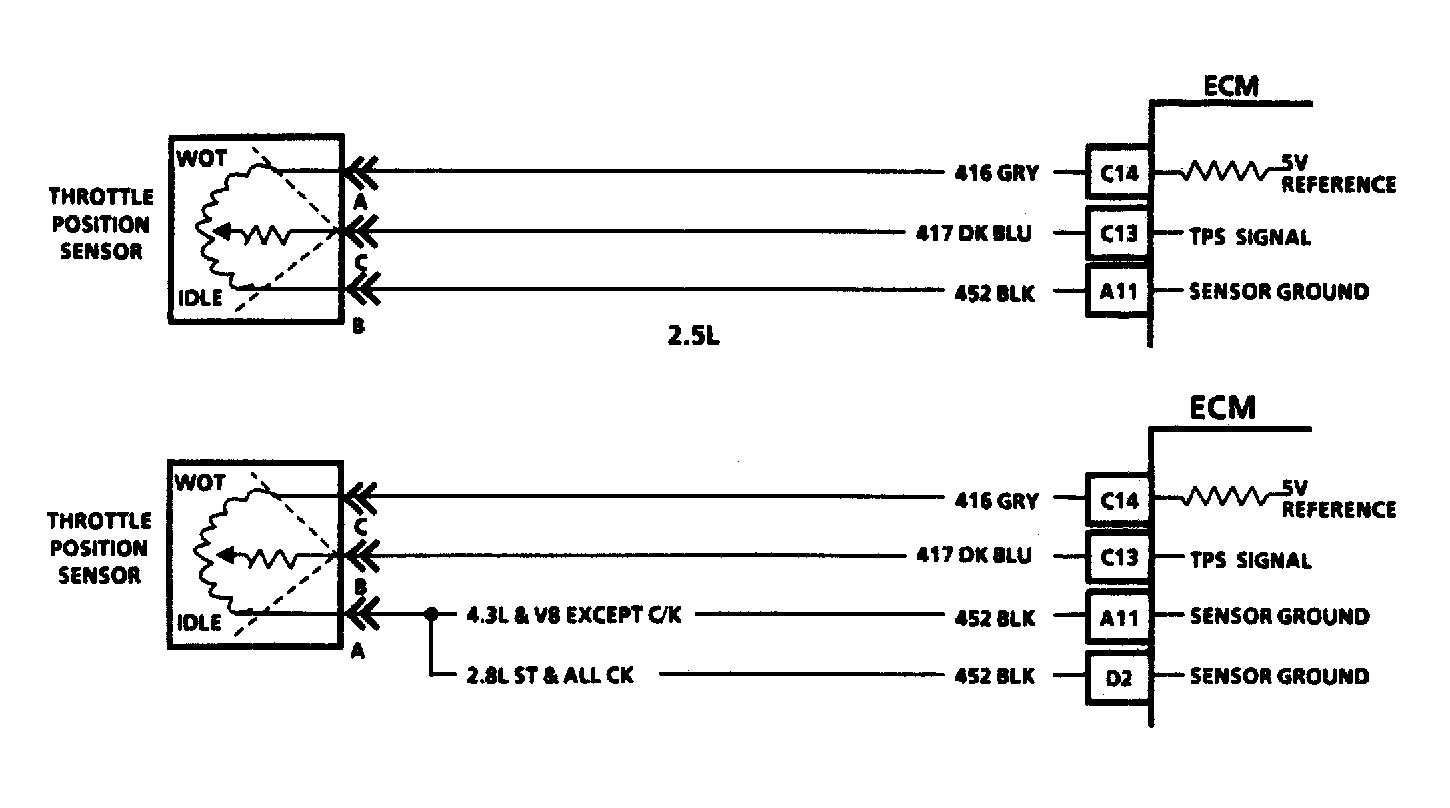

- Install jumper wires to enable connection of a DVOM in parallel between TPS harness connectors. Connect DVOM positive lead to Dark Blue wire terminal. Connect negative lead to Black wire terminal. See Fig 1.
- Turn ignition on, engine off. Signal voltage should gradually change from less than one volt at closed throttle to about 5.0 volts at wide open throttle position. If reading is not as specified, adjust or replace TPS. See ADJUSTMENTS article.
- A malfunction in the TPS circuit should set a related trouble code. For further information, see appropriate G - TESTS W/ CODES article. Also see appropriate TPS ADJUSTMENT in ADJUSTMENTS article.
