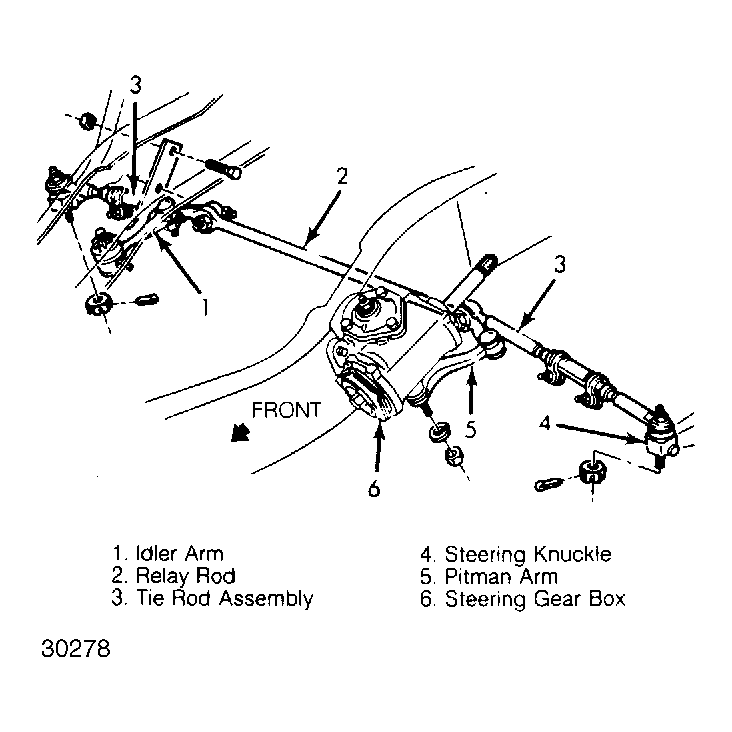

Steering Connecting Rod Replacement: Installation
To install, reverse removal procedure. Ensure threads on studs and nuts are clean and smooth. Check ball stud seals. Replace seals (if necessary). Inner and outer tie rod end threads must be installed equally within 3 threads. Install connecting rod on steering components. Tighten nuts. Install NEW cotter pins. Ensure connecting rod clamps are properly aligned.
