1989 GMC Forward Control 5.7 K, Automatic, 3L80/M40FACTORY OEM SERVICE PROCEDURE

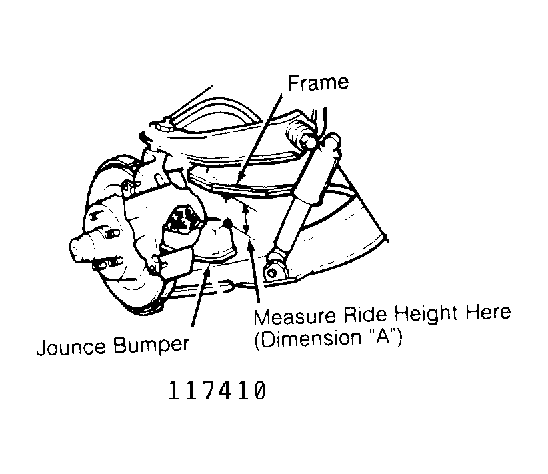

Riding Height Specifications
RIDING HEIGHT SPECIFICATIONS
| Application | (mm) | |||
|---|---|---|---|---|
| C/K Series | ||||
| "Z" Heights | 73.6 +/- 6.0 | |||
| "D" Heights | 182 +/- 6.0 | |||
| R/V & G/P (10-30 Series) | (1) | |||
| S/T Series | ||||
| "Z" Heights (S Series) | 73.0 +/- 6.0 | |||
| "Z" Heights (T Series) | 122.0 +/- 6.0 | |||
| "D" Heights | 170/0 +/- 6.0 | |||
| Astro/Safari | ||||
| "Z" Heights | 80.0 +/- 6.0 | |||
| "D" Heights (1988) | 150.0 +/- 15 | |||
| "D" Heights (1989) | 135.0 +/- 6.0 | |||
|
||||
