1984 GMC Value Van P3500, 6.2 J, StandardFACTORY OEM SERVICE PROCEDURE

Diagnostic Circuit Check Test

Diagnostic Circuit Check determines if: 1) the ECM is operating and can recognize a fault, and 2) if any faults exist. This is the starting point for any diagnosis. If no faults are indicated, go to the Diesel Diagnostic Check Tester Check.

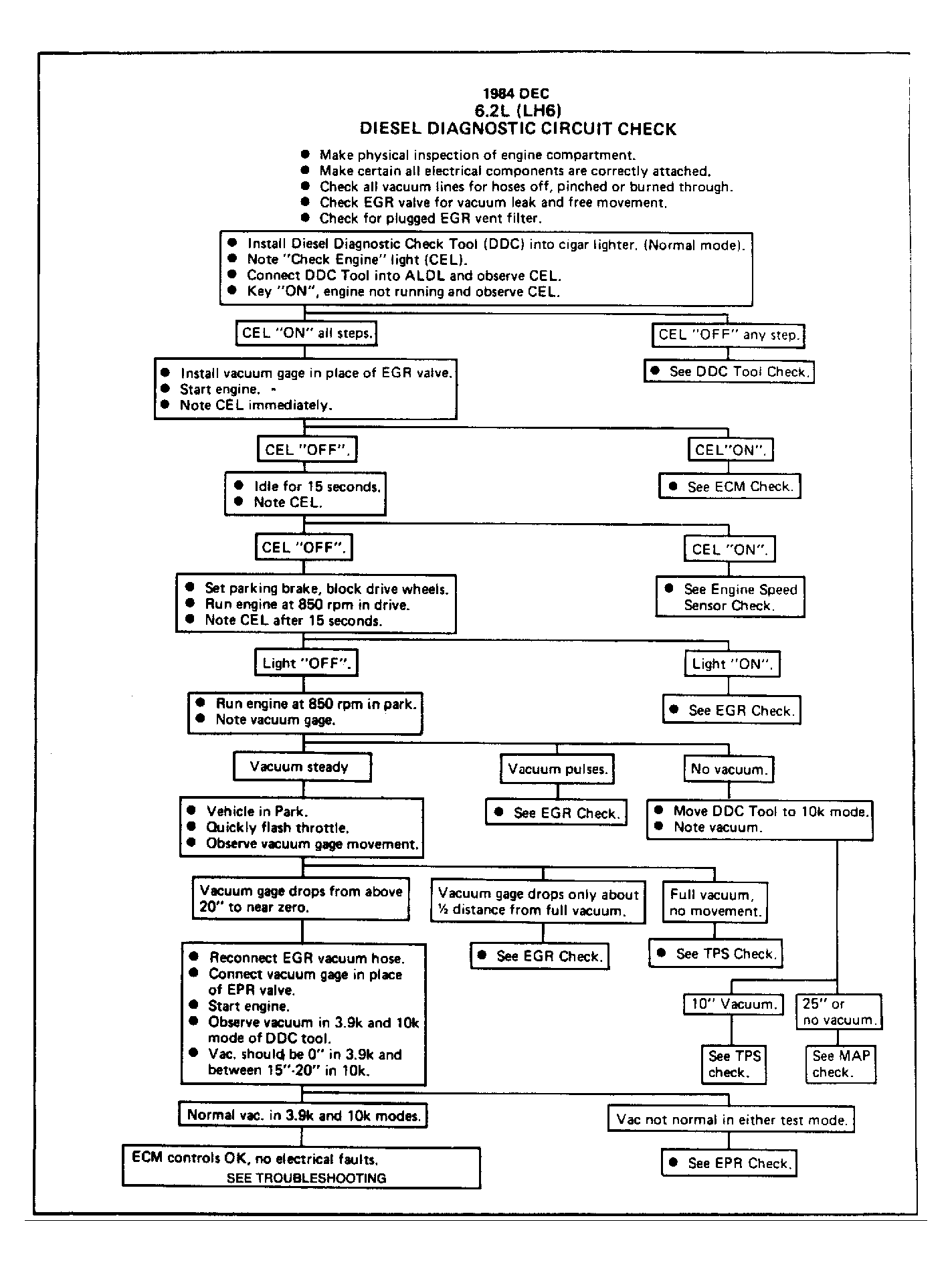

Fig 1: Diagnostic Circuit Check Flow Chart
