1983 GMC Forward Control 5.7 M, StandardFACTORY OEM SERVICE PROCEDURE

Engine Will Not Start

NOTE: If engine is difficult to start or misses, check position of battery terminal connector at distributor cap. Terminal must be inserted on side of connector opposite hold-down clip.
  1. Connect voltmeter between battery terminal lead on distributor connector and ground. Turn ignition switch on. If voltage is zero, check system for open circuit.
  2. If reading is battery voltage, connect a modified spark plug (plug that has ground electrode cut off) to center brush contact in distributor cap.
  3. Crank engine. If spark occurs, trouble is not in ignition system. Check fuel system, spark plugs and wires for trouble. If sparking does not occur, follow procedures under System Testing or Component Testing. See Fig 1.

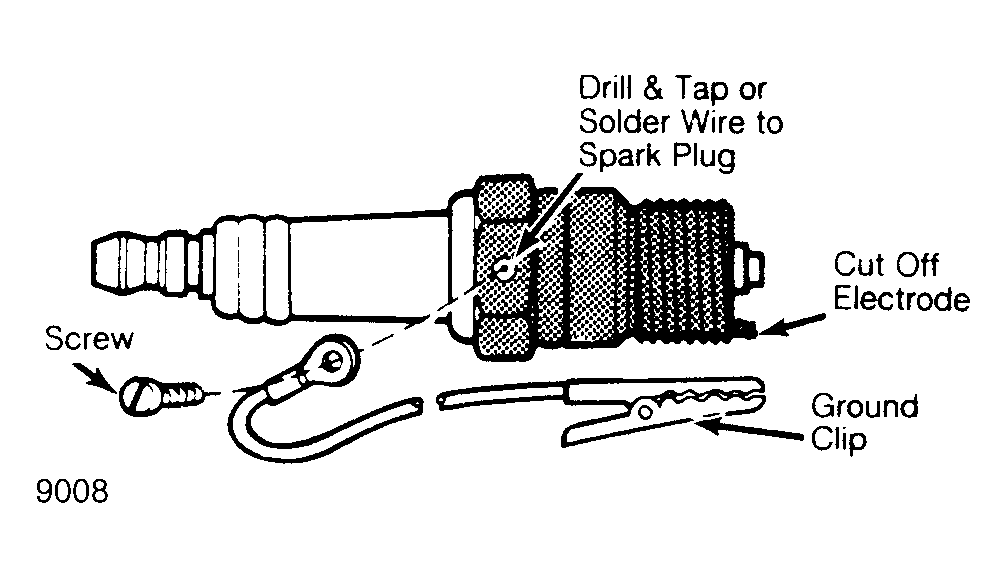

Fig 1: Modifying Spark Plug for Testing A commercial spark tester may also be used.
G9008
