1974 GMC MagnavanFACTORY OEM SERVICE PROCEDURE

Amplifier Unit: Reassembly

Reverse disassembly procedure and coat both sides of flat insulators used between transistors and heat sink, and transistor mounting side of heat sink with silicone grease.

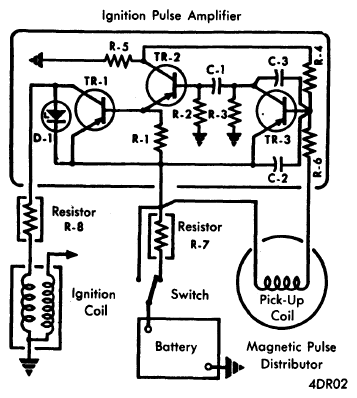

Fig 1: TRANSISTOR IGNITION AMPLIFIER CIRCUIT

Courtesy of GENERAL MOTORS COMPANY
