2024 Ford Expedition TimberlineFACTORY OEM SERVICE PROCEDURE
Transfer Case Control Module (TCCM): Removal

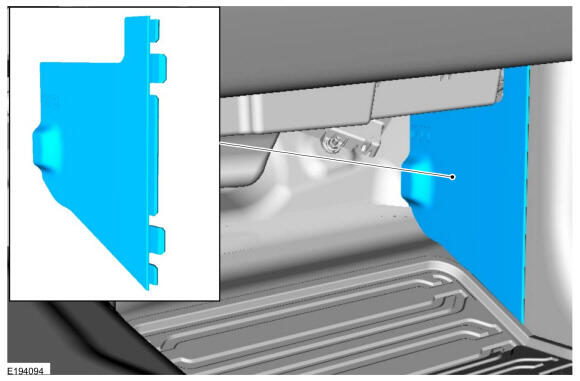

- Remove the CJB cover.

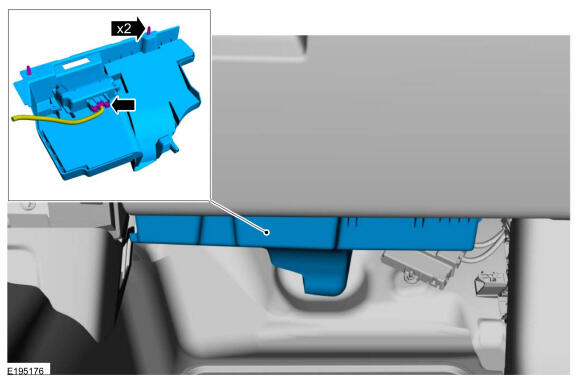

- Remove and disconnect the lower access panel.
-
NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.

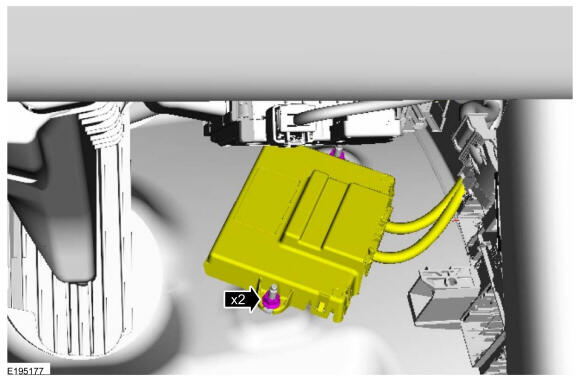

Loosen the LH (Left-hand) TCCM nut and remove the RH (right-hand) TCCM nut.
Torque: 7 Nm

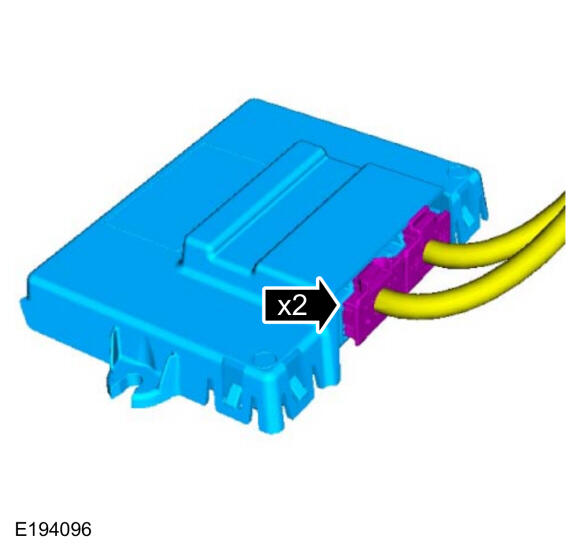

- Disconnect the electrical connectors and remove the TCCM.
