Steering Column: Installation
All vehiclesÂ
- To install, reverse the removal procedure.
- Repower the SRS. Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) REPOWERING
.
Vehicles with power adjustable steering columnÂ

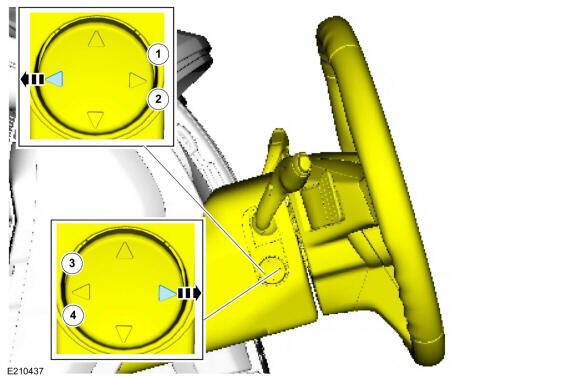

NOTE: This step is only necessary when installing a new component. - If a new memory steering column has been installed, use the steering column control switch and set the soft stops as follows.
- Move the column upward until it reaches the end of travel.
- Move the column in the same direction until it reaches the end of travel again.
- Move the column downward until it reaches the end of travel.
- Move the column in the same direction until it reaches the end of travel again.

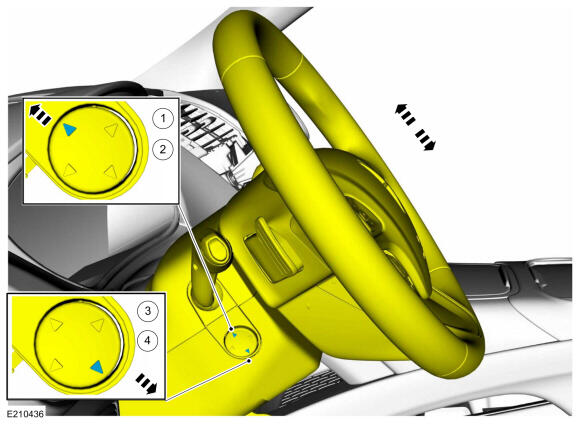

- If a new memory steering column has been installed, use the steering column control switch and set the soft stops as follows.
- Move the column rearward until it reaches the end of travel.
- Move the column in the same direction until it reaches the end of travel again.
- Move the column forward until it reaches the end of travel.
- Move the column in the same direction until it reaches the end of travel again.
