Gateway Module
The GWM is mounted under the driver side instrument panel. The OBD connector is fitted to the GWM. The GWM acts as a central gateway to translate messages across all 5 vehicle Controller Area Networks (CANs). The GWM is the only module on the vehicle with this ability. The GWM also serves as a termination module for each of the networks to which it is connected.

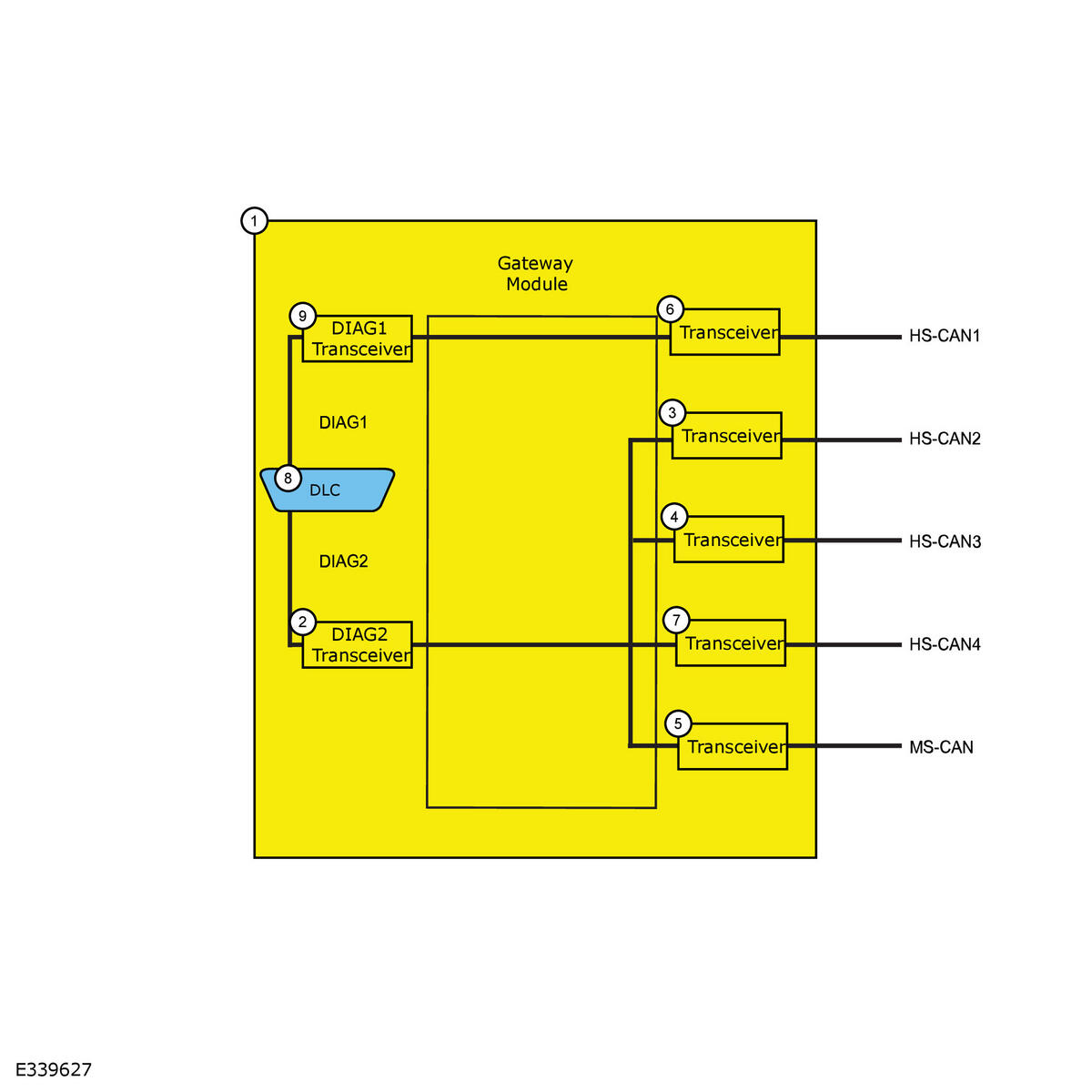

The 2 module communication networks connected to the DLC are DIAG1 and DIAG2. These 2 networks communicate directly with the diagnostic scan tool. The other 5 communication networks do not communicate directly with the diagnostic scan tool. The GWM translates the messages from the HS-CAN1 to DIAG1. The GWM translates messages from the HS-CAN2, HS-CAN3, HS-CAN4 and MS-CAN to DIAG2 which transfers the signals to the diagnostic scan tool.
| Item | Description |
|---|---|
| 1 | GWM |
| 2 | DIAG2 Transceiver |
| 3 | Transceiver |
| 4 | Transceiver |
| 5 | Transceiver |
| 6 | Transceiver |
| 7 | Transceiver |
| 8 | DLC |
| 9 | DIAG1 Transceiver |
