Steering Column Collapsed Check
For information on Ford Color Coded Illustrations refer to: OEM COLOR CODING
Inspection

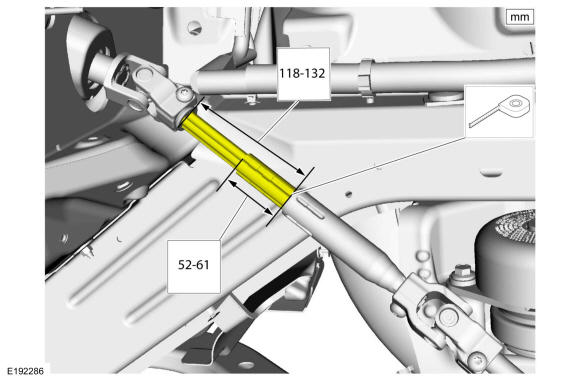

Left hand drive
- With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.

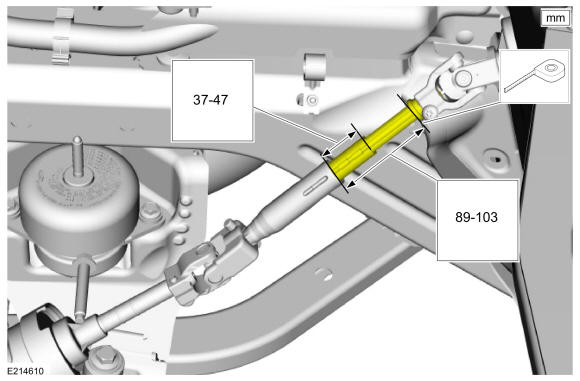

Right hand drive
- With the steering system fully assembled, measure the lengths of the lower shaft. If either length is out of range, discard the lower shaft and install a new one. Do not attempt to repair the shaft.
