2021 Ford GTFACTORY OEM SERVICE PROCEDURE
Gear Shift Module (GSM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the floor console. Refer to: Floor Console .
- Remove the screws and the cupholder.

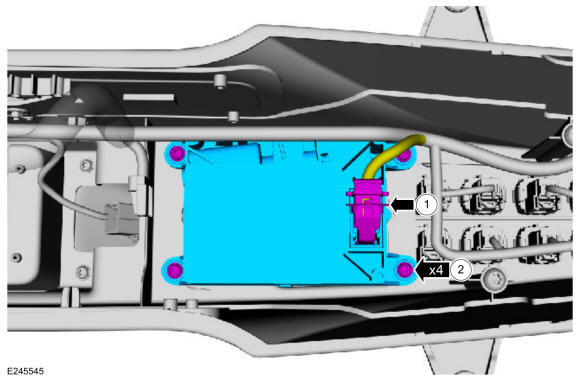

- Remove the GSM
- Disconnect the electrical connector.
- Remove the bolts and the GSM.
Torque: 89 lb.in (10 Nm)
