2021 Ford GTFACTORY OEM SERVICE PROCEDURE
Engine Front Cover: Installation

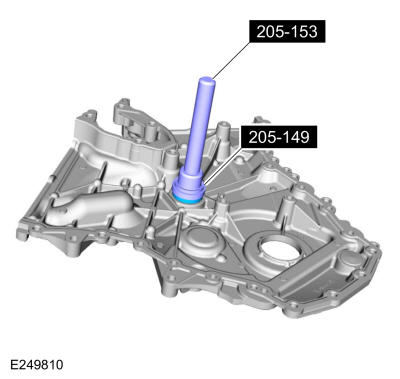

- Using the special tools, install the engine front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.
-
NOTE: The use of alignment pins will aid in the installation of the engine front cover.

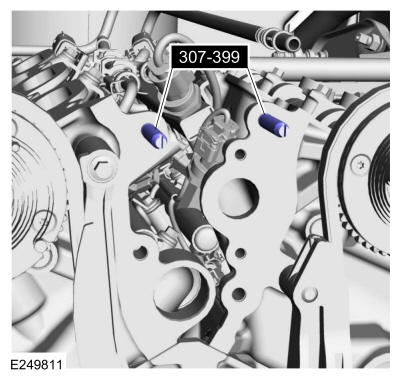

Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
-
-
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
-
